User Manual for Pyle Pro PS900 Audio Processor Power Sequencer with 9 Outputs Click to enlarge the picture
Contents of the user manual for the Pyle Pro PS900 Audio Processor Power
- Product category: Power Distributors & Conditioners Pyle Pro
- Brand: Pyle Pro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pyle Pro Power Distributors & Conditioners
 |
User manual for the Pyle Pro PS900 Audio Processor Power contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pyle Pro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pyle Pro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pyle Pro product will considerably shorten its lifespan!
|

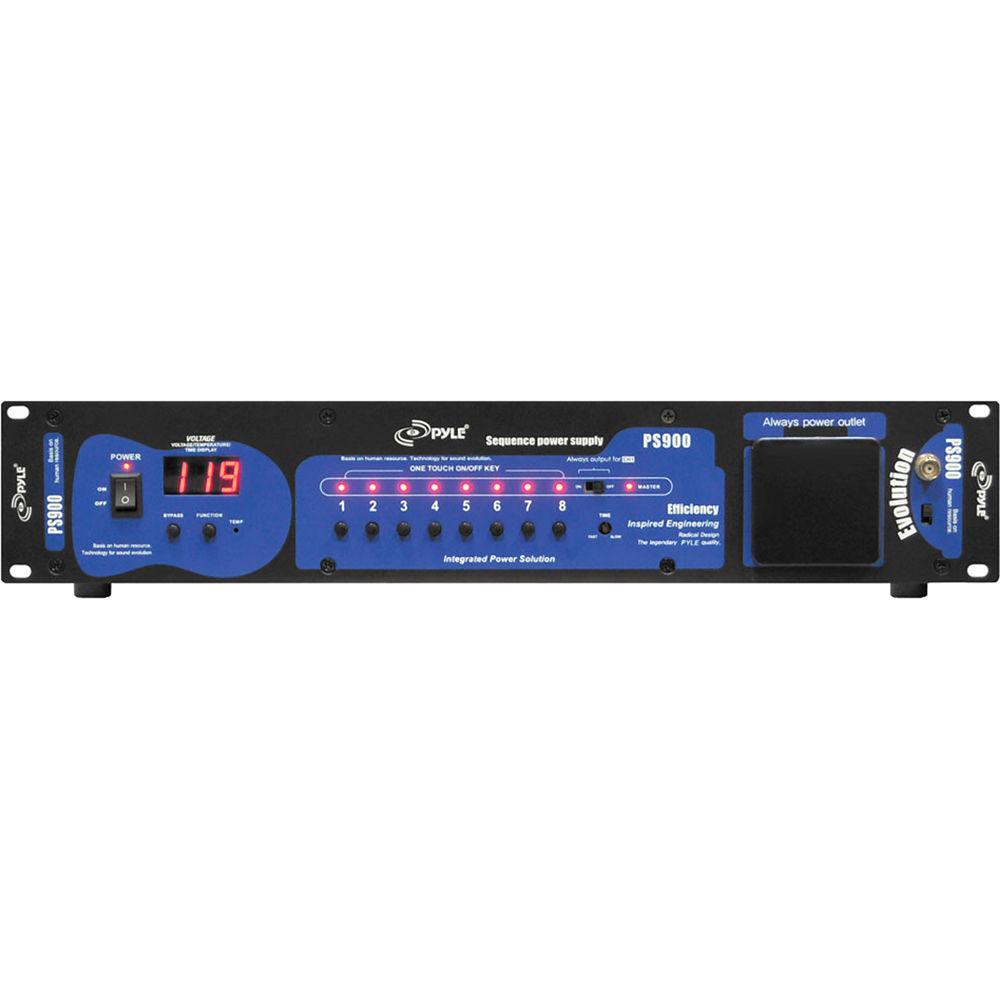

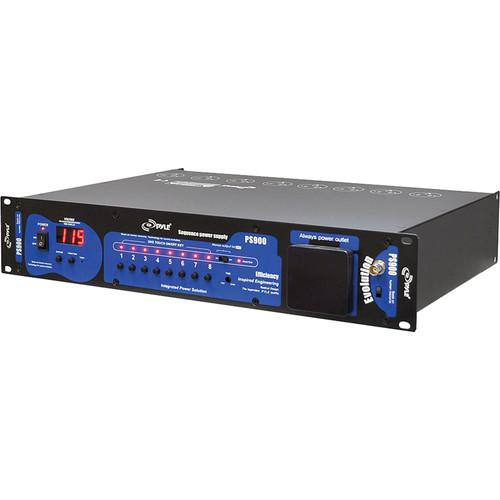

Product description The Pyle Pro PS900 Audio Processor Power Sequencer with 9 Outputs features a built-in microcontroller for precise electrical timing. This unit filters and provides refined AC power with built-in two stage EMI processing technology for each output. It also includes 8 outputs with universal and American standard power jacks located on the rear panel, 4-Pin S-Video link connector, temperature monitoring in real time, and the ability to link multiple units with automatic master unit display. The display shows real-time status of the AC voltage level, ambient temperature, wiring, and ground status. It also features a 7-segment display for step time, LEDs cover outputs, master, bypass, power, voltage, and sequence. - Supplies refined AC power with two-stage high insert dissipation
- Microcontroller unit ensures precise timing
- Built-in two stage EMI filter for each output (on rear panel)
- AC voltage, ambient temperature, and step time display
- Can link multiple units with automatic master unit display
- Selectable step time and real time display
- Output cut switch for all nine channels
- Monitors AC voltage in real time
- Display shows wiring and ground status
- LEDs displays output cut, master, bypass, power, AC voltage, and temperature
- Step time display in 7 segment LED
- Monitors ambient temperature in real time
- One constant power jack output un-switched on front panel

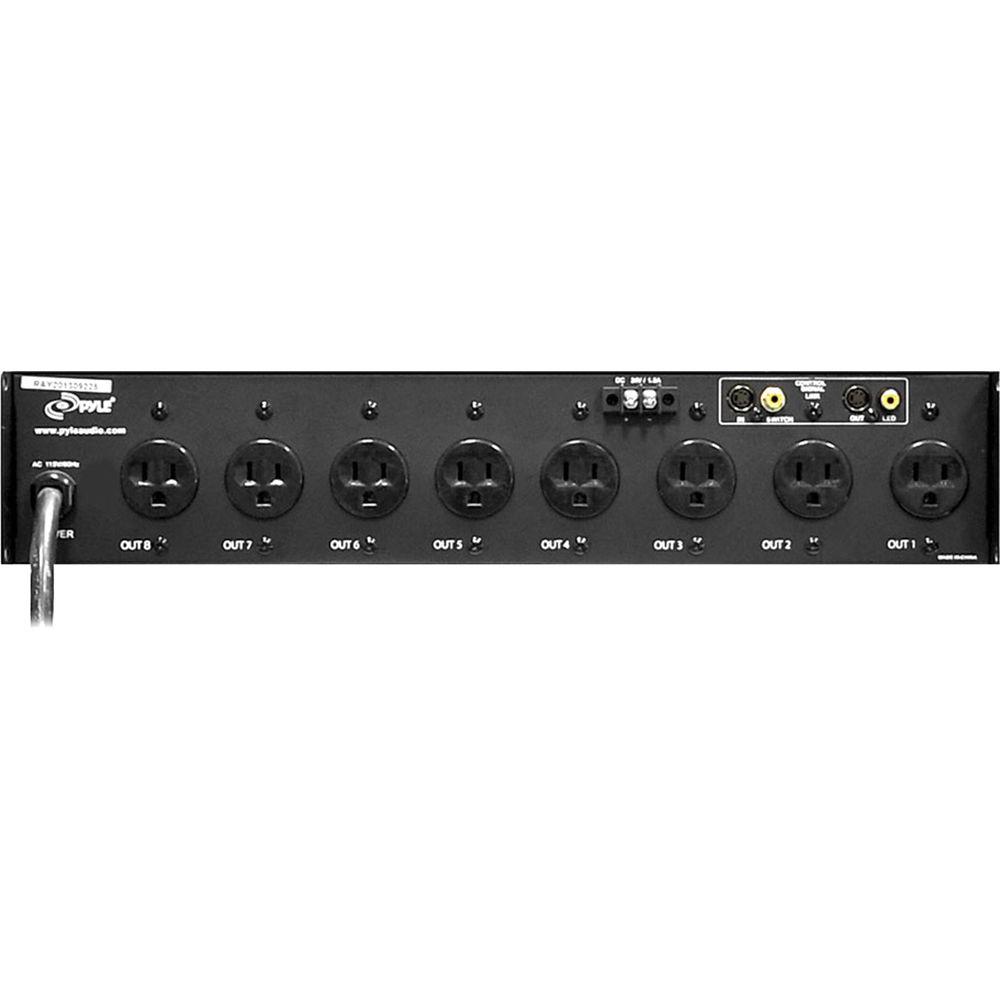

- 8-channel output with American standard power jacks on rear panel
UPC: 068888750769 In the Box Pyle Pro PS900 Audio Processor Power Sequencer with 9 Outputs Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pyle Pro PS900 Audio Processor Power Sequencer with 9 Outputs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPyle Pro PS900 Specs | Link Connector | 4-Pin S-Video | | Outputs | 2 x 12 VAC / 4 A and 1 x 24 VDC / 1.5 A | | Maximum Output Current | Maximum: 10 A (AC) | | Maximum Output Voltage | 275 VAC | | Output Power | 2200 W | | Switch | Sequence Switch Time: 2 sec | | Dimensions | 22.8 x 18.1 x 5.1" (57.9 x 45.9 x 12.9 cm) | | Weight | 18.9 lb (8.6 kg) | | | | Box Dimensions (LxWxH) | 21.75 x 17.75 x 6.75" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 14 owners. Add your rating and experience with the product.
