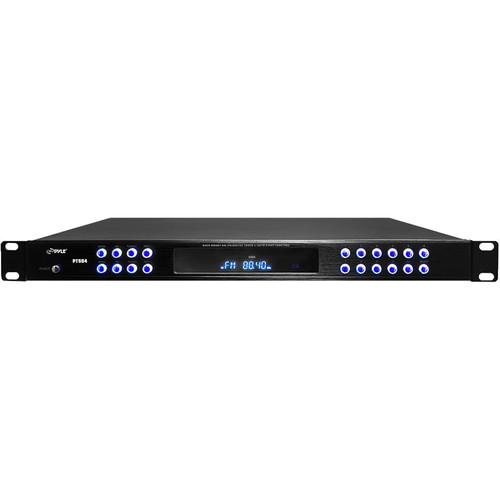

User Manual for Pyle Pro PT504 AM FM Digital Tuner w Alarm Clock Click to enlarge the picture
Contents of the user manual for the Pyle Pro PT504 AM FM Digital
- Product category: Tuners & A/V Receivers Pyle Pro
- Brand: Pyle Pro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pyle Pro Tuners & A/V Receivers
|
User manual for the Pyle Pro PT504 AM FM Digital contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pyle Pro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pyle Pro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pyle Pro product will considerably shorten its lifespan!
|
Product description The Pyle PT504 AM/ FM Digital Tuner w/ Alarm Clock is a great way to add an AM/FM tuner to your home audio or video system. It's only 1.6 inches high and its black aluminum case will blend right in with your other equipment. It looks and works equally well on the shelf or mounted in a standard 19 inch equipment rack with its included rack ears. The PT054's microprocessor brain makes operation easy and its vacuum fluorescent display makes it easy to see what you're doing. Among the functions of the wireless remote are setting on and off times so you can fall asleep and wakeup to music (or talk) from any station within range, including any of the 60 available station presets. The PT504 has RCA L/R outputs to connect it to your existing amplifier, from which you can control its volume. - 60 AM/FM Station Presets
- You can preset up to a total 60 stations in any combination of AM and FM stations.
- Vacuum Fluorescent Display
- An attractive VFD provides you with all of the information you need to operate your PT504.
- Full Function Remote Control
- You can turn the PT504 on and off, change stations and change bands (AM or FM) all with the included remote control.
- Rack Ears Included
- A pair of rack ears is included so you can mount the PT504 in a standard 19" audio/electronics rack.
- AM/PM Clock Display With On and OFF Times
- You can set the receiver to turn off when you want it to and to start when you want it to. And you can choose whether or not to display the time of day on the display.
UPC: 068888896566 In the Box Pyle Pro PT504 AM/ FM Digital Tuner w/ Alarm Clock Remote Control 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pyle Pro PT504 AM FM Digital Tuner w Alarm Clock in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPyle Pro PT504 Specs | | | Coverage | FM: 87.5 – 108 MHz
AM: 530 – 1620 KHz | | Controls | Power
Enter
Menu Selector
Tuning+
Tuning-
Prev
Next
AM/FM | | Preset | 60 AM/FM Presets | | Antenna | 300 Ohm Input For AM
75 Ohm Input For FM | | Tuning | Manual or Auto Search, Direct Entry, Preset | | Display | Vacuum Fluorescent | | | | Input | None | | Output | Stereo (L/R RCA Jack) x 1 Pair | | | | Power Requirements | 115 V AC 60 Hz, 230 V AC 50 Hz (Switch Selectable) | | Dimensions (WxHxD) | 19 x 1.6 x 9.4" (482.6 x 40.64 x 238.6 mm) | | Weight | 3.5 lb (1.59 kg) | | | | Package Weight | 5.1 lb | | Box Dimensions (LxWxH) | 19.8 x 12.3 x 3.5" |
