User Manual for Pyle Pro PT6000CH 6-Channel Receiver with Bluetooth

Click to enlarge the picture
Pyle Pro PT6000CH 6-Channel Receiver with Bluetooth Contents of the user manual for the Pyle Pro PT6000CH 6-Channel Receiver with
  • Product category: Receivers Pyle Pro
  • Brand: Pyle Pro
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Pyle Pro Receivers

Pyle Pro PT6000CH 6-Channel Receiver with Bluetooth Pyle Pro PT6000CH 6-Channel Receiver with Bluetooth Pyle Pro PT6000CH 6-Channel Receiver with Bluetooth Pyle Pro PT6000CH 6-Channel Receiver with Bluetooth
User manual for the Pyle Pro PT6000CH 6-Channel Receiver with contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Pyle Pro product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Pyle Pro user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Pyle Pro product will considerably shorten its lifespan!



Product description

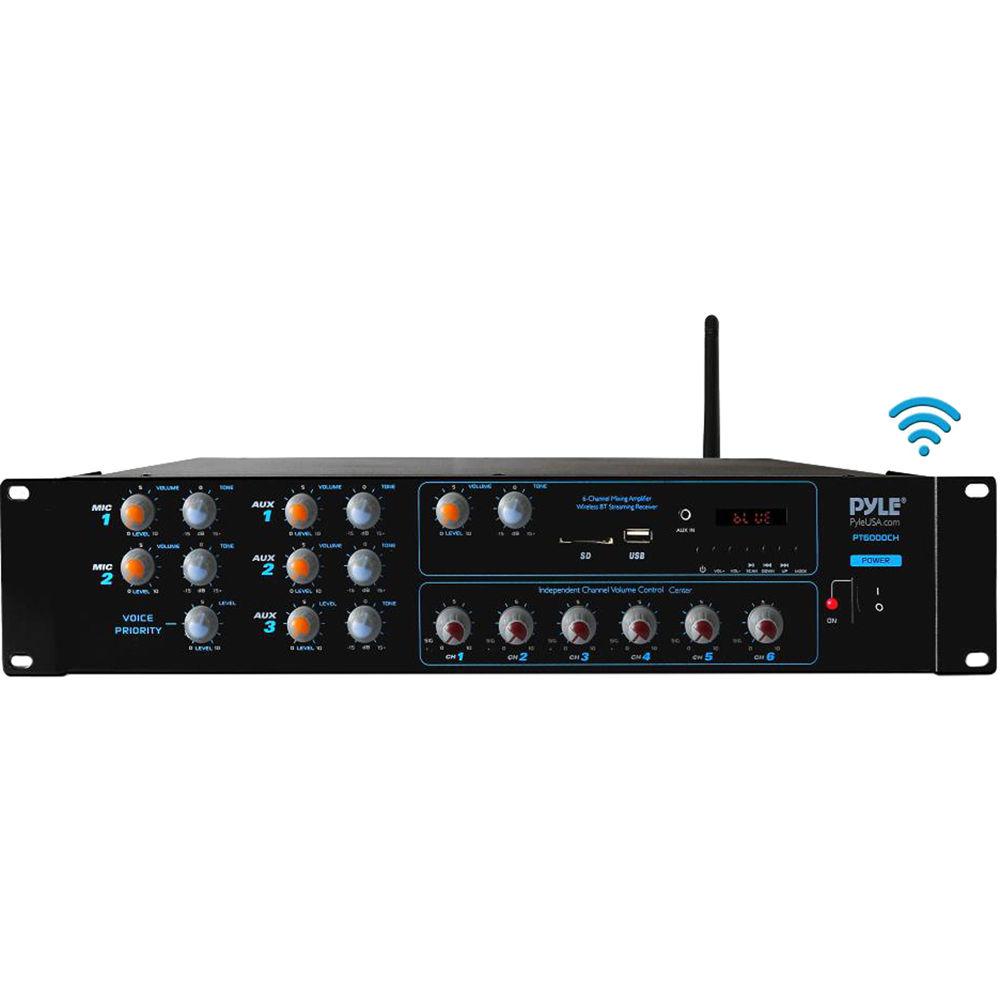

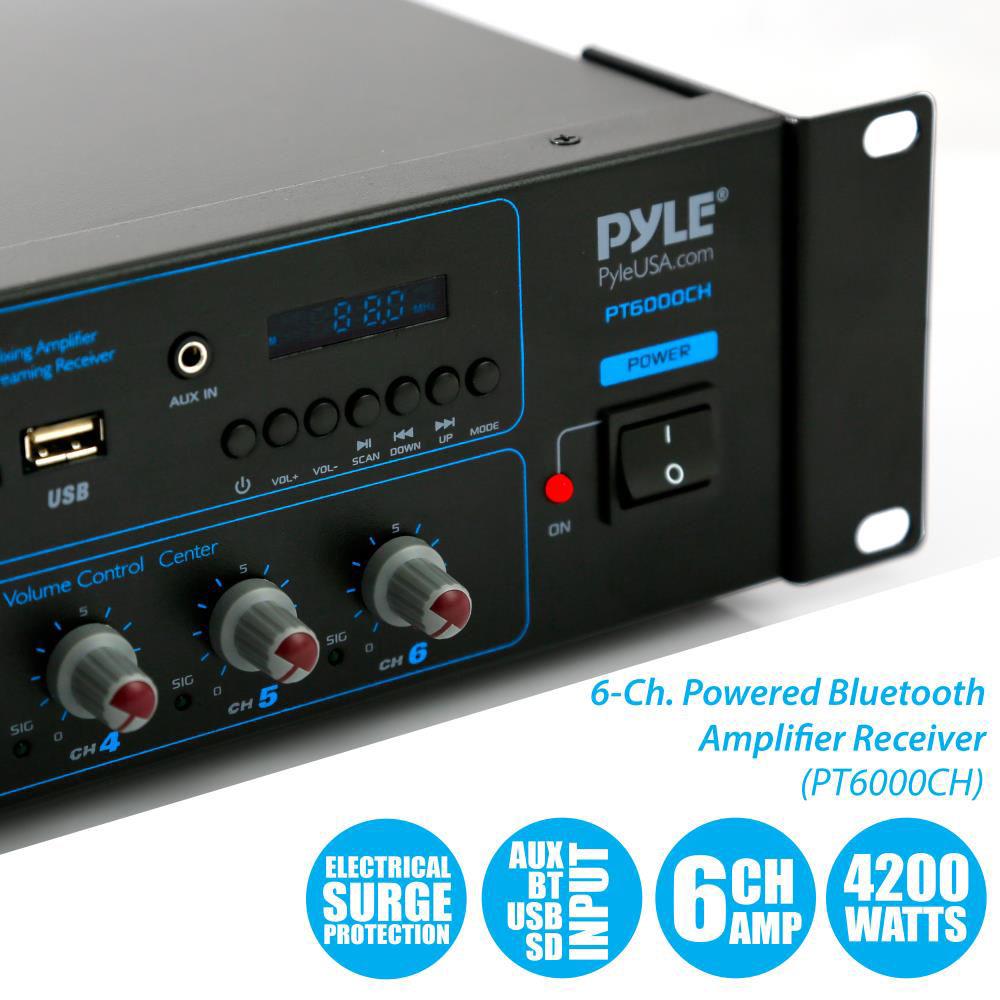

Enjoy music from your wired and Bluetooth-capable devices with the Pyle Pro PT6000CH 6-Channel Receiver. This receiver produces up to 4200W of RMS power and is equipped with Bluetooth connectivity, allowing you to wirelessly stream music from compatible audio sources such as computers, smartphones, and tablets. With six speaker outputs, you can have music playing throughout your store of office. A USB reader and SD card slot are also onboard, along with three stereo RCA inputs, a 3.5mm aux input, and two 1/4" microphone inputs. The integrated FM tuner allows you to enjoy free over-the-air content and store up to 30 stations.
    • Microphone talk-over with voice priority function
    • Front-panel audio control center with digital LCD
    • USB flash drive & SD memory card readers with MP3 & WMA support
    • USB port doubles as device charge port
    • Adjustable treble, bass, master volume, echo, and mic volume
    • Short circuit & over-voltage protection
    • LED indicator lights

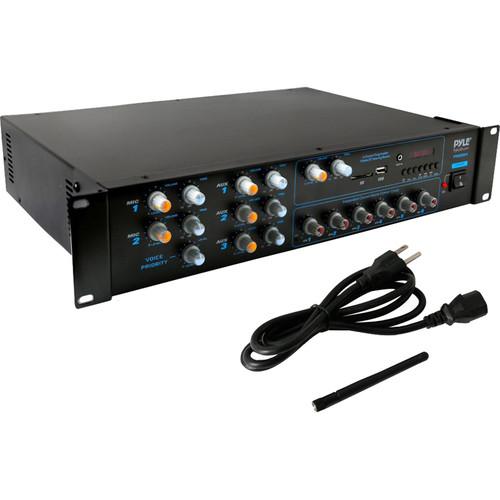

UPC: 068888766043 In the Box Pyle Pro PT6000CH 6-Channel Receiver with Bluetooth
  • Antenna
  • Power Cable
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Pyle Pro PT6000CH 6-Channel Receiver with Bluetooth in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Pyle Pro PT6000CH Specs

    RMS Power Output 6 x 350 W @ 8 Ohms
    Maximum Power Output 6 x 700 W @ 4 Ohms
    Frequency Response 20 Hz to 20 kHz
    Signal-to-Noise Ratio ≥81 dB
    Total Harmonic Distortion <0.1%
    Tuner Type FM
    Presets 30
    Bluetooth Version 4.0
    Bluetooth Range Up to 30' / 9.1 m

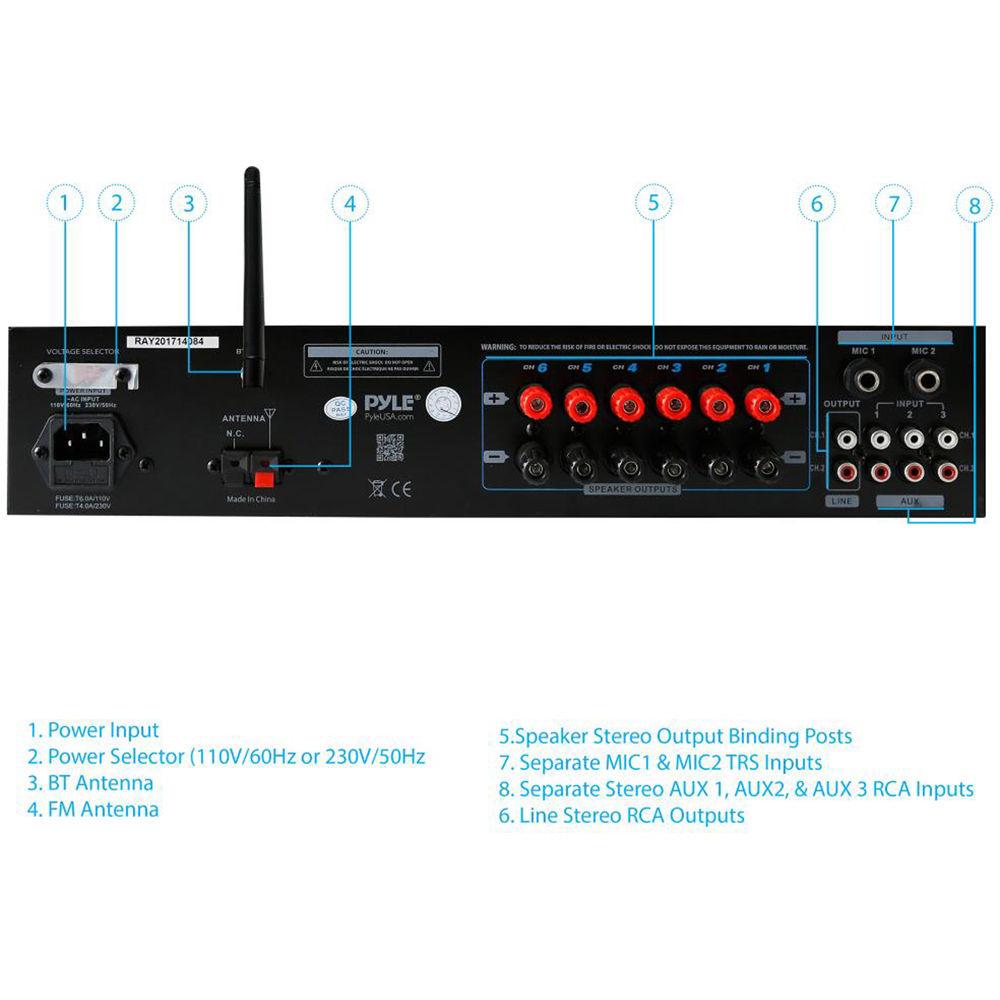

    Inputs 3 x Stereo RCA
    2 x 1/4" / 6.35 mm Microphone (Front)
    1 x 1/8" / 3.5 mm Aux (Front)
    Output 1 x Stereo RCA
    Memory Card Slot 1 x SDXC
    Other Connectors 1 x USB Type-A (Front)
    Speaker Connectors 6 x Binding Post Pairs
    Supported File Formats MP3, WMA
    Flash Memory Capacity USB, SDXC: 64 GB
    Power Requirements 110 to 240 VAC, 50/60 Hz
    Dimensions (W x H x D) 16.9 x 3.4 x 11.5" / 42.93 x 8.64 x 29.21 cm
    Weight 18.07 lb / 8.2 kg
    Package Weight 27.65 lb
    Box Dimensions (LxWxH) 22.2 x 16.8 x 7.8"
