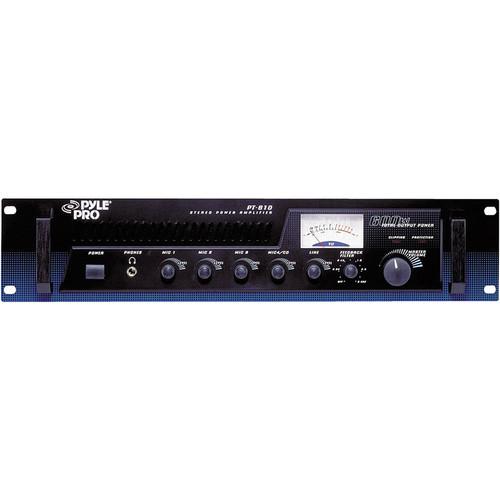

User Manual for Pyle Pro PT610 Power Amplifier Mixer Click to enlarge the picture
Contents of the user manual for the Pyle Pro PT610 Power Amplifier Mixer
- Product category: Mixer/Amplifiers Pyle Pro
- Brand: Pyle Pro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pyle Pro Mixer/Amplifiers
|
User manual for the Pyle Pro PT610 Power Amplifier Mixer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pyle Pro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pyle Pro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pyle Pro product will considerably shorten its lifespan!
|
Product description The Pyle Pro PT610 Power Amplifier/Mixer is a powerful and versatile 5-channel amplifier ideal for use with live bands, public announcement systems, office paging systems and other applications. It features 4 XLR/1/4" combo input jacks, 2 RCA line inputs, and a mic/line switchable RCA input. An illuminated VU meter allows you to keep an eye on audio levels and a headphone output allows private listening. The PT610 also has individual volume controls for each of the input sources to allow easy and precise adjustment. Thermal overload protection and a clip circuit are also built in to protect against overload damage. - A 5-channel power amplifier and mixer combination with 600 watts per channel at 4 Ohms
- For live bands, PA systems, etc.
- 4 XLR/1/4" combo inputs, 2 RCA line inputs, and a mic/line switchable RCA input
- Can also input CD player or equalizer
- Individual volume controls
- Protection circuitry helps prevent overload damage
UPC: 068888708616 In the Box Pyle Pro PT610 Power Amplifier/Mixer 5-Year Limited Warranty User Manual PDF 183.4kbsuzbsqbfcwcqz Table of Contents
|
Upload User Manual
Have you got an user manual for the Pyle Pro PT610 Power Amplifier Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPyle Pro PT610 Specs | Output Power | 200W into 8 ohms
600W into 4 ohms | | Total Harmonic Distortion (THD) | Mic: 0.35%
CD: 0.20%
Line: 0.20% | | Frequency Response | Mic: 75Hz - 20kHz
CD: 60Hz - 20kHz
Line: 60Hz - 20kHz | | Input Sensitivity | Mic: 1 mV
CD: 150 mV
Line: 150 mV | | Signal to Noise Ratio | Mic: 60dB
CD: 73dB
Line: 73dB | | Inputs | 4 x XLR/1/4" Combo Jacks
2 x RCA Line Inputs
1 x Mic/Line Switchable RCA
1 x Effects Loop RCA | | Outputs | 1 x Effects Loop RCA
Screw Terminals (4 ohm, 8 ohm, 16 ohm, and 70V)
1 x 1/4" Headphone | | Power Requirements | 120VAC, 60Hz | | Dimensions (HxWxD) | 4.2 x 19 x 12" (100 x 483 x 306 mm) | | Weight | 22.3 lbs (10.1kg) | | | | Package Weight | 21.5 lb | | Box Dimensions (LxWxH) | 21.5 x 15.3 x 8.0" |
