User Manual for Pyle Pro PWMA100 Wireless Portable Rechargeable PA System with Wireless Microphone Click to enlarge the picture
Contents of the user manual for the Pyle Pro PWMA100 Wireless Portable Rechargeable
- Product category: Portable PA Systems Pyle Pro
- Brand: Pyle Pro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pyle Pro Portable PA Systems
 |
User manual for the Pyle Pro PWMA100 Wireless Portable Rechargeable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pyle Pro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pyle Pro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pyle Pro product will considerably shorten its lifespan!
|

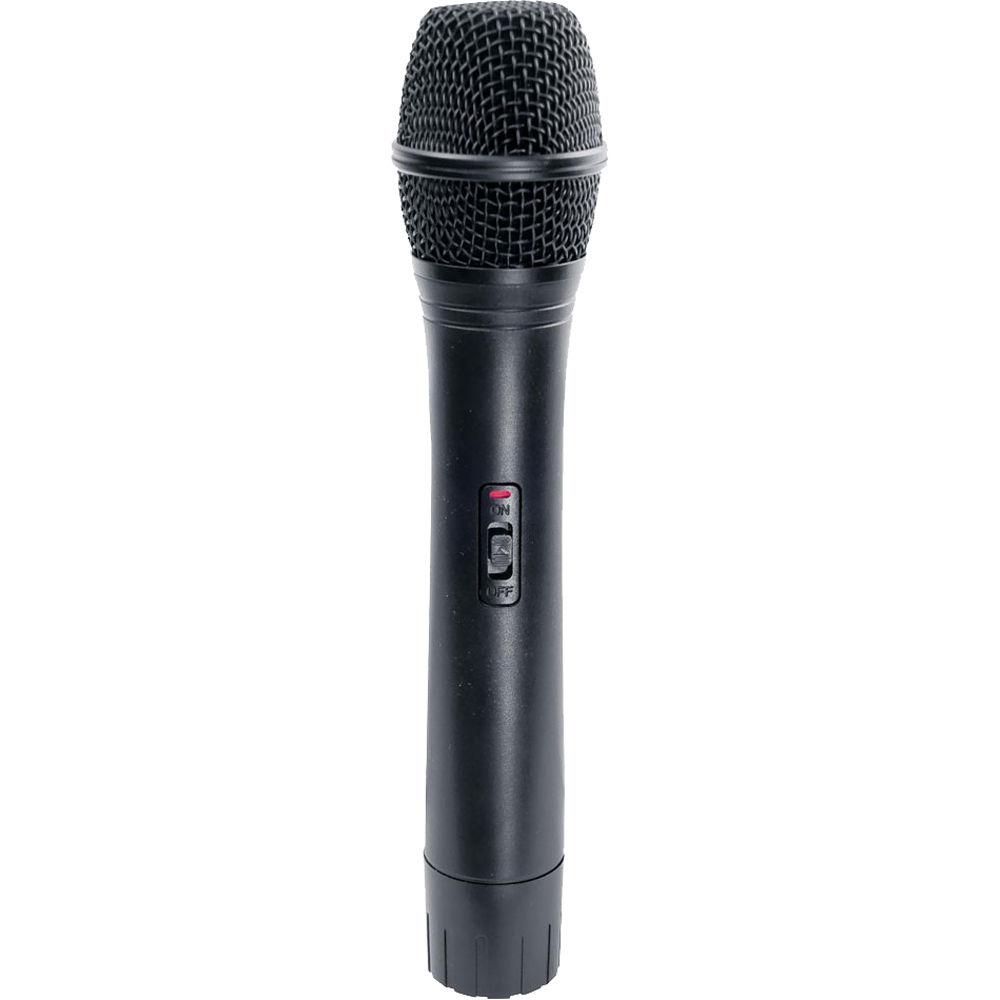

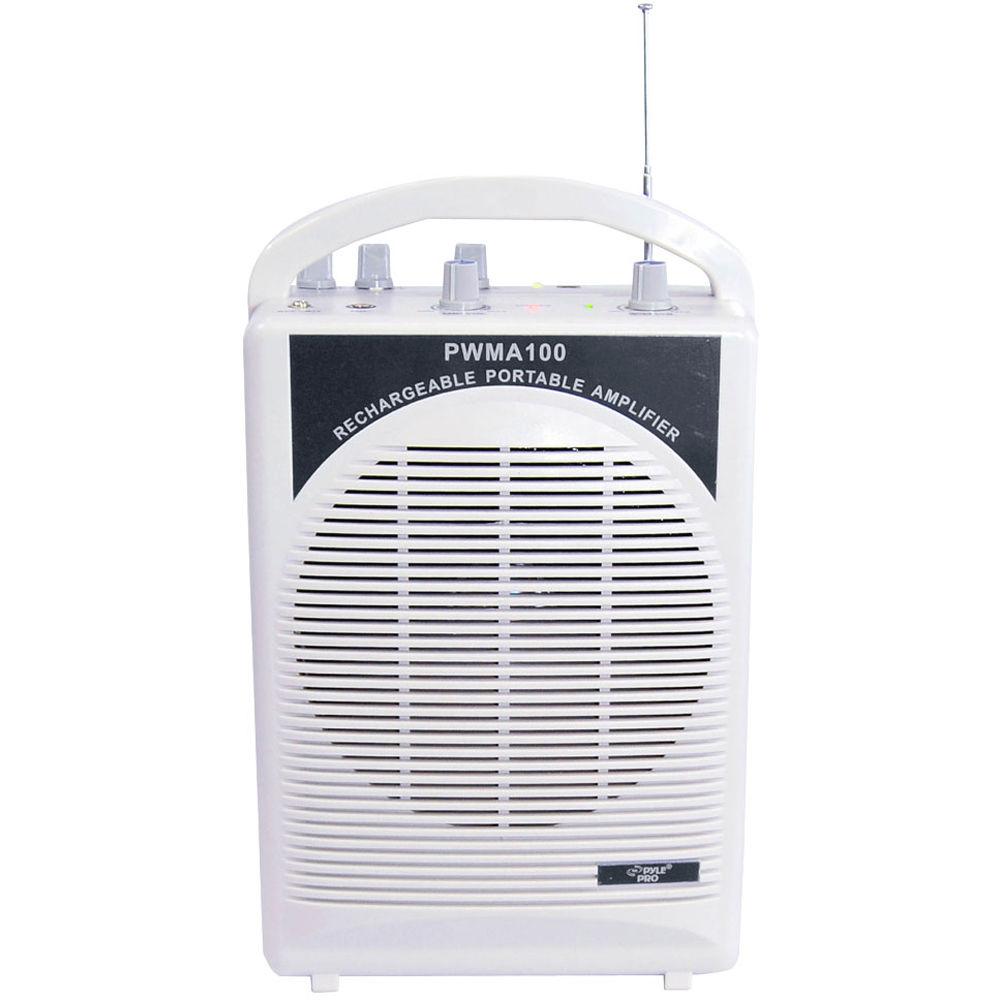

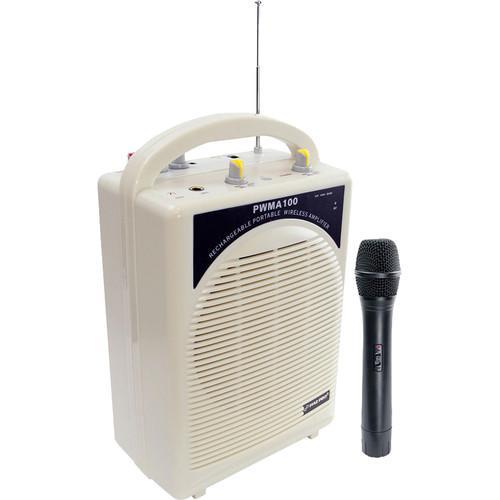

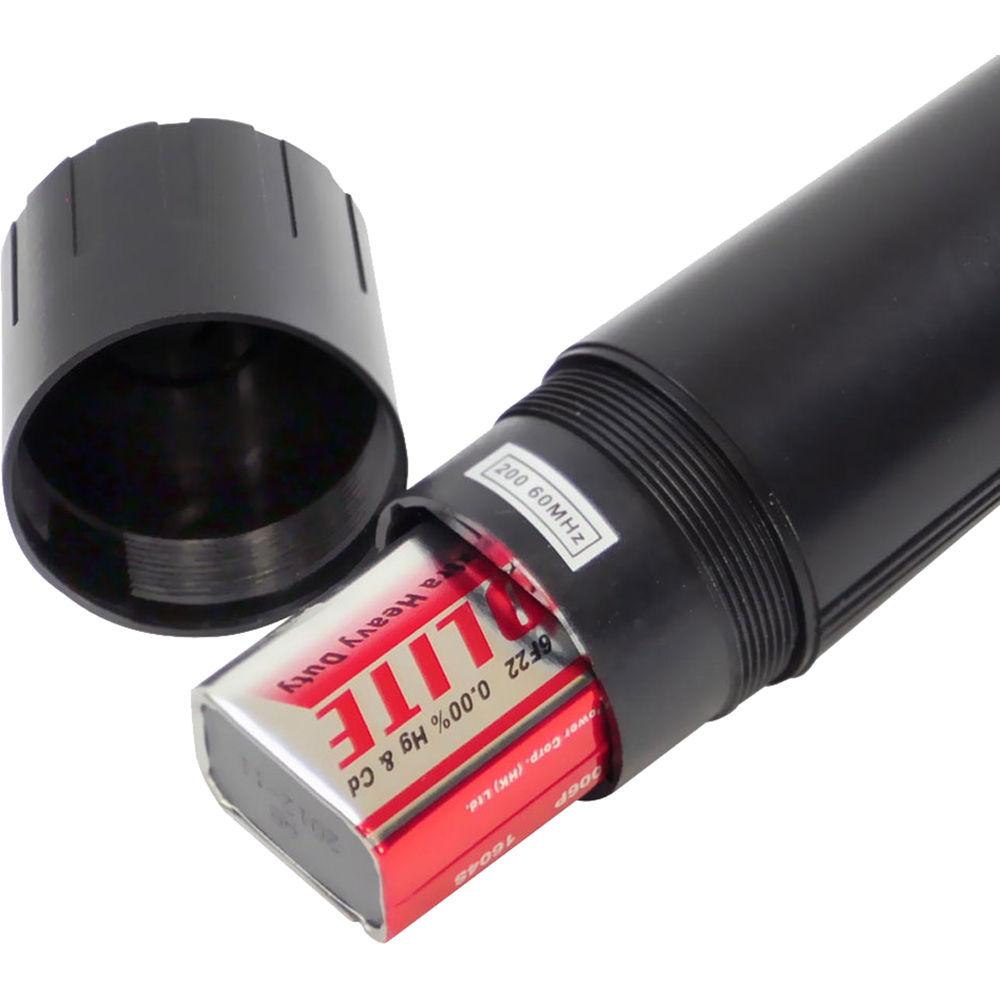

Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More ydsrecuuzabyzvedr The white PWMA100 Wireless Portable PA System from Pyle Pro is a rechargeable portable PA system, suitable for events where you need mobility and the same sound quality as a wired amplifier. The system includes an AC adapter for charging the amplifier, and a wireless handheld microphone. The amplifier is compact and lightweight for easy portability, and runs on the built-in rechargeable battery; the microphone requires a 9V battery (not included), and operates at a distance of up to 100'. The PWMA100 features an input jack for a wired microphone, and treble, bass, and echo controls that allow you to adjust the sound and add a voice affect. - Built-in single-channel VHF wireless receiver
- Separate wired microphone & wireless microphone volume controls
- Wireless handheld microphone included
UPC: 068888893664 In the Box Pyle Pro PWMA100 Wireless Portable Rechargeable PA System with Wireless Microphone (White, 80 W) Wireless Handheld Microphone AC Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pyle Pro PWMA100 Wireless Portable Rechargeable PA System with Wireless Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPyle Pro PWMA100 Specs | Power Output | 80 W | | Frequency Allocation | 215.50 MHz, 200.60 MHz, 212.60 MHz, 190.10 MHz, 214.20 MHz. 193.00 MHz | | Frequency Response | 200 Hz - 15 kHz | | Frequency Setting | Set 1: 201.15 MHz, 180.8 MHz
Set 2: 212.6 MHz, 190.1 MHz
Set 3: 214.2 MHz, 193.0 MHz
Set 4: 215.5 MHz, 174.8 MHz | | Dynamic Range | 80 dB | | Operating Range | Microphone: Up to 100' (30.5 m) | | Connectors | 1 x microphone input
1 x AUX input
1 x REC output

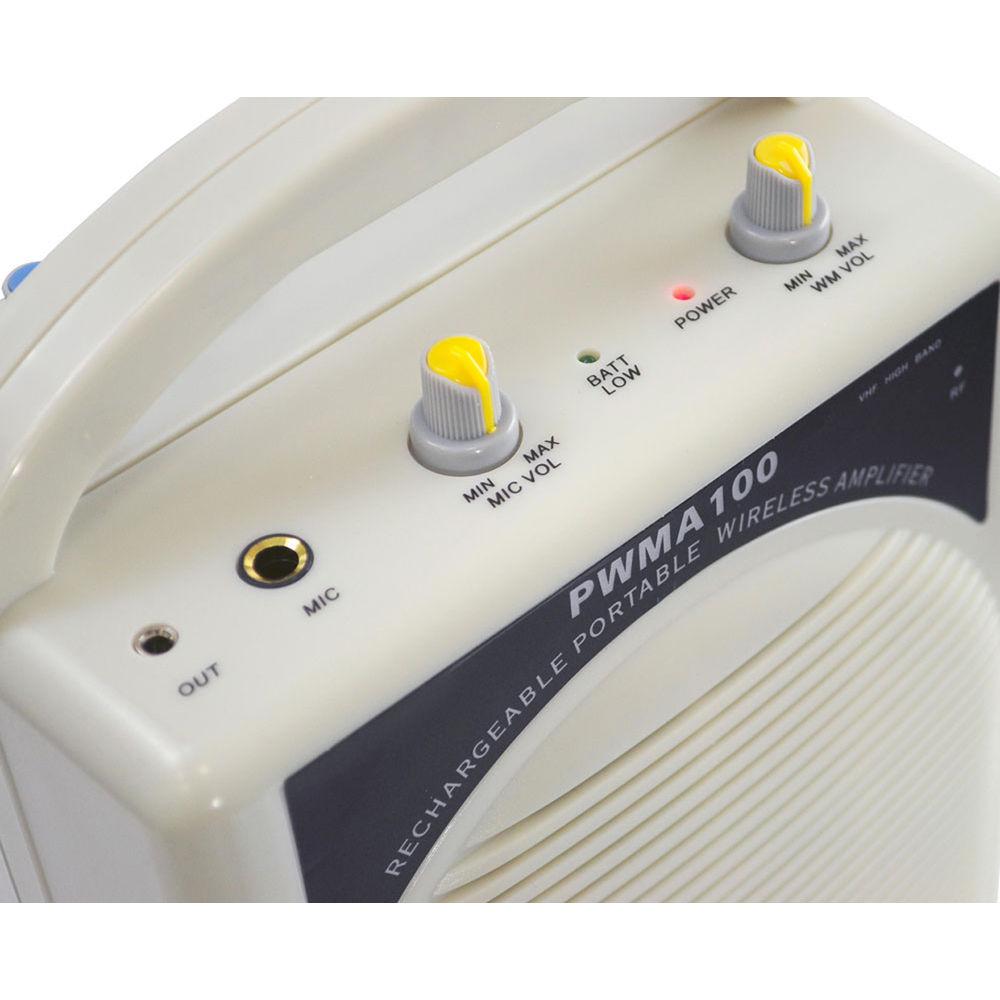

1 x DC power jack, 12 V power input | | Controls and Indicators | 1 x Dial, microphone volume
1 x Dial, wired microphone volume

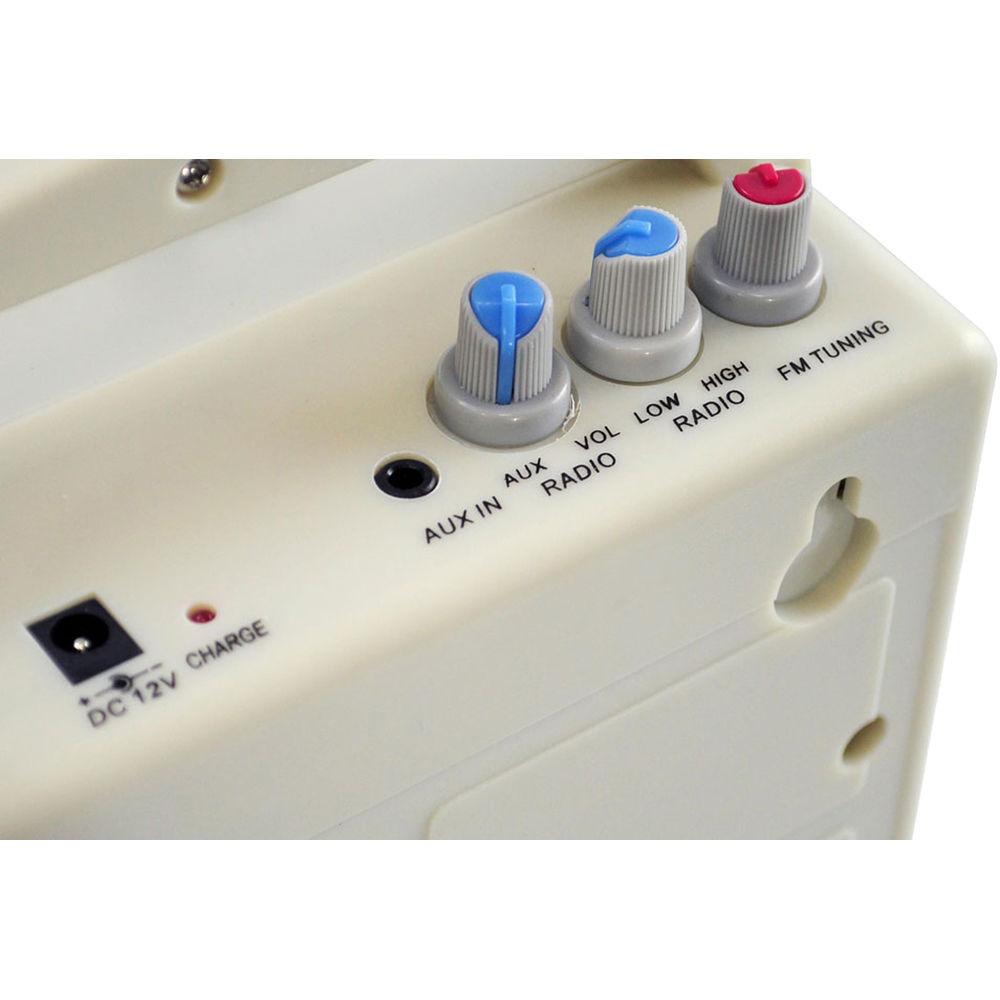

2 x Dial, radio
1 x Dial, FM tuning

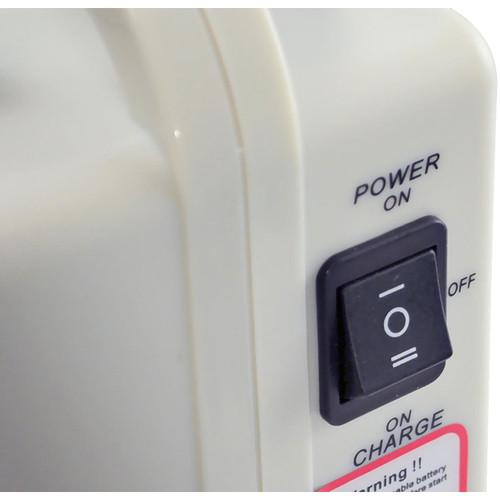

1 x Switch, power on/off
1 x LED, power
1 x LED, RF
1 x LED, charge | | Internal Battery | 12 V, 1.2 A rechargeable | | Battery Life | 5 - 8 hours | | Battery Charge Time | 3 - 4 hours | | Battery Requirement | Microphone: 1 x 9 V battery | | Power Supply | 120 VAC, 60 Hz
12 - 15 VDC for card plug charger, not included | | Dimensions | 6.9 x 4.3 x 9.7" (17.5 x 10.9 x 24.6 cm) | | Weight | 5.95 lb (2.7 kg) | | | | Package Weight | 6.15 lb | | Box Dimensions (LxWxH) | 12.7 x 10.4 x 6.4" |
