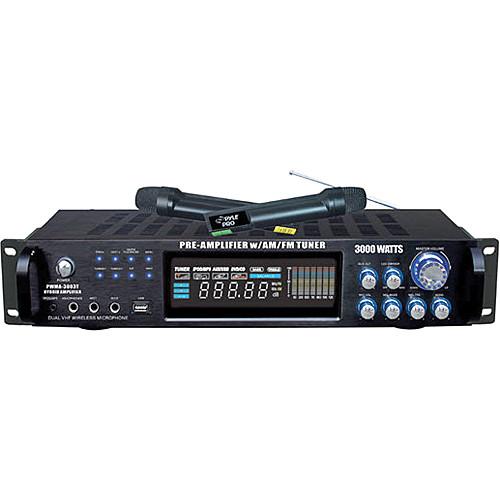

User Manual for Pyle Pro PWMA3003T Hybrid Stereo Receiver Amplifier with AM FM Tuner & 2 Wireless Microphones Click to enlarge the picture
Contents of the user manual for the Pyle Pro PWMA3003T Hybrid Stereo Receiver
- Product category: Tuners & A/V Receivers Pyle Pro
- Brand: Pyle Pro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pyle Pro Tuners & A/V Receivers
|
User manual for the Pyle Pro PWMA3003T Hybrid Stereo Receiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pyle Pro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pyle Pro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pyle Pro product will considerably shorten its lifespan!
|
Product description The 2RU PWMA3003T from Pyle Pro is a professional hybrid amplifier that includes an AM/FM quartz synthesized radio tuner. It can be used as a digital karaoke system, and includes two handheld wireless microphones. It also has an iPod/MP3 3.5mm input and an audio cable so you can connect your music player and sing along with your favorite tunes. It even features a USB port so you can connect a USB device and read music files directly.
The unit offers CPU management of all functions, and has a remote sensor for operation at a distance. The digital fluorescent output display makes it easy to see the status of all functions. It also has built-in circuitry to protect against overheating and current overload, and an operating voltage selector switch for worldwide use. - Rugged metal chassis can be mounted in a standard equipment rack
- Hybrid preamplifier with several audio I/O connectors; including dual RCA inputs, binding post outputs, and dedicated RCA Record and Preamp outputs
- Dedicated RCA subwoofer output with separate gain controls for preamp and subwoofer
- AM/FM quartz synthesized tuner with auto-seek and the ability to store 50 stations
- Includes a pair of handheld VHF high-band wireless microphones
- Stereo 3.5mm input with connection cable allows you to connect an MP3 player, CD player, or other portable media device
- Front-panel USB port lets you read audio files directly
- Front-panel headphone jack for private listening
- CPU management of all unit functions
- Remote sensor for wireless control
- Digital fluorescent output display shows vital information
- Integrated protection circuitry prevents overheating and current overloads
- Selectable operating voltage for worldwide use
UPC: 068888886413 In the Box Pyle Pro PWMA3003T Hybrid Stereo Receiver Amplifier with AM/FM Tuner & 2 Wireless Microphones (3000 W, 2 RU) 2 x Wireless Microphones Wireless Remote Control Power Cable 3.5mm to 3.5mm Cable for iPod/MP3 Player Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pyle Pro PWMA3003T Hybrid Stereo Receiver Amplifier with AM FM Tuner & 2 Wireless Microphones in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPyle Pro PWMA3003T Specs | Power Output | Peak: 3000 W
@ 2 ohms: 800 W
@ 4 ohms: 550 W
@ 8 ohms: 300 W | | Nominal Load Impedance | 8 ohms | | Input Sensitivity | CD/DVD Aux: 400 mV
Microphone: 6 mV | | Input Impedance | CD/DVD Aux: 33 kOhms
Microphone: 600 ohms | | Gain | Adjustable | | Frequency Response | 40 Hz to 15 kHz ±2 dB | | Signal-to-Noise Ratio | Pure Amplifier: 76 dB
Karaoke: 71 dB | | Total Harmonic Distortion (THD) | < 1% (1 kHz) | | Connectors | 2 x RCA, Audio input
1 x RCA, Record/Line output
1 x RCA, Preamplifier output
2 x RCA, Subwoofer output
2 x Pair of binding post terminals, Speaker output A
2 x Pair of binding post terminals, Speaker output B
1 x 1/8" (3.5 mm) phone jack, Aux input
1 x 1/4" (6.3 mm) phone jack, Headphone output
2 x 1/4" (6.3 mm) phone jack, Mic input
1 x USB port
1 x Power input | | Controls | 1 x Switch, Power
2 x Button, Radio Tuning
1 x Button, Prev
1 x Button, Next
1 x Button, AM/FM, Play/Pause
1 x Button, A/B Speaker Selector
1 x Button, Menu Control
1 x Button, Input Source Selector
1 x Dial, Master Volume
1 x Dial, Subwoofer Volume
1 x Dial, LED Dimmer
1 x Dial, Echo
1 x Dial, Mic Treble
1 x Dial, Mic Bass
1 x Dial, Mic Volume
1 x Switch, Voltage Selector | | Cooling | Fan Cooling | | Power Requirements | 110 - 220 VAC, 50/60 Hz | | Dimensions | 19 x 11.8 x 3.1" (483 x 300 x 80 mm) | | Weight | 18.3 lb (8.3 kg) | | | | Package Weight | 19.2 lb | | Box Dimensions (LxWxH) | 22.1 x 15.5 x 4.9" |
