User Manual for Pyle Pro PYD1964B - 4-Channel Rackmount DJ Mixer with Bluetooth and Digital Effects Click to enlarge the picture
Contents of the user manual for the Pyle Pro PYD1964B - 4-Channel Rackmount
- Product category: DJ Mixers Pyle Pro
- Brand: Pyle Pro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pyle Pro DJ Mixers
 |
User manual for the Pyle Pro PYD1964B - 4-Channel Rackmount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pyle Pro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pyle Pro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pyle Pro product will considerably shorten its lifespan!
|

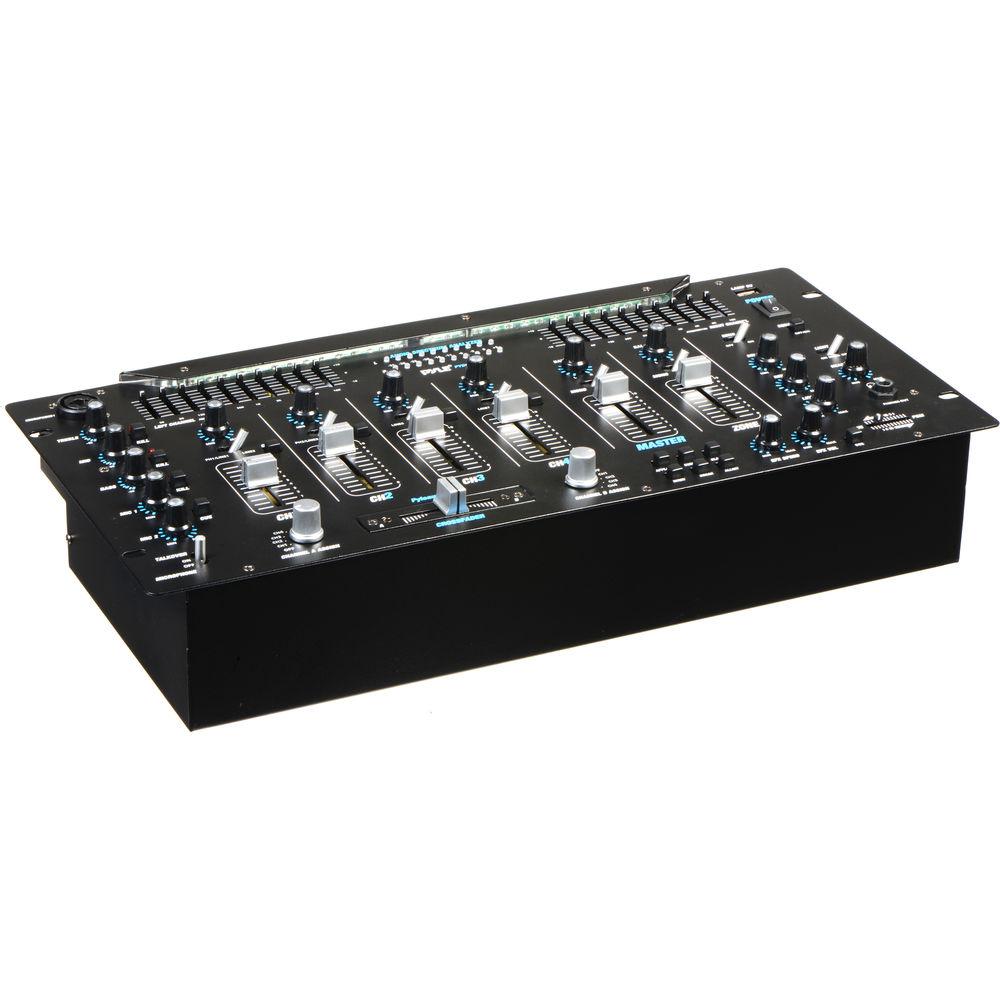

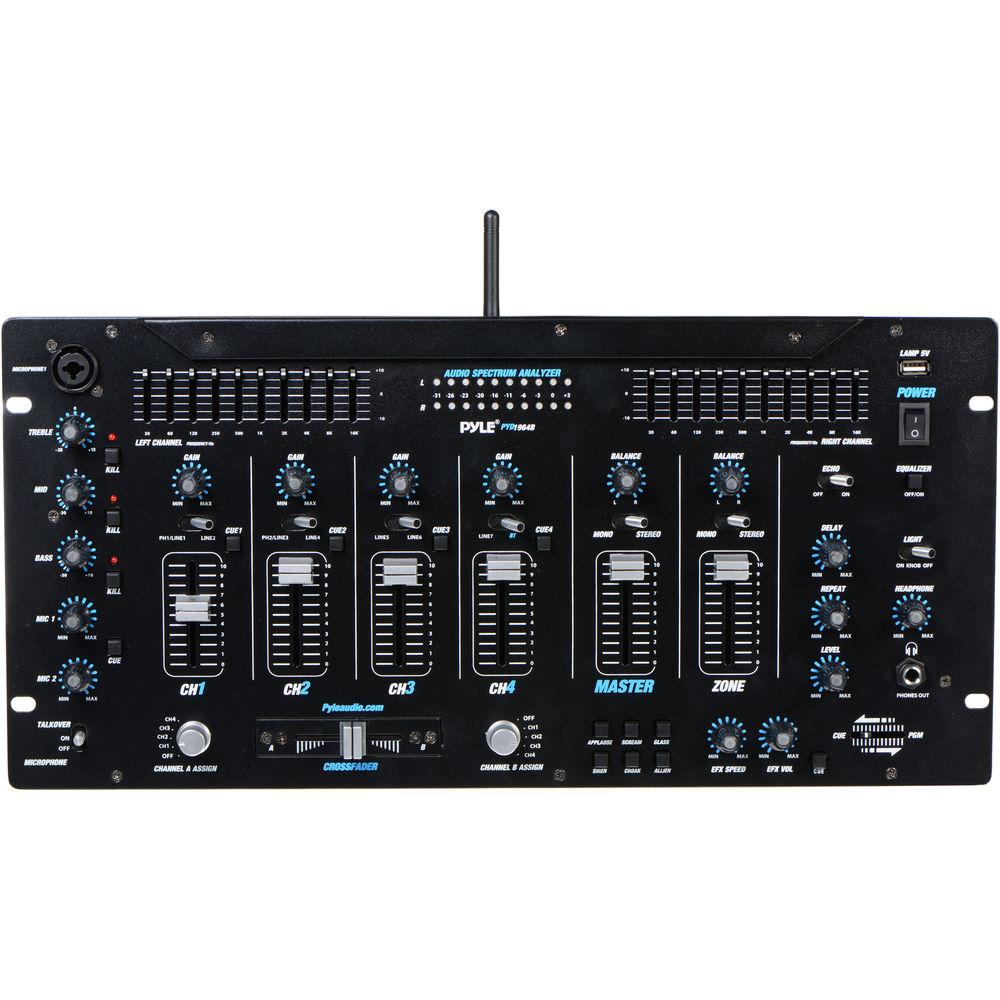

Product description The PYD1964B from Pyle Pro is a 4-channel rack-mountable DJ mixer with Bluetooth integration, featuring eight input into four channels, two microphone inputs, dedicated echo/delay with repeat level controls, and six on-board digital effects with speed and level controls. Channels 1 and 2 offer switchable phono/line inputs, while channel 3 is switchable between line sources and channel 4 is switchable between line/Bluetooth sources. The microphone section offers level controls and ducking for both mic inputs and features a 3-band EQ with treble, mid, and bass controls with dedicated kill switches. The integrated crossfader is assignable to any of the channels or may be switched off.
The output section offers volume and pan controls for the master and zone output. Additionally, there is a left and right 10-band graphic EQ to custom tailor your sound. There are dedicated cue sends for each channel, while the cue section offers a mix slider for setting a blend between the cue and program signals or isolating just the cue signal. The Bluetooth component offers wireless audio streaming to channel 4 of the mixer and is compatible with iOS, Android, PC, and Mac devices. -
- Built-in Bluetooth for wireless music streaming
- Compatible with all of your favorite Bluetooth devices, including iPhone and Android smartphones, iPads, Tablets, PCs, and more
- Mix 2 phono, 8 line level and 2 microphone input signals
- 10-band graphic equalizer for (R) and (L) channels
- Two balanced or 1/4'' mono microphone inputs
- Separate mic 1 and mic 2 level controls
- Microphone high, mid, bass tone controls with mic talk-over and mic frequency kill switch
- Separate switchable channel 1, 2, 3, 4, master and zone gain controls with crossfader
- Headphone volume control with channel cue
- Echo, delay and repeat level controls
- 6 added digital sound effects
- Digital LED illuminated controls
- Separate zone, record and master outputs
UPC: 068888757102 In the Box Pyle Pro PYD1964B - 4-Channel Rackmount DJ Mixer with Bluetooth and Digital Effects IEC Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pyle Pro PYD1964B - 4-Channel Rackmount DJ Mixer with Bluetooth and Digital Effects in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

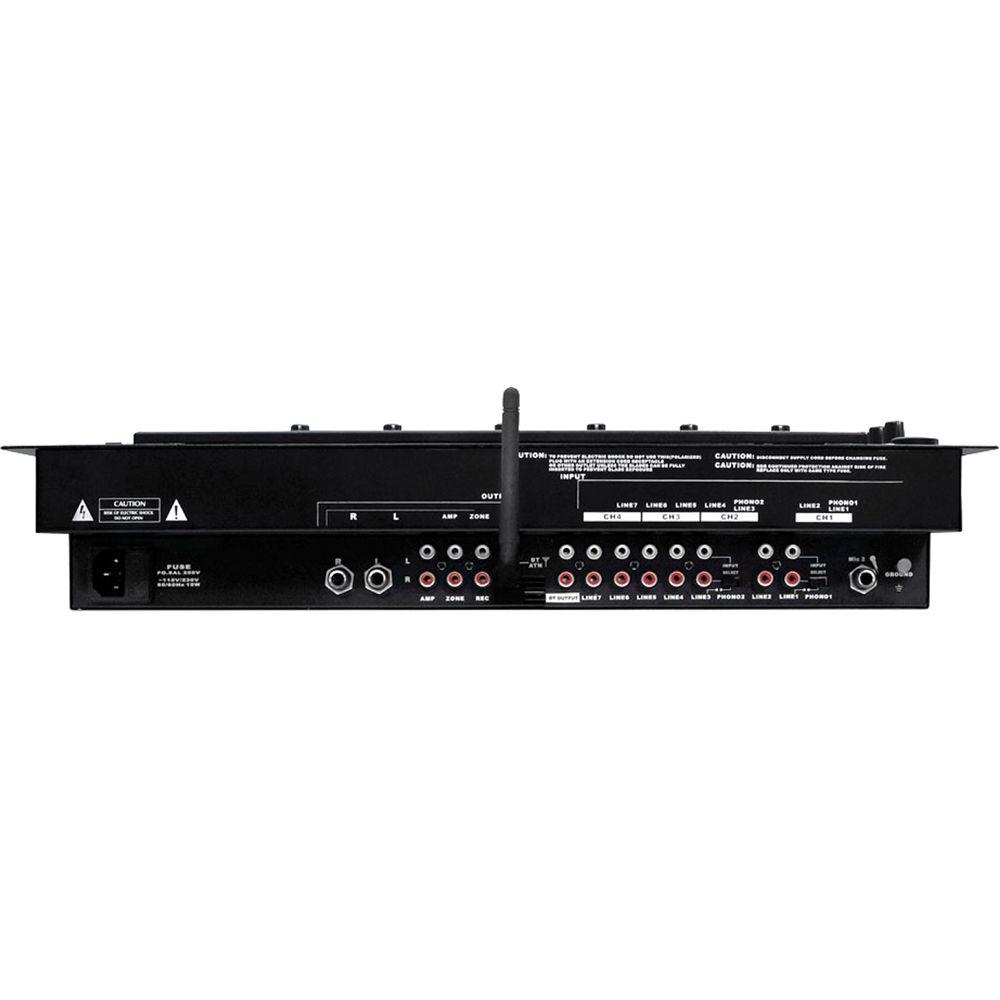

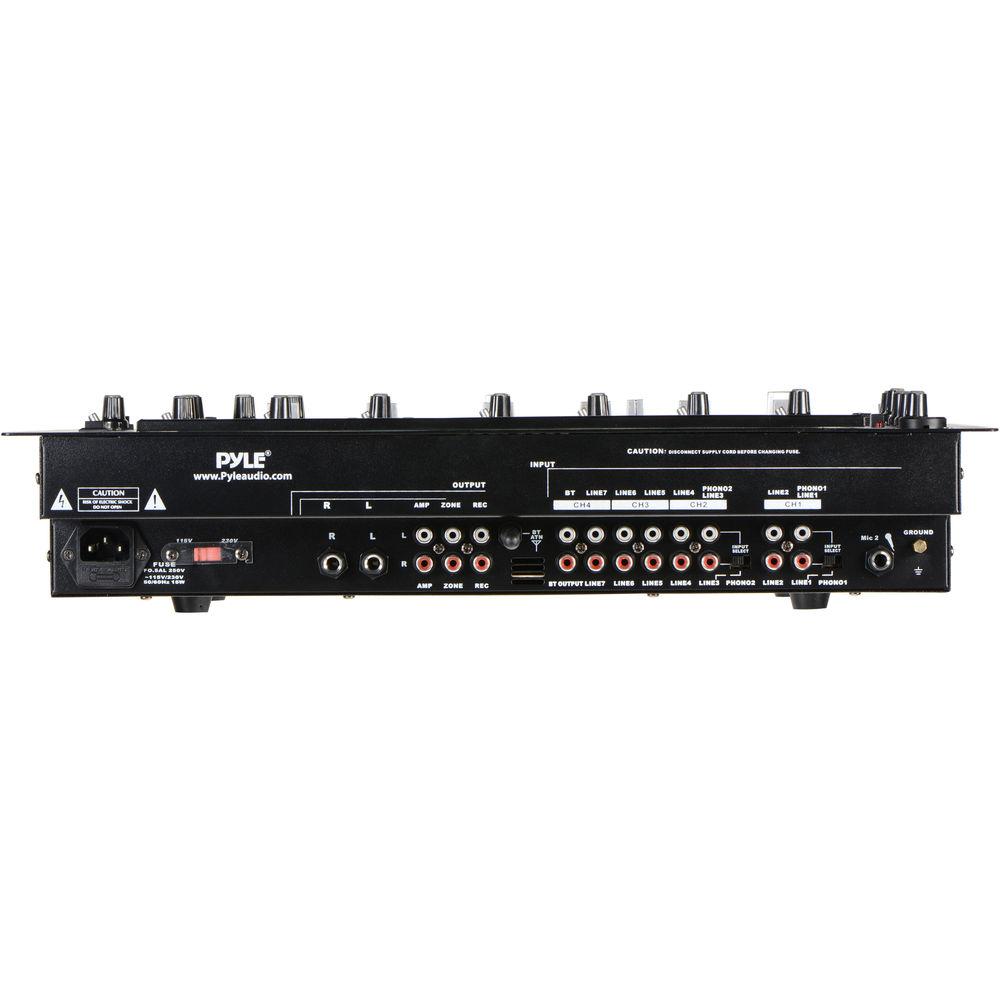

Technical parametersPyle Pro PYD1964B Specs | Audio Connections | Inputs
Line 1/Phono 1: Stereo RCA
Line 2: Stereo RCA
Line 3/Phono 2: Stereo RCA
Line 4: Stereo RCA
Line 5: Stereo RCA
Line 6: Stereo RCA
Line 7: Stereo RCA
Output
Bluetooth: Stereo RCA
Rec: Stereo RCA
Zone: Stereo RCA
Amp: Stereo RCA
Master: 2x 1/4" / 6.35 mm | | Inputs | Phono: 3 mV, 47 kOhms
Line: 50 mV, 27 kOhms
Microphone 1 & 2: 2 mV, (2 kOhms balanced) | | Outputs | Output Amp: 0 dB (1 V)
Output Max: 8 V (Peak-to-Peak)
Rec.: 120 mV, (5 kOhms)
Zone: 0 dB (1 V) | | EQ Controls | Bass: ±12 dB (with kill switch)
Mid: ±12 dB (with kill switch)
High: ±12 dB (with kill switch) | | Frequency Response | 20 Hz to 20 kHz ±3 dB | | Distortion | 0.02% | | Signal to Noise Ratio (SNR) | >80 dB | | Talkover | -16 dB attenuation | | Headphone Impedance | 16 ohms | | Power Source | Universal 90 to 240 VAC, 60/50 Hz, 20 W | | Dimensions | 19.0 x 3.4 x 9.4" / 48.3 x 8.6 x 23.9 cm | | Weight | 5.5 lb / 2.5 kg | | | | Package Weight | 10.4 lb | | Box Dimensions (LxWxH) | 20.0 x 11.5 x 6.5" |
