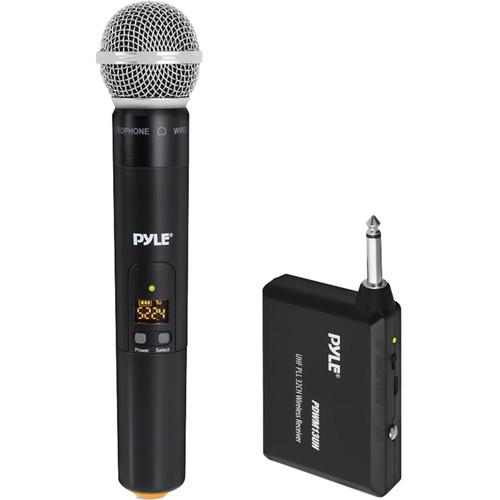

User Manual for Pyle Pro UHF PLL 32-Channel Wireless Handheld Microphone System with 1 4" Receiver Click to enlarge the picture
Contents of the user manual for the Pyle Pro UHF PLL 32-Channel Wireless
- Product category: Add-On Wireless & Components Pyle Pro
- Brand: Pyle Pro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pyle Pro Add-On Wireless & Components
 |
User manual for the Pyle Pro UHF PLL 32-Channel Wireless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pyle Pro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pyle Pro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pyle Pro product will considerably shorten its lifespan!
|

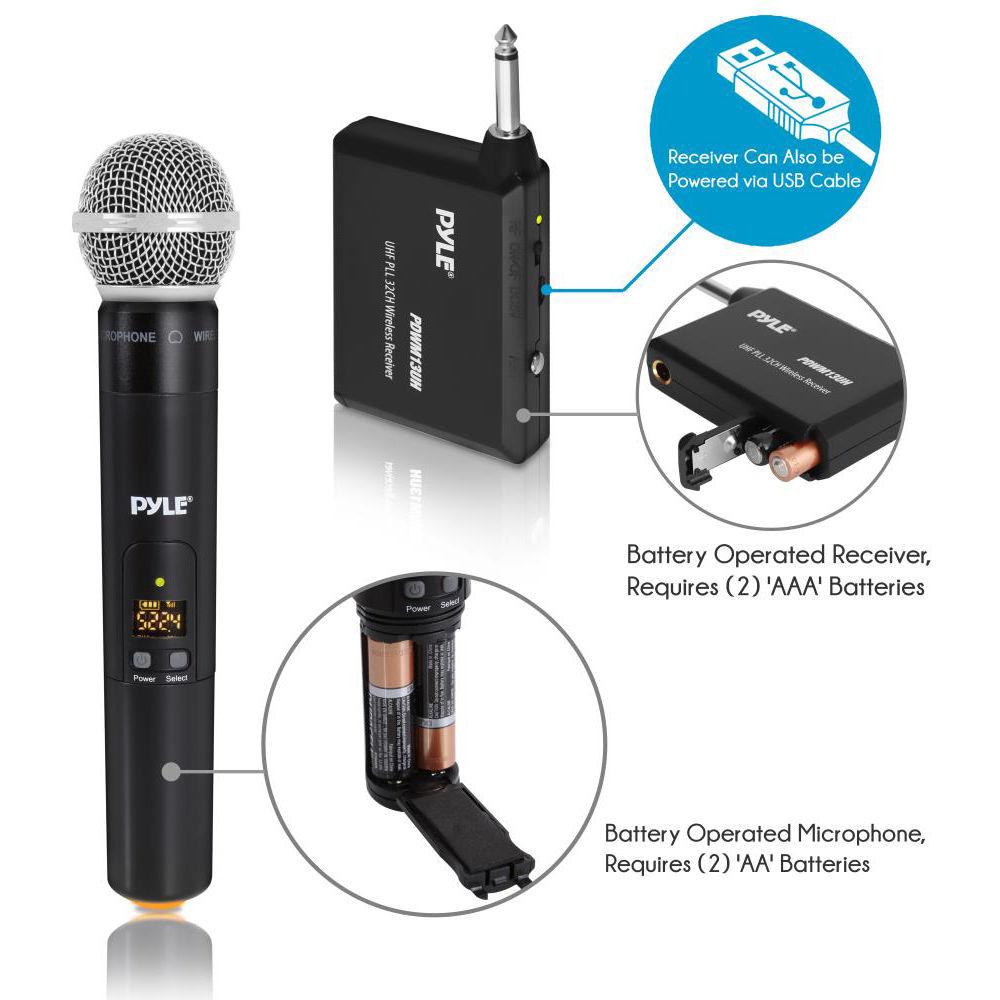

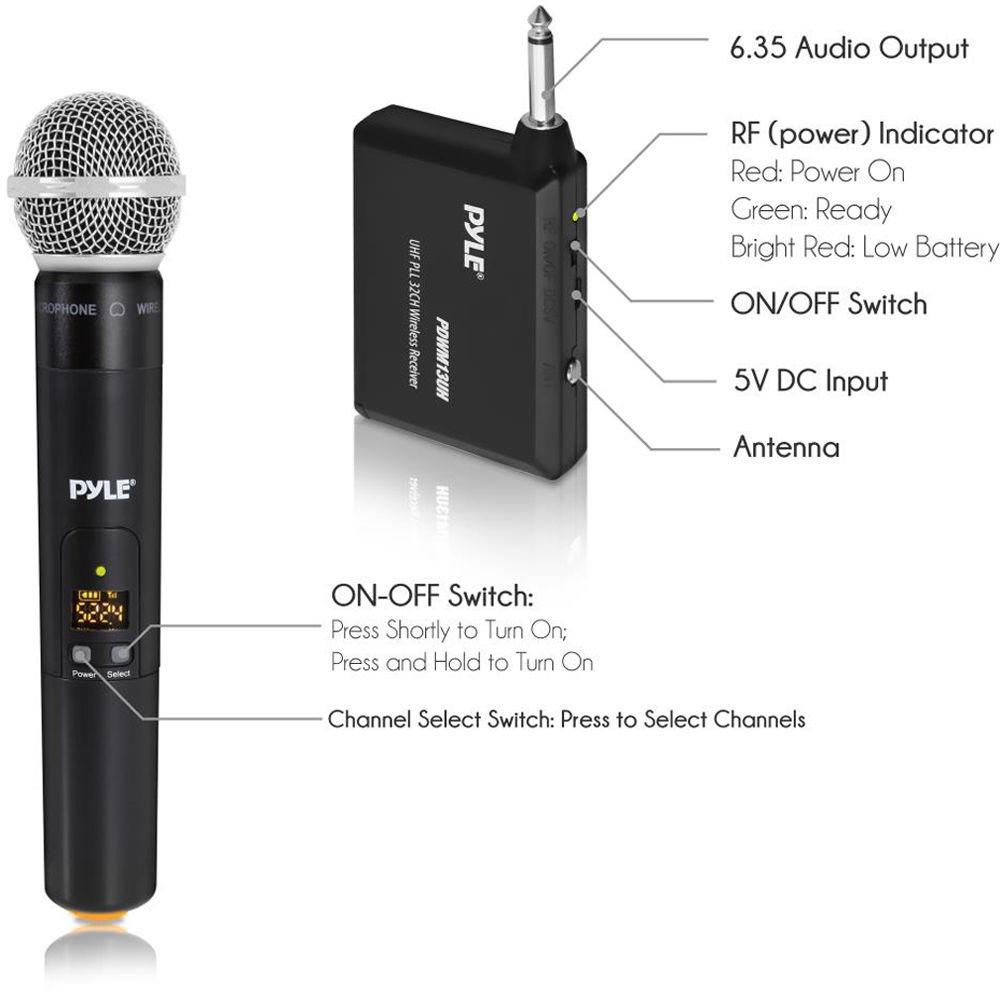

Product description The UHF PLL 32-Channel Wireless Handheld Microphone System with 1/4" Receiver from Pyle features wireless operation of up to 165', a frequency response of 50 Hz to 20 kHz, and is designed with a handheld uni-directional, cardioid polar pattern. It can be used in various environments for vocal and speech applications such as karaoke, DJ, or house-party applications. The UHF wireless handheld microphone transmitter has LED indicator lights and is designed with a power on and off switch. The system's receiver is built with a 1/4" male jack for connection to a PA system or mixer. The handheld mic transmitter is powered by two AA batteries and the receiver is powered by two AAA batteries (included). In addition, the receiver can be powered by the included USB cable. UPC: 842893101613 In the Box Pyle Pro UHF PLL 32-Channel Wireless Handheld Microphone System with 1/4" Receiver Handheld Microphone Receiver Unit USB Connection Cable 2 x AA Batteries 2 x AAA Batteries Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pyle Pro UHF PLL 32-Channel Wireless Handheld Microphone System with 1 4" Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPyle Pro PDWM13UH Specs | System | UHF, PLL 32-channel selectable frequencies | | Wireless Range | 165' (50 m) | | Pickup Pattern | Uni-directional, cardioid | | Receiver Output | 1/4" (6.3 mm) connector jack | | Frequency Response | 50 Hz to 20 kHz (±3 dB) | | Total Harmonic Distortion (THD) | <0.5% | | Spurious Emission | >40 dB | | Maximum Deviation | ±55 kHz | | Dynamic Range | >100 dB | | Signal to Noise Rate | >96 dB @ 1 kHz, A-Weighted | | Battery Requirements | Transmitter: 2 x AA batteries
Receiver: 2 x AAA batteries
Receiver can also be powered via USB cable | | Dimensions (L x D) | Microphone: 9.8 x 1.5" (25 x 3.8 cm) | | Dimensions (L x W x H) | Receiver: 3.4 x 2.4 x 0.8" (8.6 x 6.1 x 2.0 cm) | | Weight | 1.05 lb (0.48 kg) | | | | Package Weight | 1.1 lb | | Box Dimensions (LxWxH) | 11.6 x 5.3 x 2.5" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 13 owners. Add your rating and experience with the product.
