User Manual for Pyle Pro UHF PLL 32-Channel Wireless System with Headset and Lavalier Mic Click to enlarge the picture
Contents of the user manual for the Pyle Pro UHF PLL 32-Channel Wireless
- Product category: Add-On Wireless & Components Pyle Pro
- Brand: Pyle Pro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pyle Pro Add-On Wireless & Components
 |
User manual for the Pyle Pro UHF PLL 32-Channel Wireless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pyle Pro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pyle Pro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pyle Pro product will considerably shorten its lifespan!
|

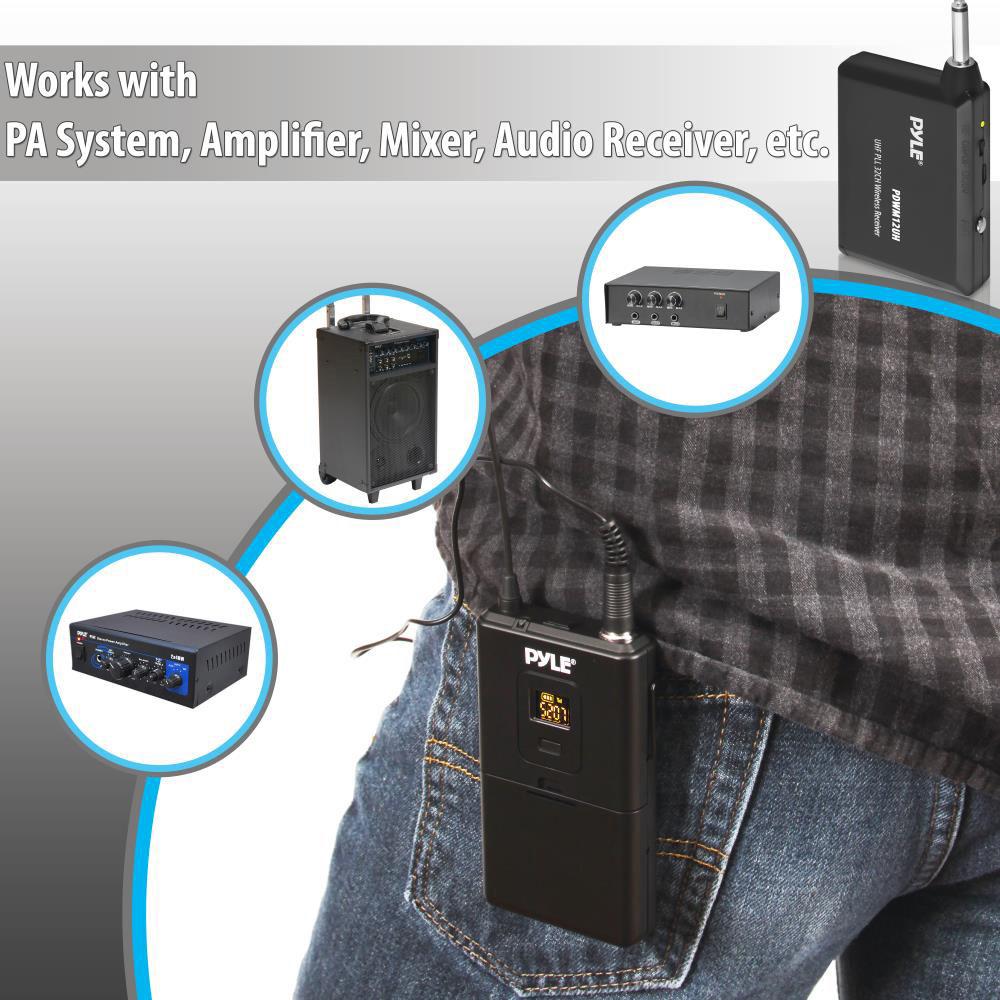

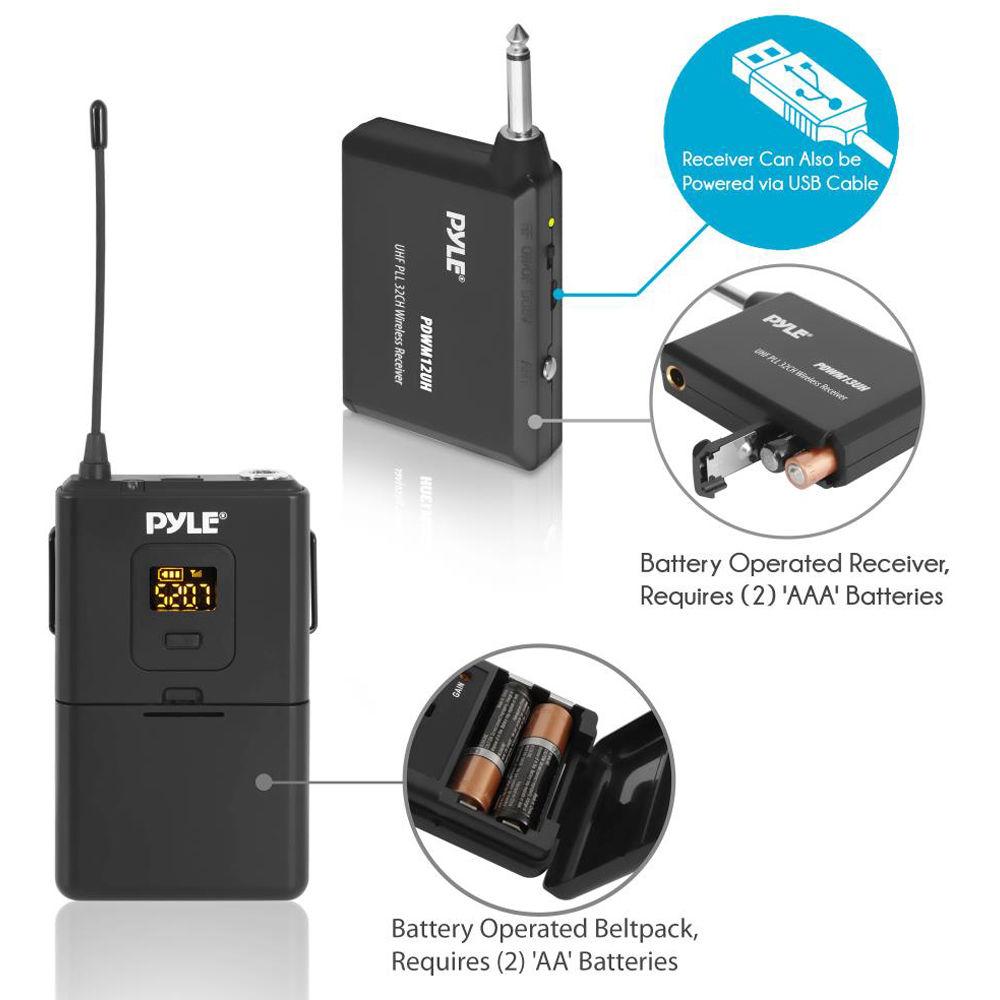

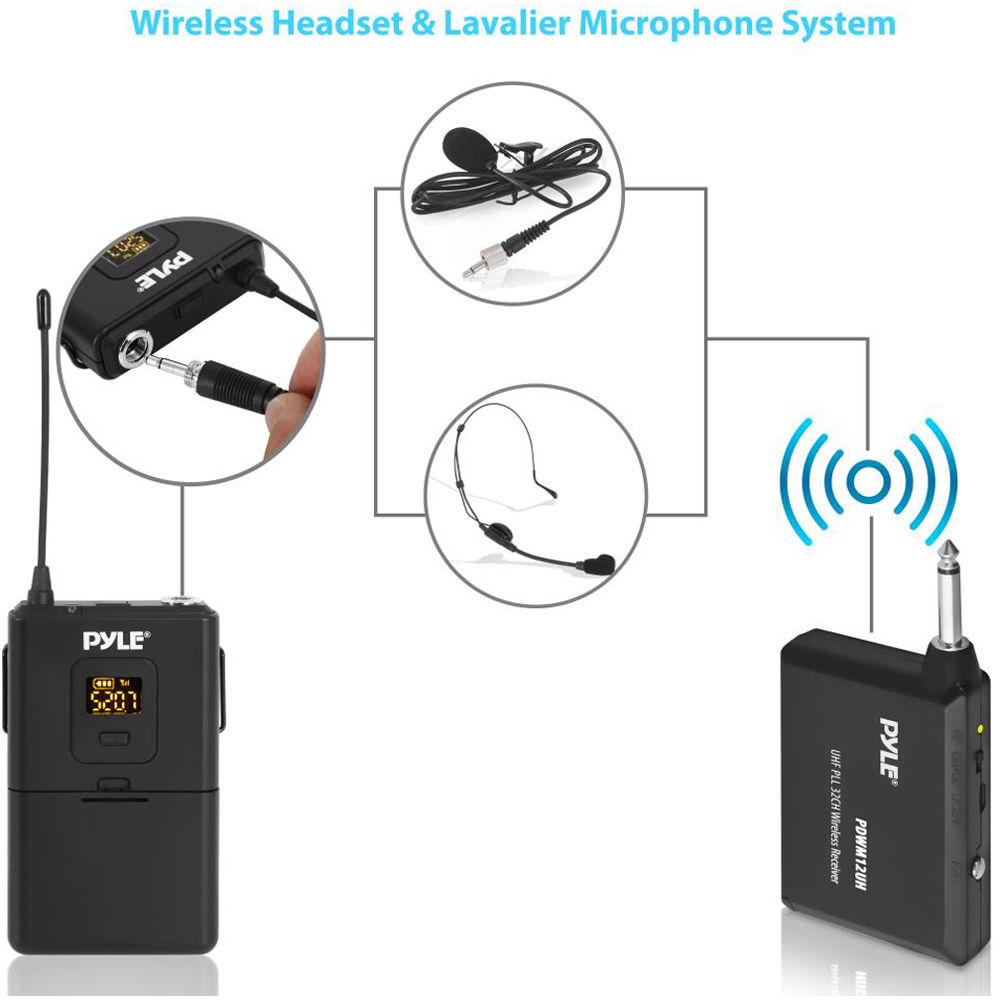

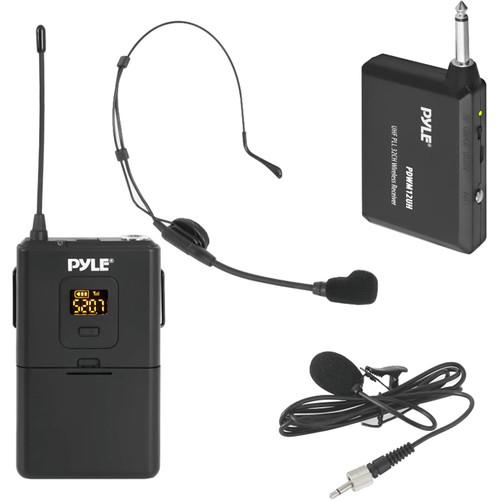

Product description The UHF PLL 32-Channel Wireless System with Headset and Lavalier Microphones from Pyle features a wireless range of up to 165', a frequency response of 50 Hz to 20 kHz, and is equipped with both wireless lavalier and headset microphones. It can be used in various environments for vocal and speech applications such as karaoke, DJ, or house-party applications. The UHF wireless bodypack transmitter has an LED display indicator for system status and is designed with a power on/off switch. The system's receiver is built with a 1/4" male jack for connection to a PA system or mixer. This transmitter is powered by two AA batteries and the receiver is powered by two AAA batteries (included). In addition, the receiver can be powered by the included USB cable. UPC: 842893101606 In the Box Pyle Pro UHF PLL 32-Channel Wireless System with Headset and Lavalier Mic (520 to 544.8 MHz) Bodypack Transmitter Receiver Unit Headset Microphone Lavalier Microphone USB Connection Cable 2 x AA Batteries 2 x AAA Batteries Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pyle Pro UHF PLL 32-Channel Wireless System with Headset and Lavalier Mic in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPyle Pro PDWM12UH Specs | | | Oscillation Mode | PLL | | Frequency Range | 520 to 544.8 MHz | | Frequency Stability | ±10 ppm | | Channel Isolation | 800 kHz | | Frequency Response | 50 Hz to 20 kHz (±3 dB) | | Total Harmonic Distortion (THD) | <0.3% @ 1 kHz, Vmic = -30 dBv | | Wireless Range | 165' (50 m) | | Operation Temperature | -68 to 122°F (-56 to 50°) | | | | Sensitivity | -94 dBm | | Adjacent Channel Rejection | 55 dB | | Maximum Audio Output Voltage | 0.6 Vrms | | Output Impedance | 600 Ohms | | Power Supply | 2 x 1.5 V AAA batteries or 5 VDC | | Current Consumption | 100 mA | | | | Capsule Type | Condenser | | Antenna | External | | Transmitting Power | <10 mW | | Sampling Rate | 48 kHz, 32-bit encryption transmission | | Modulation Mode | P 1/4 DQPSK | | Power Supply | 2 x 1.5 V AA batteries | | Current Consumption | 100 mA | | Maximum Deviation | ±55 kHz | | Dynamic Range | >100 dB | | Signal to Noise Rate | >96 dB @ 1 kHz, A-Weighted | | Battery Requirements | Transmitter: 2 x AA batteries
Receiver: 2 x AAA batteries
Receiver can also be powered via USB cable | | Dimensions (L x W x D) | Bodypack: 4.3 x 2.5 x 0.8" (11 x 6.3 x 2.0 cm)
Receiver: 3.4 x 2.4 x 0.7" (8.6 x 6.1 x 2.0 cm) | | Weight | 1.15 lb (0. kg) | | | | Package Weight | 1.1 lb | | Box Dimensions (LxWxH) | 10.7 x 9.6 x 2.6" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 38 owners. Add your rating and experience with the product.
