User Manual for Pyle Pro Wireless Karaoke Mixer Receiver System with Dual Handheld Microphones Click to enlarge the picture
Contents of the user manual for the Pyle Pro Wireless Karaoke Mixer Receiver
- Product category: Karaoke Pyle Pro
- Brand: Pyle Pro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pyle Pro Karaoke
 |
User manual for the Pyle Pro Wireless Karaoke Mixer Receiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pyle Pro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pyle Pro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pyle Pro product will considerably shorten its lifespan!
|

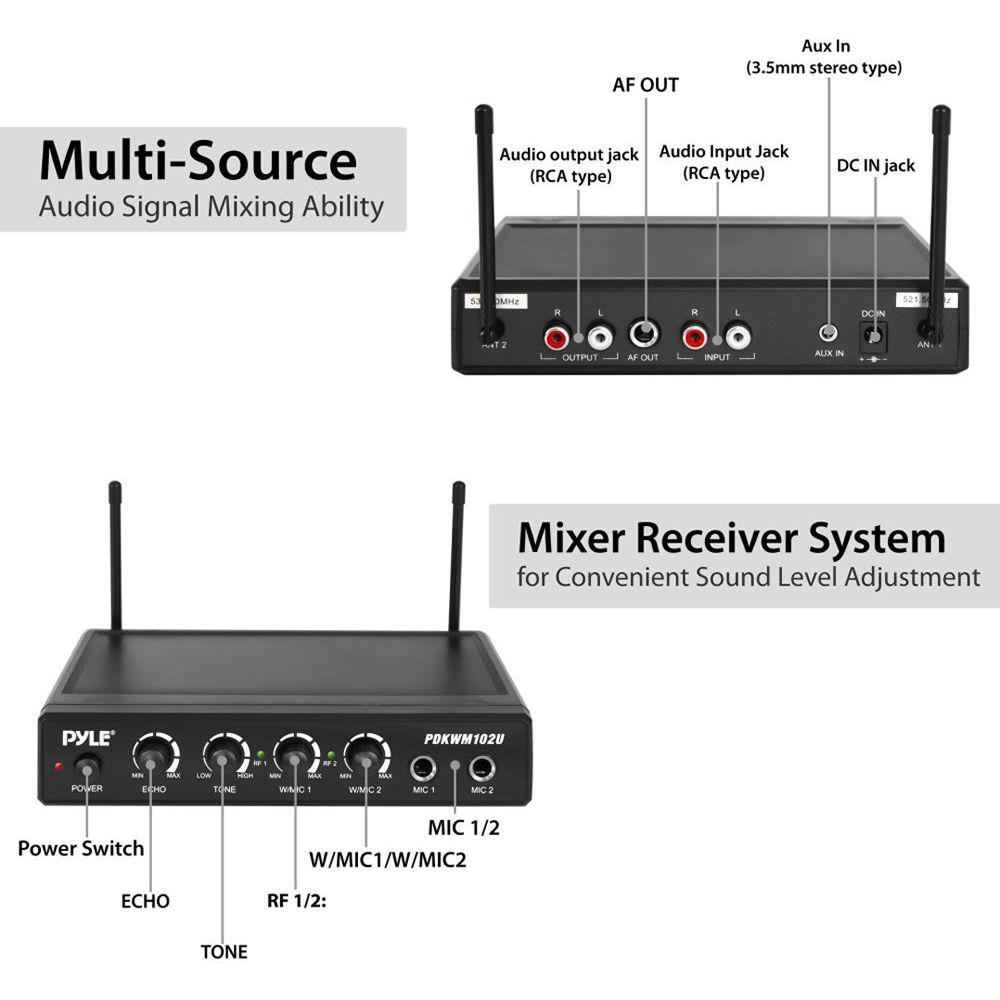

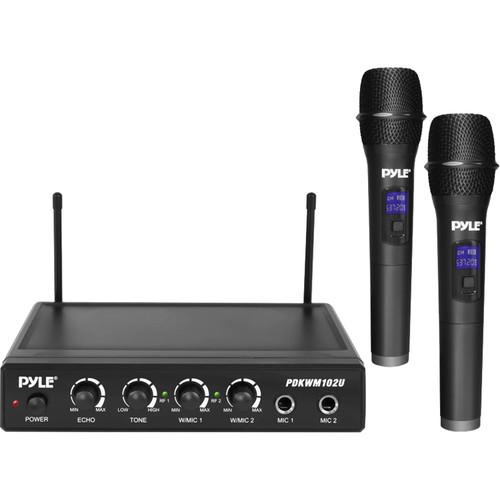

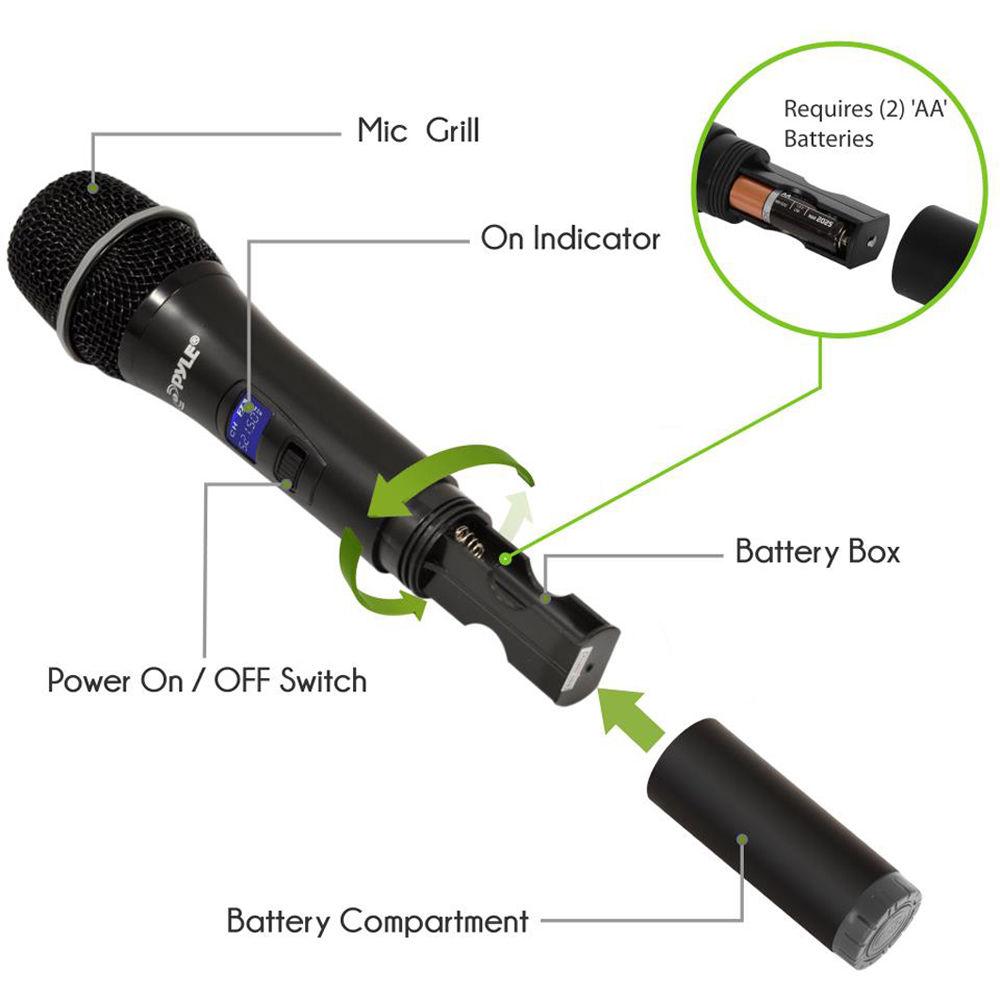

Product description The Wireless Karaoke Mixer Receiver System with Dual Handheld Microphones from Pyle is a two-channel fixed-frequency system that can be used in a variety of environments for karaoke, DJ sound, or speech and vocal applications. The two handheld dynamic wireless microphone transmitters have LED readout for system status and an on/off power switch. The capsule is mounted inside a metal grille for protection and includes a built-in acoustic pop filter. These handheld microphones are powered by two AA batteries and have a frequency response of 80 Hz to 20 kHz. The receiver is built with two wired 1/4" mic input jacks on the front panel along with a power switch and rotary controls for echo, tone, with volume controls for wireless mic 1 and wireless mic 2. In addition, two RCA audio cables, one 1/4" audio cable, and one 1/8" audio cable are included, along with an AC adapter for the receiver, and four AA batteries for the microphones. - Multi-source audio signal mixing ability
- Control audio levels from external devices
- Includes two handheld wireless microphones
- Dual fixed-frequency system design
- Adjustable rotary controls Echo, Tone, Volume: Mic 1, Mic 2
- Features two 1/4" inputs for wired microphones

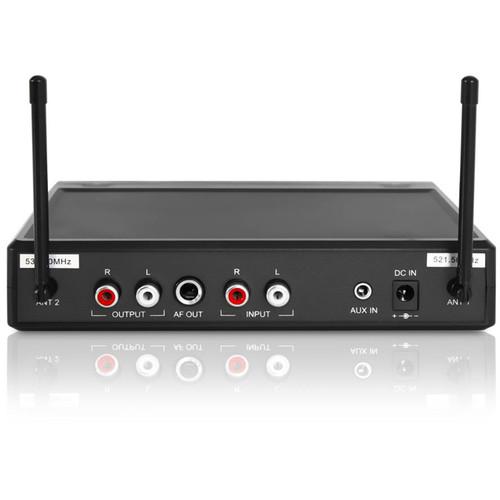

- Rear panel 1/8" aux audio input jack
- RCA audio input/output jacks (L/R)
- Rear panel 1/4" mixed output jack
- Adjustable antennas for extended wireless range
- Rugged microphone construction with steel mesh grill
- Convenient On/Off power switch
- Built-in acoustic pop filter
- Suitable for karaoke, DJ sound, and house party audio

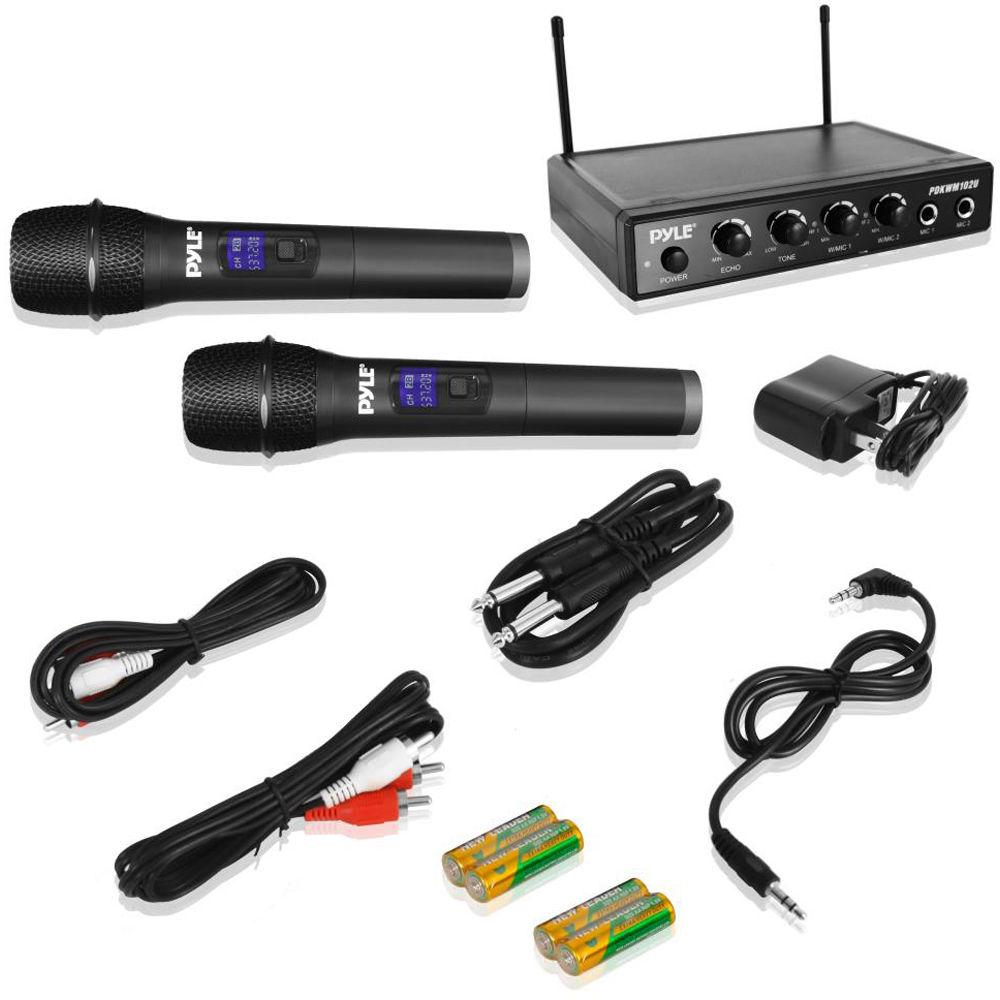

UPC: 842893101583 In the Box Pyle Pro Wireless Karaoke Mixer Receiver System with Dual Handheld Microphones Audio Mixer Receiver 2 x Wireless Handheld Microphones 1/4" Audio Cable 2 x RCA Audio Cables 1/8" Audio Cable Wall Power Adapter 4 x AA Batteries Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pyle Pro Wireless Karaoke Mixer Receiver System with Dual Handheld Microphones in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPyle Pro PDKWM102U Specs | | | Oscillation Mode | PLL | | Frequency | Not specified by manufacturer | | Frequency Stability | 30 ppm | | Modulation Mode | F3E | | Maximum Deviation | ±55 kHz audio | | Dynamic Range | >100 dB | | Signal to Noise | >100 dB | | Frequency Response | 80 Hz to 20 kHz at ±3 dB | | Total Harmonic Distortion (THD) | <0.5% | | Operating Range | 165' (50 m) | | Operation Temperature | -68 to 122°F (-56 to 50°C) | | | | Mirror Image Rejection | >50 dB | | De-Emphasis | 50 µs | | Line Input Sensitivity | 380 mV/-8.5 dB | | Mic Input Sensitivity | 5 mV/-46 dB | | Line Input Impedance | 20 kOhms | | Mic Input Impedance | 50 kOhms | | Power Supply | 12 VDC/200 mA | | Power Dissipation | <800 mW | | Dimensions (L x W x H) | 6.7 x 4.4 x 1.3" (17 x 11 x 3.3 cm) | | Weight | Not specified by manufacturer | | | | Type | Dynamic mic capsule | | Pre-Emphasis | 50 µs | | Antenna | Built-in housing | | RF Output | <10 mW | | Spurious Emission | >40 dB | | Power Supply | 2 x 1.5 V AA batteries | | Power Dissipation | <250 mW | | Dimensions (L x D) | 9.6 x 1.4" (24 x 3.6 cm) each | | Weight | Not specified by manufacturer | | | | Package Weight | 2.6 lb | | Box Dimensions (LxWxH) | 12.8 x 11.1 x 2.7" |
Rating94% users recommend this product to others. And what about you?
This product has already been rated by 80 owners. Add your rating and experience with the product.
