User Manual for Pyle Pro Wireless Microphone and Bluetooth Receiver System with Dual Handheld Microphones Click to enlarge the picture
Contents of the user manual for the Pyle Pro Wireless Microphone and Bluetooth
- Product category: Karaoke Pyle Pro
- Brand: Pyle Pro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pyle Pro Karaoke
 |
User manual for the Pyle Pro Wireless Microphone and Bluetooth contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pyle Pro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pyle Pro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pyle Pro product will considerably shorten its lifespan!
|

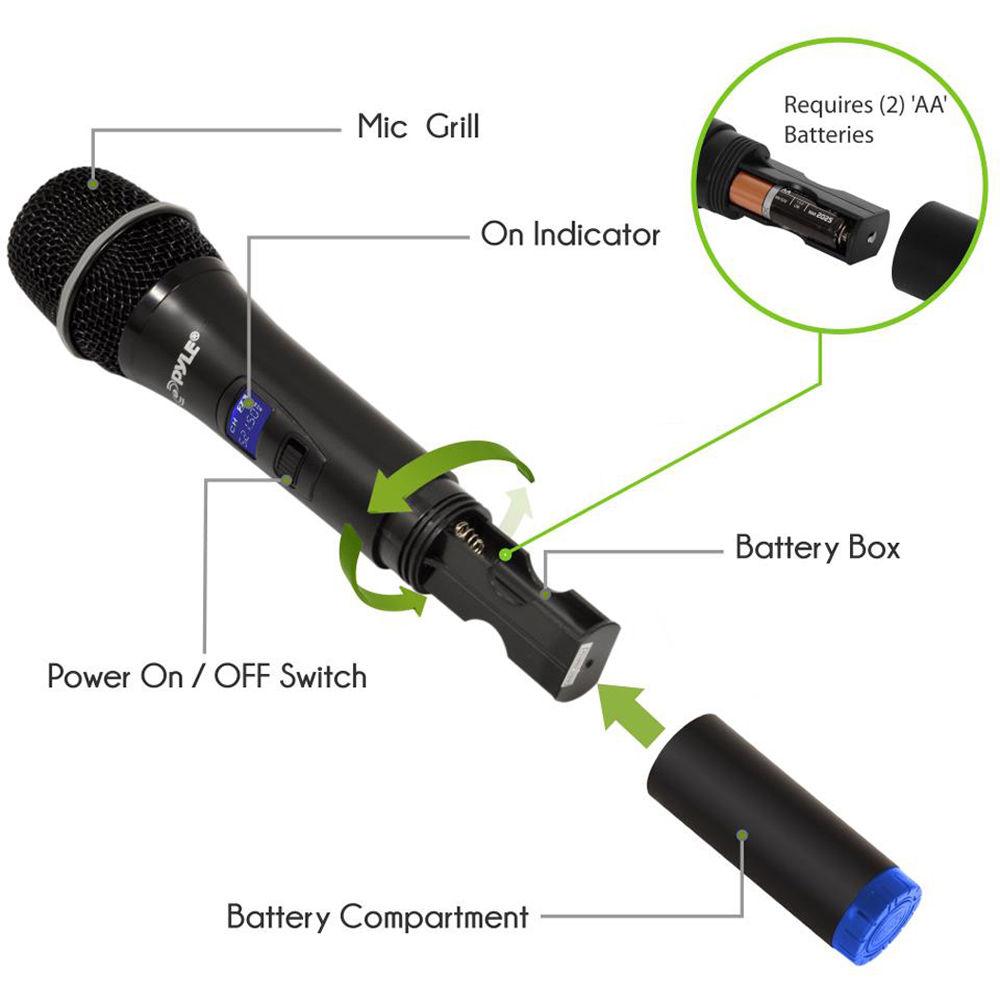

Product description The Wireless Microphone and Bluetooth Receiver System with Dual Handheld Microphones from Pyle is a two-channel fixed frequency system with MP3, USB, and SD card readers for music playback. Featuring Bluetooth wireless music streaming ability and a mixer receiver system for sound level adjustment, the wireless system can be used in several environments for karaoke, DJ sound, or speech and vocal applications. The two handheld dynamic microphone transmitters, each have LED readout for system status and an on/off power switch for quick access. The capsule is mounted inside a metal grille for protection and includes a built-in acoustic pop filter. These handheld microphones are powered by two AA batteries and have a frequency response of 80 Hz to 20 kHz. The receiver is built with a power switch and rotary controls on the front panel for echo, tone, and music input, with volume controls for the wireless mic 1 and wireless mic 2 handheld microphones, and the wired 1/4" mic inputs. An LED display shows system status for playing MP3, USB, and SD cards along with a micro-USB port for connecting a smartphone, tablet, or other external audio source. In addition, two RCA audio/video cables, one 1/4" audio cable are included along with an AC adapter, remote control, and four AA batteries. - Multi-source audio signal mixing ability
- Control audio levels from external devices
- Mixer receiver system for convenient sound level adjustment
- Bluetooth wireless music streaming ability
- Includes two handheld wireless microphones
- Dual fixed-frequency system design
- Adjustable rotary controls Echo, Tone, Volume: Mic 1, Mic 2
- Front panel digital LCD display
- USB flash and SD memory card readers
- Features two 1/4" inputs for wired microphones

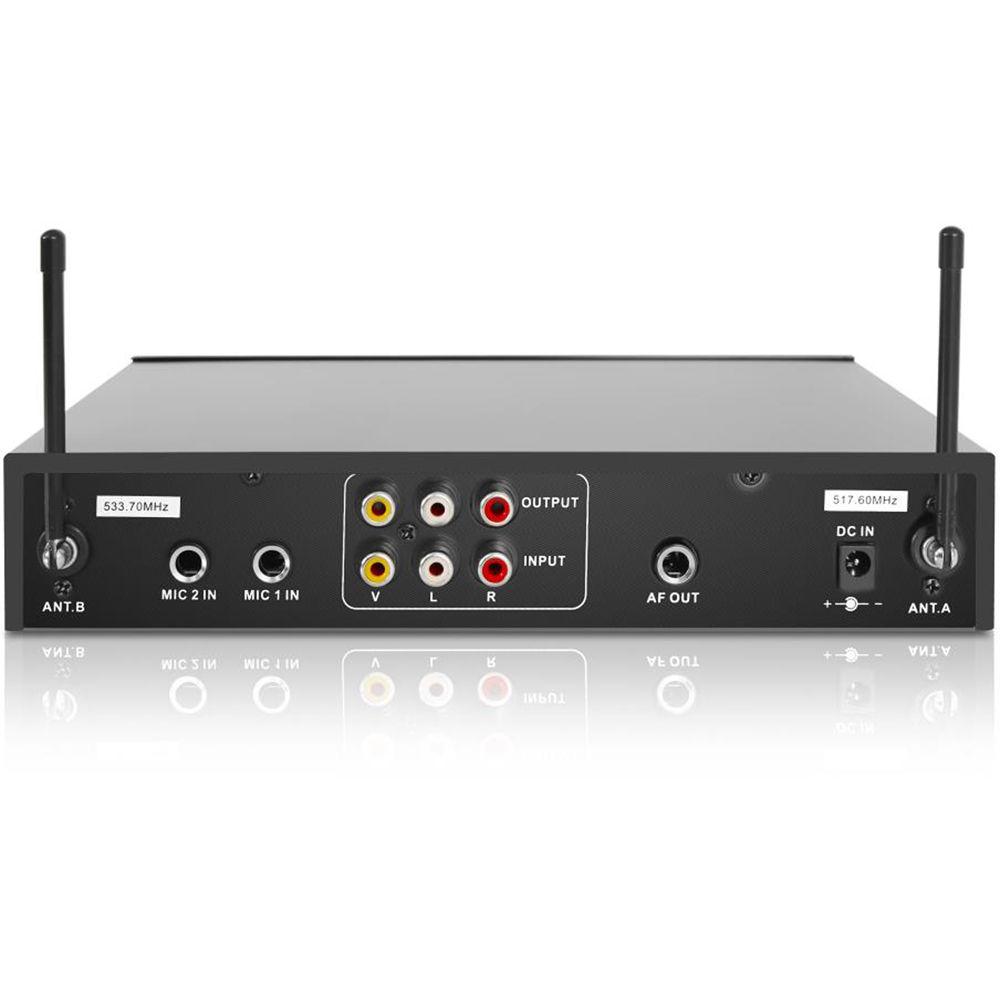

- RCA audio input/output jacks (L/R) and video signal input/output jacks
- Rear panel 1/4" mixed output jack
- Adjustable antennas for extended wireless range
- Rugged microphone construction with steel mesh grill
- Convenient on/off power switch
- Built-in acoustic pop filter
- Suitable for karaoke, DJ sound, and house party audio

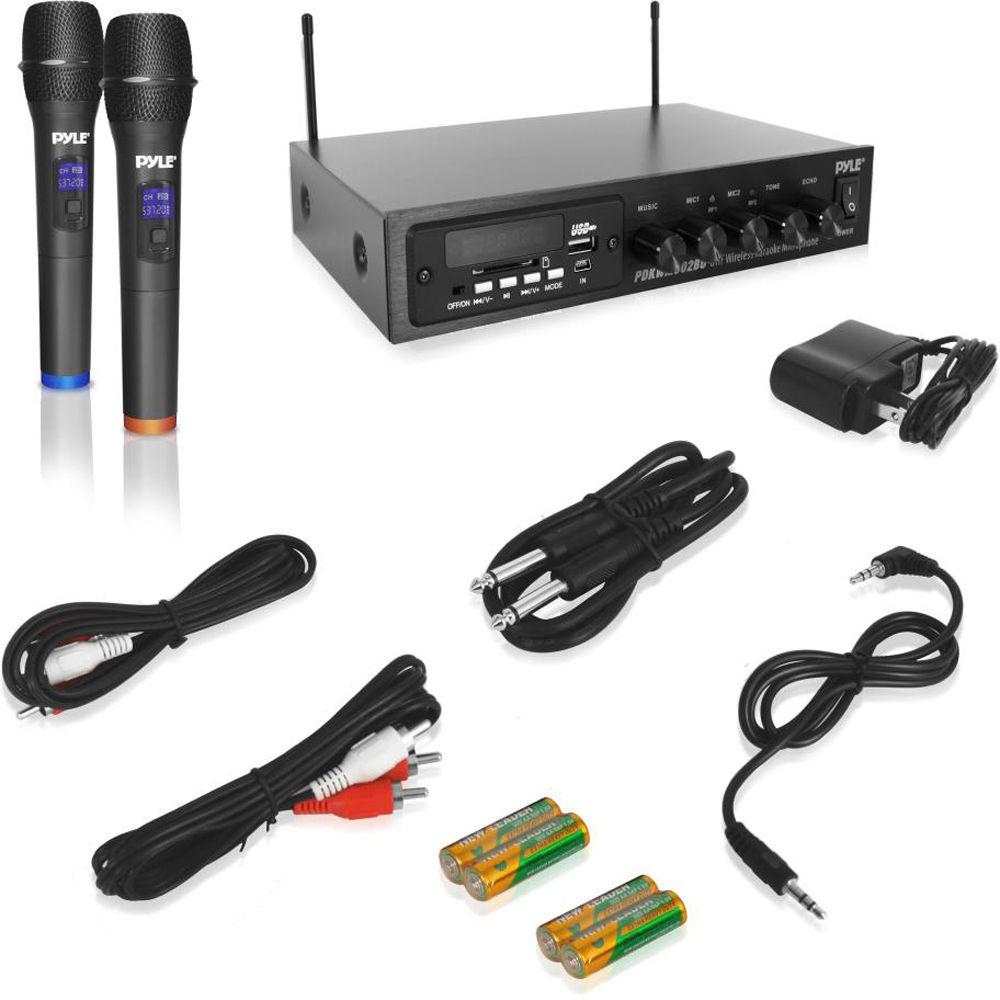

UPC: 842893101590 In the Box Pyle Pro Wireless Microphone and Bluetooth Receiver System with Dual Handheld Microphones Audio Mixer Receiver 2 x Wireless Handheld Microphones 1/4" Audio Cable 2 x RCA Audio Cables Wall Power Adapter 4 x AA Batteries Remote Control Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pyle Pro Wireless Microphone and Bluetooth Receiver System with Dual Handheld Microphones in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPyle Pro PDKWM802BU Specs | | | Oscillation Mode | PLL | | Frequency | Not specified by manufacturer | | Frequency Stability | 30 ppm | | Modulation Mode | F3E | | Maximum Deviation | ±55 kHz audio | | Dynamic Range | >100 dB | | Signal to Noise | >100 dB | | Frequency Response | 80 Hz to 20 kHz at ±3 dB | | Total Harmonic Distortion (THD) | <0.5% | | Operating Range | 165' (50 m) | | Operation Temperature | -68 to 122°F (-56 to 50°C) | | | | Mirror Image Rejection | >50 dB | | De-Emphasis | 50 µs | | Line Input Sensitivity | 380 mV/-8.5 dB | | Mic Input Sensitivity | 5 mV/-46 dB | | Line Input Impedance | 20 kOhms | | Mic Input Impedance | 50 kOhms | | Power Supply | 12 VDC/200 mA | | Power Dissipation | <800 mW | | Dimensions (L x W x H) | 9.4 x 6.3 x 1.7" (24 x 16 x 1.7 cm) | | Weight | Not specified by manufacturer | | | | Type | Dynamic mic capsule | | Pre-Emphasis | 50 µs | | Antenna | Built-in housing | | RF Output | <10 mW | | Spurious Emission | >40 dB | | Power Supply | 2 x 1.5 V AA batteries | | Power Dissipation | <250 mW | | Dimensions (L x D) | 9.6 x 1.4" (24 x 3.6 cm) each | | Weight | Not specified by manufacturer | | | | Package Weight | 4.35 lb | | Box Dimensions (LxWxH) | 15.8 x 12.4 x 2.8" |
Rating20% users recommend this product to others. And what about you?
This product has already been rated by 97 owners. Add your rating and experience with the product.
