User Manual for Pyro AV Lens Support Bracket for 15mm Rods Click to enlarge the picture
Contents of the user manual for the Pyro AV Lens Support Bracket for
- Product category: Rod Brackets & Clamps Pyro AV
- Brand: Pyro AV
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pyro AV Rod Brackets & Clamps
|
User manual for the Pyro AV Lens Support Bracket for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pyro AV product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pyro AV user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pyro AV product will considerably shorten its lifespan!
|

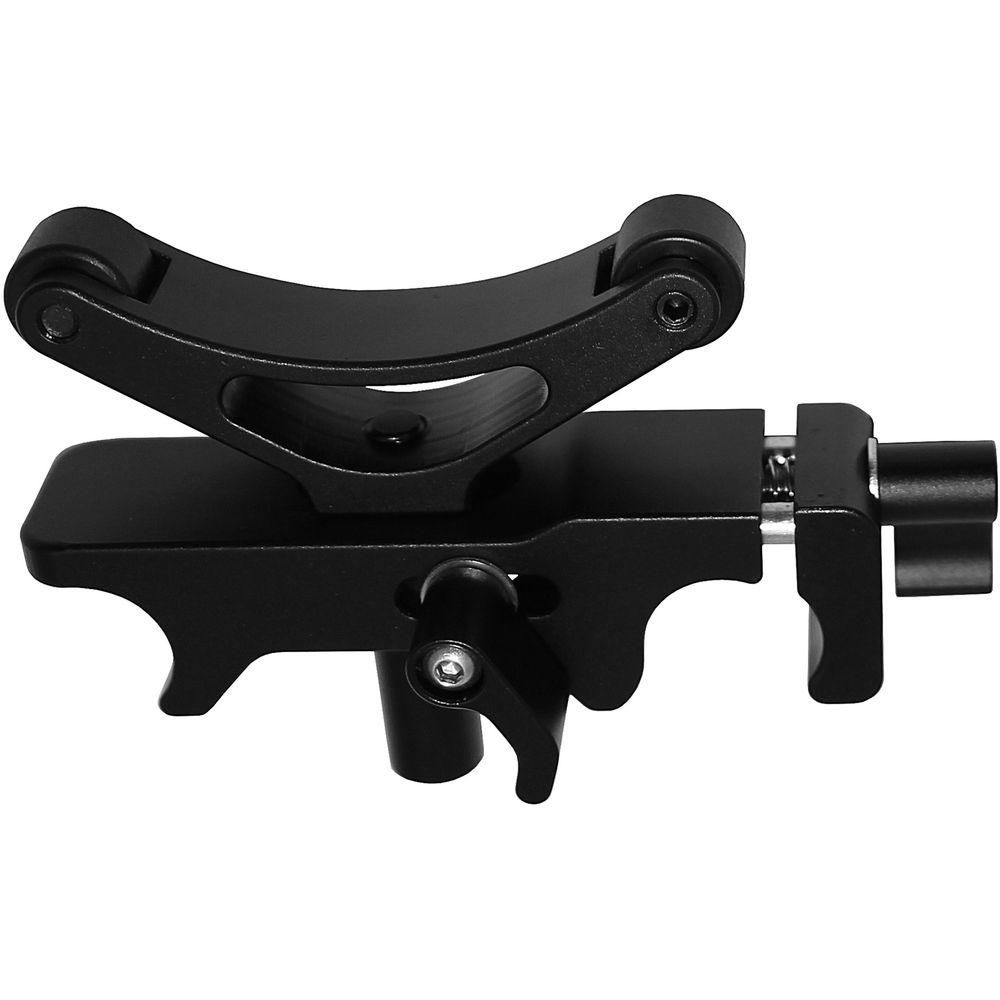

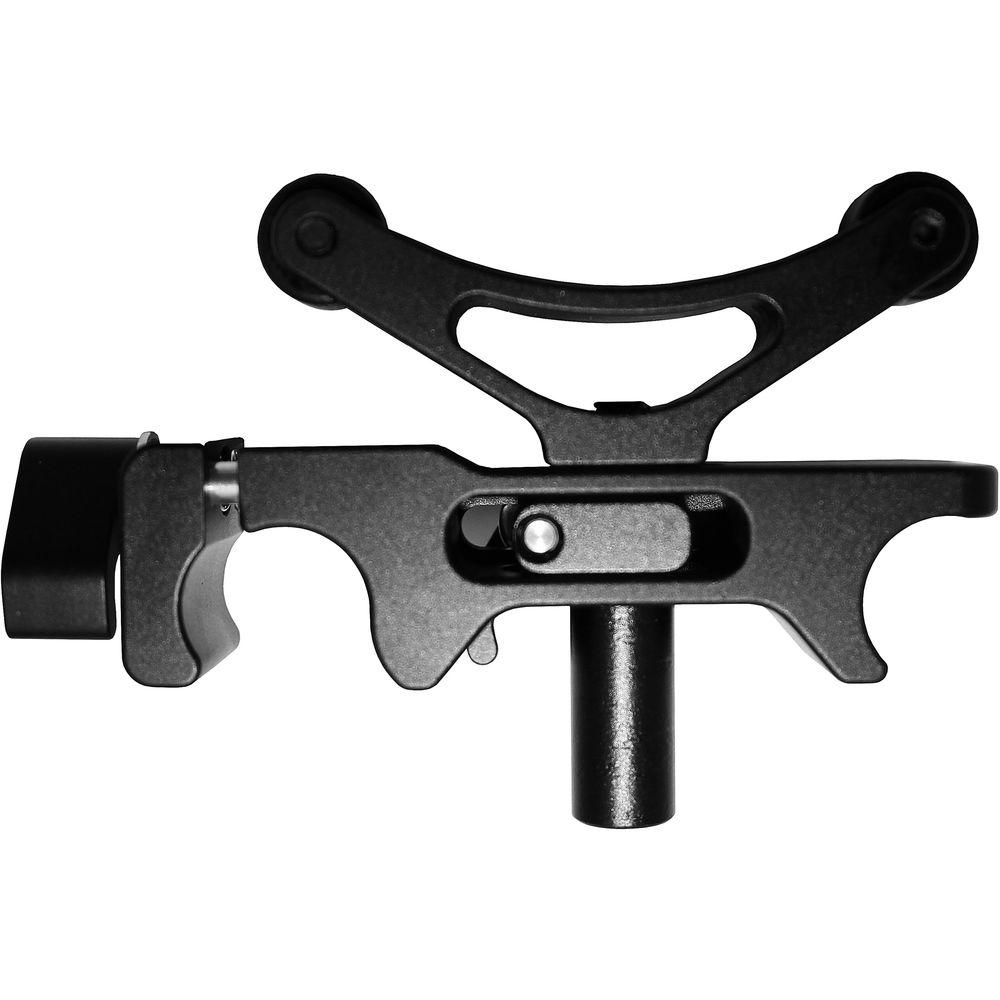

Product description The Pyro AV Lens Support Bracket snaps onto standard 15mm rods using a thumb lever. This design enables you to attach the support to your rod system (not included) without first having to remove other rod-mounted accessories. Use the support to transfer the weight of the lens away from your camera's lens mount and to more evenly distribute the weight over the length of the rod system. The Pyro AV Lens Support features both vertical and horizontal adjustment to accommodate various lenses. The Y-shaped lens support detaches from the rod mount for maximum configuration flexibility. The Pyro AV Lens Support Bracket is constructed from lightweight yet durable anodized aluminum. Features - Clamps onto standard 15mm rod without having to remove other rod-mounted accessories
- Up to 0.4" vertical and up to 0.25 horizontal adjustment to fit various lens sizes
- Y-shaped lens cradle and other components are detachable for maximum flexibility
- Anodized, aviation-grade aluminum construction is lightweight and durable
UPC: 872307415005 In the Box Pyro AV Lens Support Bracket for 15mm Rods Y-Support Bracket Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pyro AV Lens Support Bracket for 15mm Rods in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPyro AV PYRO-PAV-SL5 Specs Rod Clamp Type | 15mm, snap-on | Vertical Adjustment | 0.9" (24 mm) | Horizontal Adjustment | 0.4" (11 mm) | Material of Construction | Anodized aluminum (aviation-grade) | Dimensions (WxHxD) | 3.6 x 2.4 x 1.2" (91 x 61 x 31.5 mm) | Weight (Approximate) | 3.5 oz (100 g) | | Package Weight | 0.2 lb | Box Dimensions (LxWxH) | 4.9 x 3.1 x 1.0" |
