User Manual for Pyro AV Rig System for Blackmagic Micro Cinema Camera Click to enlarge the picture
Contents of the user manual for the Pyro AV Rig System for Blackmagic
- Product category: Camcorder Supports & Rigs Pyro AV
- Brand: Pyro AV
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pyro AV Camcorder Supports & Rigs
 |
User manual for the Pyro AV Rig System for Blackmagic contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pyro AV product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pyro AV user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pyro AV product will considerably shorten its lifespan!
|

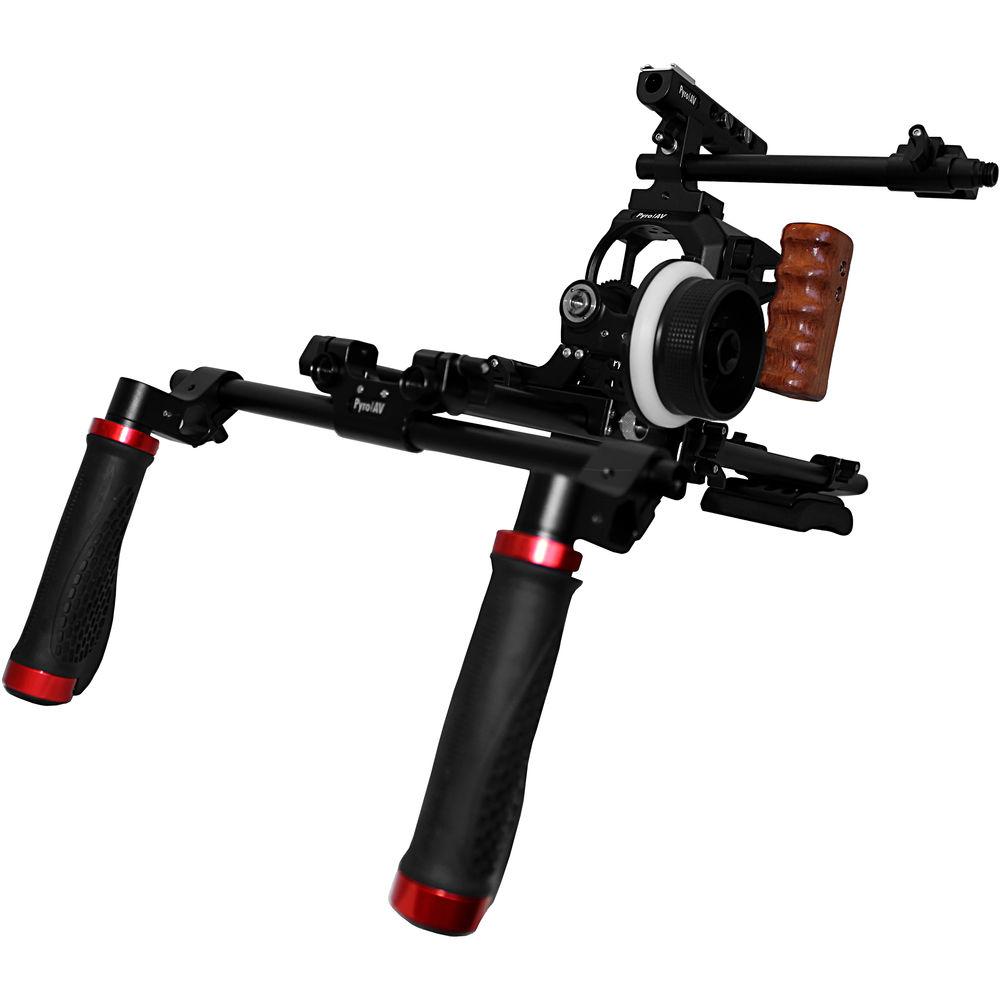

Product description The Pyro AV Rig System is a 15mm based camera rig kit specifically developed for the Blackmagic Micro Cinema Camera. It includes the standard BMMCC cage assembly, an EVF mount, PAV-4 15mm follow focus, sturdy grip rubber handles, shoulder support, and a pair of 12" 15mm aluminum rods. Aluminum system components are crafted from solid blocks of aviation-grade aluminum (6061) in a computer-controlled CNC milling system.

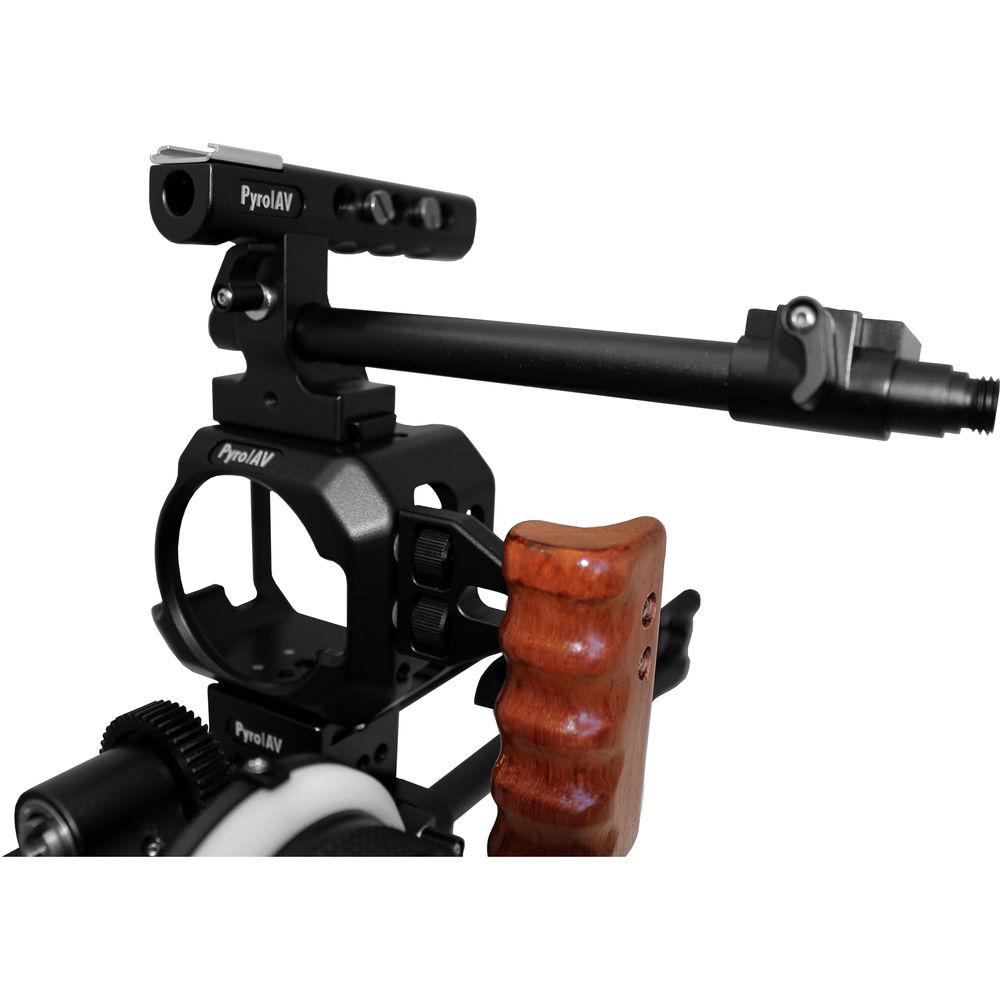

The aluminum cage provides strength and protection to the camera body. The included quick release top handle is equipped with standard 1/4"-20 and 3/8"-16 threaded mounting holes, a shoe mount, 15mm rod clamp, and sliding quick release. The handcrafted Brazilian pear wooden handle features finger grips for secure handling. The system also features a standard 15mm base for securing 15mm rods with clamps at proper lens height.
The sturdy grip rosette rubber handles can be adjusted to any angle and can be quickly removed. The 15mm crossbar mounts onto 15mm rods. Adjustable to different lens sizes, the PAV-4 follow focus gearing provides smooth, seamless rotation and mounts with a quick release to 15mm rods. The EVF mount 15mm rod attaches at the quick release handle base, and features a baseplate with standard 1/4"-20 screw to secure an EVF or field monitor. - Padded shoulder support mounts on 15mm rods
- Pair of 12" 15mm lightweight aluminum rods
UPC: 872307061912 In the Box Pyro AV Rig System for Blackmagic Micro Cinema Camera Blackmagic Micro Cinema Camera Cage Kit vxffedyuzuwufwcfdadfvexd PAV-1215 EVF Mount PAV-4 15mm Follow Focus Sturdy Grip Handles with Crossbar Padded Shoulder Support 15mm Extension Rod (12", Pair) Table of Contents
|
Upload User Manual
Have you got an user manual for the Pyro AV Rig System for Blackmagic Micro Cinema Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPyro AV PYRO-PAV-0619-1 Specs | | | Box Dimensions (LxWxH) | 13.0 x 7.0 x 5.0" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 67 owners. Add your rating and experience with the product.
