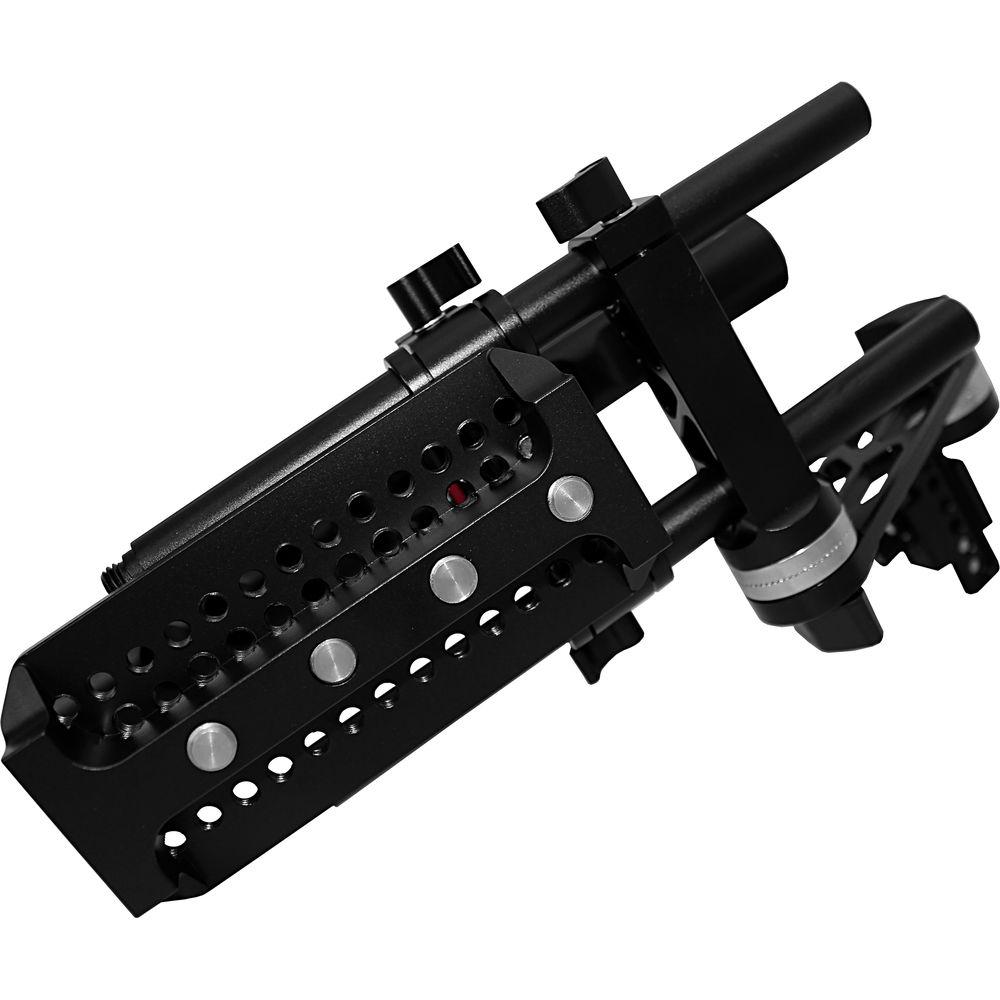

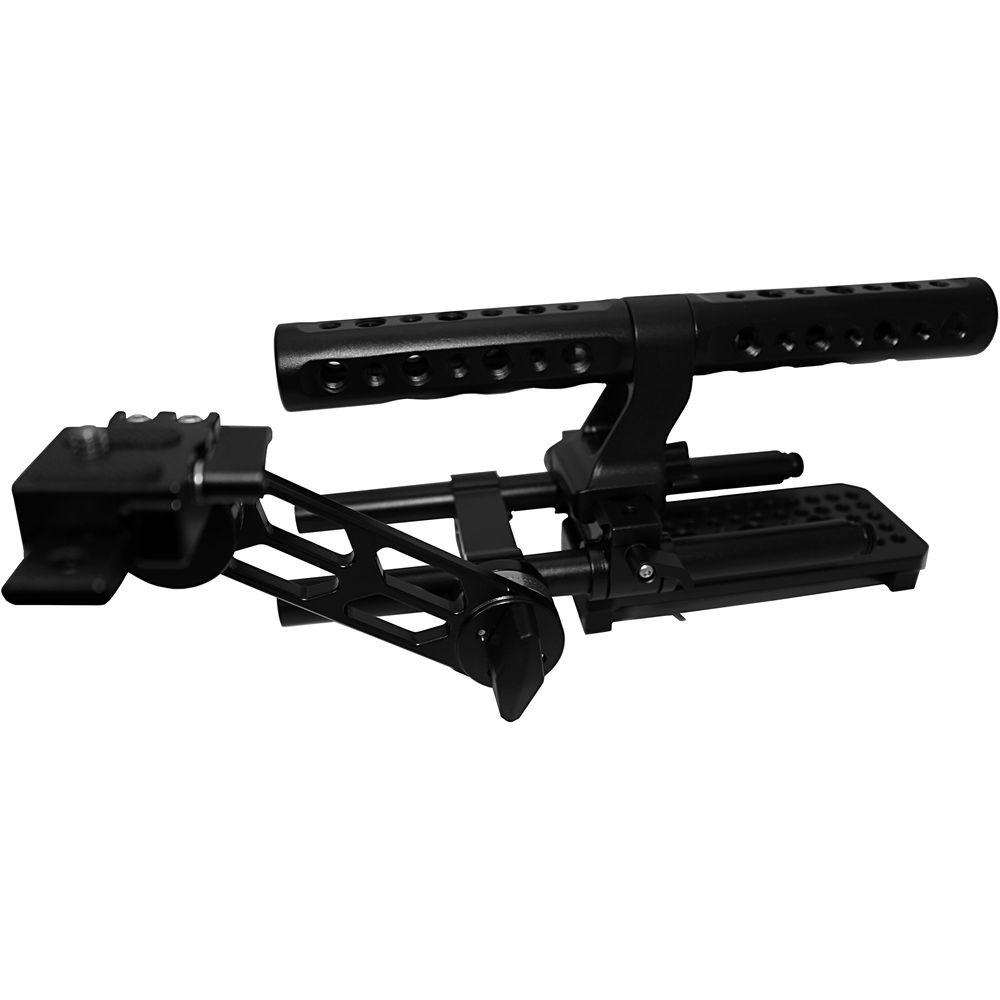

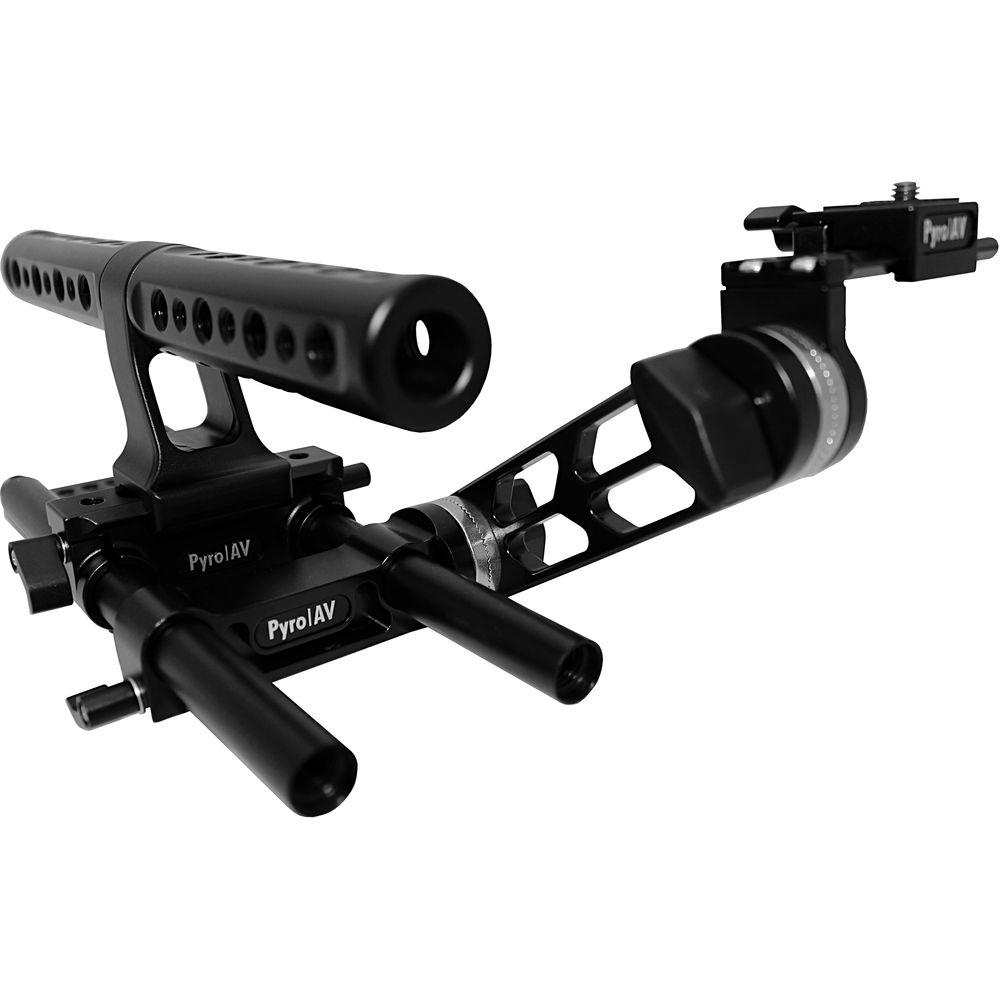

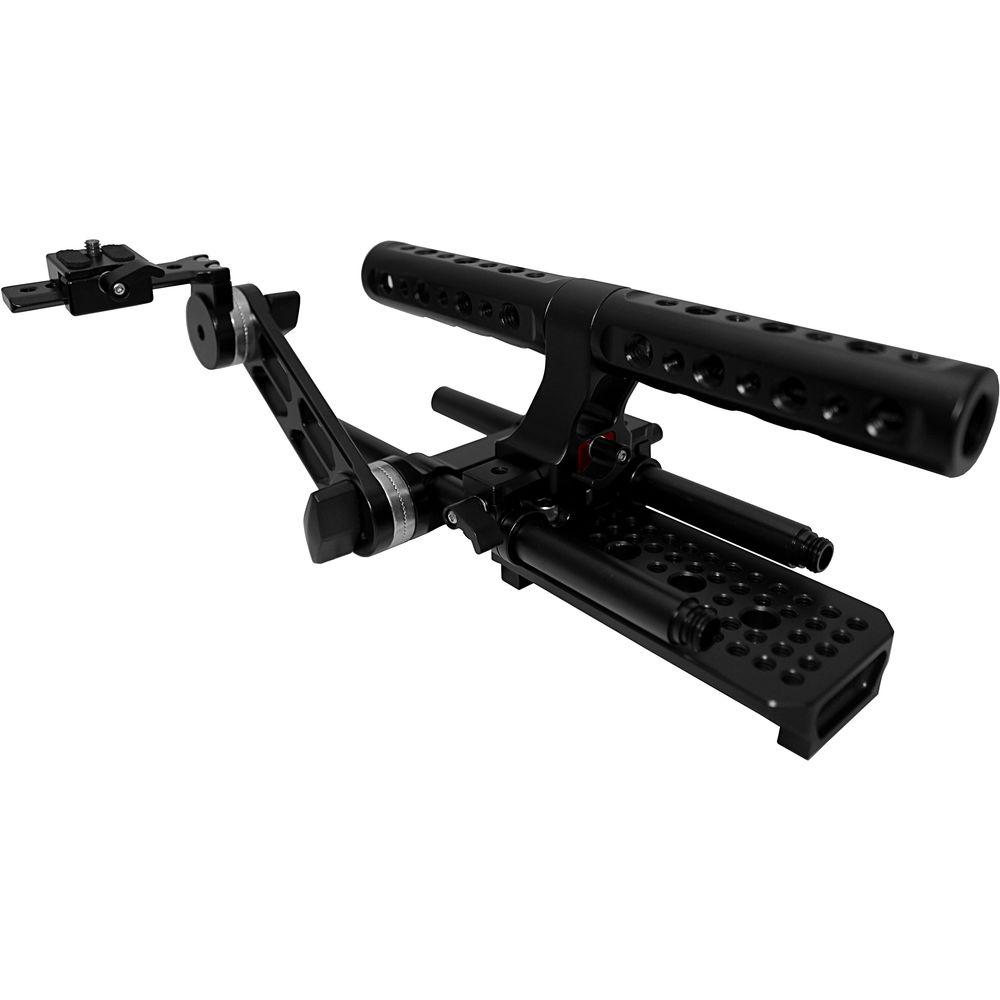

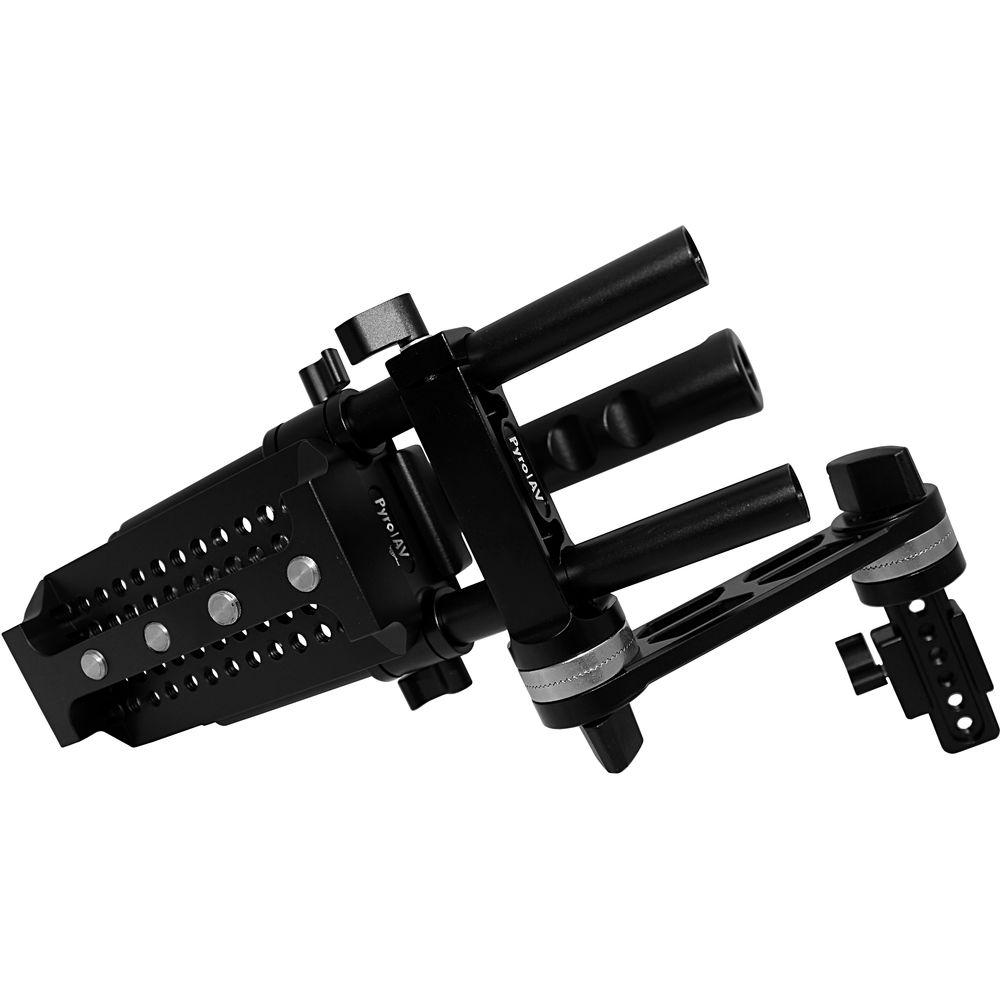

Product description The URSA Kit from Pyro AV is a 19mm-based camera rig system crafted from aviation-grade aluminum components and specifically developed for the Blackmagic Design URSA Camera. The kit includes a top plate, a quick release handle, two 8"-long 15mm aluminum rods, an EVF mounting bracket, a bridge plate adapter, and a slide base with two 18" 19mm lightweight stainless-steel rods.

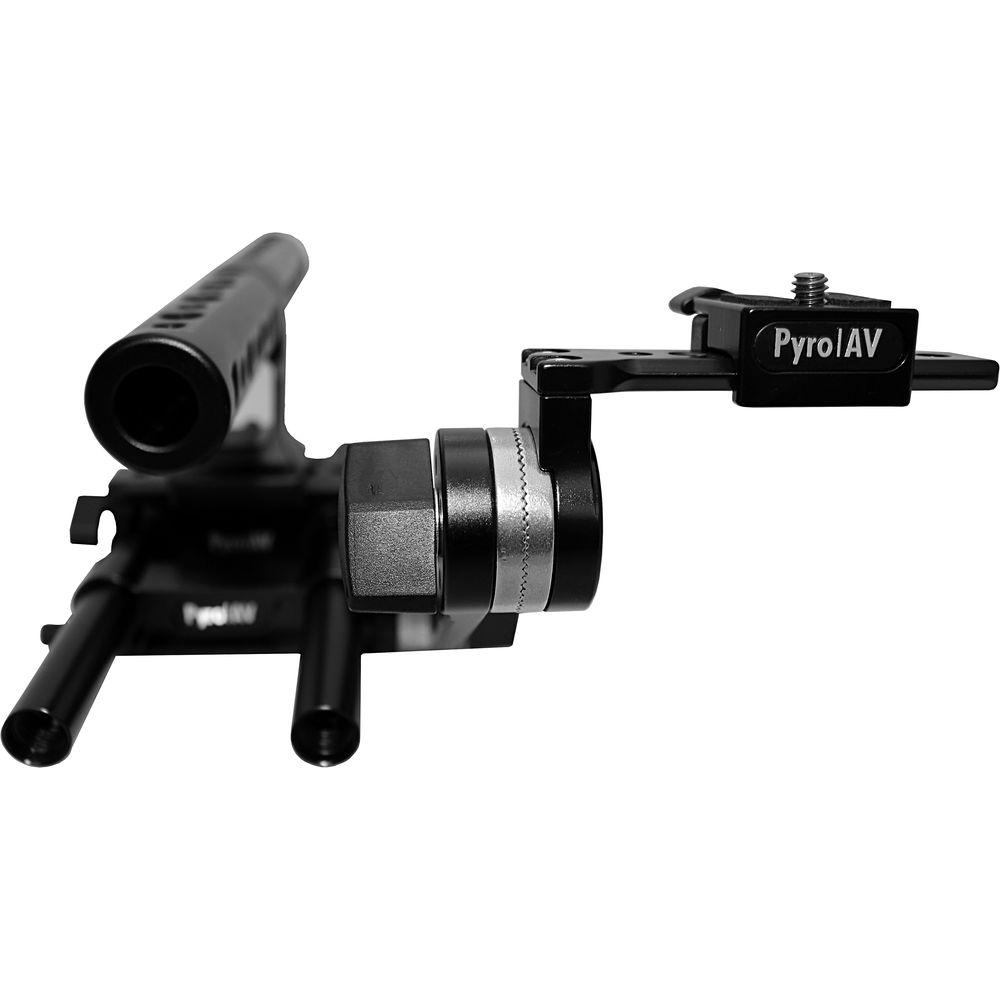

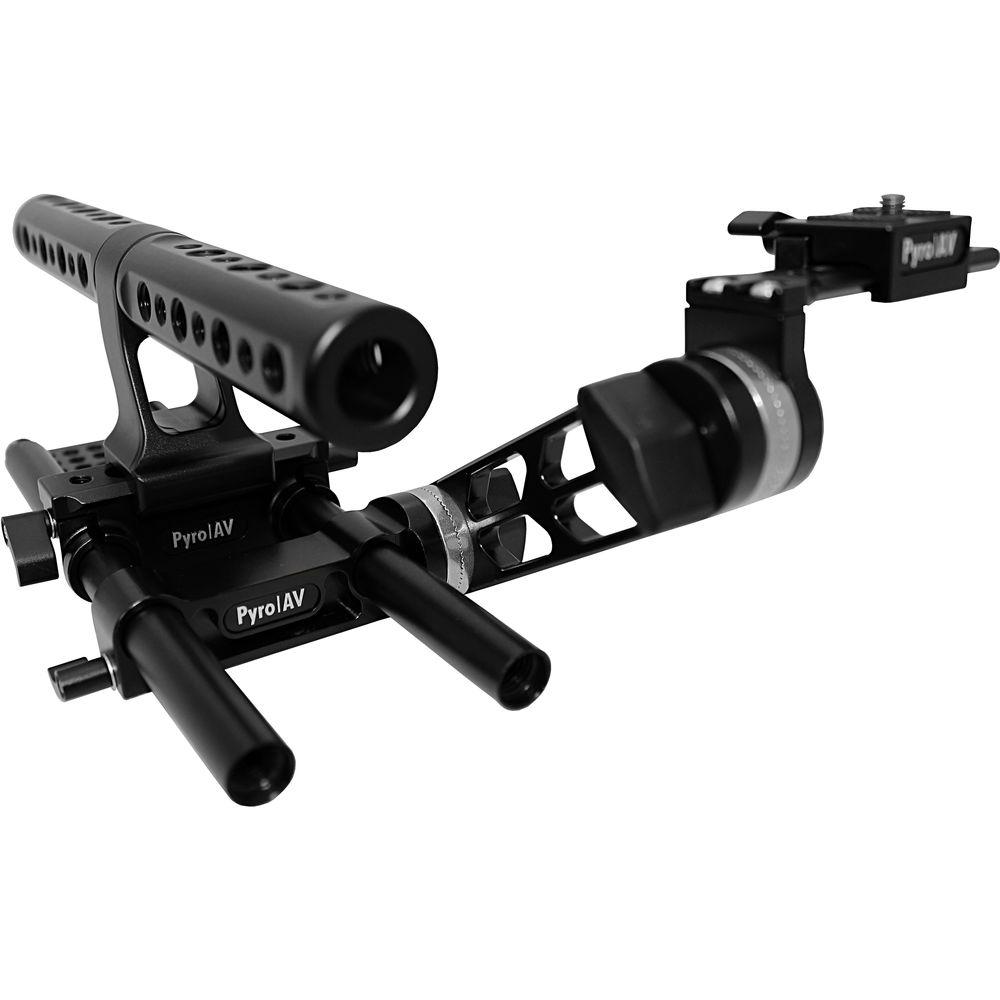

The top plate mounts securely on top of your URSA and includes threaded holes for mounting the quick release handle and other accessories. The quick release handle is also equipped with threaded 1/4"-20 and 3/8"-16 holes, as well as a double 15mm rod clamp to which the two 8" aluminum rods are inserted to support the EVF mounting bracket. Featuring adjustable angle and height, the EVF mounting bracket allows you to add an electronic viewfinder or LCD field monitor to your rig.

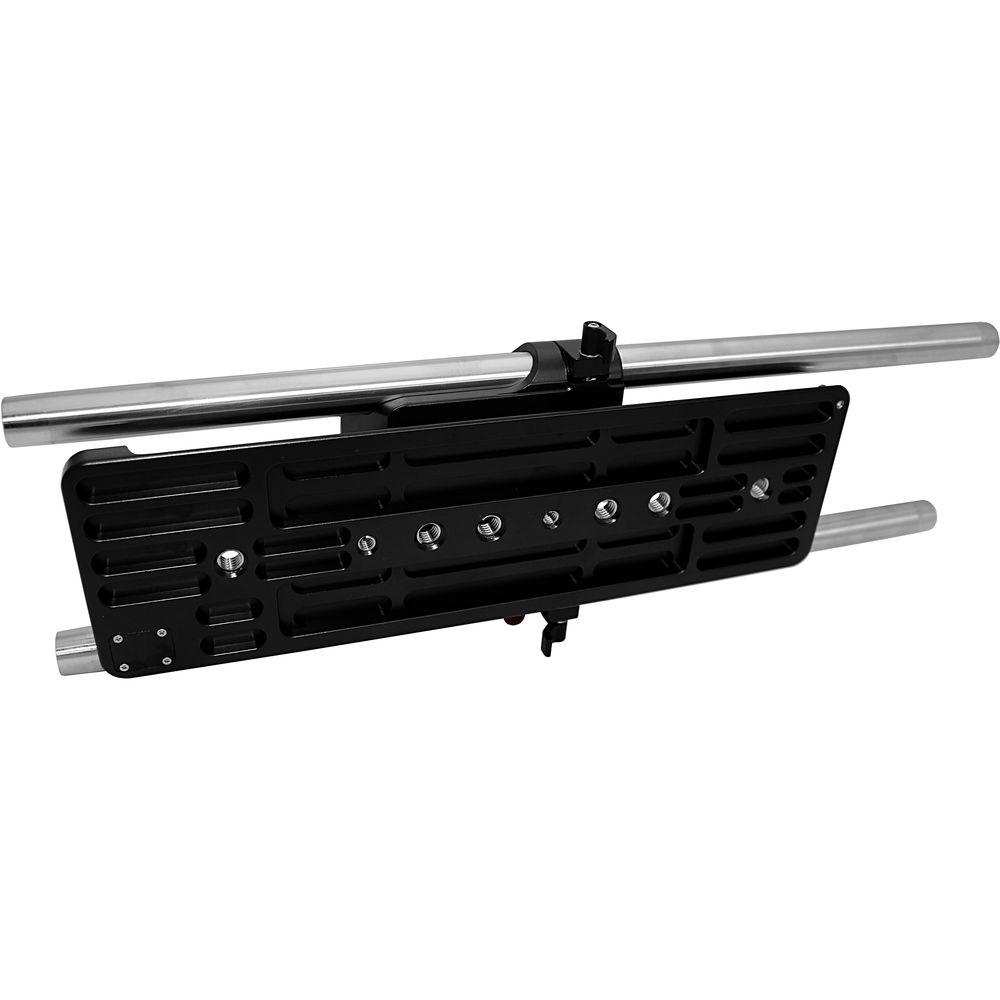

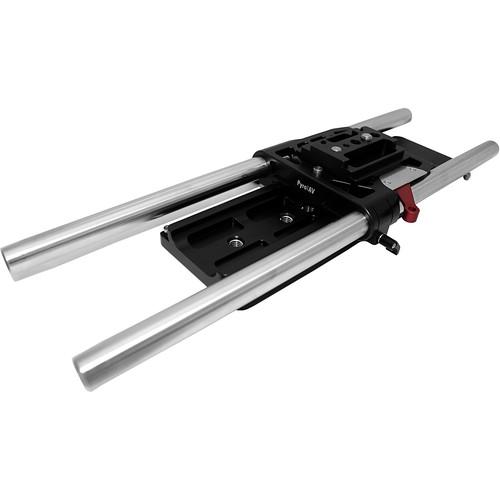

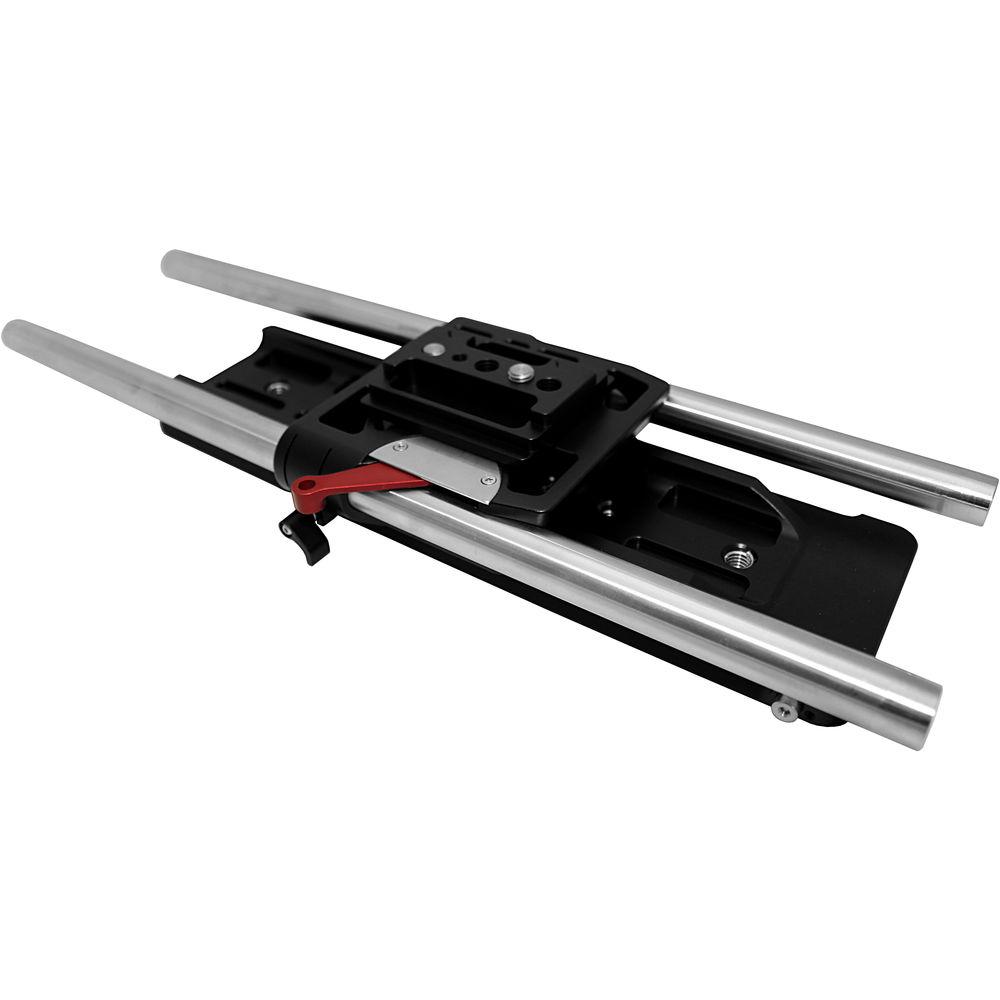

The bridge plate adapter attaches to the bottom of the URSA, enabling you to easily mount your camera to the slide base. Lastly, the slide base comes with a pair of 18" 19mm lightweight stainless steel rods for mounting camera accessories such as a follow focus, matte box, or lens support. It is compatible with ARRI products and OConnor fluid heads. - 13" Base with Slide Plate and 19mm Steel Rods The Pyro AV 13" Base with Slide Plate includes a 13" baseplate with quick release slide plate, and a pair of 18" 19mm stainless-steel rods. The base is compatible with ARRI products and OConnor fluid heads. UPC: 872307101007
- Top Plate for Blackmagic URSA Camera
- Quick Release Handle with 15mm Rod Clamp
- Mounting Bracket for 5"/7" EVF Monitor with Dual Gears, 15mm Rod Suite, Quick Release, & Horizontal Mount
- Bridge Plate Adapter (URSA)
In the Box Bundle Items Top Plate for Blackmagic URSA Camera Quick Release Handle with 15mm Rod Clamp Mounting Bracket for 5"/7" EVF Monitor with Dual Gears, 15mm Rod Suite, Quick Release, & Horizontal Mount Bridge Plate Adapter (URSA) 13" Base with Slide Plate and 19mm Steel Rods - 19mm Stainless-Steel Rods
Also Includes - 2 x 15mm Aluminum Rod (8")
Table of Contents
|
Upload User Manual
Have you got an user manual for the Pyro AV URSA Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Quick Release Handle with 15mm Rod Clamp
| | | Accessory Type | Quick release handle | | | | Intended For | 15 mm rod | | Features | 3/8" thread, 1/4" screw | | | | Box Dimensions (LxWxH) | 10.4 x 3.0 x 1.6" | - 13" Base with Slide Plate and 19mm Steel Rods
| | | Material | Rods: Extruded 304 stainless steel | | Rod Compatibility | 19 mm | | Dimensions | Base Length: 13" (33.0 cm)
Rod Length: 18" (45.7 cm) each | | Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 18.1 x 6.4 x 4.8" | - Top Plate for Blackmagic URSA Camera
- Mounting Bracket for 5"/7" EVF Monitor with Dual Gears, 15mm Rod Suite, Quick Release, & Horizontal Mount
- Bridge Plate Adapter (URSA)
