User Manual for Pyro AV URSA Mini Kit Click to enlarge the picture
Contents of the user manual for the Pyro AV URSA Mini Kit
- Product category: Camcorder Supports & Rigs Pyro AV
- Brand: Pyro AV
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pyro AV Camcorder Supports & Rigs
 |
User manual for the Pyro AV URSA Mini Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pyro AV product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pyro AV user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pyro AV product will considerably shorten its lifespan!
|

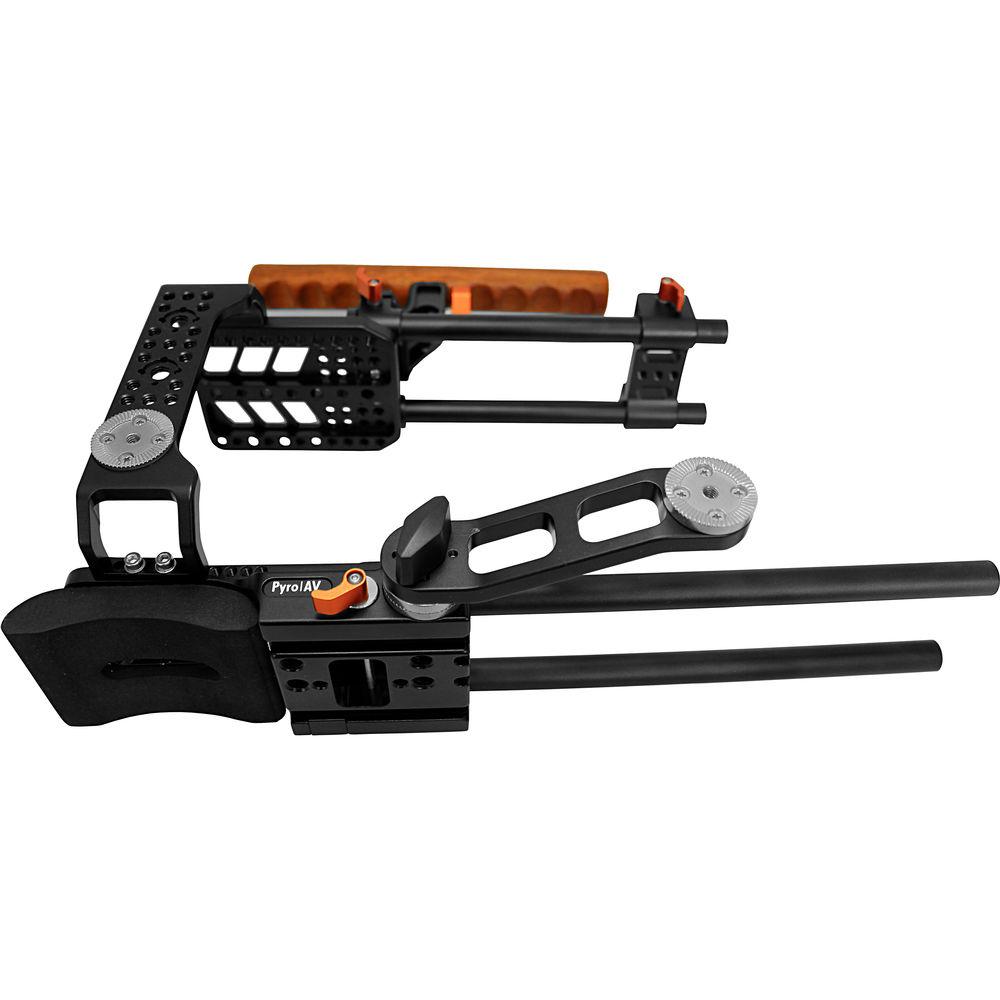

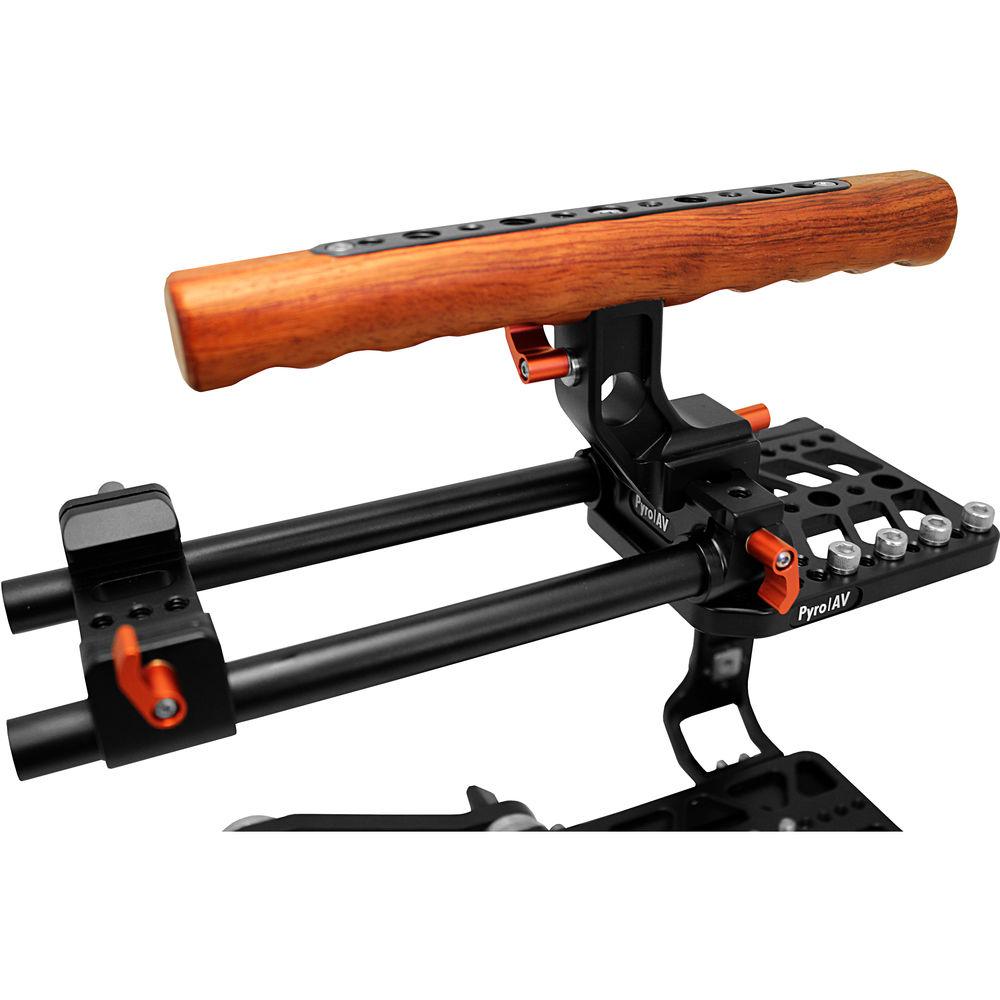

Product description The URSA Mini Kit from Pyro AV is a 15mm-based camera rig system crafted from aviation grade aluminum (6061) components and specifically developed for the Blackmagic URSA Mini camera. The URSA Mini Top Plate mounts securely on top of the camera and includes threaded 1/4"-20 and 3/8”-16 holes for easy accessory mounting. The Quick Release Handle is also equipped with 1/4"-20 and 3/8”-16 threaded accessory mounts and features a 15mm rod clamp and quick release handle. The handle mount allows for installation of a 15mm rod for mounting accessories, such as an EVF or field monitor. Each of the 8" aluminum rods can be used in the 15mm handle mount to support the included custom Blackmagic URSA Mini EVF mount.

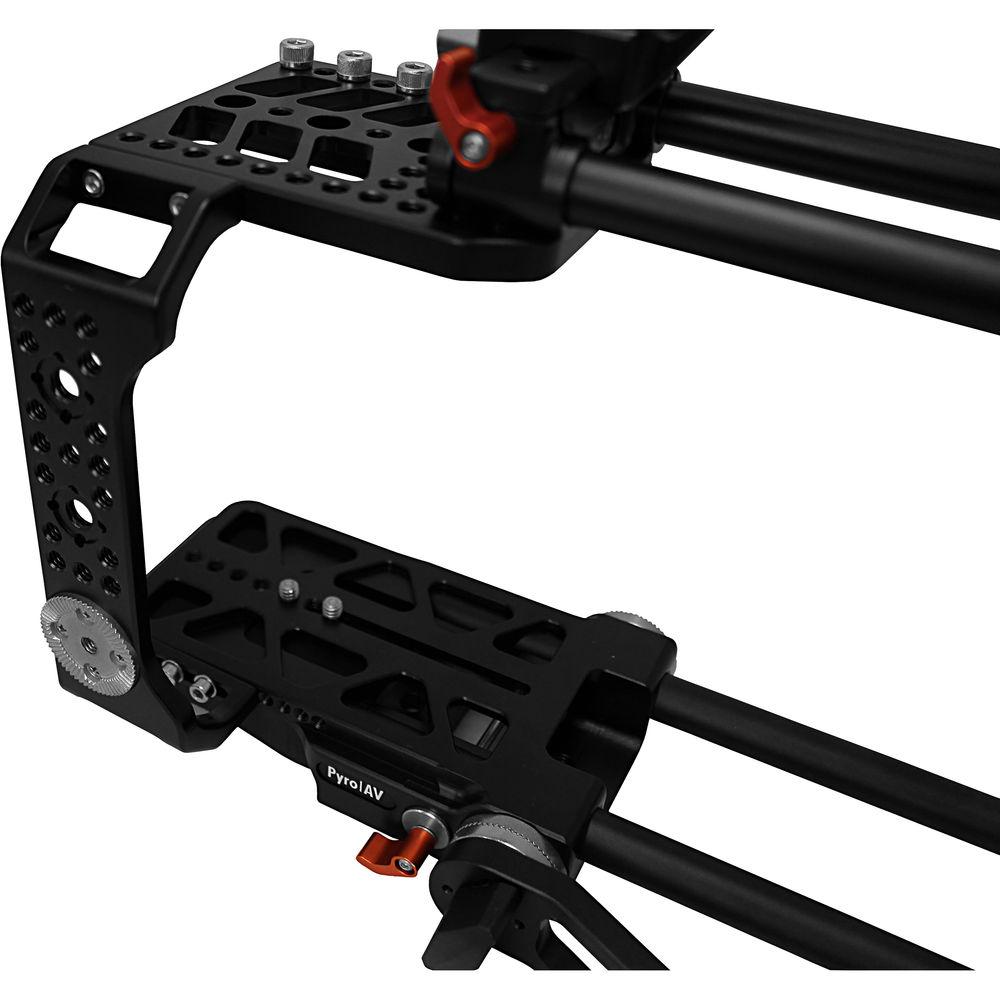

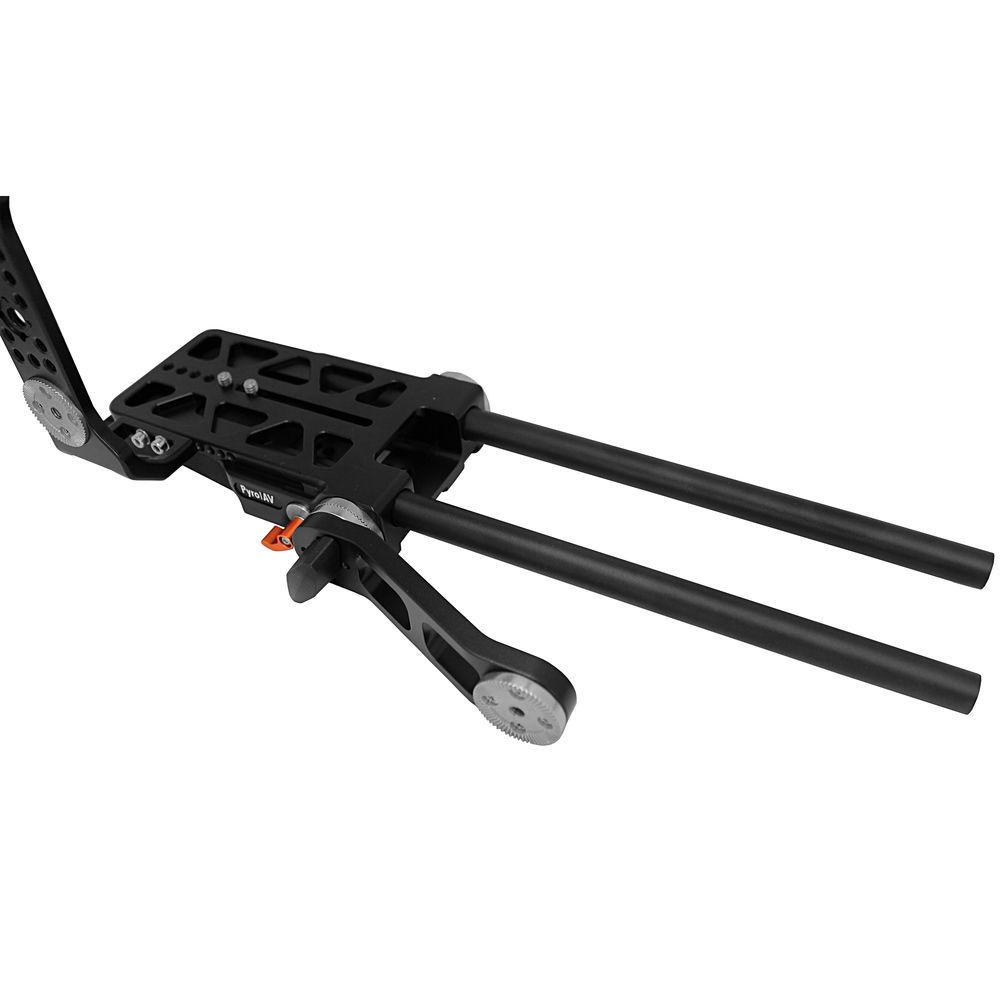

The Side Arm Bracket connects between the baseplate and top plate, adding additional support and providing several mounting points and an ARRI style rosette. A 5" aluminum extension attaches to the ARRI rosette on the Baseplate, allowing the user to attach the Blackmagic Trigger Grip. The Baseplate attaches to the URSA Mini via two 3/8”-16 screws. The base supports two 15mm rods at proper lens height and is equipped with ARRI style rosettes on either side. The Baseplate has a quick release, allowing fast removal of the 10" dovetail slide, thereby allowing the user to quickly transition from tripod mount to a mobile shot by using the integrated shoulder pad. - Slide Dovetail Base (10") The 10" Slide Dovetail Base from Pyro AV features a quick release and is machined out of solid 6061 aircraft aluminum. This slide is equipped with standard 1/4"-20 and 3/8"-16 threaded mounts, and is suitable for use with GH4, a7S, Blackmagic, F5, EPIC, and similar camera packages. It can also be used with Pyro AV and ARRI BP-8/BP-9 15mm systems. UPC: 872307102202
- Top Plate for Blackmagic URSA Mini
- 15mm Quick Release Baseplate for URSA Mini
- 15mm EVF Mount and Rod Guide Clamps for URSA Mini Camera
- Wooden Quick Release Handle

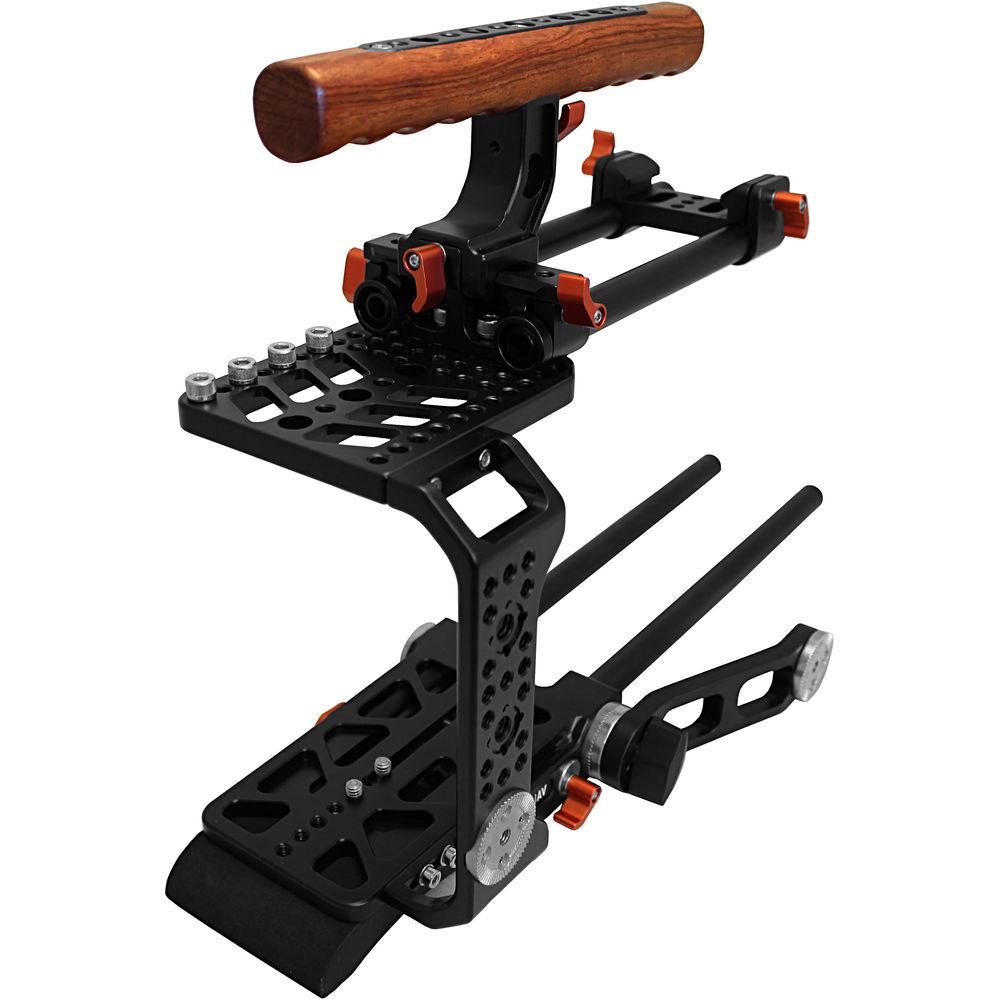

In the Box Bundle Items Top Plate for Blackmagic URSA Mini rtyawyxqeuezaduyzx 15mm Quick Release Baseplate for URSA Mini 15mm EVF Mount and Rod Guide Clamps for URSA Mini Camera Wooden Quick Release Handle Slide Dovetail Base (10")
Also Includes - Side Arm Bracket
- 2 x 15mm Rods (8")
- 2 x 15mm Rods (12")
Table of Contents
|
Upload User Manual
Have you got an user manual for the Pyro AV URSA Mini Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Slide Dovetail Base (10")
| Material of Construction | 6061 aircraft aluminum | | Compatibility | Most 15 mm rod systems | | Mounting Screw Holes | 1/4"-20, 3/8"-16 | | Dimensions | length: 10" / 25.4 cm | | | | Box Dimensions (LxWxH) | 10.7 x 3.5 x 1.6" | - Top Plate for Blackmagic URSA Mini
