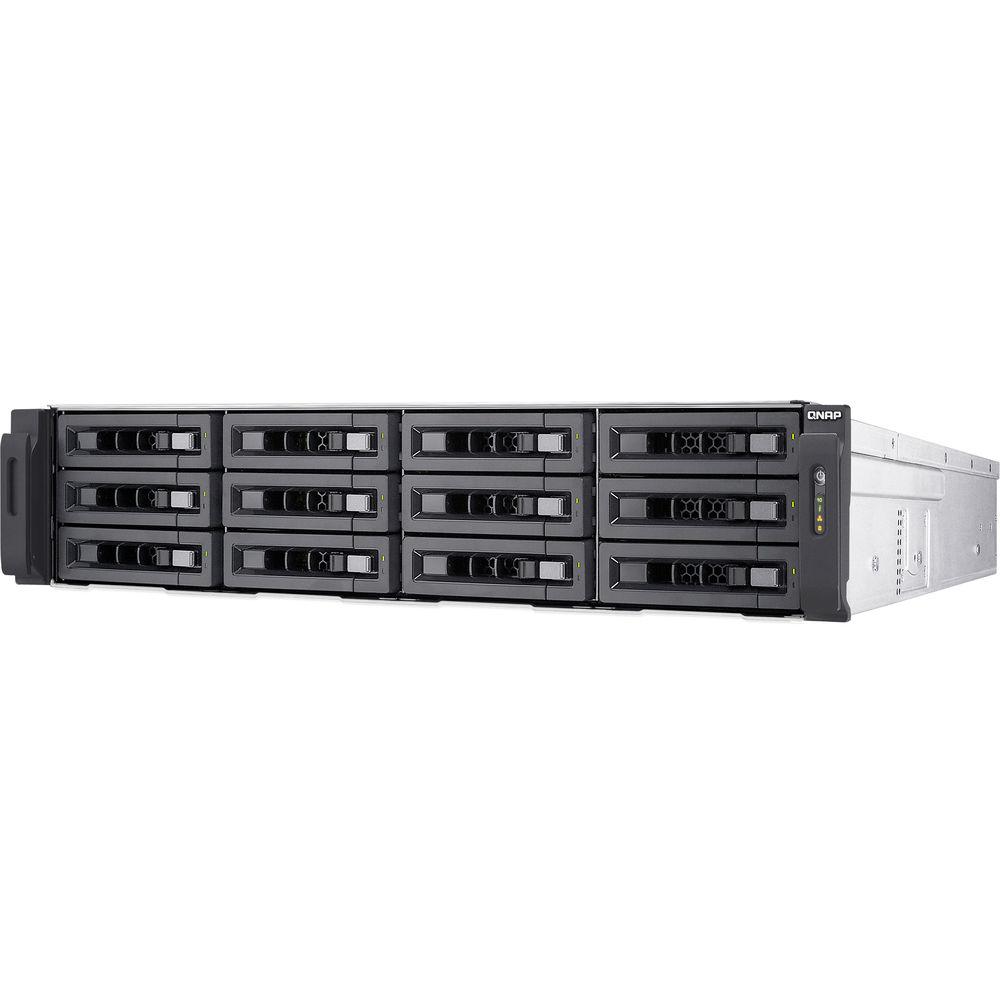

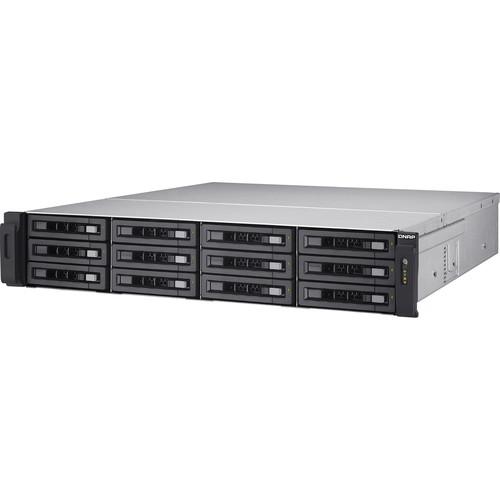

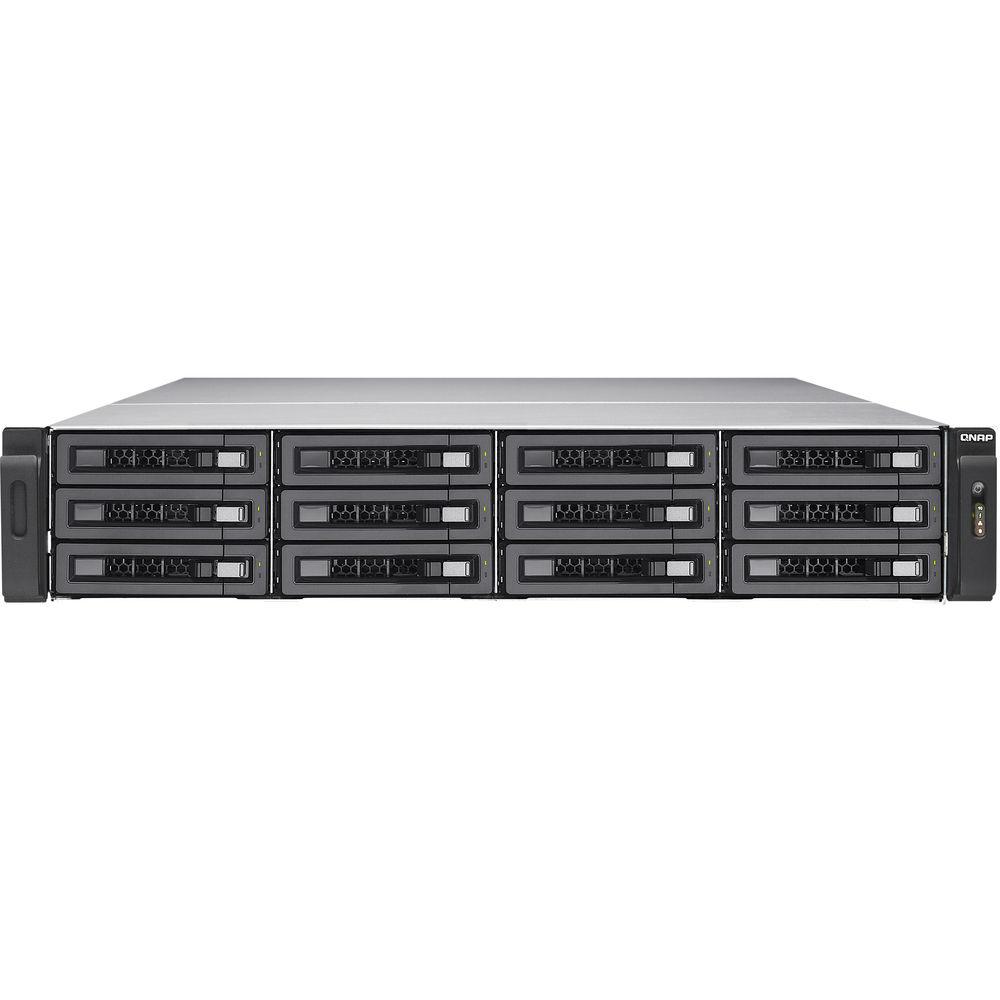

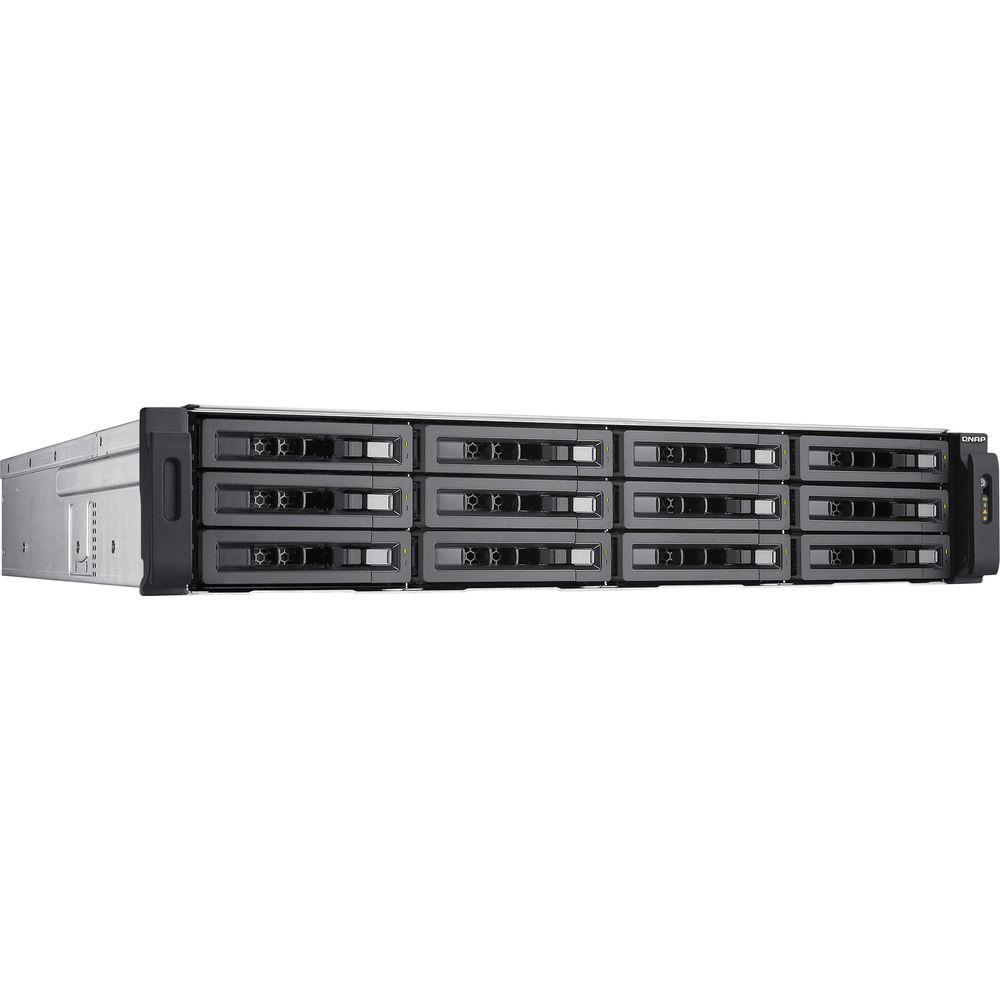

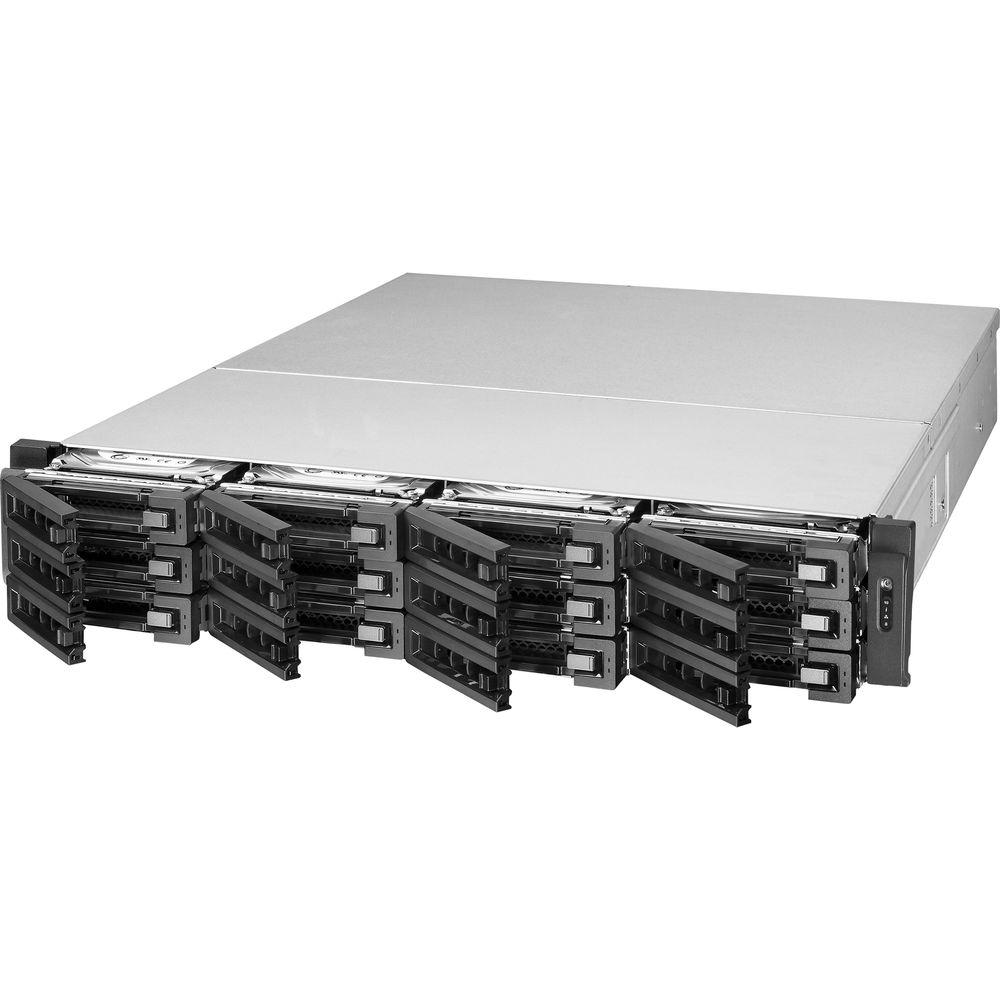

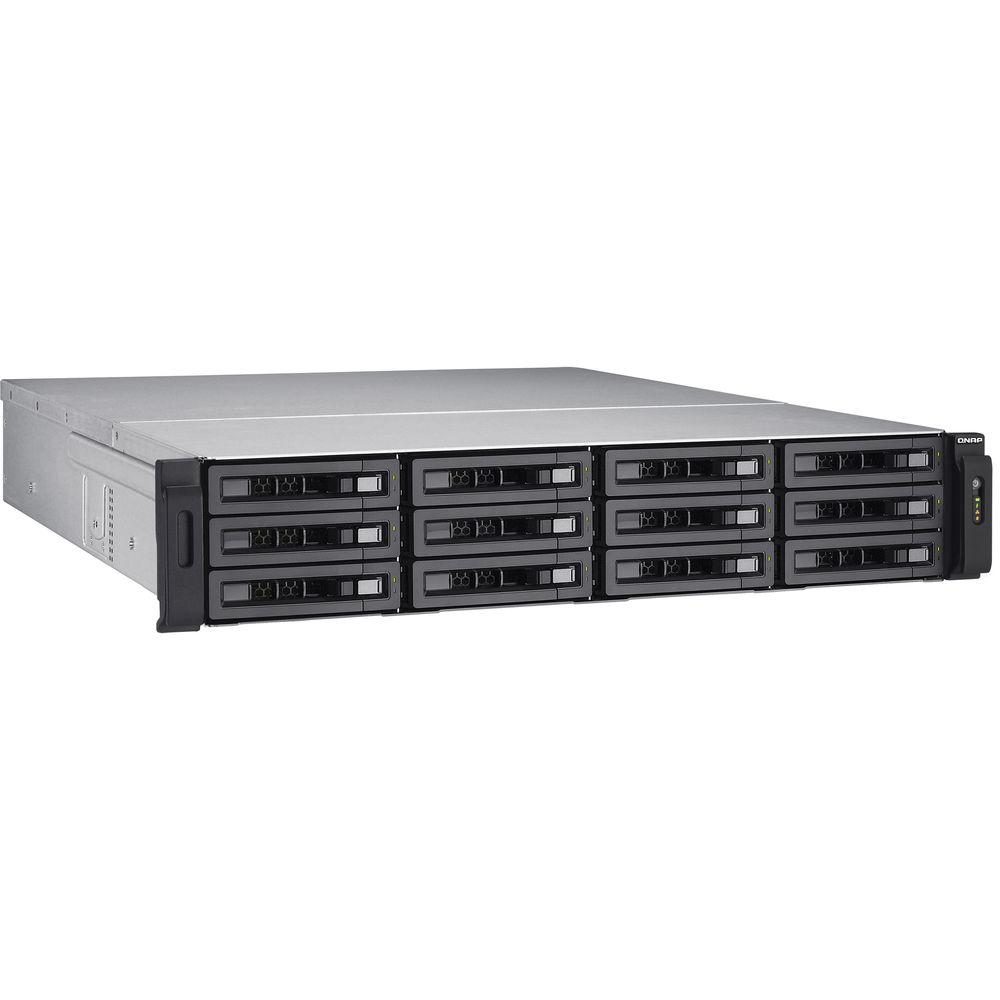

Product description The QNAP 12-Bay SAS NAS/iSCSI/IP-SAN Unified NAS Enclosure quickly takes care of your enterprise data storage needs by featuring two 10GbE SFP+ ports and 12 bays, which can house 12 Gb/s SAS and 6 Gb/s SATA 3.5" or 2.5" drives. Once drives are installed, a quad-core 3.5 GHz Intel Xeon E3-1246 v3 processor and 16GB of DDR3 non-ECC memory run iSCSI and virtualization applications as well as the QTS operating system. You can configure your drives in a RAID 0, 1, 5, 6, or 10 mode to enhance the drive's reads and writes, while preserving data in the event a drive fails. To increase throughputs, QNAP has outfitted this enclosure with two 128GB mSATA modules set up for caching data. Additionally, four Gigabit Ethernet ports are on board to serve large numbers of simultaneous connections.
Powering and cooling these features are accomplished with two redundant 450W PSUs and four 60mm fans. With a well-rounded set of backup solutions integrated, critical business information can be safely protected against unexpected data loss with real-time or scheduled data backups to a remote server. For safeguarding your data, this enclosure encrypts your data with FIPS 140-2 AES 256-bit encryption. It supports SMB/CIFS, NFS, and AFP protocols for file sharing across Windows, Mac, and Linux/UNIX networks. In addition, you can meet future data needs by cascading optional QNAP RAID expansion enclosures. - Enable Auto Tiering with Qtier Technology
- QNAP's Qtier Technology empowers the TVS-EC1280U-SAS-RP R2 with Auto Tiering that helps continuously optimize storage efficiency. With Auto Tiering, the TVS-EC1280U-SAS-RP R2 can automatically move hot data to high-performance storage tiers and cold data to lower-cost, higher-capacity drives, making the TVS-EC1280U-SAS-RP R2 an extremely efficient shared resource. Businesses will no longer have to invest heavily in expensive Flash technology, but can still enjoy strong application performance and lower TCO of storage from Auto Tiering with the TVS-EC1280U-SAS-RP R2
- 12 Gb/s DataBolt Advantage
- Implementing DataBolt technology, the TVS-EC1280U-SAS-RP R2 can deliver up to twice the throughput for 6 Gb/s SAS drives by automatically aggregating the bandwidth from 3 Gb/s and 6 Gb/s drives to fully utilize 12 Gb/s, effectively accelerating the existing infrastructure
- Performance
- The TVS-EC1280U-SAS-RP R2 supports 12 Gb/s SAS drives to provide fast data transmission speeds and drive up to 3,817 MB/s throughput and 260,441 IOPS. Powered by a 3.5 GHz Intel Xeon E3-1246 v3 Quad-Core processor with 16GB of DDR3 non-ECC RAM, the TVS-EC1280U-SAS-RP R2 enhances the efficiency of CPU-demanding tasks and serves more concurrent tasks
- SSD Cache Acceleration
- The TVS-EC1280U-SAS-RP R2 features two pre-installed 128GB mSATA modules, and there are no limits on using SSDs for caching. By installing high-performance SSDs, the IOPS performance of storage volumes can increase. It is well-suited for improving the overall workflow of random IOPS demanding applications such as database and virtualization. The internal cache port design reserves the space of the hard drive tray for more storage capacity
- Removable Motherboard Drawer for Easy Maintenance
- With the TVS-EC1280U-SAS-RP R2's removable motherboard drawer, IT administrators have easier access in upgrading/installing RAM, the internal cache, a 40GbE adapter, and other components. The motherboard itself can be removed and replaced without needing to remove the heavy TVS-EC1280U-SAS-RP R2 from the rack cabinet, making it especially useful in maintaining the TVS-EC1280U-SAS-RP R2 in data centers with multiple rack cabinets
- 40GbE To Your TVS-EC1280U-SAS-RP R2
- The TVS-EC1280U-SAS-RP R2 offers four built-in Gigabit Ethernet ports and features two inbuilt 10GbE SFP+ ports that deliver a 10 Gigabit high-speed network. If 10GbE is insufficient for some workloads, the TVS-EC1280U-SAS-RP R2 supports Mellanox ConnectX-3 Pro adapter cards with 10/40/56 Gigabit Ethernet connectivity to deliver cost-effective computing and storage Ethernet inter-connection solution. It helps achieve a higher throughput for high-performance embedded I/O applications and virtualization acceleration. Businesses can greatly benefit from the fast, flexible storage network of the 40GbE-ready TVS-EC1280U-SAS-RP R2 for boosting their mission-critical IT performance
- QTS - Simple and Efficient
- Thanks to the intuitive user interface of QTS, your NAS experience is smarter and smoother. Its modern flat design streamlines loading times and the intelligent desktop allows you to find desired functions quickly, create desktop shortcuts or group shortcuts, monitor important system information on a real-time basis, and open multiple application windows to run multiple tasks concurrently, bringing greater working efficiency
- Volume & LUN Snapshot Simplifies Restoration
- QTS Storage Manager adds an easy-to-use web-based snapshot tool for you to easily backup and restore data on the TVS-EC1280U-SAS-RP R2 back to any point of time to help prevent loss of important data. You can take snapshots for both volumes and LUN, efficiently replicate volume/LUN snapshots to remote servers by copying only the changes made, and quickly clone a volume/LUN snapshot as a local volume without interrupting the current system operation. You can even set up the system to automatically take a snapshot of the volume before backup via RTRR/rsync, even when the file is opened
- Seamless Capacity Expansion
- The TVS-EC1280U-SAS-RP R2 supports online capacity expansion by cascading multiple QNAP RAID expansion enclosures to meet the needs of growing business data. With QNAP scale-up solution, total storage capacity can be gradually expanded on demand. It is especially useful for large data applications, such as video surveillance, data archiving, and TV broadcast storage. Supported RAID expansion enclosures include the REXP-1220U-RP and the REXP-1620U-RP
- QNAP Flexible Volume
- QNAP's flexible volume provides a more secure and flexible way to store NAS data. This volume offers features such as storage pooling with multiple RAID group protection, a thin provisioned volume with space reclaim, block-level iSCSI LUN, and online capacity expansion. The QTS Storage Manager neatly presents tools and options for managing system storage which simplify the process of NAS capacity expansion and QNAP RAID expansion enclosure management
- Qsirch - A Smarter, Faster Way to Search
- Quickly and easily find documents, photos, videos, and music with Qsirch, QNAP's built-in NAS search application that lets you find what you need by real-time, natural search. Simply type in as much as you know about what you are trying to find, including parts of the file name or even words/phrases in the document, and Qsirch will display a list of matches - complete with thumbnails - as you type. Qsirch even remembers your search history so you can quickly navigate to files you've previously searched for. Qsirch is a huge productivity boost that can help to greatly reduce the time spent looking for files on the NAS, allowing you to focus on other tasks
- Monitor and Manage Multiple NAS with Q'center
- Q'center turns your TVS-EC1280U-SAS-RP R2 into a central management system to manage multiple QNAP NAS units. After installing Q'center in the QTS App Center, you can use the TVS-EC1280U-SAS-RP R2 to centrally manage multi-site QNAP NAS for monitoring system logs, manage firmware updates & maintenance, and enjoy benefits including ease-of-use, cost-efficiency, convenience and flexibility. Managing multiple QNAP NAS becomes easy and efficient
- Cross-Platform File Sharing, Centralized Data Storage
- The TVS-EC1280U-SAS-RP R2 supports SMB/CIFS, NFS, and AFP protocols for file sharing across Windows, Mac, and Linux/UNIX networks. Data, logs, and ISO images of CDs and DVDs can be centrally stored on the TVS-EC1280U-SAS-RP R2 and protected by an integrated anti-virus solution. The Windows AD and LDAP services enable system administrators to configure user permissions by using existing Windows AD server, LDAP server, or NAS build-in LDAP services
- Backup Solutions to Secure Data
- The QNAP NetBak Replicator supports real-time and scheduled data backup on Windows including Outlook email archiving. Apple Time Machine is also supported to provide Mac OS X users with a solution to effortlessly back up data to the TVS-EC1280U-SAS-RP R2
- Disaster Recovery Solutions
- The TVS-EC1280U-SAS-RP R2 offers various data recovery options. RTRR (Real-Time Remote Replication) supports real time or scheduled data backup to a remote QNAP NAS or FTP server and synchronizes files to a remote folder from a local folder with better backup efficiency and reduced backup time. The TVS-EC1280U-SAS-RP R2 also supports rsync protocol to back up data to another remote server on a scheduled basis. Data can also be backed up to and restored from a range of cloud storage services, including Amazon S3, Amazon Glacier, Microsoft OneDrive, Windows Azure, ElephantDrive, Dropbox, Google Drive, Yandex, Google Cloud Storage, and more
- Comprehensive Security Options
- In an open network environment, business data may be exposed in a potential hack. The TVS-EC1280U-SAS-RP R2 provides numerous security options, such as encrypted access, IP blocking, and more. Besides, IT administrators can control the access rights of each user to different folders, preventing unauthorized access to important files. The TVS-EC1280U-SAS-RP R2 is validated with military-level FIPS 140-2 AES 256-bit encryption, preventing sensitive business data from unauthorized access and breach even if the hard drives or the entire system were stolen
- Storage for Comprehensive Virtualization Applications
- The TVS-EC1280U-SAS-RP R2 supports VMware and Citrix, and is compatible with Microsoft Hyper-V and Windows Server 2012, benefiting flexible deployment and management in virtualization environments. The TVS-EC1280U-SAS-RP R2 supports VMware VAAI and Microsoft ODX to help increase performance by offloading server loading for ESXi server and Hyper-V respectively, and supports QNAP vSphere Client plug-in and QNAP SMI-S provider with enhanced efficiency of operations and management in virtualization applications
- Run Multiple Operating Systems on the TVS-EC1280U-SAS-RP R2
- The Virtualization Station transforms the TVS-EC1280U-SAS-RP R2 into a 2-in-a-box NAS that can function as an all-in-one NAS and a virtualization platform supporting multiple operating systems, fast virtual machine (VM) creation, VM backup & restoration, VM import/export, snapshot, and enables desktop operations in web browsers. With an easy-to-use interface, you can centrally manage every VM created on the TVS-EC1280U-SAS-RP R2 with minimal effort. You can download VMs on demand from online VM markets and import them to TVS-EC1280U-SAS-RP R2 to use directly without any complex procedures
- Container Station - LXC and Docker Containers Inclusive
- QNAP Container Station integrates LXC and Docker lightweight virtualization technologies, allowing you to operate multiple isolated Linux systems on the TVS-EC1280U-SAS-RP R2 as well as download apps from the built-in Docker Hub Registry. It supports container import/export and permission settings and features an informative dashboard and flexible user interface for you to manage multiple containers. You can experience the amazing Container Station and enjoy the playground of virtual containers with the TVS-EC1280U-SAS-RP R2
- Storage Solution for Video Editing
- Digital video production produces a significant amount of data that requires high-performance storage with sustainable throughput to meet the demanding output of video editing. The TVS-EC1280U-SAS-RP R2 fulfills storage and video editing needs with a high-speed 10GbE network interface. Videos can be quickly stored and edited on the TVS-EC1280U-SAS-RP R2 directly over the network
- File Synchronization Across Multiple Devices
- The Qsync utility turns your TVS-EC1280U-SAS-RP R2 into a safe data center for file synchronization with a large storage capacity. Any file uploaded to the TVS-EC1280U-SAS-RP R2 will be made available for all linked devices, such as computers, laptops, or mobile devices. Qsync is especially useful for frequent travelers to manage files and have the most updated files on different devices. Qsync provides multiple ways of file synchronization and group file sharing, enhancing the flexibility of collaboration
- Comprehensive Surveillance Solution with 24/7 Security
- The TVS-EC1280U-SAS-RP R2's Surveillance Station offers a professional surveillance solution with a user-friendly management interface, a wide range of over 3,000 compatible IP camera models, and expandable IP camera channel licenses. It supports real-time monitoring, video & audio recording, and playback with a wide range of customizable settings. You can also install the Vmobile app on your iOS or Android mobile devices to manage the monitored channels anytime and anywhere to safeguard your office environment, or install the Vcam app to turn your mobile device into a network camera to instantly record any moment around you to your TVS-EC1280U-SAS-RP R2
- Install-On-Demand Apps Extend NAS Features
- The TVS-EC1280U-SAS-RP R2 has a built-in App Center that provides over 100 install-on-demand apps developed by QNAP and third-party developers, including tools for backup/sync, business, content management, communications, download, entertainment, and much more. It is also a centralized location for managing & updating installed apps. In addition, QNAP's development platform embraces the open-source spirit to enable developers to create their own apps
- Additional SMB-ready Features
- The TVS-EC1280U-SAS-RP R2 supports various business applications as an all-in-one Turbo NAS with cost-efficiency:
FTP Server
The Turbo NAS supports FTP server to share large size files, coming with user-defined settings including bandwidth limitation, number of connections, and write-only permission
Web Server
The Turbo NAS supports Web server which allows numerous websites built on the same server. Administrators can manage up to 32 websites on the single one Turbo NAS with reduced IT costs
RADIUS Server
The Turbo NAS supports RADIUS server which provides centralized authorization management for computers to connect and use a network service
VPN Server
The Turbo NAS supports VPN server which provides an easy way for IT administrators to build up a secure private network and allows the staff to log on from outside the office and access business resources securely such as files and Internet connections
Printer Server
The Turbo NAS supports Printer server to send remote printing request over the Internet (max. 3 USB printers), and supports IPP (Internet Printing Protocol), Samba, print job management and Bonjour printing for Mac OS X
Surveillance Station
The Turbo NAS supports Surveillance Station to connect and manage multiple IP cameras remotely, including real-time monitoring, video recording, playback, and event notifications UPC: 885022010813 In the Box QNAP 12-Bay SAS NAS/iSCSI/IP-SAN Unified NAS Enclosure 4 x Ethernet Cables 2 x Power Cords 48 x 3.5" HDD Flat Head Screws 48 x 2.5" HDD Flat Head Screws Limited 5-Year Warranty with a 3-Year Global Warranty More info from QNAP yduayydtdbeu Table of Contents
|
Upload User Manual
Have you got an user manual for the QNAP 12-Bay SAS NAS iSCSI IP-SAN Unified NAS Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersQNAP TVS-EC1280U-SAS-RP-16G-R2-US Specs | | | CPU | 3.5 GHz Intel Xeon E3-1246 v3 quad-core | | Memory | System Memory: 16 GB of DDR3 non-ECC RAM
Memory Modules Pre-Installed: 2 x 8 GB
Total Memory Slots: 4
Memory Expandable up to: 32 GB (4 x 8 GB) | | Flash Memory | 512 MB DOM | | Internal Cache Port | Two mSATA ports on board for read caching. The standard system is shipped with 2 x 128 GB of mSATA flash | | Hard Drive | 12 x 3.5" SAS 12 Gbps, SAS/SATA 6 Gbps & 3 Gbps hard drives, or 2.5" SAS/SATA SSD hard drives | | Hard Drive Trays | 12 x hot-swappable and lockable trays | | LAN Port | Built-in 2 x 10 GbE (SFP+) and 4 x GbE

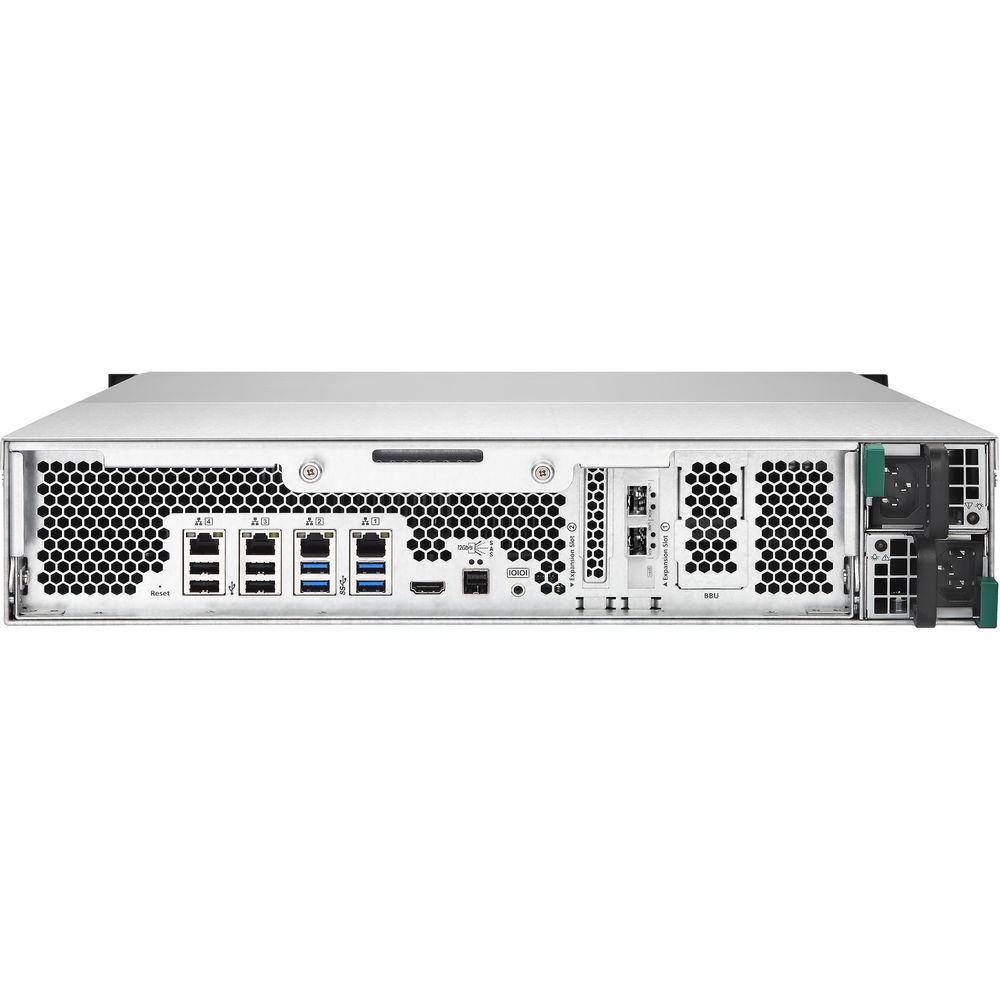

40 GbE is optional | | LED Indicators | 10 GbE, Status, LAN, Storage expansion port status | | USB | 4 x USB 3.0 ports (rear)
4 x USB 2.0 ports (rear)
Supports USB printer, pen drive, USB hub, and USB UPS etc | | Buttons | System: Power button and reset button | | Alarm Buzzer | System warning | | Form Factor | 2U, Rackmount | | Sound Level | Sound Level (dB) Sound pressure (LpAm) (bystander position): 49.4 dB (with 12 x HITACHI HUS724020ALA640 hard drives installed) | | Power Consumption | Sleep mode: 80.41 W
In Operation: 166.58 W (with 12 x HITACHI HUS724020ALA640 hard drives installed) | | Temperature | 32 to 104°F / 0 to 40°C | | Relative Humidity | 5~95% non-condensing
Wet Bulb: 81°F / 27°C | | Power Supply | Redundant Power: Input 90 to 264 VAC; 2 x 450 W | | PCIe Slots | 2 (right slot: 1 x PCIe Gen3 x8; left slot: 1 x PCIe Gen3 x4) | | Fan | 4 x 6 cm smart cooling fans | | | | Operating System | QTS (QNAP Turbo NAS System) | | Supported Browsers | Microsoft Internet Explorer 10+
Mozilla Firefox 8+
Apple Safari 4+
Google Chrome | | Multilingual Support | Chinese (Traditional & Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, Turkish | | File System | Internal Hard Drive: EXT4
External Hard Drive: EXT3, EXT4, NTFS, FAT32, HFS+ | | Networking | 1. TCP/IP (IPv4 & IPv6: Dual Stack)
2. Quad Gigabit NICs with Jumbo Frame
- Failover
- Multi-IP Settings
- Port Trunking/NIC Teaming (Modes: Balance-RR, Active Backup, Balance XOR, Broadcast, IEEE 802.3ad/Link Aggregation, Balance-TLB and Balance-ALB)
3. Optional Dual-port 10 GbE and 1 GbE Network Expansion Cards
4. Service Binding Based on Network Interfaces
5. Proxy Client, Proxy Server
6. DHCP Client, DHCP Server
7. Protocols: CIFS/SMB, AFP (v3.3), NFS (v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP, and SMSC
8. UPnP & Bonjour Discovery
9. USB Wi-Fi Adapter Support | | Security | 1. IP Filter & Policy-based Automatic IP Blocking
2. Network Access Protection with Auto-blocking: SSH, Telnet, HTTP(S), FTP, CIFS/SMB, AFP
3. Encrypted Access: HTTPS, FTP with SSL/ TLS (Explicit), SSH/SFTP (admin only), Encrypted Remote Replication (Rsync over SSH)
4. CIFS Host Access Control for Shared Folders
5. Antivirus Protection
6. FIPS 140-2 Validated AES 256-bit Volume-based Data Encryption
7. AES 256-bit External Drive Encryption
8. Importable SSL Certificate
9. Instant Alert via E-mail, SMS, Beep, and LCD Panel | | Disk Management | 1. QNAP Flexible volume
2. Thin-provisioning with space reclamation supported
3. Online Volume Expansion
4. Online Storage Pool Expansion (via QNAP RAID expansion enclosure)
5. Single Disk, JBOD, RAID 0, 1, 5, 6, 10
6. RAID Hot Spare and Global Hot Spare
7. Online RAID Capacity Expansion and Online RAID Level Migration
8. Bad Block Scan and Hard Drive S.M.A.R.T.
9. Bad Block Recovery
10. RAID Recovery
11. Bitmap Support | | Domain Authentication Integration | 1. Microsoft Active Directory (AD)
2. LDAP Server
3. LDAP Client
4. Domain Users Login via CIFS/SMB, AFP, FTP, and File Station | | Web Administration | 1. Multi-window, Multi-tasking based System Management
2. Movable Icons and Personalized Desktop
3. Smart Toolbar and Dashboard for Neat Display on System Status
4. Smart Fan Control
5. Dynamic DNS (DDNS)
6. SNMP (v2 & v3)
7. Resource Monitor
8. Network Recycle Bin for File Deletion via CIFS/SMB and AFP
- Automatic Cleanup
- File Type Filter
8. Comprehensive Logs (Events & Connection)
10. Syslog Client
11. Firmware Live Update
12. System Settings Backup and Restore
13. Restore to Factory Default
14. Mobile App Qmanager for Remote Monitoring | | | | iSCSI (IP SAN) | 1. iSCSI Target
2. Multi-LUNs per Target
3. Up to 256 Targets/LUNs Combined
4. Supports LUN Mapping & Masking
5. Block-based LUN
6. Thin-provisioned LUN with Space Reclamation supported
7. Online LUN Capacity Expansion
8. Supports SPC-3 Persistent Reservation
9. Supports MPIO & MC/S
10. iSCSI LUN Backup, One-time Snapshot, and Restore
11. iSCSI Connection and Management by QNAP Finder (Windows)
12. Virtual Disk Drive (via iSCSI Initiator)
13. Stack Chaining Master
14. Max No. of Virtual Disk Drives: 8 | | Server Virtualization & Clustering | 1. VMware vSphere (ESX/ESXi 4.x, 5.x)
2. VMware VAAI for iSCSI and VAAI for NAS
3. vSphere Plug-in
4. Citrix XenServer (6.0)
5. Windows Server 2012 Hyper-V
6. Supports Microsoft ODX
7. QNAP SMI-S provider for Microsoft SCVMM
8. Windows Server 2012 Failover Clustering | | Print Server | 1. Max No. of Printers: 3
2. Supports Internet Printing Protocol
3. Print Job Display and Management
4. IP-based and Domain Name-based Privilege Control
5. Supports Apple Bonjour Printing | | | | Dimensions | 3.5 x 17.4 x 20.9" / 88.0 x 442.5 x 530.5 mm | | Weight | 31.3 lb / 14.2 kg | | | | Package Weight | 46.5 lb | | Box Dimensions (LxWxH) | 29.5 x 23.3 x 12.5" |
