User Manual for QNAP 8-Bay TX-800P Thunderbolt 2 Expansion Enclosure Click to enlarge the picture
Contents of the user manual for the QNAP 8-Bay TX-800P Thunderbolt 2 Expansion
- Product category: NAS Enclosures QNAP
- Brand: QNAP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for QNAP NAS Enclosures
 |
User manual for the QNAP 8-Bay TX-800P Thunderbolt 2 Expansion contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any QNAP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official QNAP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a QNAP product will considerably shorten its lifespan!
|

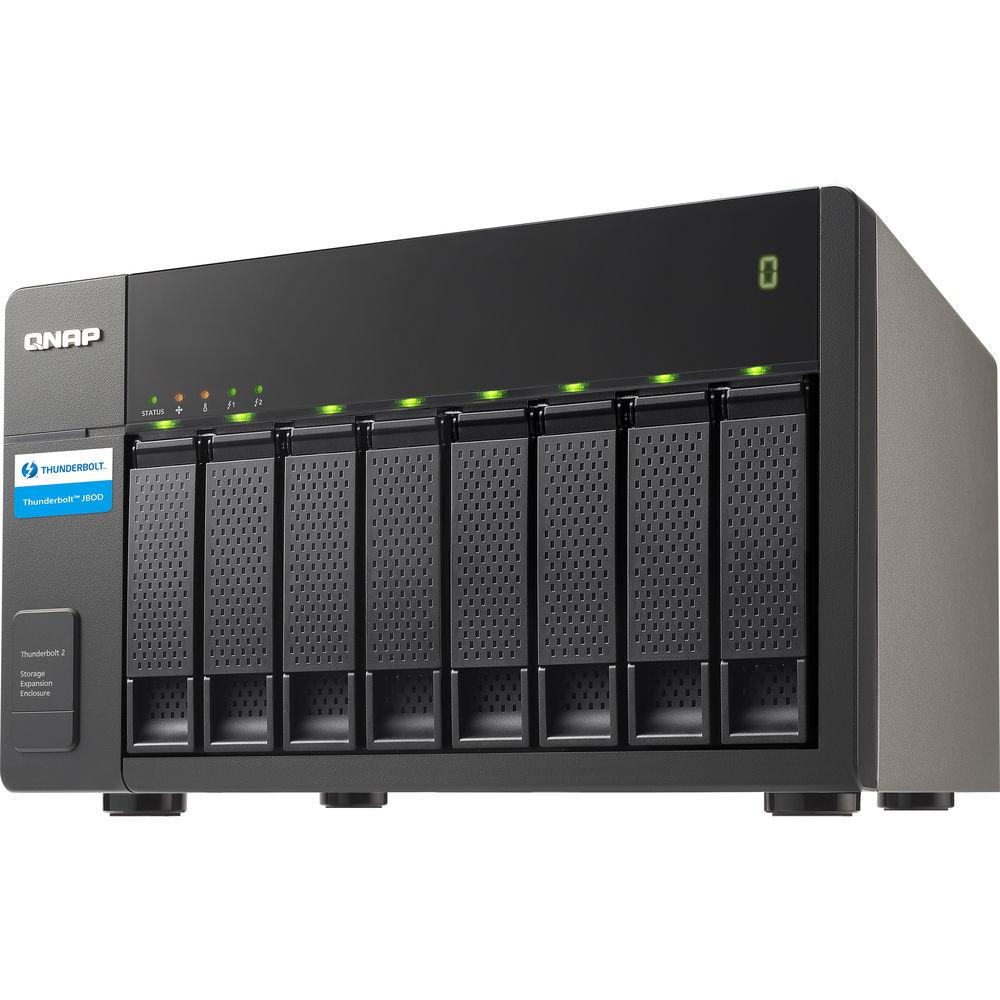

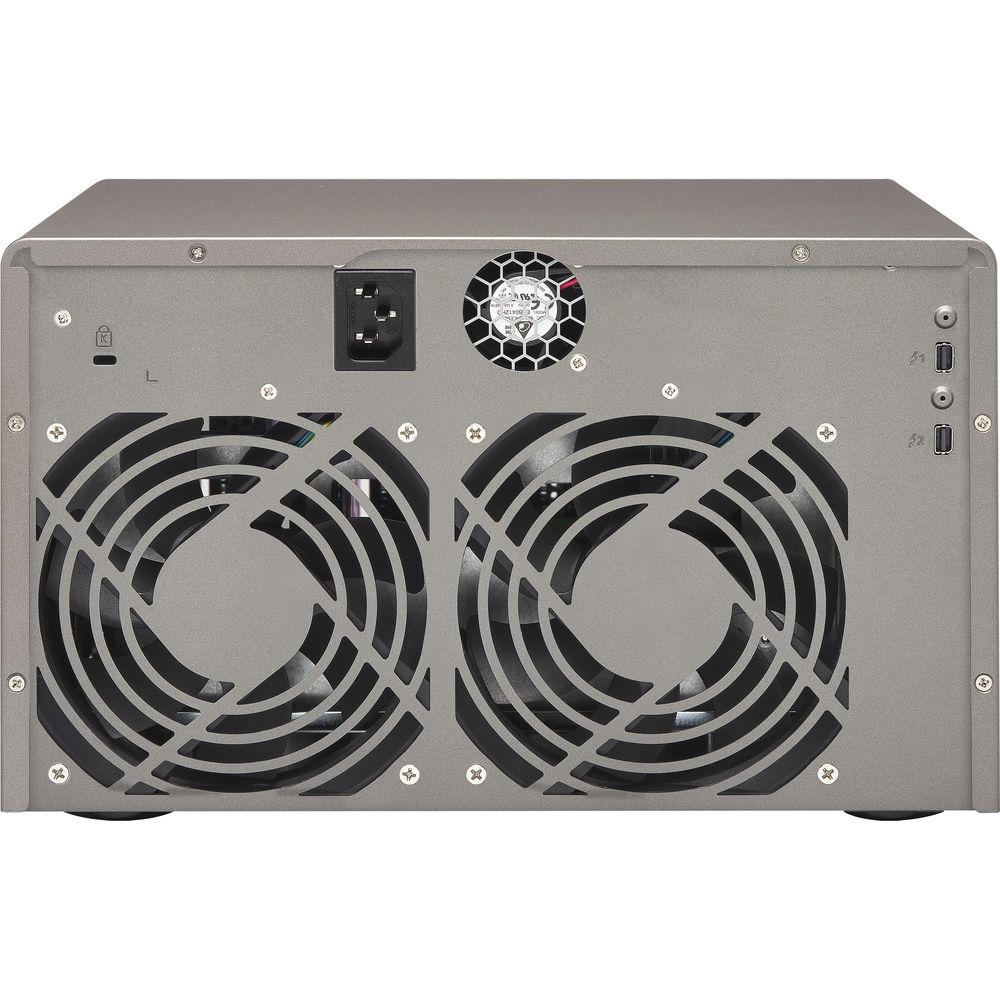

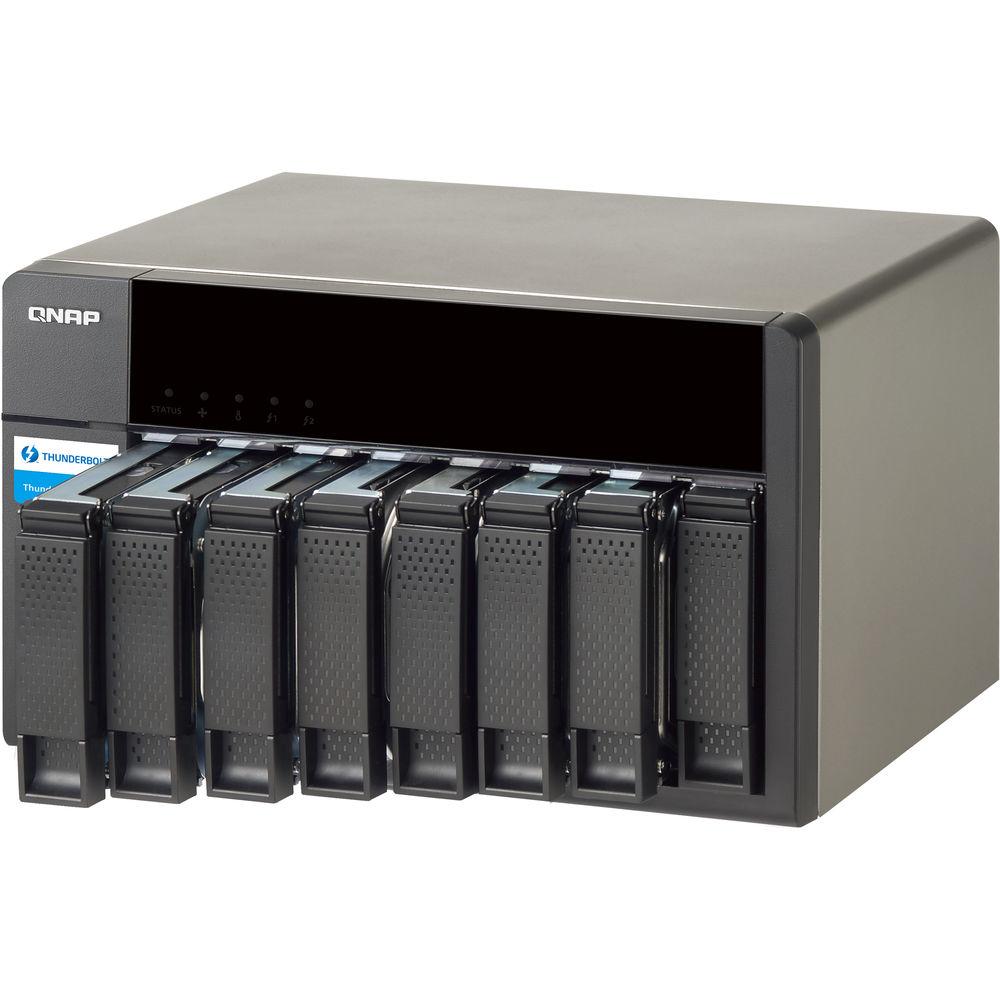

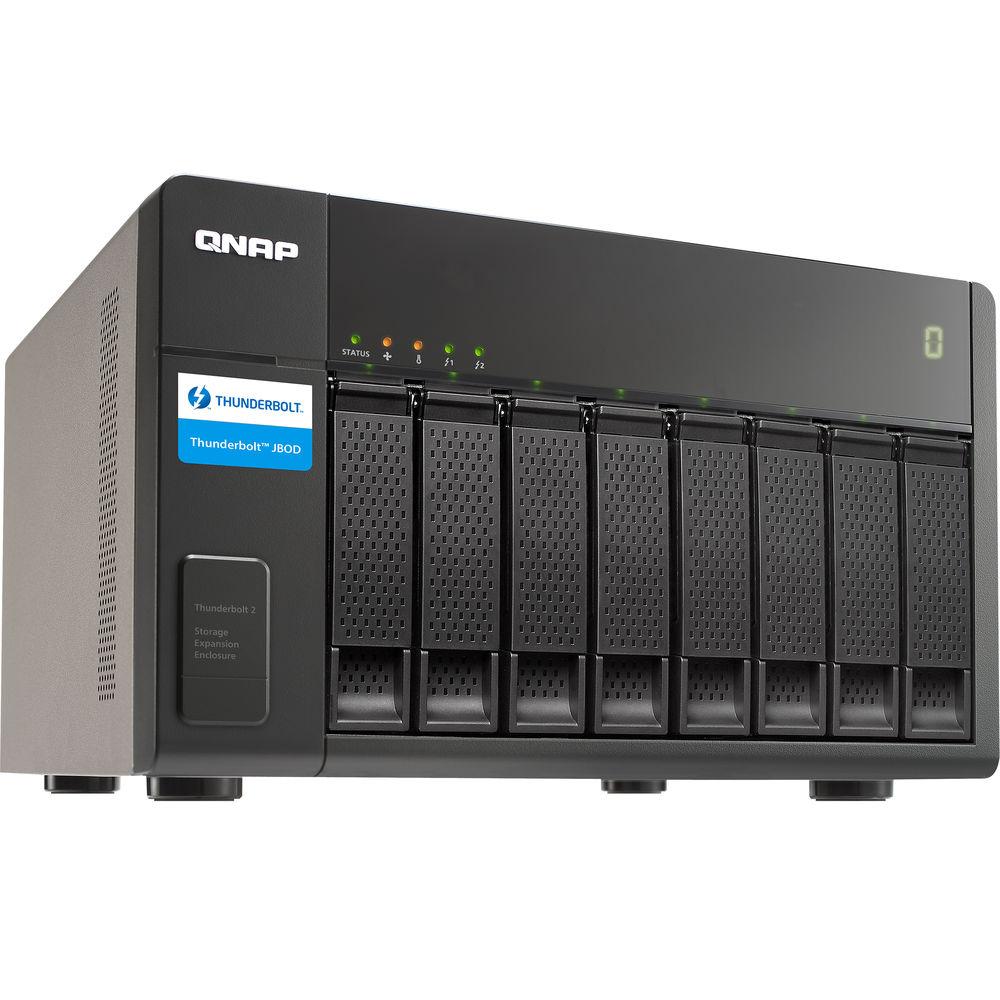

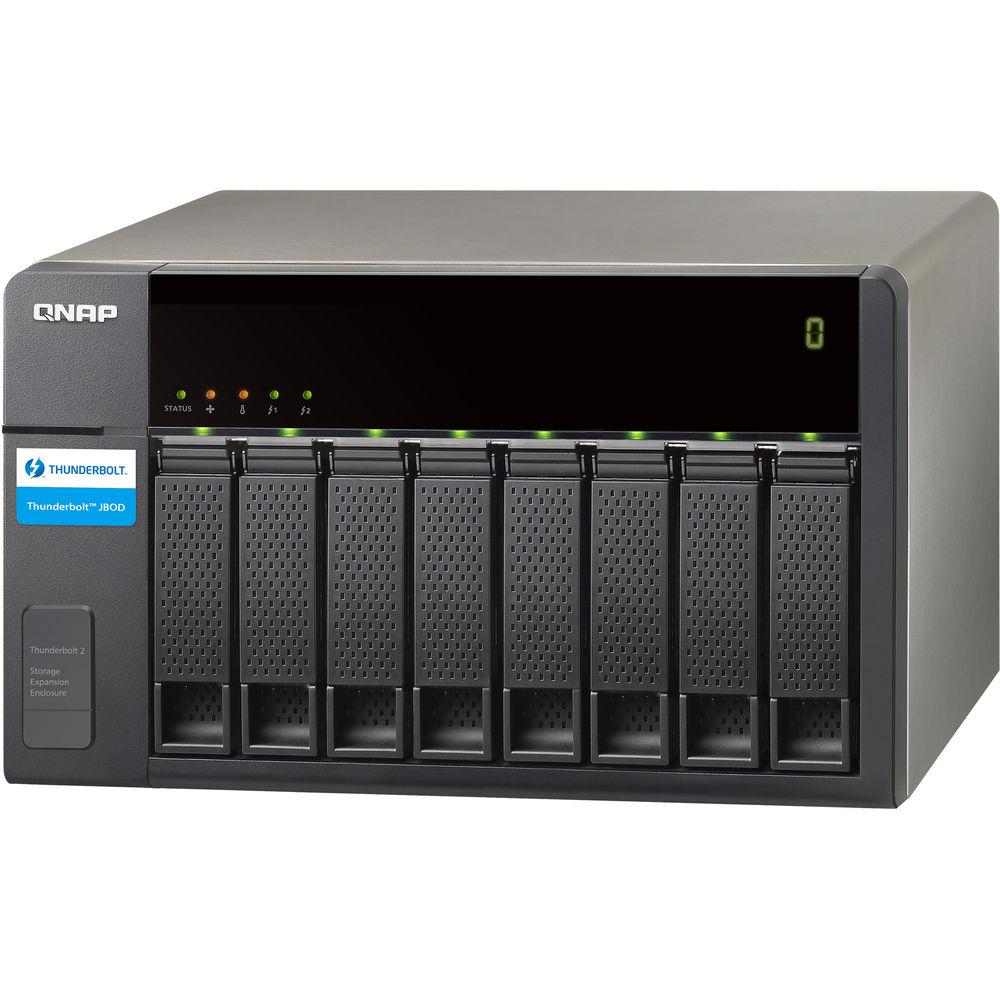

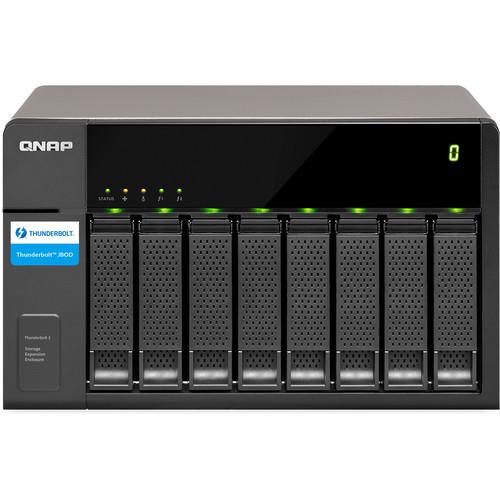

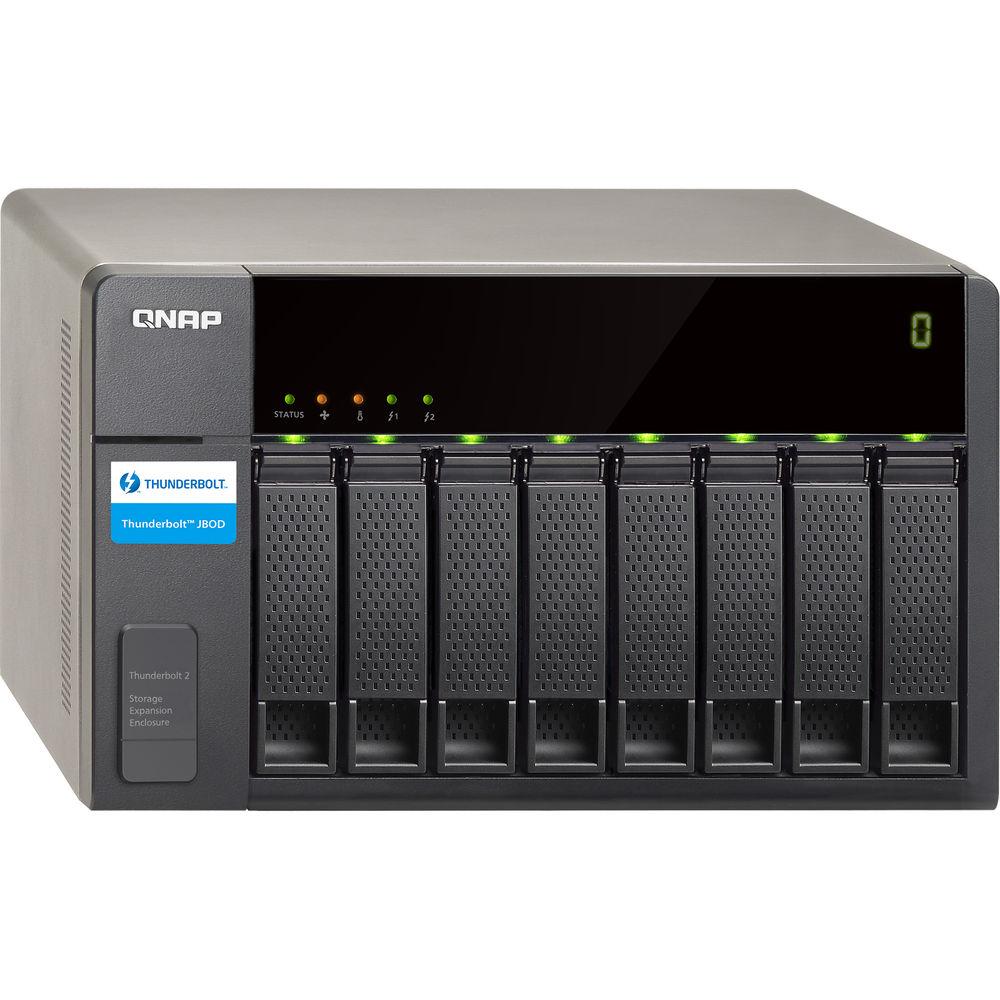

Product description Expand your Thunderbolt NAS system's storage capacity with the 8-Bay TX-800P Thunderbolt 2 Expansion Enclosure from QNAP. The enclosure features eight drives bays that can each support a single 2.5" or 3.5" SATA-based drive. QNAP has outfitted the enclosure with two Thunderbolt 2 ports, which enable you to daisy chain multiple expansion units to a TVS series NAS system. To cool the drives, two 120mm fans are on board. Once connected, the drives in the TX-800P are instantly recognized by the Thunderbolt NAS, making it easy to set up. Furthermore, it automatically turns on or shuts off with the Thunderbolt NAS, offering convenience and energy savings. - Additional Drive Capacity for Thunderbolt NAS
- Simply connect the TX-800P to a Thunderbolt NAS via optional Thunderbolt 2 cables and power it on. The Thunderbolt NAS will automatically detect the separately sold hard drives in the TX-800P as newly-installed local drives. The Thunderbolt NAS capacity can then be seamlessly expanded as a large volume by using the QTS Storage Manager software program.
- Missing Mode Protection
- If your TX-800P is accidentally disconnected, the Thunderbolt NAS enters missing mode and blocks I/O access to protect the stored data. The system can then recover from the missing mode to the normal state with data staying intact.
- QTS Storage Manager
- The QTS Storage Manager offers tools and options for managing system storage with an intuitive graphical user interface, which simplifies the process of NAS capacity expansion and TX-800P management. IT administrators can easily monitor the health status of TX-800P and the disks within it. When multiple expansion enclosures are connected, the Locate Disk and Locate Enclosure functions assist you in quick maintenance.
- Backup Solution
- In addition to expanding an existing volume, you can use the TX-800P as a flexible external storage to perform speedy and secure backup tasks for the Thunderbolt NAS. The QNAP RTRR (Real-Time Remote Replication) or rsync service lets IT administrators back up Thunderbolt NAS data to the TX-800P on a real-time or scheduled basis.
- Smart Power Design
- The TX-800P automatically powers on and off with your Thunderbolt NAS, allowing for total convenience and energy saving.
- Flexible Drive Selection
- The TX-800P offers high flexibility in hard drive selection. IT administrators can choose low-cost but high-capacity SATA HDDs for large data archiving, or high-speed and high-stability SSDs for I/O intensive operations.
- Hardware Design
- The TX-800P includes a 350W internal PSU to provide power even under a sustained full load. The well-ventilated chassis and smart fan help provide efficient cooling for better stability and reliability, with the fan enabling efficient heat removal even when all 8 drives are under full operation simultaneously.
UPC: 885022009237 In the Box QNAP 8-Bay TX-800P Thunderbolt 2 Expansion Enclosure Power Cord Package of Screws Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the QNAP 8-Bay TX-800P Thunderbolt 2 Expansion Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersQNAP TX-800P-US Specs | | | Number of Bays | 8 x 2.5"/3.5" | | Media Card Slots | None | | Connections | 2 x Mini DisplayPort (Thunderbolt 2 (20 Gb/s)) | | Compatible Drive Interface | SATA III | | Hot-Swap Support | Yes | | | | Total Raw Capacity | None | | Type | None | | Flash Memory | None | | | | Power Consumption | 50.66 W (Typical)
24.9 W (Standby) | | Power Source | Internal Power Supply | | PSU Wattage | 1 x 250 W | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Security Features | Kensington Security Slot | | | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Operating Humidity | 5 to 95% | | | | Cooling | 2 x 120 mm Fans | | Status Monitoring | LED Indicator | | Dimensions | 7.3 x 11.7 x 9.3" / 185.4 x 297.2 x 236.2 mm | | Weight | 16.1 lb / 7.3 kg | | | | Package Weight | 16.5 lb | | Box Dimensions (LxWxH) | 17.323 x 16.85 x 12.362" |
