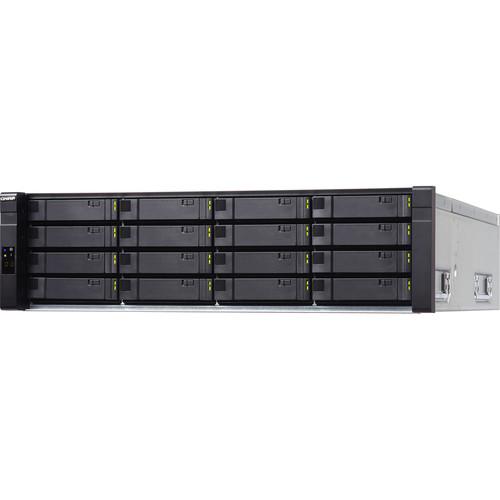

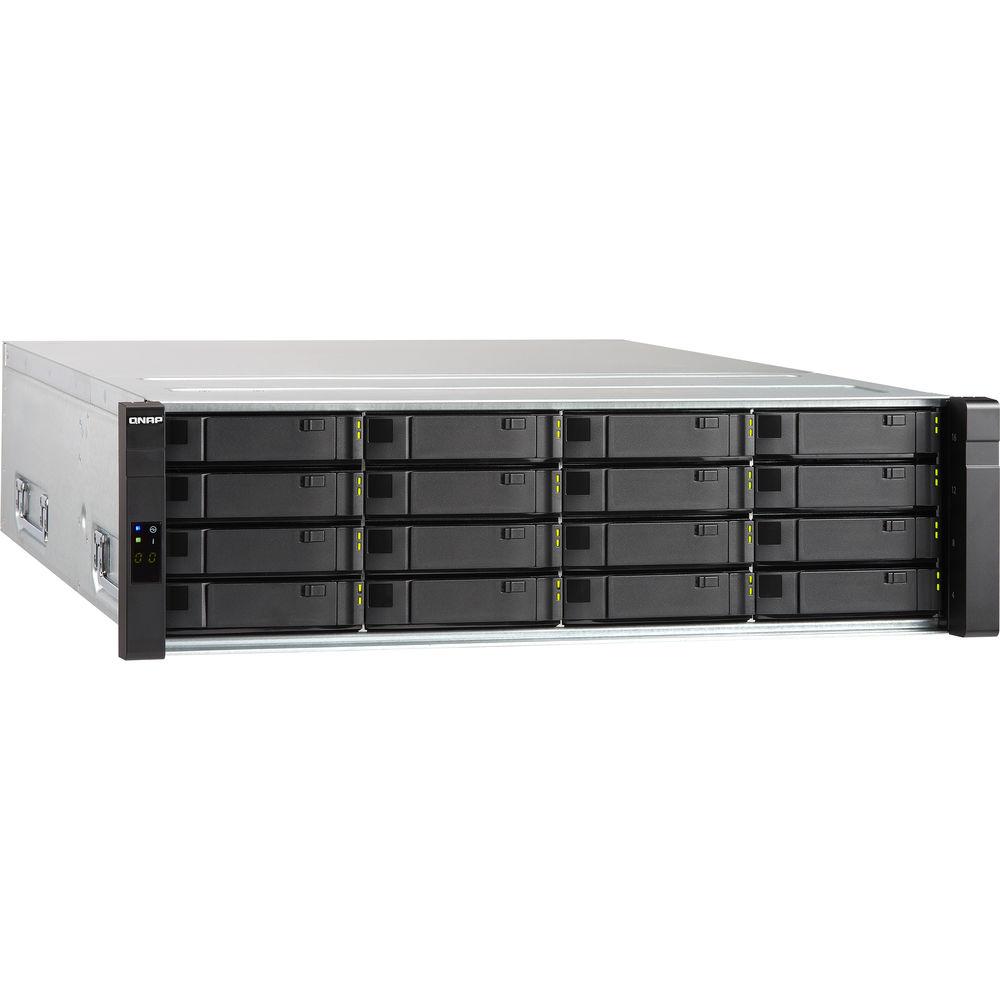

User Manual for QNAP EJ1600 v2 16-Bay Expansion Enclosure Click to enlarge the picture
Contents of the user manual for the QNAP EJ1600 v2 16-Bay Expansion Enclosure
- Product category: NAS Enclosures QNAP
- Brand: QNAP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for QNAP NAS Enclosures
 |
User manual for the QNAP EJ1600 v2 16-Bay Expansion Enclosure contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any QNAP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official QNAP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a QNAP product will considerably shorten its lifespan!
|

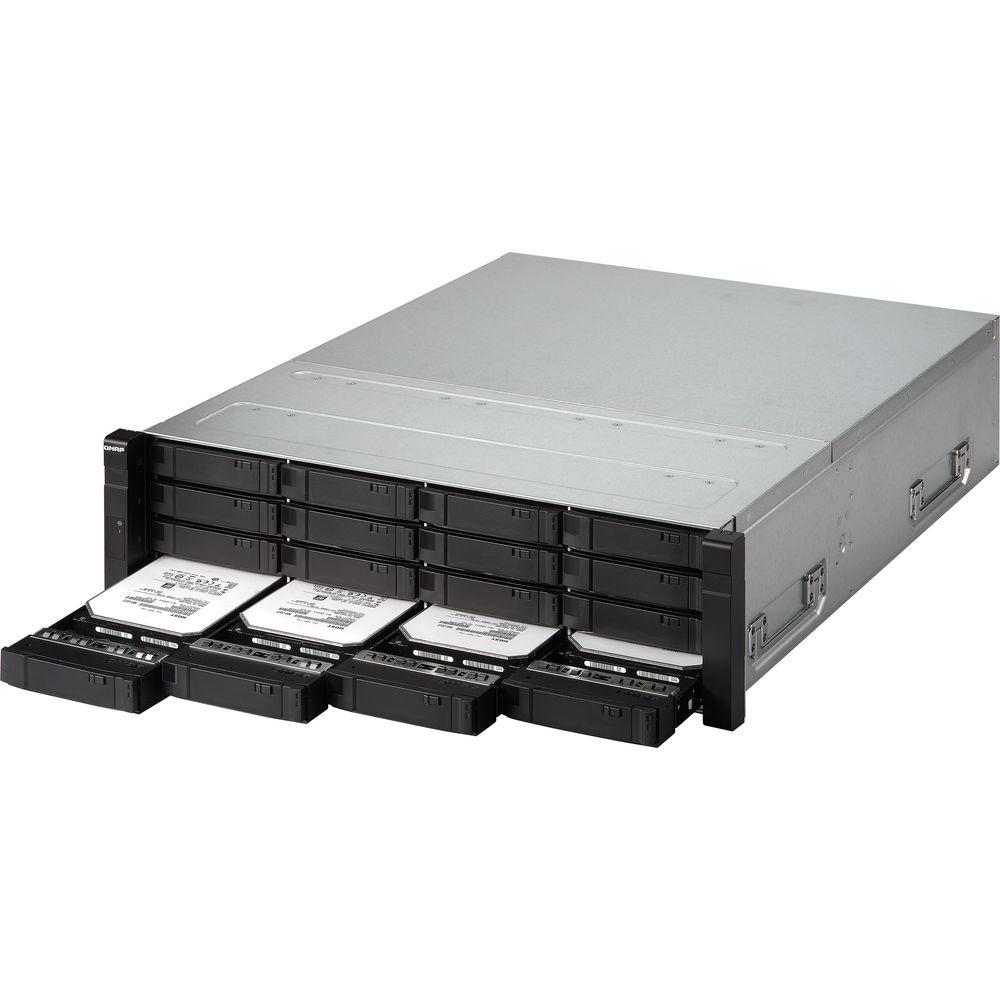

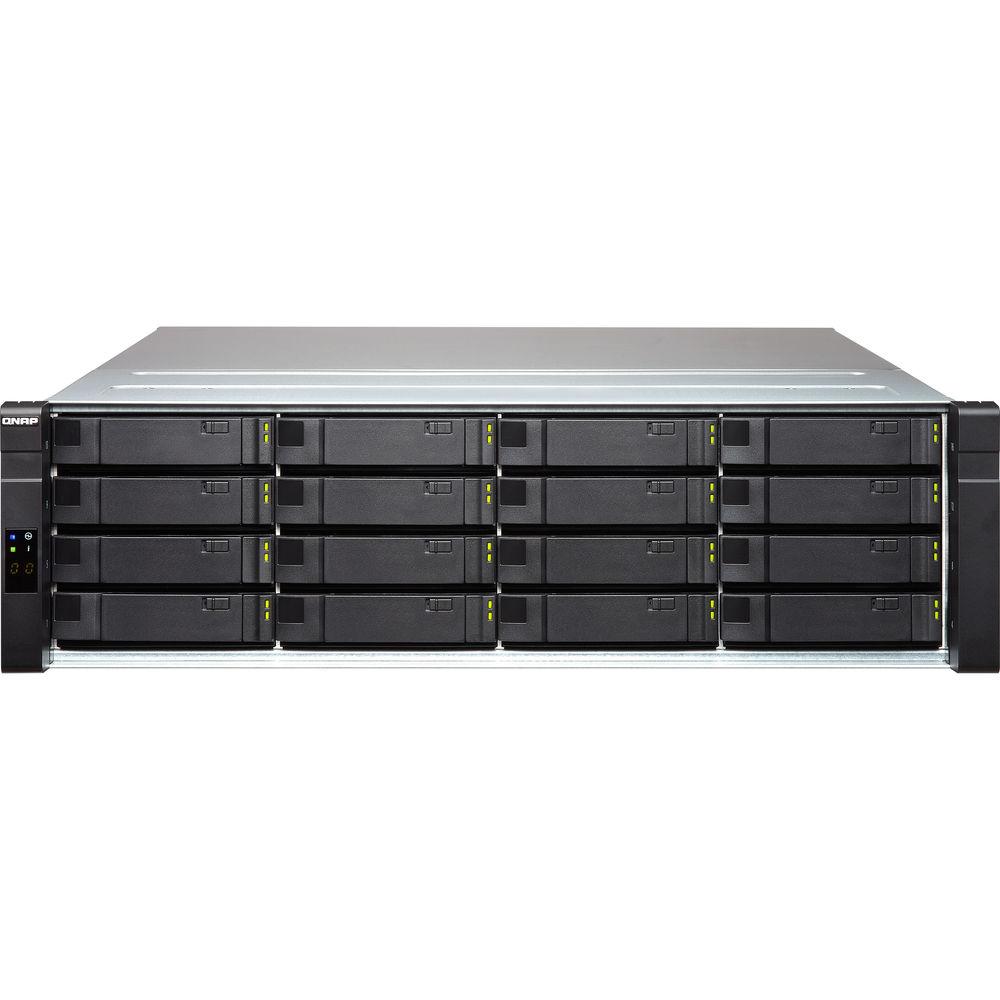

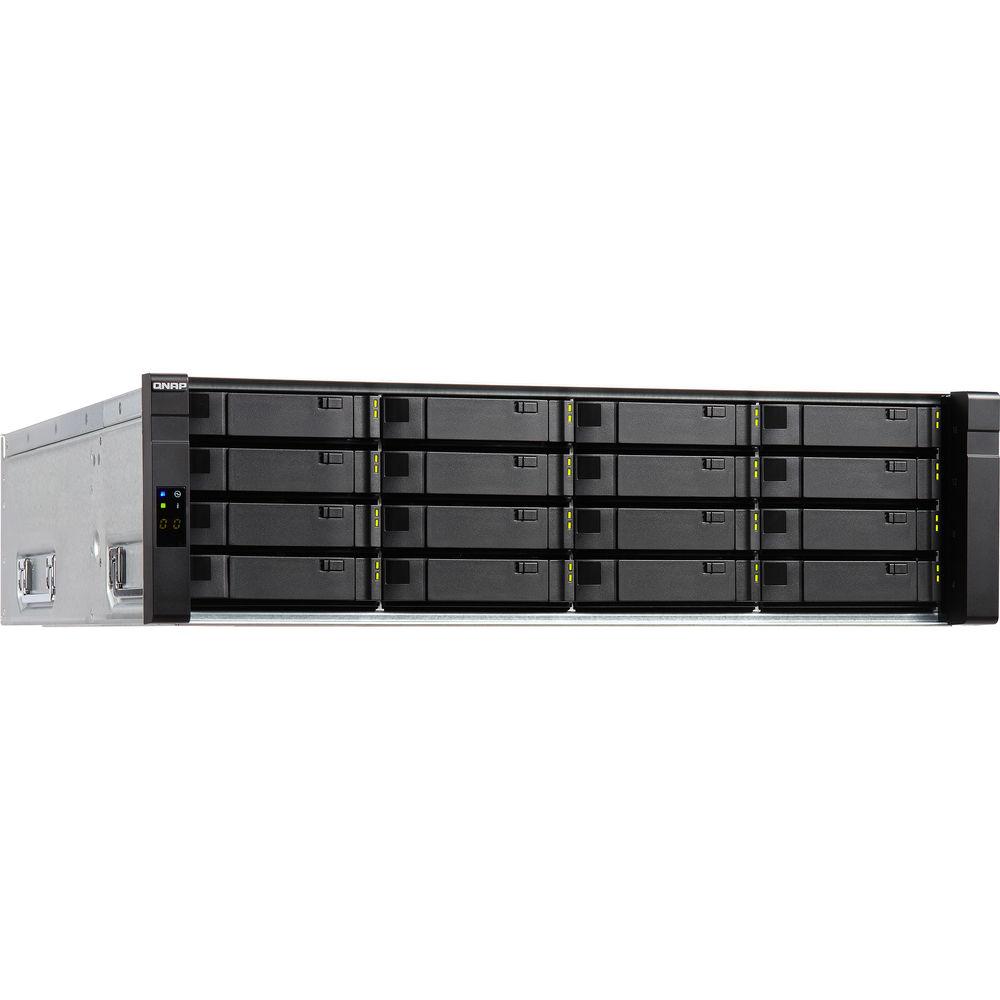

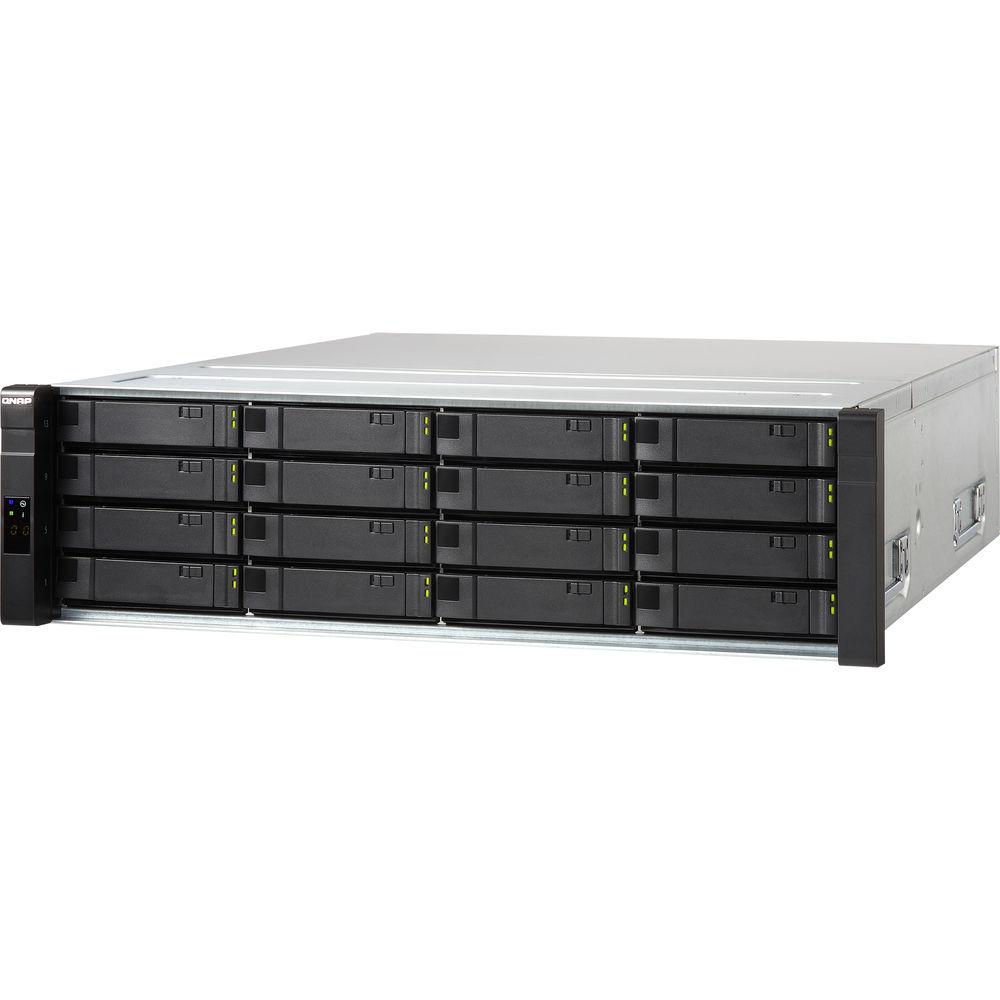

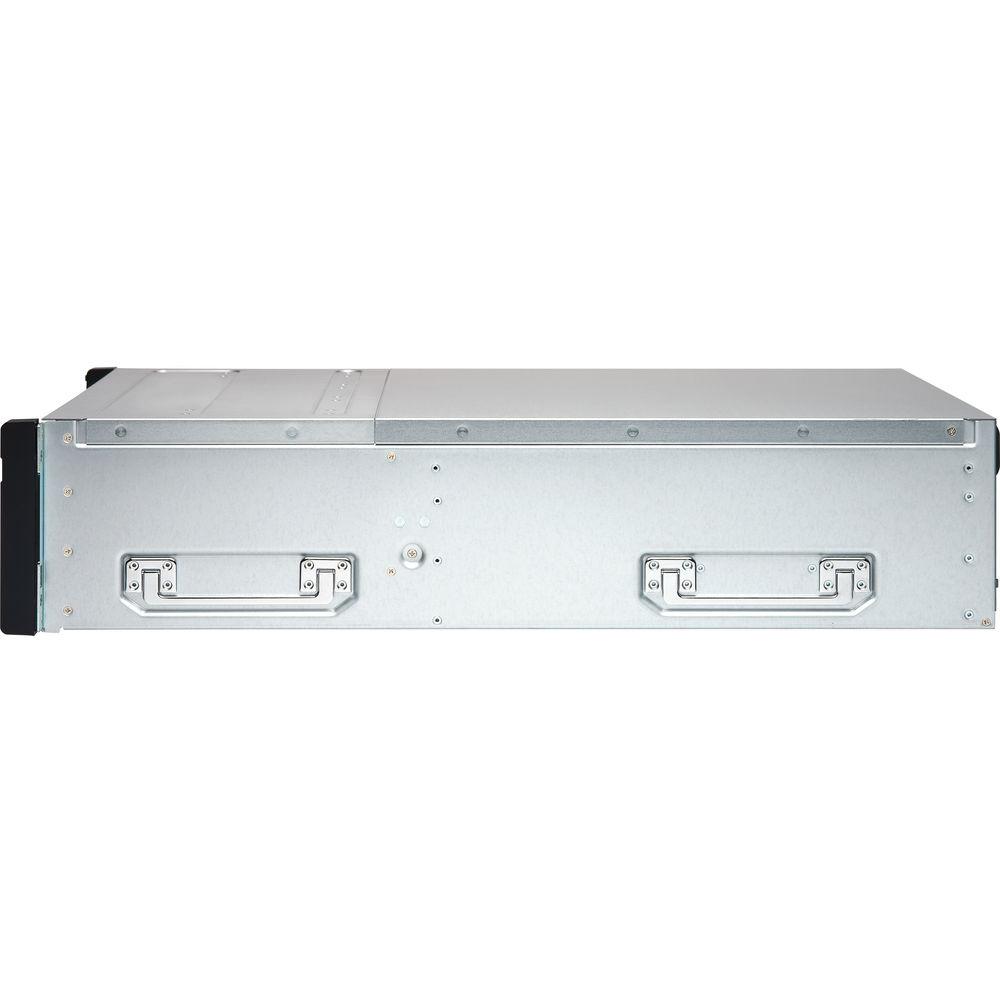

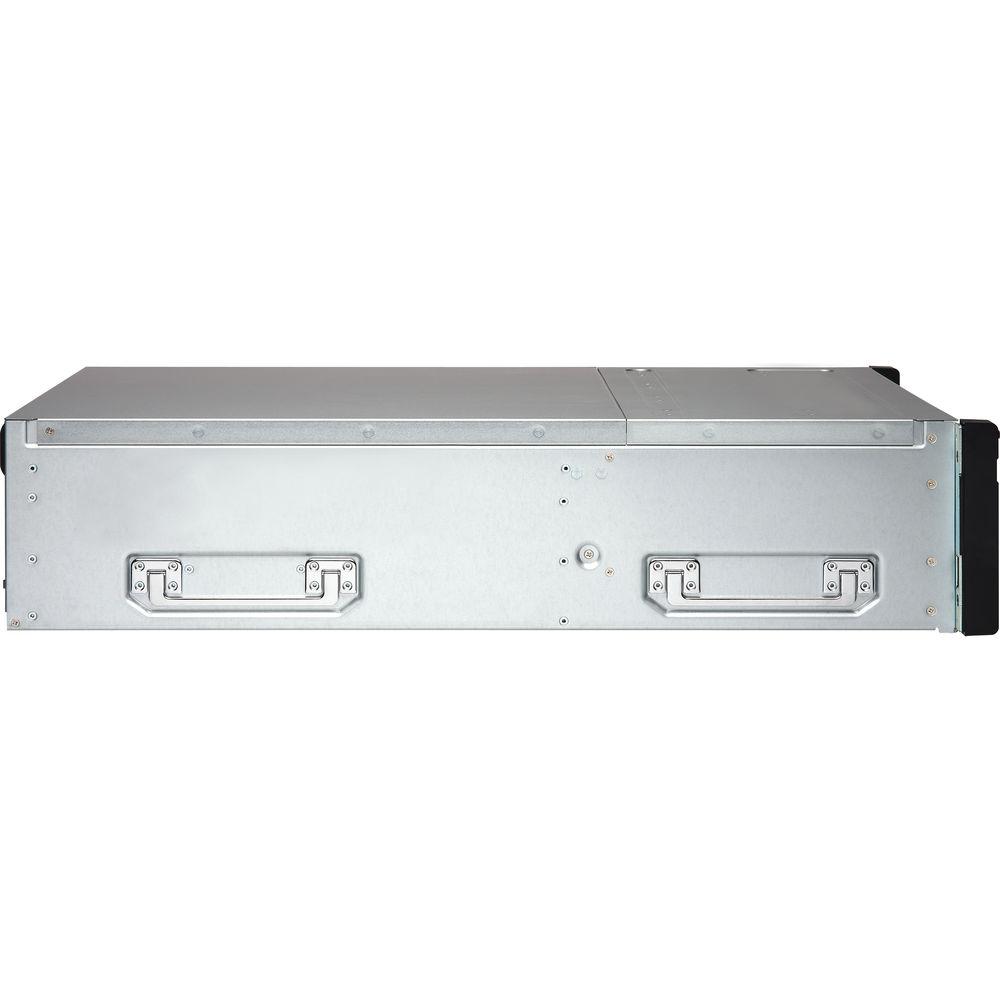

Product description The EJ1600 v2 16-Bay Expansion Enclosure from QNAP features 16 bays to provide additional storage space for your ZFS NAS server. Each bay can accommodate a 2.5" or 3.5" drive that utilizes a SAS or SATA interface. To deliver the data on the drives quickly, this enclosure connects to your ZFS server via SFF-8644 12 Gb/s connectors. Additionally, three 60mm hot-swap fans are on board for cooling your drives. - Storage Expansion for Enterprise ZFS NAS
- The EJ1600 v2 expansion enclosure is designed for expanding the storage space on a QNAP Enterprise ZFS NAS. It connects to your NAS via high-speed mini SAS cables. Featuring a 12 Gb/s SAS interface on the chassis, the EJ1600 v2 ensures fast data passthrough from 12 Gb/s SAS-enabled Enterprise ZFS NAS servers even when using SATA or SAS storage drives. This is especially useful for virtualization applications and large data applications that require high-performance interconnection such as video surveillance, archiving large data and TV broadcast storage. To provide businesses with optimized efficiency and maximized ROI, the EJ1600 v2 connects to the Enterprise ZFS NAS via a dual path mini-SAS design to sustain continuous operations even if an external JBOD cable is disconnected.
- Dual-channel (Dual Path) to tolerate single node failure for uninterrupted operations
- Missing Mode protection
- High density, high efficiency and high scalability
- Flexible management with the QES Storage Manager
- Ideal backup storage for the dual-controller Enterprise ZFS NAS
- Supports 6 Gb/s SAS, backwards compatible with SATA hard drives and SSDs
- Dual-Path Design
- The EJ1600 v2 and your Enterprise ZFS NAS come with a dual-channel (Dual Path) design that tolerates a single node failure. Even if an external JBOD cable is disconnected due to external damage to the mini-SAS cable, it can still run normally. This is essential for intermachine data protection and capacity scalability for uninterrupted mission-critical enterprise tasks. Simply connect a EJ1600 v2 to an Enterprise ZFS NAS and power it on, your NAS will detect the hard drives in the EJ1600 v2 as newly-installed local drives. You can seamlessly expand and manage the NAS capacity by using the QES Storage Manager.
- Missing Mode Protection
- When a RAID expansion enclosure disconnect is detected, the Enterprise ZFS NAS blocks IO access to protect the data. The system can recover from a missing mode to its normal state with the data staying intact.
- Scalable

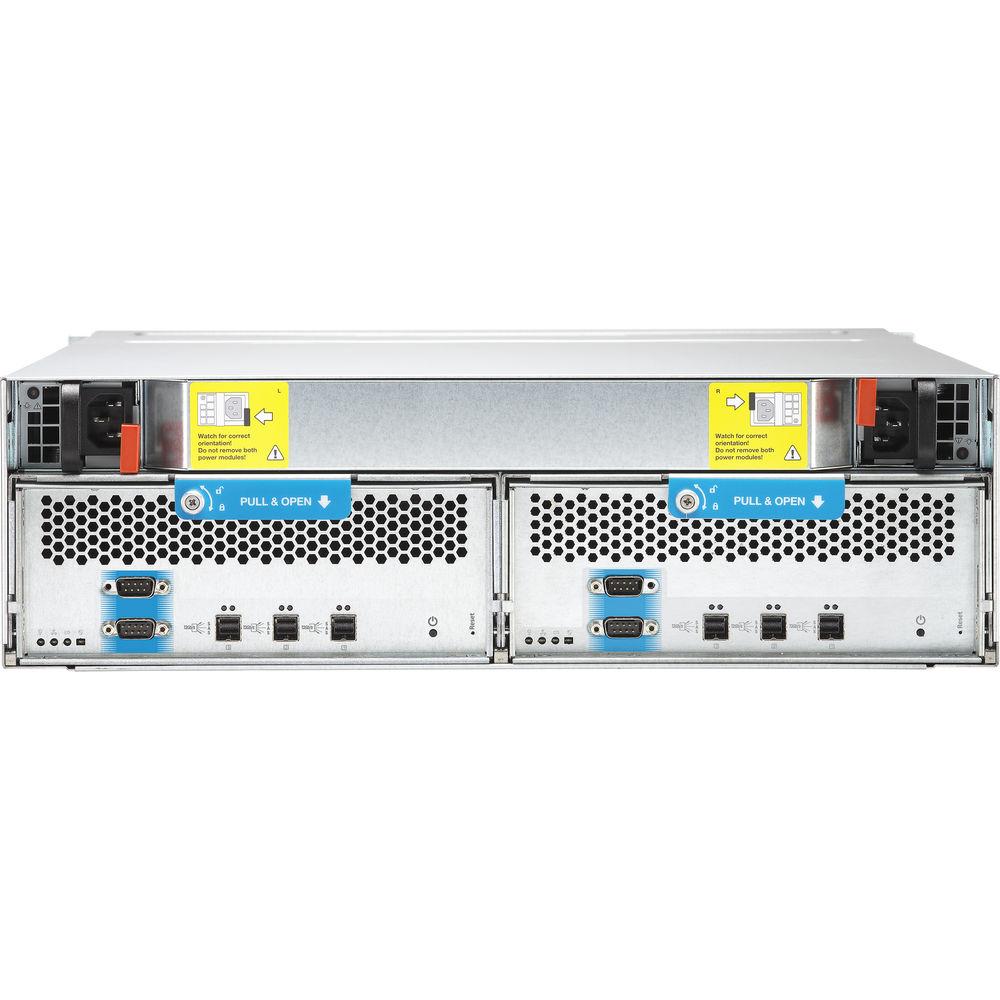

- The EJ1600 v2 fits in a 3RU rack space and supports up to 16 hard drives, which can provide a total raw capacity of 128TB. The EJ1600 v2 has two SAS wide ports (IN and OUT ports) for each controller (with 4 SAS wide ports in total with dual controllers) for host connectivity and daisy-chaining respectively. Each SAS wide port combines four SAS channels, with each supporting 12 Gb/s full duplex speeds. This solution delivers performance of up to 48 Gb/s per host connection.
- QES Storage Manager
- The QES Storage Manager delivers tools and options for managing the system's storage with an intuitive graphical user interface, which simplifies the process of NAS capacity expansion and EJ1600 v2 management. IT administrators can easily monitor the health of the EJ1600 v2 and the disks within it. When cascading multiple expansion enclosures in a rack, the Locate Disk and Locate Enclosure functions assist IT administrators in quick maintenance.
- Backup Solution for Enterprise ZFS NAS
- In addition to expanding an existing volume, IT administrators can use the EJ1600 v2 as a cost-effective external storage to perform speedy and secure backup tasks for an Enterprise ZFS NAS. The QNAP RTRR (Real-Time Remote Replication) or rsync service lets IT administrators back up NAS data to the EJ1600 v2 on a real-time or scheduled basis.
- Flexible Drive Type and Capacity
- The EJ1600 v2 offers flexibility in drive selection. IT administrators can choose enterprise-level SAS HDDs with high performance and high reliability for mission-critical applications, low-cost but high-capacity SATA HDDs for large data archiving, or high-speed SSDs for I/O-intensive operations.
UPC: 885022012459 In the Box QNAP EJ1600 v2 16-Bay Expansion Enclosure 2 x Mini SAS (SFF-8644 to SFF-8644) External Cables (1.6') 2 x Power Cords Package of Flat-Head Screws for 2.5" and 3.5" Drives Rail Kit Package of Drive Stickers Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the QNAP EJ1600 v2 16-Bay Expansion Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersQNAP EJ1600-V2-US Specs | Host Interface | Three SAS 12 Gb/s 4x wide port (SFF-8644) | | Hard Drive Support | 16 x 3.5" SAS (6 Gb/s), SATA (6 Gb/s, 3 Gb/s) hard drive, or 2.5" SAS/SATA SSD (LSISS9252 6 Gb/s SAS/SATA interposer required) | | LED Indicators | System Power LED (Green): on/off
System Status (Green/ Orange): in operation, system errors, low power, degraded RAID mode, memory failure, fan/power supply failure, system/disk temperature too high, storage pool reaching threshold value, system performing take-over, power supply unit unplugged
LCD Status Display (Two-digit number): Status of JBOD connection | | Form Factor | 3RU rackmount | | Temperature | 32 to 104°F / 0 to 40°C | | Humidity | 5 to 95% RH non-condensing | | Power Consumption (Operational) | 344.19 W | | Sound Level | Sound Pressure (LpAm): 53.5 dBA | | Power Supply | Redundant/ Hot Swap ATX Power Supply, 450 W, 90 to 240 VAC, 50/60 Hz | | Fan | 3 x hot-swappable fan modules (60 x 60 x 38 mm; 16,000 rpm, 12 V, 2.8 A) | | | | Expansion Enclosure Management | The functions listed below are managed via the QNAP QES operating system.
- Support for hard disk's S.M.A.R.T. capacity
- RAID expansion enclosure LED identifier
- Location indication of RAID expansion enclosure
- Location indication of hard disks on RAID expansion enclosure
- Smart fan control
- In-band firmware update
The disks, RAID Groups, storage pools and volumes in the RAID expansion enclosures are configured via the QES operating system.
- Up to 1 PB Single Volume
- Support for multiple RAID groups in a storage pool to ensure data safety
- Online storage pool expansion
- Online volume expansion
- Block-based iSCSI LUN
- Support for thin-provisioned volume with space reclamation
- Support for thin-provisioned iSCSI LUN with space reclamation | | High availability | Dual controller, dual-loop architecture to tolerate the failure of a single node
Dual back-end IO paths (dual controller configuration)
Topology:
- Single controller, single
- Single controller, multiple path, loop
- Dual-controller, single path
- Dual-controller, multiple path, loop | | Scalability | Support disks up to 16
Support SATA HDDs and SSDs with optional SAS/SAS Interposer (LSI LSISS9252)
Support cascade JBOD configuration to connect more JBODs, up to 6 sets | | Design | Hot swappable PSU module, disks and controller module for easier maintenance and deployment
Dual slim PSU module | | | | Dimensions (D x W x H) | 24.3 x 17.6 x 5.2" / 618.0 x 446.2 x 132.0 mm (excluding front grips) | | Weight | 53.2 lb / 24.1 kg | | | | Package Weight | 75.0 lb | | Box Dimensions (LxWxH) | 29.0 x 23.0 x 14.0" |
