User Manual for QNAP QM2 M.2 SATA SSD PCIe Expansion Card Click to enlarge the picture
Contents of the user manual for the QNAP QM2 M.2 SATA SSD PCIe
- Product category: NAS Accessories QNAP
- Brand: QNAP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for QNAP NAS Accessories
 |
User manual for the QNAP QM2 M.2 SATA SSD PCIe contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any QNAP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official QNAP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a QNAP product will considerably shorten its lifespan!
|

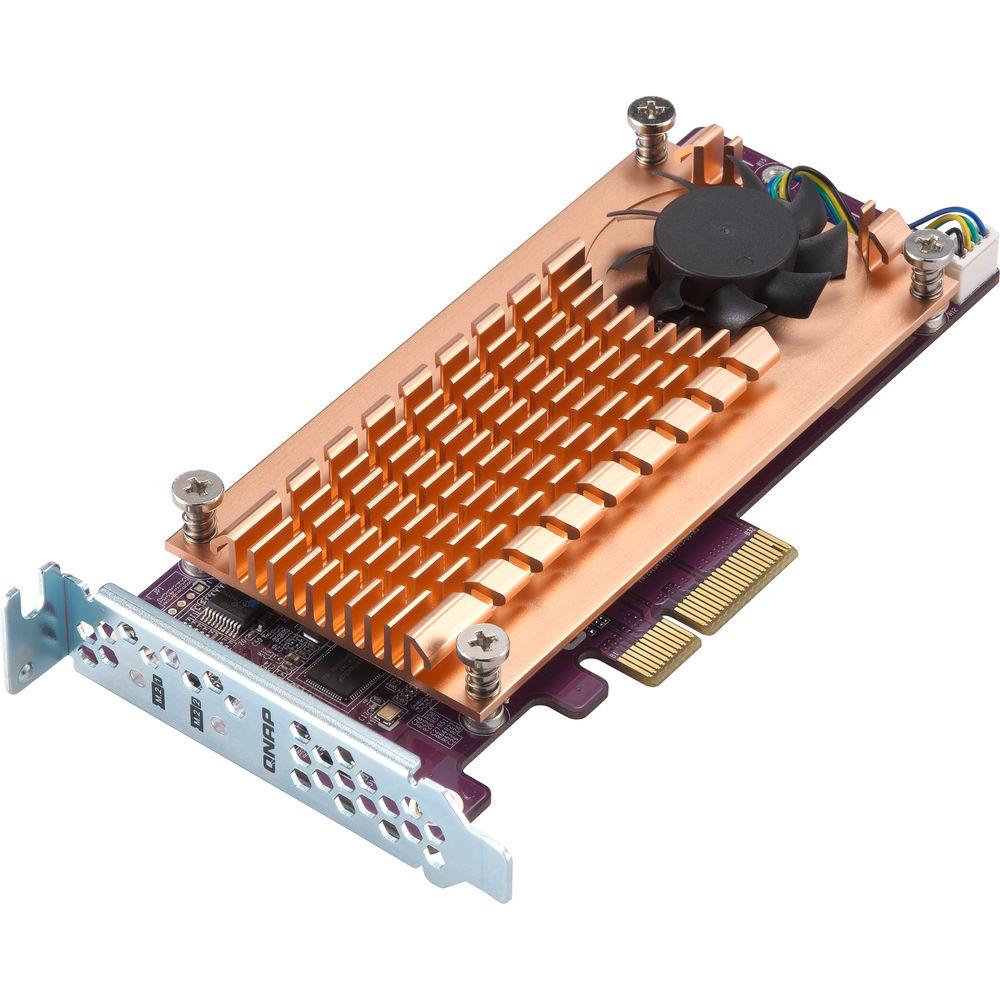

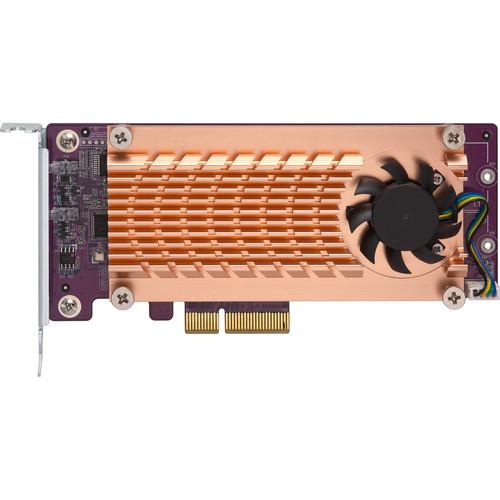

Product description The QM2 PCIe Expansion Card from QNAP helps to enhance the storage performance of select QNAP NAS devices running the QTS 4.3.4 or later operating system, including the TS-531P, TS-531X, TS-831X, TS-1635, TS-x31XU, TS-x53B, TS-563, TVS-x63, TS-x63U, TS-x70, TS-x70U, TVS-x71, TVS-x71U, and TVS-x82T. It connects to your NAS using its PCIe Gen2 x 2 interface and adds support for two single- or dual-sided SATA SSDs with an M.2 2280 or 22110 form factor, which can be used to create a RAID 1 or RAID 0 caching pool, as well as a storage volume in a tiered storage pool to optimize storage efficiency with Qtier auto-tiering technology. This PCIe card is pre-mounted to a low-profile bracket and included is a low-profile flat bracket and a full-height bracket. General Features - Dual M.2 Slots
- Up to two M.2 2280/22110 SSDs (not included)

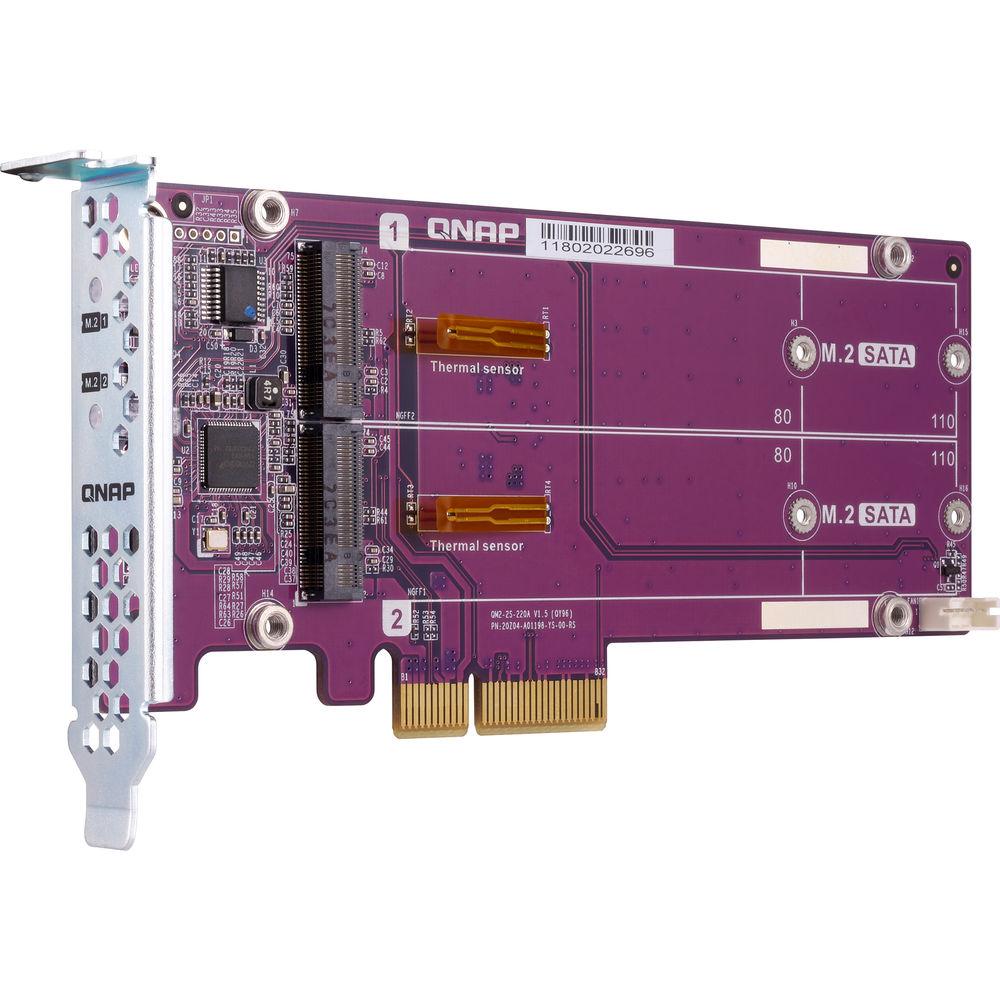

- M.2 SSD Thermal Sensor
- Real-time M.2 SSD temperature monitoring
- M.2 SSD Status Indicators
- Monitor the status of your M.2 SSD

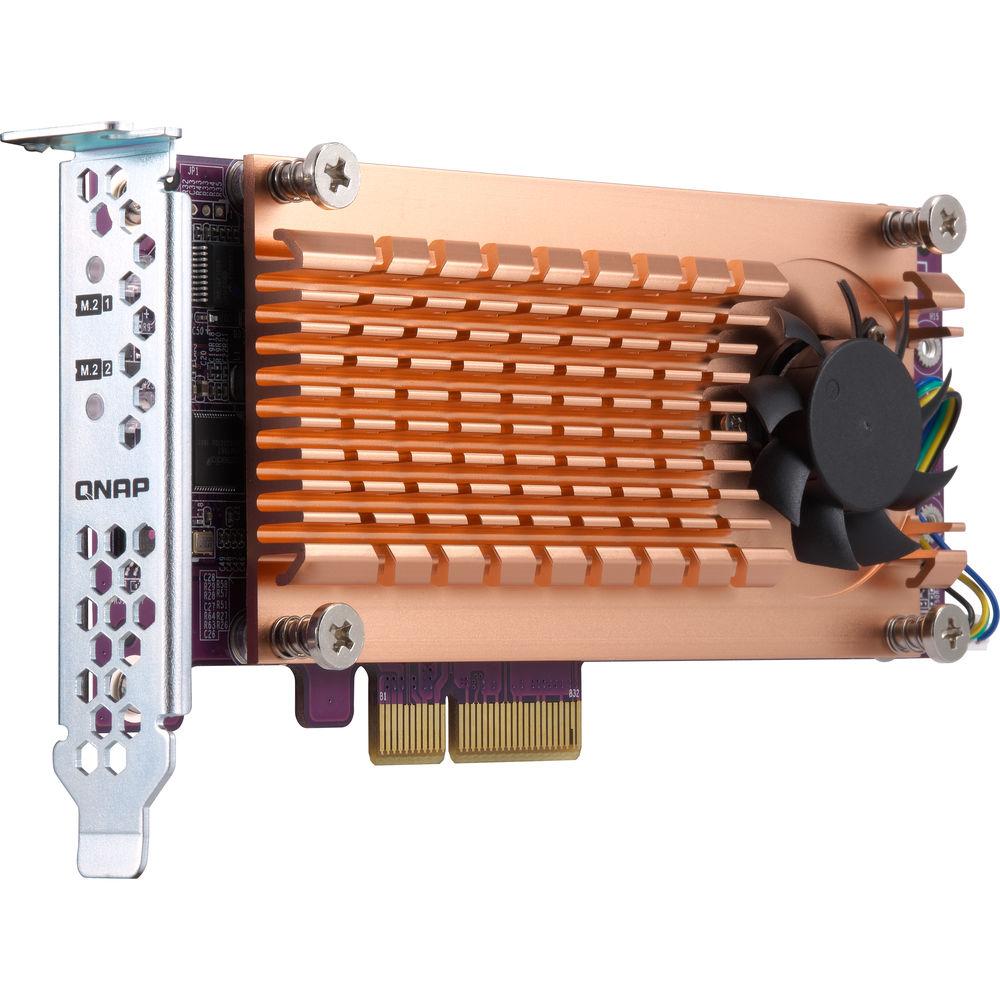

- Alluminum-Alloy Cooling Module
- Helps prevent overheating and thermal throttling to help ensure the SSD's performance
- Smart and Quiet Fan
- The fan automatically adjusts based on the SSD and overall temperature
- Adjustable Screws for Varied SSD Thickness
- Can fit both single- and dual-sided SSDs
Compatibility - QNAP TS-531P 5-Bay NAS Enclosure
- QNAP TS-531X 5-Bay NAS Enclosure
- QNAP TS-831X 8-Bay NAS Enclosure
- QNAP TS-1635 16-Bay NAS Enclosure
- QNAP TS-431XU 4-Bay NAS Enclosure
- QNAP TS-831XU 8-Bay NAS Enclosure
- QNAP TS-1231XU 12-Bay NAS Enclosure
- QNAP TS-253B 2-Bay NAS Enclosure
- QNAP TS-453B 4-Bay NAS Enclosure
- QNAP TS-653B 6-Bay NAS Enclosure
- QNAP TS-563 5-Bay NAS Enclosure
- QNAP TVS-463 4-Bay NAS Enclosure
- QNAP TVS-663 6-Bay NAS Enclosure
- QNAP TVS-863 8-Bay NAS Enclosure
- QNAP TVS-863+ 8-Bay NAS Enclosure
- QNAP TS-463U 4-Bay NAS Enclosure
- QNAP TS-863U 8-Bay NAS Enclosure
- QNAP TS-1263U 12-Bay NAS Enclosure
- QNAP TS-470 4-Bay NAS Enclosure
- QNAP TS-670 6-Bay NAS Enclosure
- QNAP TS-870 8-Bay NAS Enclosure
- QNAP TS-470U 4-Bay NAS Enclosure
- QNAP TS-870U 8-Bay NAS Enclosure
- QNAP TS-1270U 12-Bay NAS Enclosure
- QNAP TVS-471 4-Bay NAS Enclosure
- QNAP TVS-871 8-Bay NAS Enclosure
- QNAP TVS-1271 12-Bay NAS Enclosure
- QNAP TVS-871U 8-Bay NAS Enclosure
- QNAP TVS-1271U 12-Bay NAS Enclosure
- QNAP TVS-682T 6-Bay NAS Enclosure
- QNAP TVS-882T 8-Bay NAS Enclosure
- QNAP TVS-1282T 12-Bay NAS Enclosure
- QNAP TVS-1282T3 12-Bay NAS Enclosure
UPC: 885022014835 In the Box QNAP QM2 M.2 SATA SSD PCIe Expansion Card Low-Profile Bracket Low-Profile Flat Bracket Full-Height Bracket Limited 6-Month Warranty More info from QNAP vartrzbwbydxvy Table of Contents
|
Upload User Manual
Have you got an user manual for the QNAP QM2 M.2 SATA SSD PCIe Expansion Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersQNAP QM2 Expansion Card Specs | Storage | 2 x M.2 2280/22110 SATA SSD slots | | Network Connectivity | None | | Interface | PCIe Gen2 x 2 | | Operating System | QTS 4.3.4 or later | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Package Weight | 0.65 lb | | Box Dimensions (LxWxH) | 7.75 x 4.75 x 2.0" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 47 owners. Add your rating and experience with the product.
