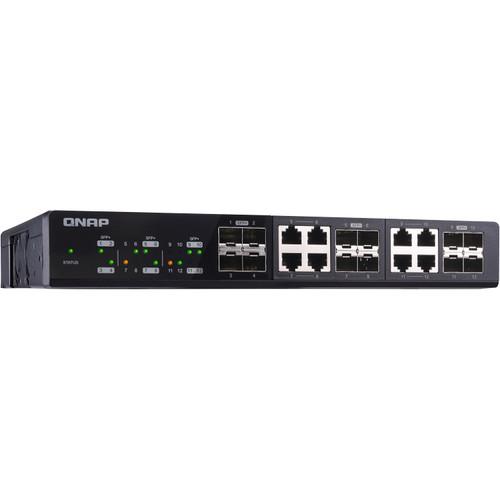

User Manual for QNAP QSW-1208-8C 12-Port 10GbE Switch Click to enlarge the picture
Contents of the user manual for the QNAP QSW-1208-8C 12-Port 10GbE Switch
- Product category: Network Switches, Bridges & Hubs QNAP
- Brand: QNAP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for QNAP Network Switches, Bridges & Hubs
 |
User manual for the QNAP QSW-1208-8C 12-Port 10GbE Switch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any QNAP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official QNAP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a QNAP product will considerably shorten its lifespan!
|
Product description Upgrade your home or business network environment to 10 Gigabit Ethernet connections using the QSW-1208-8C 12-Port 10GbE Switch from QNAP, which supports the 10GBASE-T and NBASE-T standards. This 12-port, unmanaged network switch allows users to take advantage of higher network speeds with their existing Cat 5e and 6a cables. It features four 10G SFP+ fiber ports and eight 10G SFP+ fiber and RJ45 copper combo ports, which service a wide variety of network needs. Compliant with IEEE 802.3az (Energy Efficient Ethernet, EEE), the QSW-1208-8C is energy efficient, with high performance, low latency, and strong functionality. Included are four rubber feet, a power cord, and a rackmount kit. Protection is provided by a limited 2-year warranty. General Features - Improved Speeds Using Existing Cables with 10GBASE-T & NBASE-T
- The QSW-1208-8C is compatible with 10GbE and NBASE-T technologies to provide higher transmission speeds with existing cables. Depending on cable types and their lengths, different speeds can be achieved for faster, more efficient data transfers. The QSW-1208-8C is also backwards compatible to provide connectivity with legacy devices.
- Flexible Deployment with Eight Combo Ports

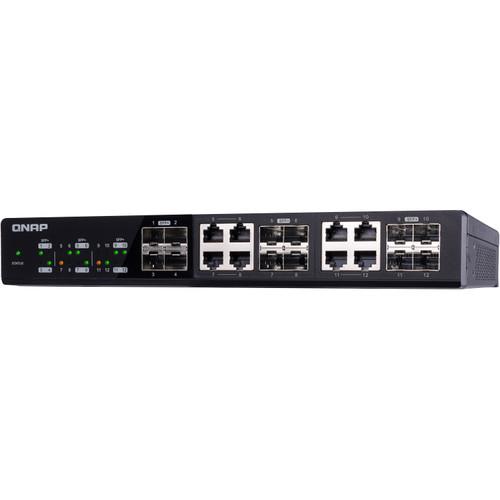

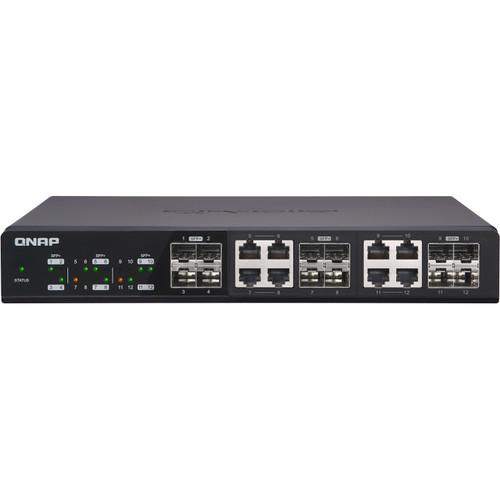

- The 12-port QSW-1208-8C switch offers four SFP+ (fiber) ports, and eight SFP+/RJ45 (copper) combo ports for connecting different interfaces to the same switch. With RJ45 interfaces, 10 GbE is supported with Cat 6a (or above) cables. Alternatively, direct-attach copper (DAC) cables can be used with SFP+ ports for connecting to servers inside a rack. The switching capacity of the QSW-1208-8C is 240 Gb/s, helping the switch to achieve the full potential of each port.
Note: For the speed of 10 Gb/s, if the distance between the switch and the device is shorter than 148', a Cat 6 cable can be used. - Quiet & Energy-Saving Operations

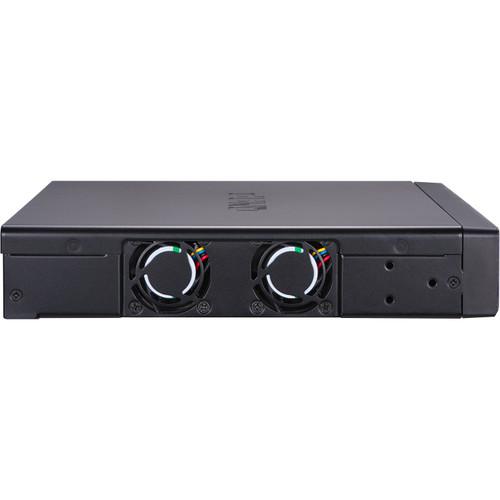

- With its smart cooling system, the QSW-1208-8C works quietly to help ensure high-speed network performance without generating distracting background noise. IEEE 802.3az (EEE) support also helps reduce power consumption without sacrificing performance or functionality. By dynamically detecting link speeds and activities and adjusting accordingly, the QSW-1208-8C provides energy savings to help minimize lifetime operational costs.
- Versatile Installation
- The QSW-1208-8C features a modern design that blends in with existing digital homes and offices. A rackmount kit is also included at no extra cost for installing the QSW-1208-8C in a rack.
UPC: 885022013555 In the Box QNAP QSW-1208-8C 12-Port 10GbE Switch Power Cord Rackmount Kit 4 x Rubber Feet Limited 2-Year Warranty More info from QNAP wbxrwxafxadfwzaxyztexz Table of Contents
|
Upload User Manual
Have you got an user manual for the QNAP QSW-1208-8C 12-Port 10GbE Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersQNAP QSW-1208-8C-US Specs | | | Ports | 4 x 10Gb SFP+
8 x 10Gb Combo (Ethernet/SFP) | | | | Jumbo Frames Support | 9000 Bytes | | MAC Address Table Size | 27K | | | | Supported IEEE Standards | 802.1p, 802.3, 802.3ab, 802.3ae, 802.3an, 802.3aq, 802.3az, 802.3bz, 802.3u, 802.3x, 802.3z | | | | Switching Bandwidth | 240 Gb/s | | Priority Queues | 8 | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 2.5 A | | Power Supply Type | Internal | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 10 to 85% | | | | Cooling System | Fan | | Indicator Lights | Link/Activity/Speed, Power | | Dimensions | 11.22 x 9.17 x 1.69" / 285 x 233 x 43 mm | | Weight | 4.6 lb / 2.1 kg | | | | Package Weight | 6.7 lb | | Box Dimensions (LxWxH) | 15.4 x 11.1 x 3.2" |
