User Manual for QNAP QSW-804-4C 8-Port 10 Gigabit Ethernet Unmanaged Switch Click to enlarge the picture
Contents of the user manual for the QNAP QSW-804-4C 8-Port 10 Gigabit Ethernet
- Product category: Network Switches, Bridges & Hubs QNAP
- Brand: QNAP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for QNAP Network Switches, Bridges & Hubs
 |
User manual for the QNAP QSW-804-4C 8-Port 10 Gigabit Ethernet contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any QNAP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official QNAP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a QNAP product will considerably shorten its lifespan!
|

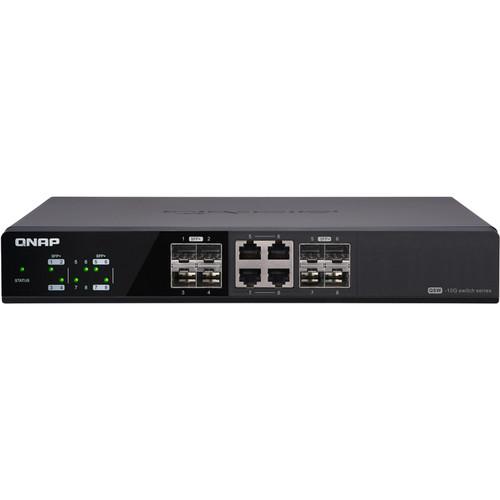

Product description With extensive connectivity options, the QSW-804-4C 8-Port 10 Gigabit Ethernet Unmanaged Switch from QNAP can support a variety of Ethernet-enabled devices including network attached storage enclosures, computers, and more. The switch features four 10 GbE SFP+ fiber ports and four 10 GbE SFP+/RJ45 combo ports along with power and speed/link/activity LED indicators making it easy to see the status of the QSW-804-4C switch. Once installed, network admins can take advantage of a 160 Gb/s switching capacity, 8 priority queues, 27K MAC address caching capacity, and 9K jumbo frame support for optimal network performance. - Faster Speeds Using Existing Cables with 10GBase-T & NBase-T
- The QSW-804-4C is compatible with 10 GbE and NBase-T technologies to provide higher transmission speeds with existing cables. Depending on cable types and their lengths, different speeds can be achieved for faster, more efficient data transfers. The QSW-804-4C is also backward compatible to provide connectivity with legacy devices.
- Flexible Deployment Options
- The 8-port QSW-804-4C switch offers four SFP+ (fiber) ports and four SFP+/RJ45 (copper) combo ports for connecting different interfaces to the same switch. With RJ45 interfaces, 10 GbE is supported with Cat 6a (or above) cables. Alternatively, direct attach copper (DAC) cables can be used with SFP+ ports for connecting to servers inside a rack. The switching capacity of the QSW-804-4C is 160 Gb/s, guaranteeing the full potential of each port.
- Near Silent and Energy Saving

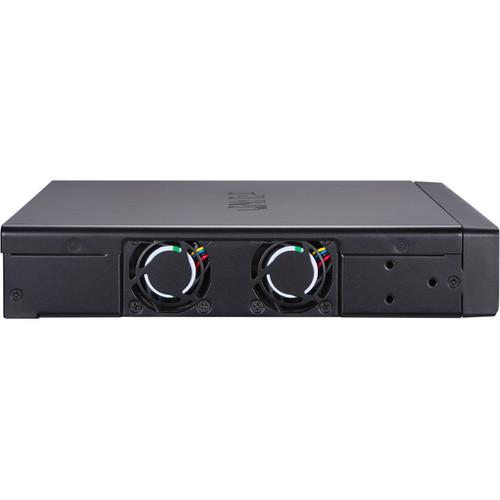

- With its smart cooling system, the QSW-804-4C works quietly to ensure high-speed network performance without generating distracting background noise. IEEE 802.3az (EEE) support also reduces power consumption without sacrificing performance or functionality. By dynamically detecting link speeds and activities and adjusting accordingly, the QSW-804-4C provides energy savings of up to 50% to minimize lifetime operational costs.
- Versatile Installation and Sleek Appearance
- The QSW-804-4C features a sleek modern design that blends in with existing digital homes and offices. A Rackmount Kit is also included at no extra cost for installing the QSW-804-4C in a rack.
UPC: 885022015177 In the Box QNAP QSW-804-4C 8-Port 10 Gigabit Ethernet Unmanaged Switch Power Cord Rackmount Kit Rubber Feet Limited 2-Year Warranty More info from QNAP wqczdbutufquwustwrqexbferxazd Table of Contents
|
Upload User Manual
Have you got an user manual for the QNAP QSW-804-4C 8-Port 10 Gigabit Ethernet Unmanaged Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersQNAP QSW-804-4C-US Specs | | | Ports | 4 x 10Gb SFP+
4 x 10Gb Combo (Ethernet/SFP) | | | | Jumbo Frames Support | 9000 Bytes | | MAC Address Table Size | 27K | | | | Supported IEEE Standards | 802.1p, 802.3, 802.3ab, 802.3ae, 802.3an, 802.3aq, 802.3az, 802.3bz, 802.3u, 802.3x, 802.3z | | | | Switching Bandwidth | 160 Gb/s | | Priority Queues | 8 | | | | Power Draw | 41.00 W (Active)
21.00 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 2.5 A | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 10 to 85% | | Noise Level | 18.2 dB | | | | Cooling System | Fan | | Indicator Lights | Link/Activity/Speed, Power | | Dimensions | 11.22 x 9.17 x 1.69" / 285 x 233 x 43 mm | | Weight | 4.6 lb / 2.1 kg | | | | Package Weight | 6.23 lb | | Box Dimensions (LxWxH) | 15.5 x 11.2 x 3.15" |
