Product description Transform your Ubuntu/Linux system or QNAP NAS into a wireless access point/base station using the QWA-AC2600 Wireless PCIe Adapter from QNAP. Compatible with most PCIe-enabled QNAP NAS devices, the QWA-AC2600 can extend your wireless coverage. Additionally, when used with the WirelessAP Station app, it can serve as a high-performance wireless access point that multiple devices can connect to and access stored data.
The QWA-AC2600 supports 2.4 GHz 802.11 b/g/n Wi-Fi at speeds up to 800 Mb/s and 5 GHz 802.11a/n/ac Wi-Fi at speeds up to 1733 Mb/s, for overall speeds of up to 2533 Mb/s. It connects to your compatible host system using its PCIe 2.0 x1 interface. Included are four detachable antennas, a magnetic stand base, and full-height and specialized brackets for select QNAP NAS devices. Protection is provided by a limited 1-year warranty. General Features - The QWA-AC2600 utilizes the 802.11n and 802.11ac standards and offers speeds up to 2533 Mb/s to deliver a low-latency, high-speed wireless experience.
- The QWA-AC2600 supports Dual-Band Dual-Concurrent (DBDC) for acting as an access point or a base station, adding more possibilities to your investment.
- The QWA-AC2600 supports 4 x 4 MU-MIMO technology for communicating with multiple clients with multiple signal lanes (spatial streams).
- The QWA-AC2600 comes with four 5 dBi detachable omni-directional high-gain antennas. The universal RP-SMA connectors enable antenna replacements for boosting signals and coverage.

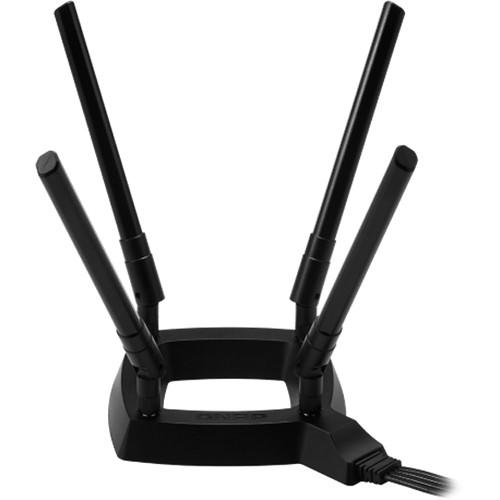

- The QWA-AC2600 features a 31.5" high-frequency coaxial cable for extending the antennas' magnetic stand base for flexible deployment and coverage.

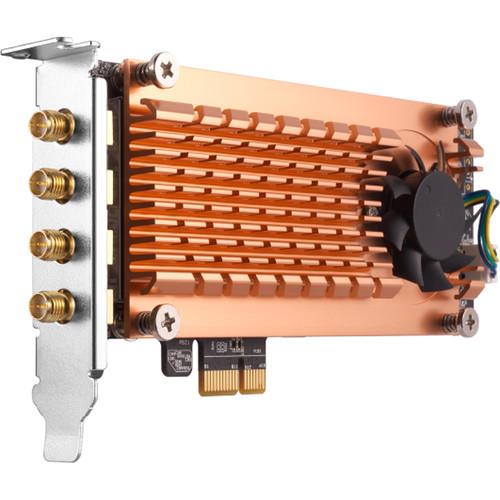

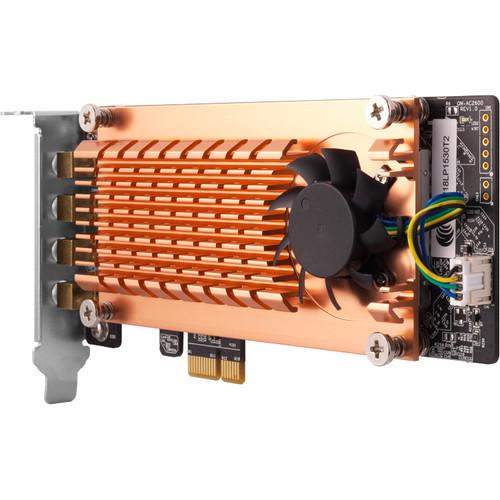

- The QWA-AC2600 has an active cooling module to help ensure efficient heat dissipation. The fan will adjust its speed to match the temperature of the module.
- A Tailor-Made Private Wireless Network for Your Needs
- The QWA-AC2600 is compatible with most PCIe-enabled QNAP NAS devices. When used with the WirelessAP Station app, your NAS will evolve into a high-performance wireless access point that can be connected to from multiple devices. The QWA-AC2600 can also be used to extend your wireless network coverage. Combined with useful features (including DHCP and NAT) provided by the Network and Virtual Switch app, the QWA-AC2600 can be used for a variety of applications, delivering private, fast, low-latency, and secure connectivity across your home and/or workplace.
- Turn Your Ubuntu/Linux System or QNAP NAS Into a Wireless Access Point/Base Station
- The QWA-AC2600 can turn your Ubuntu/Linux system or QNAP NAS into a wireless access point/base station for other wireless devices to directly access data stored on it. The QWA-AC2600's 2.4/5 GHz DBDC design can be configured to utilize two wireless networks for boosting performance. For a single Ubuntu/Linux system or QNAP NAS, multiple sets of QWA-AC2600 can be installed to enable a more flexible deployment and expansion for wireless network applications which require security, privacy, and high performance.

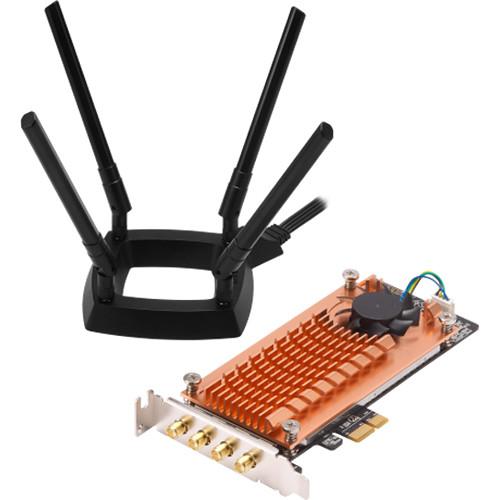

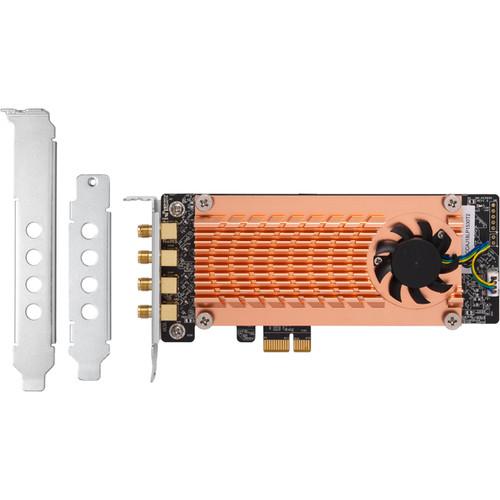

UPC: 885022014736 In the Box QNAP QWA-AC2600 Wireless PCIe Adapter 4 x Detachable Antennas Magnetic Stand Base Full-Height & Specialized Brackets (for QNAP NAS) Limited 1-Year Warranty More info from QNAP Table of Contents
|
Upload User Manual
Have you got an user manual for the QNAP QWA-AC2600 Wireless PCIe Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersQNAP QWA-AC2600 Specs | Interface | PCI Express 2.0 x1 | | Network Standards | IEEE 802.11b/g/n 2.4 GHz
IEEE 802.11a/n/ac 5 GHz | | Bandwidth | 802.11a: up to 54 Mb/s
802.11b: up to 11 Mb/s
802.11g: up to 54 Mb/s
802.11n: up to 800 Mb/s
802.11ac: up to 1733 Mb/s | | Antenna | 4 x Dual-Band RP-SMA antennas | | Operating Frequencies | 2.4 / 5 GHz dual-band dual-concurrent | | OS Support | QTS 4.3.4 or later
WirelessAP Station 1.0 or later | | Dimensions | 6.3 x 0.4 x 0.8" / 160.0 x 9.3 x 20.6 mm | | Weight | Not specified by manufacturer | | | | Package Weight | 1.485 lb | | Box Dimensions (LxWxH) | 12.95 x 9.35 x 1.7" |
