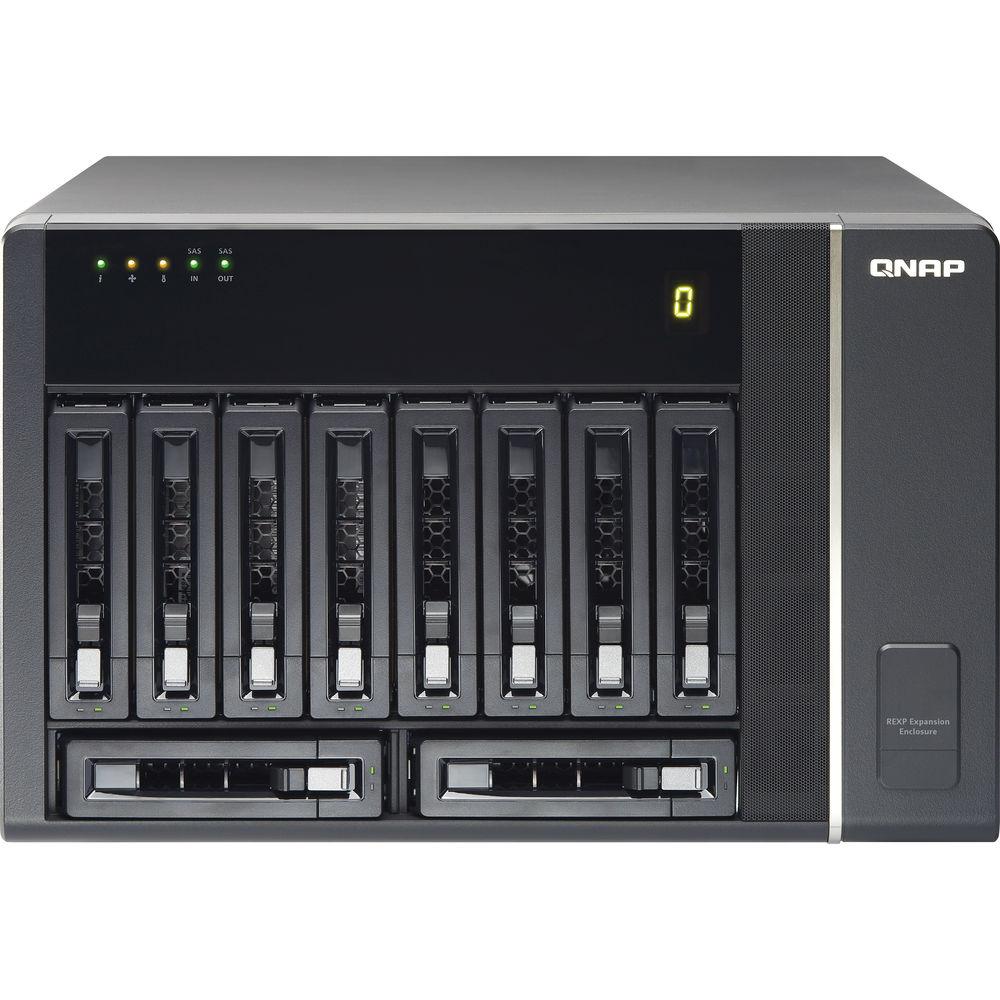

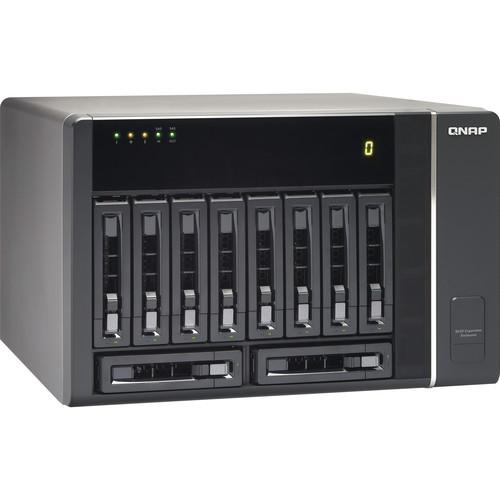

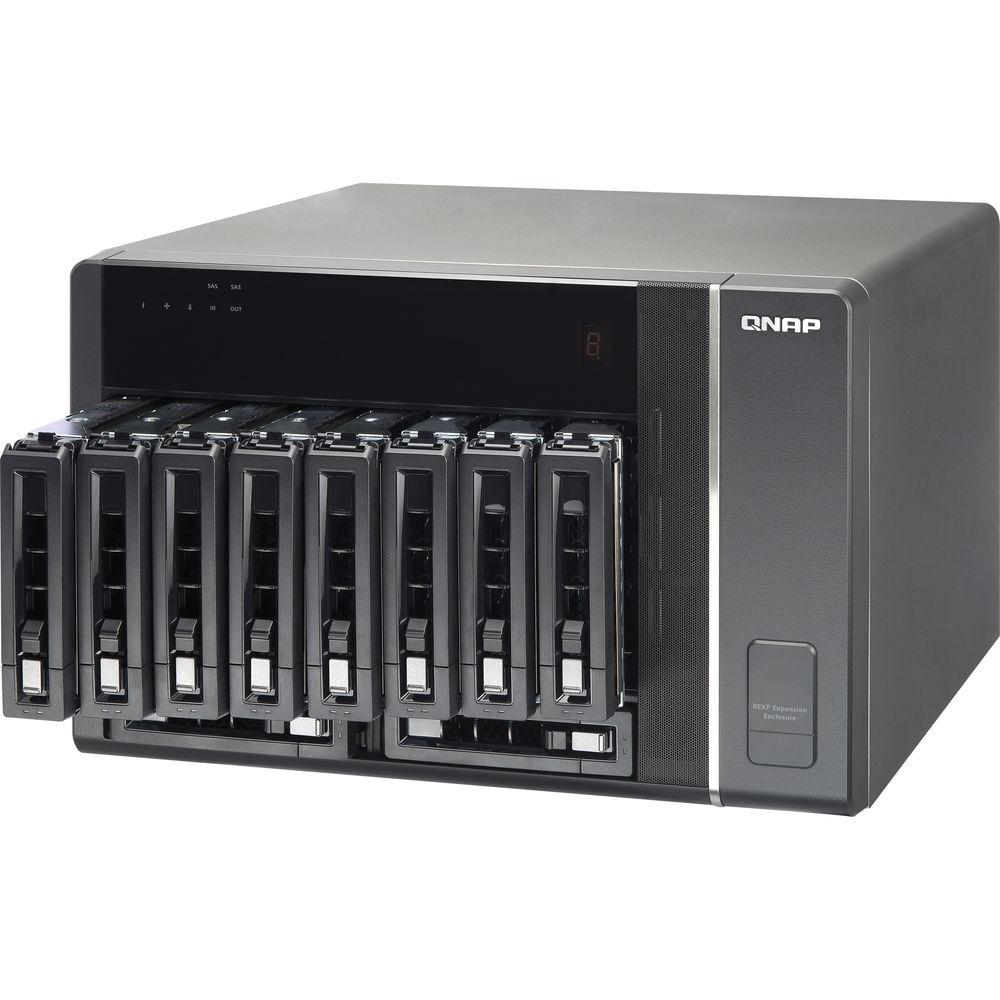

User Manual for QNAP REXP-1000 Pro 10-Bay SAS RAID Expansion Enclosure Click to enlarge the picture
Contents of the user manual for the QNAP REXP-1000 Pro 10-Bay SAS RAID
- Product category: NAS Enclosures QNAP
- Brand: QNAP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for QNAP NAS Enclosures
 |
User manual for the QNAP REXP-1000 Pro 10-Bay SAS RAID contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any QNAP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official QNAP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a QNAP product will considerably shorten its lifespan!
|
Product description Designed for large data applications, such as video surveillance, data archiving, and TV broadcast storage, the REXP-1000 Pro 10-Bay SAS RAID Expansion Enclosure from QNAP will expand the storage on select QNAP NAS devices. It's ten drive bays support 3.5" SAS-2 & SATA III 6 Gb/s and SAS-1 & SATA II 3 Gb/s hard drives, as well as 2.5" SAS & SATA hard drives and SSDs. It connects to your host QNAP NAS using one mini-SAS port with a SAS-2 6 Gb/s interface, while a second mini-SAS port can be used for daisy chaining additional REXP-1000 Pro units. If your host NAS does not have a native mini-SAS port, then you'll need QNAP's SAS-12G2E expansion card and their CAB-SAS10M-8644-8088 external mini-SAS HD SFF-8644 to mini-SAS SFF-8088 cable.
QNAP's REXP-1000 Pro includes 1 x 1.6' SAS cable, 1 x power cord, 40 x flat head screws for 2.5" drives, and 40 x flat head screws for 3.5" drives. Cooling is provided by dual 120mm fans, and protection is provided by a limited 3-year warranty. General Features - Compatibility
- TVS-EC1080+, TVS-EC1080, TS-EC1080 Pro
TVS-EC880, TS-EC880 Pro
TVS-873, TVS-1282, TVS-871
TVS-673, TVS-882, TVS-671
TVS-473, TVS-682, TVS-471
TS-1079 Pro
TS-879 Pro, TS-870 Pro, TS-870
TS-670 Pro, TS-670
TS-470 Pro, TS-470 - Plug-and-Play, Seamless Capacity Expansion
- Simply connect to your Turbo NAS and power it on. The Turbo NAS will detect the hard drives in the REXP-1000 Pro as newly installed local drives. The Turbo NAS capacity can be expanded seamlessly by using the QTS Storage Manager.
- Missing Mode Protection
- When disconnection of the expansion enclosures occurs, the Turbo NAS automatically enters missing mode and blocks I/O access to protect the stored data. The system can then recover from missing mode to a normal state with data staying intact when the disconnection is resolved.
- High Density, High Efficiency, and Highly Scalable

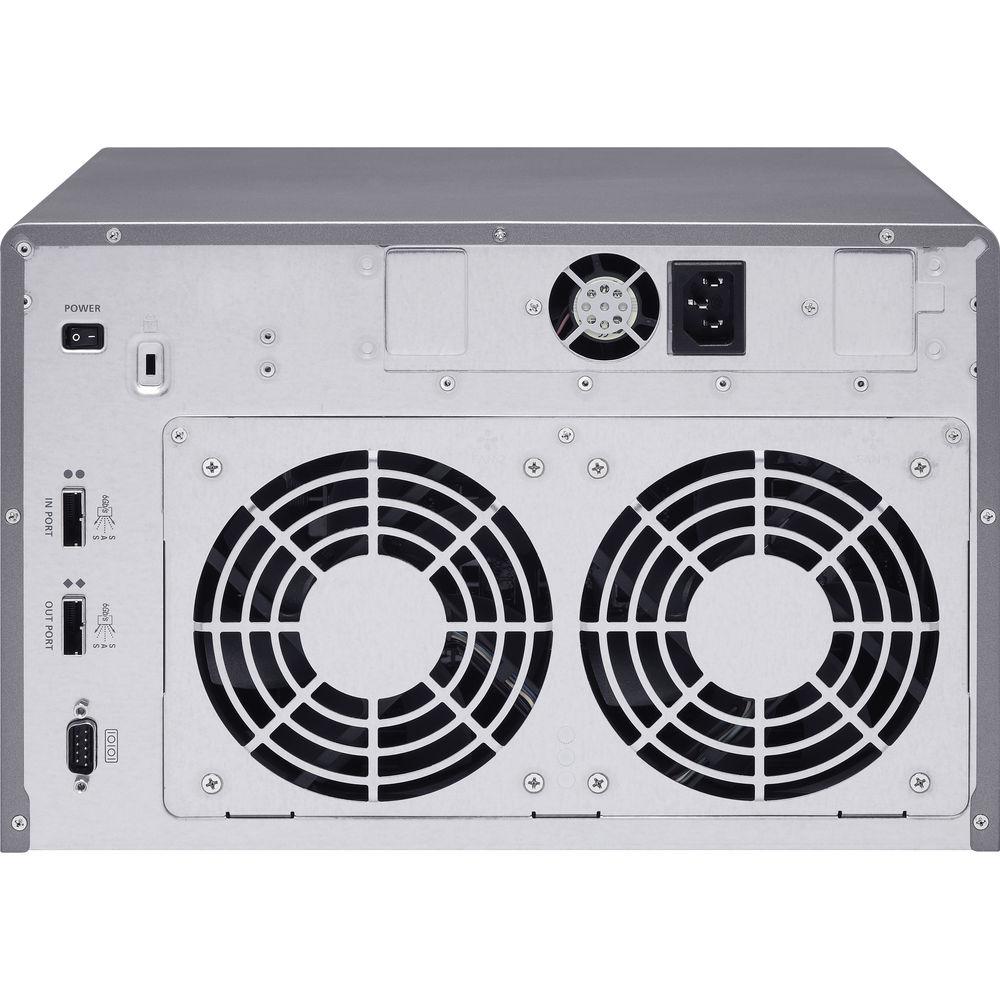

- The REXP-1000 Pro supports 10 hard drives and has two SAS wide ports (in port and out port) for host connectivity and daisy-chain, respectively. Each SAS wide port combines four SAS channels (maximum 8 SAS channels supported per expansion enclosure). The solution delivers performance of up to 24 Gb/s per host connection.
- QTS Storage Manager
- The QTS Storage Manager neatly presents tools and options for managing system storage with an intuitive graphical user interface, which simplifies the process of NAS capacity expansion and REXP-1000 Pro management. IT administrators can easily monitor the health status of the REXP-1000 Pro and the disks within it. When cascading multiple expansion enclosures in a rack, the Locate Disk and Locate Enclosure functions assist IT administrators for quick maintenance.
- Backup Solution for the Turbo NAS
- In addition to expanding an existing volume, IT administrators can use the REXP-1000 Pro as a budget-friendly external storage to perform speedy and secure backup tasks for the Turbo NAS. The QNAP RTRR (Real-Time Remote Replication) or rsync service lets IT administrators back up the Turbo NAS data to the REXP-1000 Pro on a real time or scheduled basis.
- Flexible Drive Selection
- IT administrators can choose enterprise-level SAS HDDs with high performance and high reliability for mission critical applications, low-cost but high-capacity SATA HDDs for large data archiving, or high-speed and high stability SSDs for I/O intensive operations.
UPC: 885022005475 In the Box QNAP REXP-1000 Pro 10-Bay SAS RAID Expansion Enclosure 1.6' / 0.5m SAS Cable Power Cord 40 x Flat Head Screws for 2.5" HDDs 40 x Flat Head Screws for 3.5" HDDs Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the QNAP REXP-1000 Pro 10-Bay SAS RAID Expansion Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersQNAP Raid Specs | | | Number of Bays | 10 x 2.5"/3.5" | | Media Card Slots | None | | Connections | 2 x Infiniband (SAS-2 (6 Gb/s)) | | Compatible Drive Interface | SAS-3, SATA III | | | | Total Raw Capacity | None | | Type | None | | Flash Memory | None | | | | Power Consumption | 169.52 W (Typical)
63.6 W (Standby) | | Power Source | Internal Power Supply | | PSU Wattage | 1 x 350 W | | AC Input Power | 110 to 240 VAC, 50 / 60 Hz at 5 A | | | | Security Features | Kensington Security Slot | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 5 to 95% | | | | Cooling | 2 x 120 mm Fans | | Status Monitoring | LED Indicator | | Dimensions | 8.5 x 12.9 x 12.7" / 216.9 x 326.9 x 321.3 mm | | Weight | 20.4 lb / 9.2 kg | | | | Package Weight | 28.5 lb | | Box Dimensions (LxWxH) | 18.3 x 17.9 x 15.1" |
