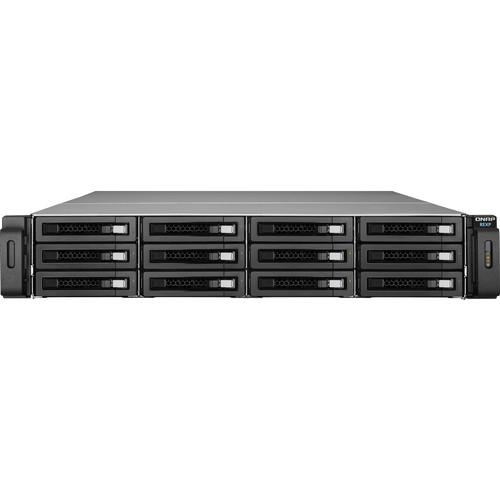

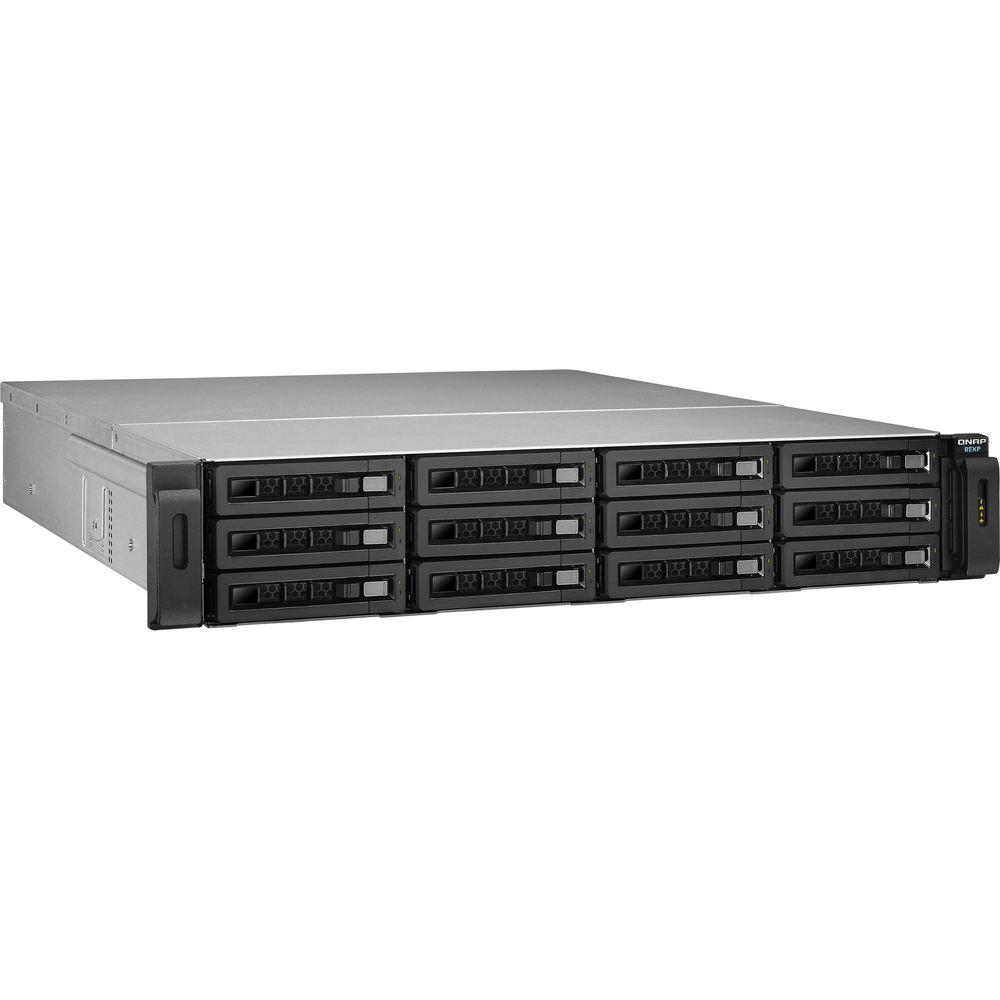

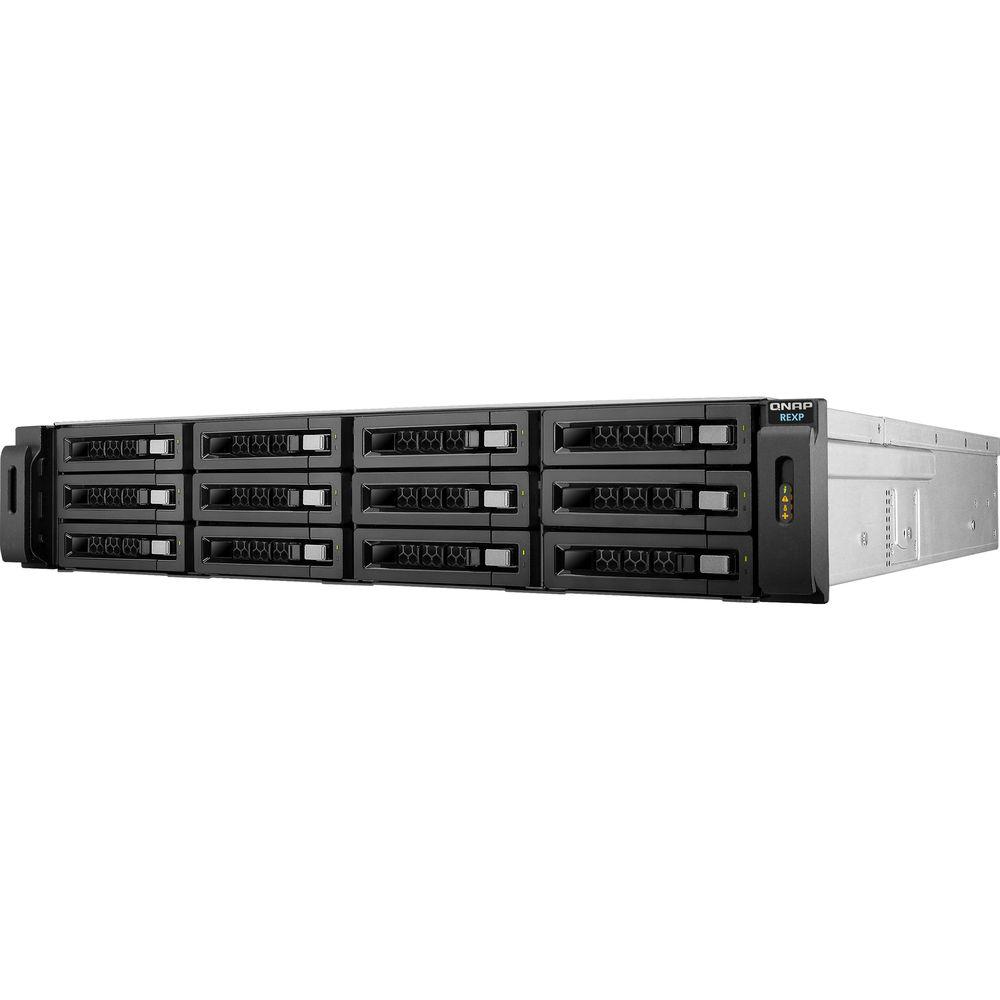

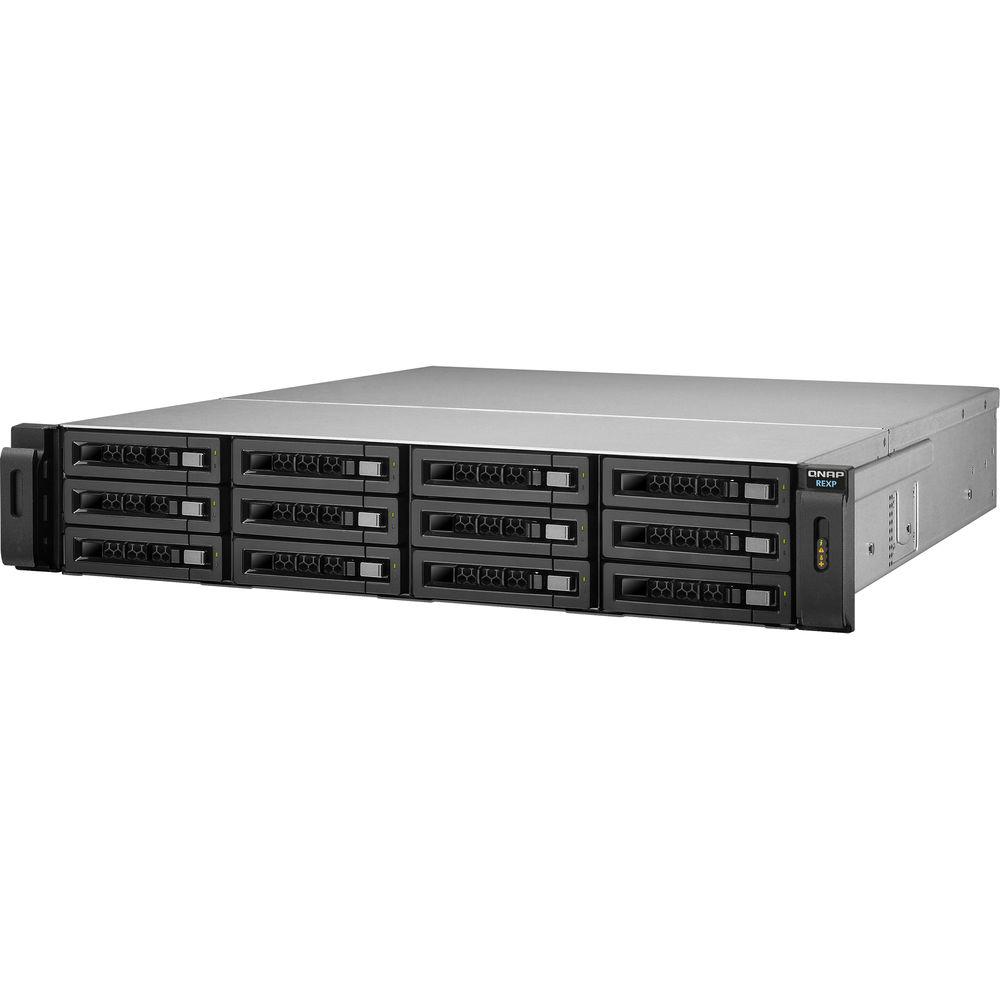

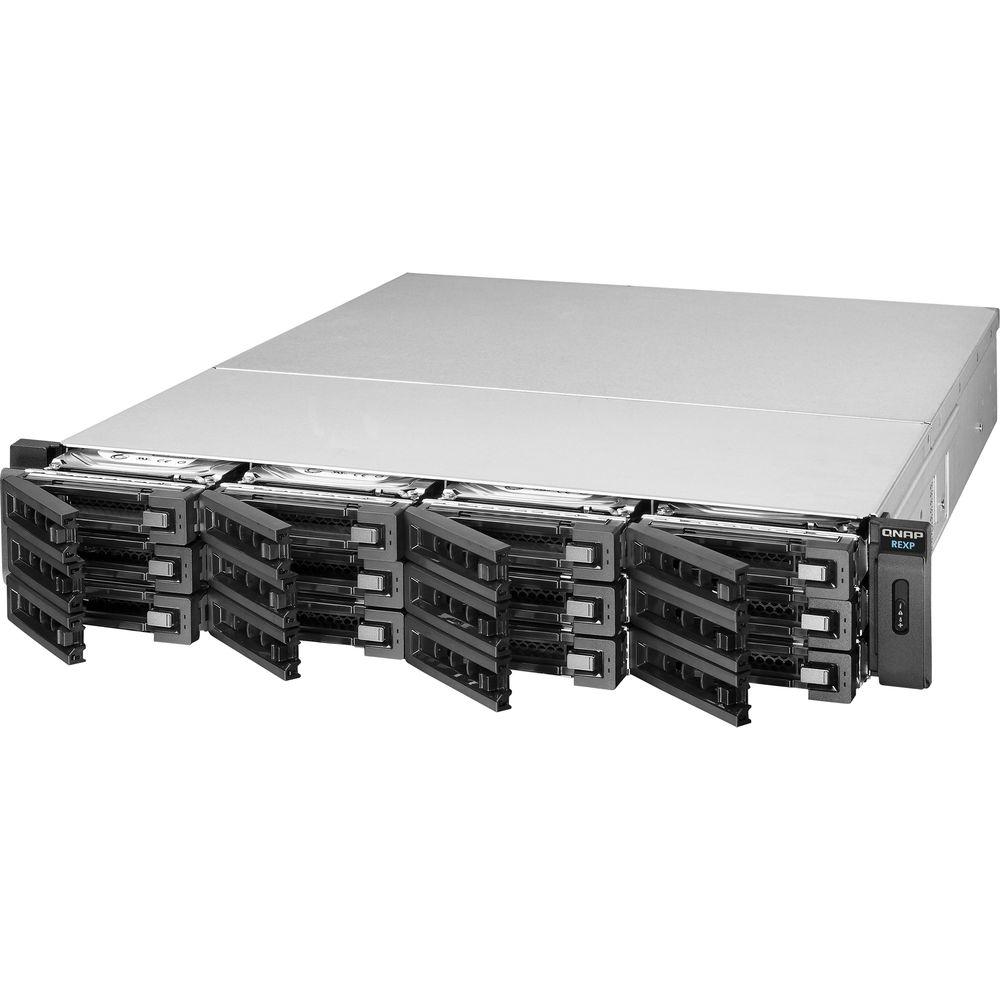

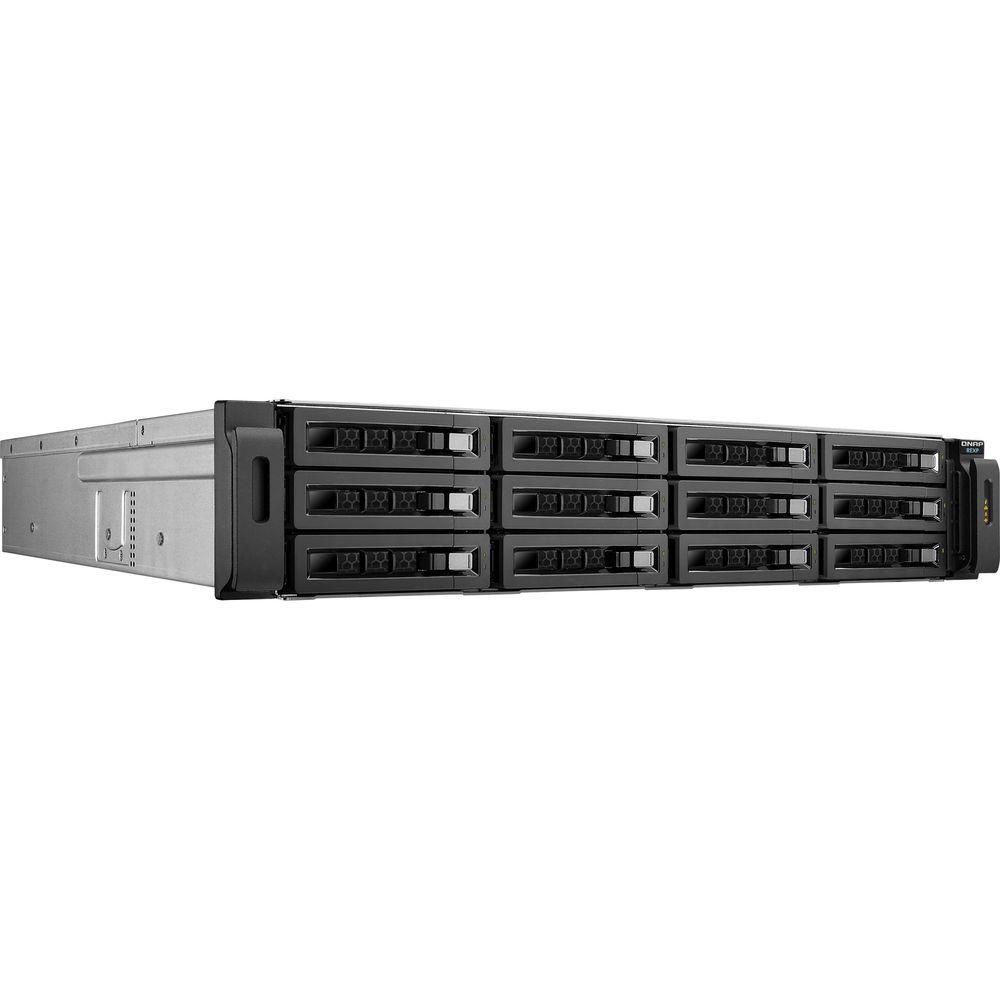

User Manual for QNAP REXP-1220U-RP-US 12-Bay SAS RAID Expansion Enclosure for QNAP NAS Click to enlarge the picture
Contents of the user manual for the QNAP REXP-1220U-RP-US 12-Bay SAS RAID Expansion
- Product category: NAS Enclosures QNAP
- Brand: QNAP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for QNAP NAS Enclosures
 |
User manual for the QNAP REXP-1220U-RP-US 12-Bay SAS RAID Expansion contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any QNAP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official QNAP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a QNAP product will considerably shorten its lifespan!
|
Product description The REXP-1220U-RP-US 12-Bay SAS RAID Expansion Enclosure for QNAP NAS from QNAP is meant to be used with an existing QNAP NAS system to expand its drive capacity. This model can house up to 12 3.5"/2.5" SAS, SATA, and SSD drives so you can use whatever drives fit your application. It connects its multiple expansion bays via high-speed mini-SAS cables and features a 12 Gbps SAS interface with a 2U rackmount form factor. Combined with the QTS Storage Manager, you'll be able to back up storage, manage your drives, and easily identify faulty drives for maintenance. - Plug and Use
- Connect the REXP-1220U-RP-US to a QNAP NAS, running QTS 4.2 or newer, and all the drives will be detected. You can seamlessly expand and manage the NAS capacity by using the QTS Storage Manager software.
- Missing Mode Protection
- When a disconnected portion of a RAID expansion is detected, the NAS blocks I/O access to protect your data. The system can recover from missing mode to its normal state without losing the data.
- High Density, High Efficiency, and Highly Scalable
- With multiple drive support in a 2U rack space, the REXP-1220U-RP-US has two SAS wide ports (IN port and OUT port) for host connectivity and daisy-chaining. Each port combines four SAS channels, supporting 12 Gbps full duplex speed.
- QTS Store Manager
- QTS Store Manager software provides you with an intuitive interface and tools to manage your storage system. You can use it to monitor your disks as well as locate faulty disks for quick maintenance.
- Backup Solution
- In addition to expanding your storage capacity, the REXP-1220U-RP-US can perform speedy and secure backup for the QNAP NAS. IT administrators will be able to back up data to it on a real time or scheduled basis.
- Flexible Drive Capacity
- The REXP-1220U-RP-US provides you with a flexible drive selection. It accepts SAS, SATA, and SSD drives so you can use whatever drives fit your needs.
UPC: 885022009138 In the Box QNAP REXP-1220U-RP-US 12-Bay SAS RAID Expansion Enclosure for QNAP NAS SAS Cable 2 x Power Cord Flat Head Screws Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the QNAP REXP-1220U-RP-US 12-Bay SAS RAID Expansion Enclosure for QNAP NAS in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersQNAP REXP-1220U-RP-US Specs | Host Interface | 3 x SAS 12Gbps 4x wide ports | | Hard Drive Support | 12 x 3.5" SAS/SATA 12/6Gb/s, SAS/SATA 3Gb/s hard drive, or 2.5" SAS/SATA SSD | | LED Indicators | Front panel: Status, fault, system over heat, fan error

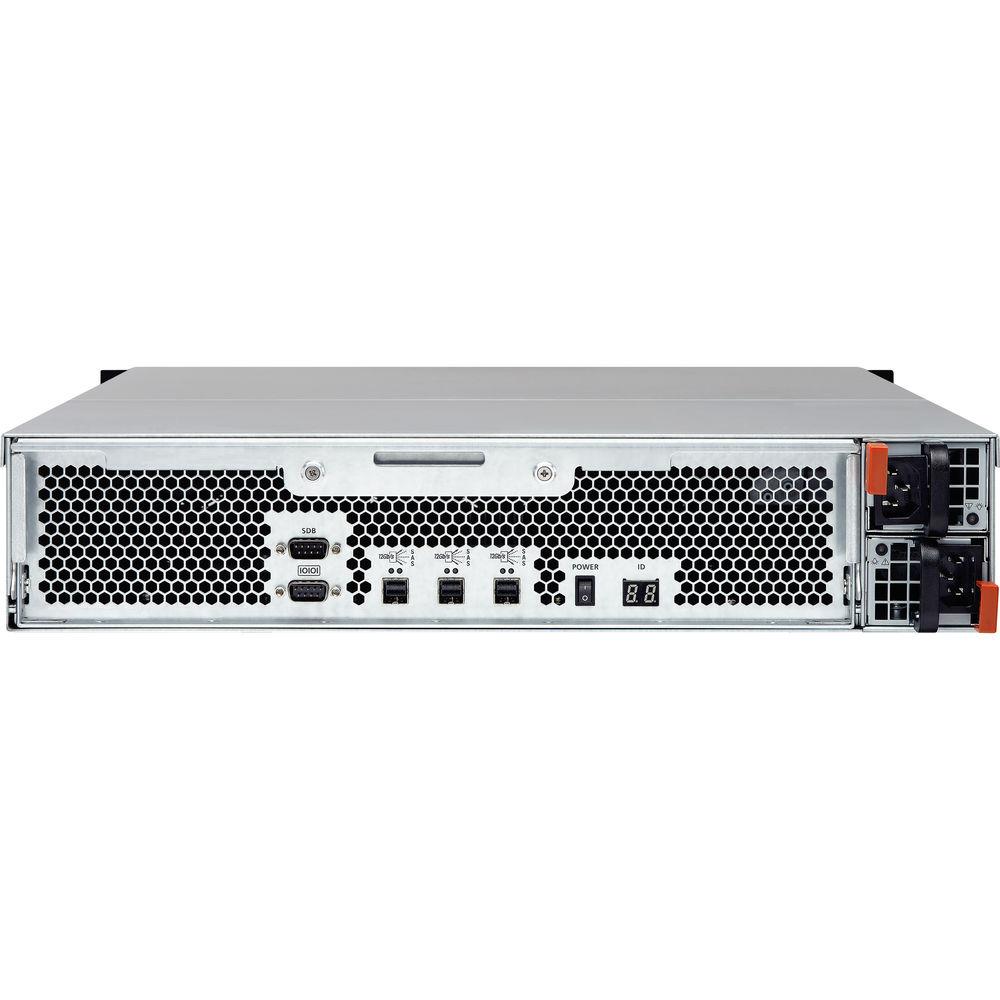

Rear panel: SAS link, SAS error, enclosure ID | | Form Factor | 2U rackmount | | | | Power Consumption | 162.47 W | | Power Supply | Redundant/ Hot Swap ATX Power Supply
400 W, 90 - 264 VAC, 47 - 63 Hz | | | | Temperature | 32 to 104°F (0 to 40°C) | | Humidity | 5 to 95% RH non-condensing, wet bulb: 80°F (27°C) | | | | Dimensions (H x W x D) | 3.46 x 17.28 x 20.47" (88 x 439 x 520 mm) | | Weight | 32.63 lb (14.8 kg) | | | | Package Weight | 43.0 lb | | Box Dimensions (LxWxH) | 29.18 x 22.78 x 12.18" |
