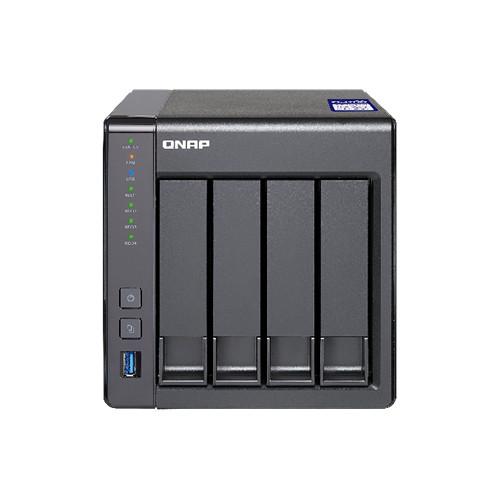

User Manual for QNAP TS-431X2 4-Bay NAS Enclosure Click to enlarge the picture
Contents of the user manual for the QNAP TS-431X2 4-Bay NAS Enclosure
- Product category: NAS Enclosures QNAP
- Brand: QNAP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for QNAP NAS Enclosures
|
User manual for the QNAP TS-431X2 4-Bay NAS Enclosure contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any QNAP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official QNAP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a QNAP product will considerably shorten its lifespan!
|
Product description The TS-431X2 4-Bay NAS Enclosure from QNAP is an entry-level NAS for businesses looking for backup, restoration, private cloud, storage for virtualization. It also allows users to future-proof their IT infrastructure with a 10GbE SFP+ port for intensive data processing. It also supports Snapshots, which allow the NAS to be restored to a previous state in the event of an unexpected system failure or ransomware attack.
The TS-431X2 is powered by a 1.7 GHz Annapurna Labs AL-314 Quad-Core processor, which will allow you to run multiple applications simultaneously. The 2GB of DDR3 RAM has a configuration of 1 x 2GB and will allow quick access to frequently used file and programs. Network connectivity is achieved using the single 10GbE port or two Gigabit Ethernet ports which support failover and port trunking. There is also support for JBOD, single disk, RAID 0, 1, 5, 6, 10, and + hot spare, each of which offers performance, data redundancy, or a combination of both.
This 4-bay enclosure has the ability to natively house both 3.5" and 2.5" SATA III 6 Gb/s and SATA II 3 Gb/s hard drives or SSD drives, and screws are included that accommodate each drive size. When utilizing the 10GbE port, the TS-431X2 can deliver download speeds of up to 1014 MB/s and upload speeds of up to 580 MB/s. When using the 10GbE port with volume encryption, download speeds reach 357 MB/s and write speeds max out at 321 MB/s. Using the three USB 3.0 Type-A ports this QNAP NAS can be connected to other devices, such as QNAP expansion units. To help bolster security, AES 256-bit encryption helps to prevent sensitive business data from unauthorized access and breaches.
QNAP's TS-431X2 4-Bay NAS Enclosure operates using an included 90W AC adapter that runs using 100-240 VAC. Also included are two Ethernet cables, a power cord, 3.5" HDD flat head screws, 2.5" HDD flat head screws, and a power cord. Protection is provided by a limited 2-year warranty. General Features - 1.4 GHz Alpine AL-314 Quad-Core Processor
- The TS-431X2 is equipped with a 1.7 GHz Annapurna Labs Alpine AL-314 Quad-Core processor and 2GB DDR3 RAM. With a 10GbE SFP+ LAN port and two Gigabit LAN ports, the TS-431X2 provides speeds of up to 1014 MB/s to meet the needs of bandwidth-demanding tasks. Supporting AES 256-bit volume-based data encryption, the TS-431X2 provides excellent speeds of up to 357 MB/s while ensuring the confidentiality of sensitive business data stored in the NAS.
- Integrated 10GbE SFP+ Port
- The TS-431X2 not only provides two Gigabit Ethernet ports, but also one 10GbE SFP+ port to fully support 10GbE high-speed networks. 10GbE is capable of delivering fast throughput for businesses that demand higher bandwidth for virtualization and fast backup & restoration for an ever-growing amount of data.
- SSD Cache Acceleration
- The TS-431X2 supports SSD caching to boost the IOPS performance of storage volumes and increase operational efficiency. It is suited for improving the overall workflow of IOPS-demanding applications and allows the best of both cost and performance by combining SSDs with HDDs.
- Disaster Recovery with Snapshots
- The TS-431X2 supports block-based Snapshots, which can record and save the state of the file system and the metadata of the files outside the file system. In the event of an unexpected NAS failure or if struck by a ransomware attack, the snapshots remain intact, allowing you to quickly and easily restore the system back to a previous normal state. You can preserve and restore multiple versions of the same file, folder, or even the entire volume. The TS-431X2 supports up to 64 snapshots per volume or LUN (up to 256 in total). Snapshot Replica facilitates double protection that replicates snapshots to a remote QNAP NAS or server.
- Container Station
- Container Station integrates LXC and Docker lightweight virtualization technologies, allowing you to operate multiple isolated Linux systems on the TS-431X2, as well as download apps from the built-in Docker Hub Registry for unlimited containerized applications. What's better, Container Station supports the QIoT Containers platform that helps quickly structure your IoT environment and deployment on your private IoT cloud, boosting microservices and modernizing legacy applications to drive more business opportunities.
- Qfiling Automates File Organization
- Qfiling helps automate file organization for sorting files spread through multiple folders, helping reduce the time needed to find important files. Users can categorize files, determine filing conditions, and schedule filing tasks to be carried out periodically. The "Recipe" feature allows users to save frequently-used filing conditions as an "exclusive recipe," then the next Qfiling task can be run with just one click using the recipe.
- Qsirch
- The TS-431X2 supports Qsirch, a search tool for quick file searching. Qsirch supports thumbnail previews and even remembers your search history, allowing you to quickly navigate to files you've previously searched for. The revamped Qsirch adds "search operators" and advanced search filters and tags, allowing you to find files faster with more precise results. Qsirch also provides a Helper for Google Chrome and Mozilla Firefox that allows you to search for files on your NAS when you use Google Search.
- Centralized Email and Contact Management for Improved Communication Workflows
- It can be hard to manage emails and contact information that are scattered across multiple computers, devices, and accounts - not to mention if important emails or contact information are lost or become inaccessible due to account closure or device malfunction/loss. QNAP QmailAgent and Qcontactz helps you centrally store and manage emails and contact information, making them accessible to your devices. Using the powerful Qsirch search engine, you can easily find specific contacts and emails whenever needed.
- Notes Station
- Notes Station helps organize notes for your personal and working life. You can easily edit text, insert images/files from the NAS, fine-tune images with the image-editing tool, create sharing links to share notes, backup/restore your notes with snapshots, and ensure privacy with password protection and encryption. You can also invite people to collaborate on notes for greater teamwork. Notes Station provides a safe and convenient way of taking notes that are fully under your control on your TS-431X2's private cloud.
- QTS 4.3 Operating System
- With modularized multiple applications and functions, QTS enhances management efficiency, personal productivity, multimedia, and much more. Intelligent agent services have also been added to simplify system operations and management. The user-friendly QTS features an intelligent desktop that allows you to find desired functions quickly, monitor important system information on a real-time basis, open multiple application windows to run multiple tasks concurrently with greater working efficiency, and provides a built-in App Center with install-on-demand apps to extend NAS functionality.
- VPN & Proxy Server
- QVPN combines VPN server and VPN client functionality. Through QVPN, the TS-431X2 can be used as a VPN server with L2TP/IPsec, OpenVPN, and PPTP support, allowing you to securely access data shared within the private local network. The TS-431X2 can also be used as a VPN Client to connect to other VPN servers or virtual private network through PPTP and OpenVPN for secure data transmission. VPN Client also allows your NAS to connect to multiple servers at the same time. You can connect your devices to your NAS and the VPN server at home to access data on the LAN and via VPN Client on your NAS, you can connect to international VPN servers for accessing regionally-restricted services such as Netflix and Hulu in HD Station. The TS-431X2 provides you with various VPN options and helps secure your data transmission.
- Share and Sync Files Across Devices
- The TS-431X2 supports SMB, NFS, and AFP, allowing you to quickly share files to Windows, Mac, and Linux/UNIX devices. With QNAP's Qsync utility, the TS-431X2 becomes a safe data center for file synchronization with huge storage potential. Any file uploaded to the TS-431X2 can be synchronized to the linked devices such as computers, laptops, and mobile devices. You can also sync shared folders to increase the flexibility of collaboration and file sharing.
- Backup & Disaster Recovery Solutions
- The TS-431X2 offers flexible backup solutions for Windows and Mac users, Volume/LUN snapshots (up to 256 snapshots per volume or LUN, and maximum 1024 snapshots per NAS), and Snapshot Replica and Clone. It also supports Hybrid Backup Sync that consolidates backup, restoration, and synchronization functions (using RTRR, rsync, FTP, and CIFS/SMB) for easily transferring data to local, remote, and cloud storage spaces as a comprehensive data storage and disaster recovery plan. Supported cloud services include Amazon Glacier, Azure Storage, Google Cloud Storage, Google Drive, Microsoft OneDrive for Business, Dropbox, Amazon Drive, Yandex Disk, Box, hubiC, and Amazon S3/OpenStack Swift/WebDAV services.
- Comprehensive Security to Protect Your Data
- In open network environments, business data may be exposed in a potential hack. The TS-431X2 provides numerous security options, such as antivirus, encrypted access, IP blocking, 2-step verification, and more. IT administrators can also control the access rights of each user to different folders, preventing unauthorized access to important files. The TS-431X2 supports AES 256-bit encryption, preventing sensitive business data from unauthorized access and breach even if the hard drives or the entire system were stolen. Windows AD server, LDAP server, and built-in LDAP service are also supported.
- Surveillance Station
- Surveillance Station is a professional network surveillance Video Management System (VMS) that offers a user-friendly management interface, over 3000 compatible IP camera models, and expandable IP camera channel licenses. It supports real-time monitoring, video & audio recording, and playback with a wide range of customizable settings. You can use the iOS or Android Vmobile app to manage the monitored channels to safeguard your office environment, or install the Vcam mobile app to turn your device into a network camera to record to your TS-431X2. The TS-431X2 offers 2 free IP camera channels and you can expand up to 30 channels by purchasing additional licenses.
- Virtual JBOD
- Besides using physical storage expansion enclosures, there is an additional option to expand NAS storage capacity. QNAP VJBOD (Virtual JBOD) is network-based JBOD, allowing you to expand the storage of a QNAP NAS by using the unused storage space of another QNAP NAS. The TS-431X2 supports VJBOD to economically expand the storage capacity of other QNAP NAS devices with its unused storage space. You can also create virtual storage pools and volumes on the virtual disks for operating NAS services.
- Expand Storage Capacity
- The TS-431X2 supports online capacity expansion by connecting two QNAP expansion enclosures for storing rapidly-growing data, which is well-suited for storage-intensive applications such as video surveillance, data archiving, TV broadcast storage, and more. You can gradually expand the TS-431X2's storage on demand, and use the QTS Storage Manager to easily handle the NAS capacity expansion and storage expansion enclosure management. With the support of QJBOD Express (JBOD enclosures roaming), you can just connect a large capacity QNAP expansion enclosure to the TS-431X2, and migrate data to another NAS through the JBOD enclosure without network connectivity.
The TS-431X2 is compatible with the UX-500P and UX-800P expansion enclosures. When using one UX-500P enclosure, up to 9 total drives (NAS + enclosure) are supported, while adding a second UX-500P supports 14 total drives. If you need more storage, adding one UX-800P provides users with 12 total drives and adding a second UX-800P increases that number to 20. UPC: 885022013616 In the Box QNAP TS-431X2 4-Bay NAS Enclosure 2 x Ethernet Cables 90W AC Adapter Power Cord Flat Head Screws for 3.5" HDDs Flat Head Screws for 2.5" HDDs Limited 2-Year Warranty More info from QNAP Table of Contents
|
Upload User Manual
Have you got an user manual for the QNAP TS-431X2 4-Bay NAS Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersQNAP TS-431X2-2G-US Specs | | | Number of Bays | 4 x 2.5"/3.5" | | Media Card Slots | None | | Connections | 1 x SFP+ (10GbE)
2 x RJ45 (Gigabit Ethernet)
3 x USB Type-A (USB 3.1 Gen 1 (5 Gb/s)) | | Compatible Drive Interface | SATA III | | Form Factor | Desktop | | Hot-Swap Support | Yes | | | | Total Raw Capacity | None | | Type | None | | Flash Memory | 512 MB NAND | | | | Processor | ARM Cortex-A15 Quad-Core | | Clock Speed | Base: 1.7GHz | | Total Installed Memory | 2 GB DDR3 | | User-Replaceable Memory | 1 x 2 GB | | Total Memory Slots | 1 x SO-DIMM | | Maximum Memory Capacity | 8 GB | | | | Supported Protocols | AFP
CIFS/SMB
FTP
FTPS
HTTP
HTTPS
IPv4
IPv6
L2TP/IPSec
NFS
OpenVPN
PPTP
SFTP
SMSC
SMTP
SNMP
SSH
TFTP
Telnet
iSCSI | | iSCSI LUN | 256 | | iSCSI Target | 256 | | | | Installed Operating System | QTS 4.3 | | File System Formats Supported | External: EXT3, EXT4, FAT32, HFS+, NTFS
Internal: EXT4 | | Supported Browsers | Chrome, Firefox, Internet Explorer, Safari | | Supported Languages | Brazilian Portuguese
Czech
Danish
Dutch
English
Finnish
French
German
Greek
Hungarian
Italian
Japanese
Korean
Norwegian
Polish
Romanian
Russian
Simplified Chinese
Spanish
Swedish
Thai
Traditional Chinese
Turkish | | | | Power Consumption | 26.19 W (Typical)
11.32 W (Standby) | | Power Source | AC Adapter | | DC Input Power | 12 VDC at 7.5 A, 90 W | | | | Encryption | 256-Bit AES, FIPS 140-2 Level 1 | | Security Features | Kensington Security Slot | | VPN Server Connections | 100 | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 5 to 95% | | | | Cooling | 1 x PWM 120 mm Fan | | Noise Level | 19.5 dBA | | Audible Alarm | Yes | | Status Monitoring | LED Indicator | | Dimensions | 6.7 x 6.3 x 8.6" / 169.0 x 160.0 x 219.0 mm | | Weight | 6.6 lb / 3.0 kg | | | | Package Weight | 7.9 lb | | Box Dimensions (LxWxH) | 12.2 x 12.0 x 9.8" |
