QNAP TS-451 24TB 4-Bay NAS Server

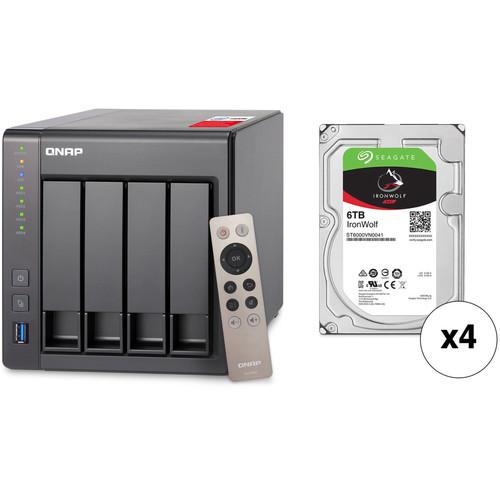

User Manual for QNAP TS-451 24TB 4-Bay NAS Server Kit with Seagate NAS Drives

• Product category: Network Attached Storage Drives QNAP
• Brand: QNAP
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for QNAP Network Attached Storage Drives

Product description

• QNAP TS-451+ 4-Bay Home and SOHO NAS Server Built around the need for increasing amounts of data storage, sharing, and multimedia processing, the TS-451+ 4-Bay Home and SOHO NAS Server from QNAP provides a high-performance scalable storage solution for professional users. The TS-451+ runs the QTS 4.2 operating system and provides all-in-one server functionalities as well as features including Virtualization Station, which allows users to run multiple Windows, Linux, UNIX, and Android-based virtual machines. It is also able to operate multiple isolated Linux systems and download containerized apps with Container Station, play 1080p videos and multi-channel audio via HDMI, transcode Full HD videos on-the-fly or offline, stream multimedia files via DLNA, AirPlay, Chromecast, and Bluetooth, search efficiently using Qsirch, use the UX-800P expansion enclosure to increase the NAS's raw capacity, and more.

  The TS-451+ is powered by a 2.0 GHz Intel Celeron Quad-Core processor that features a boost speed of up to 2.42 GHz. The built-in 2GB of DDR3L RAM, which may be expanded up to 8GB, and the 512MB of flash memory allow quick access to frequently-used files and programs. Network connectivity is achieved via the 2 x Gigabit Ethernet ports. A variety of RAID modes are also supported, including RAID 0,1, 5, 5 + hot spare, 6, 10, which offer data redundancy, speed, or a combination of both. There is also the option to set the TS-451+ in single disk or JBOD mode if you don't need RAID functionality.

  This 4-bay enclosure has the ability to natively house both 3.5" or 2.5" SATA III & SATA II hard drives or SSD drives. To support both drive formats, screws are included to accommodate both drive sizes. Read speeds can reach up to 225 MB/s and write speeds can reach up to 224 MB/s, while data transfer speeds with AES 256-bit encryption can reach read speeds of up to 204 MB/s and write speeds of up to 158 MB/s. Using the two USB 3.0 and two USB 2.0 ports, this QNAP can be connected to other QNAP devices, such as the UX-500P and UX-800P expansion enclosures, as well as other external drives.

  The TS-451+ operates using a 90W power supply that operates using 100-240 VAC. It is compatible with Windows, Mac, Linux, and UNIX. Included are two Ethernet cables, a power cord, an AC adapter, sixteen 3.5" HDD flat head screws, twelve 2.5" HDD flat head screws, and an IR remote control.
  Quad-Core 64-bit Intel Celeron CPU
  • The TS-451+ is powered by a 64-bit Intel Celeron quad-core 2.0 GHz processor and has 2GB of energy-efficient DDR3L RAM (upgradable to 8GB) and dual Gigabit LAN ports, delivering up to 225 MB/s read & write speeds with port trunking mode. The TS-451+ can also automatically increase the processor's clock rate from 2.0 GHz to 2.42 GHz when needed for CPU-intensive tasks. The TS-451+ supports AES 256-bit volume & folder encryption with transfer speeds of up to 204 MB/s, boosting system performance & security while ensuring the safety of sensitive personal data stored in the TS-451+
  QTS 4.2 - Simple and Efficient
  • Thanks to the user interface of QTS, system operations on the TS-451+ are smooth. Its desktop allows you to find desired functions, create desktop shortcuts, group shortcuts, monitor important system information on a real-time basis, and open multiple application windows to run multiple tasks concurrently
  Run Additional Operating Systems on the TS-451+
  • The Virtualization Station transforms the TS-451+ into a 2-in-a-box NAS that can function as an all-in-one NAS and a virtualization platform that supports multiple operating systems, fast VM creation, VM backup & restoration, VM import/export, snapshot, Device Management for centrally managing VM, and enables desktop operations on web browsers. With the easy-to-use interface, you can centrally manage all of the VMs created on the TS-451+ with minimal effort. You can also download VMs on demand from online VM markets and import them to the TS-451+ without any complex procedures
  Container Station - LXC and Docker Containers Inclusive
  • QNAP Container Station integrates LXC and Docker lightweight virtualization technologies, allowing you to operate multiple isolated Linux systems on the TS-451+ as well as download apps from the built-in Docker Hub Registry. It supports container import/export and permission settings, and features an informative dashboard and flexible user interface for you to manage multiple containers. You can experience the Container Station and enjoy the playground of virtual containers with the TS-451+. Container Station also supports Online Document app, which allows you to directly view, edit, and store files of various types anytime on your NAS, including Office documents, images, and text files
  Use your TS-451+ as a PC with QvPC Technology
  • QNAP's QvPC Technology consolidates a number of high-end technologies including VM integration, multimedia transcoding, HDMI output, cloud integration, and NAS connection technologies, allowing users to operate the TS-451+ as a PC when they plug in a keyboard, mouse, and HDMI monitor. With QvPC Technology, the TS-451+ is transformed into a cost-effective device with PC functionalities for users to directly access stored data, run multiple applications using Windows/Linux/UNIX/Android based VMs, surf the web, enjoy Full HD videos with Kodi, monitor surveillance live feeds from IP cameras in real time, and much more
  Enjoy Videos on TV via HDMI
  • QNAP HD Station integrates the Kodi media player and web browser. With HDMI connectivity, you can connect the TS-451+ to a HDTV to watch your multimedia content on the big screen. The splendid user interface and support for 7.1-channel audio passthrough bring smooth playback of 1080p videos. You can even watch YouTube videos, surf the web, and manage the TS-451+ using Google Chrome or Mozilla Firefox with multilingual keyboard input. HD Station supports multi-tasking and user authentication so only authorized users can access the stored data via HDMI monitors
  UPC: 885022009022
• 4 x Seagate 6TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDD Designed for use in 1-8 bay NAS environments within home, SOHO, and SMB environments, the 6TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDD from Seagate is built to withstand 24x7 operations, or 8760 hours per year. This 6TB drive has been equipped with a SATA III 6 Gb/s interface, a rotational speed of 7200 rpm, a 3.5" form factor, and a 128MB cache, providing users with an ample storage capacity and data transfer speeds of up to 195 MB/s. This IronWolf hard drive also has an MTBF rating of 1 million hours, 600,000 load/unload cycles, 1 in 10¹⁵ non-recoverable read errors per bits read, and a workload rate of up to 180TB per year. Protection is provided by a limited 3-year warranty.

  General Features

  Optimized for NAS with AgileArray
  • AgileArray is built for dual-plane balancing and RAID optimization in multi-bay environments with advanced power management
  Reduced Lag Times
  • Improved performance means reduced lag times or downtime for users during high traffic time for the NAS
  IronWolf Health Management
  • IronWolf Health Management focuses on prevention, intervention, and recovery
  Rotational Vibration (RV) Mitigation
  • IronWolf comes standard with RV sensors to maintain high performance in multi-bay NAS enclosures
  Multi-User Environments
  • IronWolf provides a workload rate of 180TB per year
  Cache Memory
  • IronWolf provides 128MB of cache memory, allowing your NAS to serve data faster
  1.0 Million Hours MTBF | Limited 3-Year Warranty
  • This represents an improved total cost of ownership (TCO) over desktop drives with reduced maintenance costs
  Designed for 24x7 Performance
  • Access your data on your NAS at virtually any time, whether remotely or on site

  Best-Fit Applications

  • 1-8 bay business network attached storage (NAS)
  • Desktop RAIDs and servers
  • Multimedia server storage
  • Private cloud
  UPC: 763649117545

• TS-451+ 4-Bay Home and SOHO NAS Server casqqzawywyz
• 2 x Ethernet Cables
• 12 x Flat Head screws (for 2.5" HDD)
• 16 x Flat Head screws (for 3.5" HDD)
• Power Cord
• AC Adapter
• RM-IR002 Infrared (IR) Remote Control
• Limited 2-Year Warranty

• 4 x Seagate - 6TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDD casqqzawywyz

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• QNAP TS-451+ 4-Bay Home and SOHO NAS Server

  Number of Bays	4 x 2.5"/3.5"
  Media Card Slots	None
  Connections	1 x HDMI Type-A 2 x RJ45 (Gigabit Ethernet) 2 x USB Type-A (USB 3.1 Gen 1 (5 Gb/s)) 2 x USB Type-A (USB 2.0 (480 Mb/s))
  Compatible Drive Interface	SATA III
  Form Factor	Desktop
  RAID Modes	RAID 0, 1, 10, 5, 6, JBOD
  Hot-Swap Support	Yes
  Wake on LAN	Yes

  Total Raw Capacity	None
  Type	None
  Flash Memory	512 MB

  Processor	Intel Celeron Quad-Core
  Clock Speed	Base: 2.0GHz / Maximum Boost: 2.42 GHz
  Total Installed Memory	2 GB DDR3L
  Total Memory Slots	2 x SO-DIMM
  Maximum Memory Capacity	8 GB

  Supported Protocols	AFP CIFS/SMB FTP FTPS HTTP HTTPS IPv4 IPv6 NFS OpenVPN PPTP SFTP SMSC SMTP SNMP SSH TFTP Telnet WebDAV iSCSI
  Max Cameras Supported	24

  Installed Operating System	QTS 4.2
  OS Compatibility	Windows 7 or Later Windows Server 2003 or Later macOS Linux UNIX
  File System Formats Supported	External: EXT3, EXT4, FAT32, HFS+, NTFS Internal: EXT4
  Supported Browsers	Chrome, Firefox, Internet Explorer, Safari
  Supported Languages	Brazilian Portuguese Czech Danish Dutch English Finnish French German Greek Hungarian Italian Japanese Korean Norwegian Polish Romanian Russian Simplified Chinese Spanish Swedish Thai Traditional Chinese Turkish
  Max Number of Printers Supported	3

  Power Consumption	33.88 W (Typical) 15.78 W (Standby)
  Power Source	AC Adapter
  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  DC Input Power	90 VDC

  Encryption	256-Bit AES, FIPS 140-2 Level 1
  Security Features	Kensington Security Slot
  VPN Server Connections	30

  Operating Temperature	32 to 104°F / 0 to 40°C
  Operating Humidity	5 to 95%

  Cooling	1 x 120 mm Fan
  Audible Alarm	Yes
  IR Sensor	Yes
  Status Monitoring	LCD Screen, LED Indicator
  Dimensions	7.0 x 7.1 x 9.2" / 177.0 x 180.1 x 234.9 mm
  Weight	6.6 lb / 3.0 kg

  Box Dimensions (LxWxH)	12.6 x 12.0 x 9.9"

• 4 x Seagate 6TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDD

  Drive Capacity	6.0 TB
  Cache Memory	128 MB

  Interface	SATA III (6 Gb/s)
  Maximum Read Speed	195 MB/s

  Drive Type	HDD
  Form Factor	3.5"
  Noise Level	2.7 dB (Idle) 2.8 dB (Active)

  Spindle Speed (RPM)	7200 RPM

  Encryption	None
  Endurance (Total Bytes Written)	180 TB
  Load/Unload Cycles	600,000
  Mean Time Between Failures (MTBF)	1.0 Million Hours
  Non-Recoverable Read Errors per Bits Read	1 in 1015

  Power Draw	9.0 W (Active) 7.2 W (Idle) 0.6 W (Standby)
  Supported Voltage	5 VDC, 12 VDC
  Current	2.0 A at 12 VDC

  Operating Shock	70 G / 2.0 ms
  Storage Shock	250 G / 2.0 ms
  Operating Temperature	41 to 158°F / 5 to 70°C
  Storage Temperature	-40 to 158°F / -40 to 70°C

  Dimensions (W x H x D)	4.0 x 1.0 x 5.8" / 101.8 x 26.2 x 147.1 mm
  Weight	1.7 lb / 780.2 g

  Box Dimensions (LxWxH)	7.9 x 6.0 x 2.4"
