QNAP TS-453Be 48TB 4-Bay NAS Enclosure

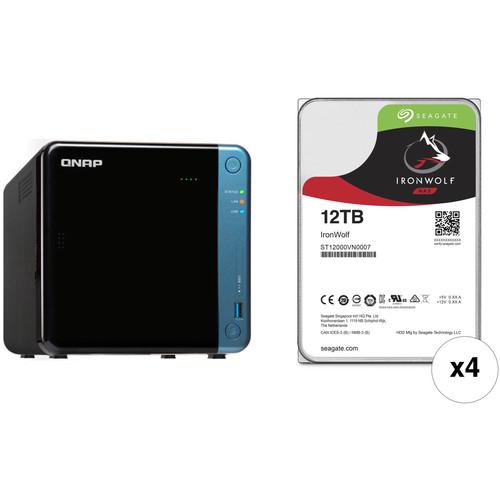

User Manual for QNAP TS-453Be 48TB 4-Bay NAS Enclosure Kit with Seagate NAS Drives

• Product category: Network Attached Storage Drives QNAP
• Brand: QNAP
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for QNAP Network Attached Storage Drives

Product description

• QNAP TS-453Be 4-Bay NAS Enclosure Built for office and home environments, the TS-453Be 4-Bay NAS Enclosure from QNAP features a simply physical design with a PCIe 2.0 x2 slot that can be fitted with a QNAP QM2 expansion card for M.2 SSD caching/10GbE connectivity and support for Qtier auto-tiering technology, or a compatible wireless card to turn this NAS into a wireless access point. It also supports dual-channel 4K H.264/H.265 processing to provide a smooth media viewing experience on connected devices. In addition, a wide range of productivity tools are available for use on the TS-453Be to improve work efficiency for media creators or creative professionals, while also enriching their multimedia experience.

  Network connectivity is achieved using two Gigabit Ethernet ports. When both ports are used simultaneously, read speeds and write speeds can reach 225 MB/s. Encrypted transfers also deliver read and write speeds of up to 225 MB/s, and when equipped with a 10GbE card, sequential throughputs with dual ports can drive read speeds up to 659 MB/s and write speeds up to 648 MB/s.

  This 4-bay enclosure natively supports 3.5" SATA III hard drives, and 2.5" hard drives and SSDs are also supported using included 2.5" drive flat head screws. Using the five 5 Gb/s USB 3.0 Type-A ports, this QNAP NAS can be connected to other devices, including a UX-800P or UX-500P expansion enclosure, allowing you to easily transfer large media files and expand NAS storage. Additionally, the TS-453Be is validated with AES-NI and FIPS 140-2 AES 256-bit encryption, helping to prevent sensitive business data from unauthorized access and breaches.

  QNAP has also engineered this NAS to also support RAID 0, 1, 5, 6, and 10, each which offers data redundancy, performance, or a combination of both. For those who do not require a RAID, JBOD and single disk modes are also available. Included is a 90W AC adapter that runs using 100-240 VAC, a power cord, twelve flat head screws for 2.5" drives, and two Ethernet cables. Protection is provided by a limited 2-year warranty.

  General Features

  Extend NAS Functionalities with the PCIe Slot
  • With PCIe expansion, the TS-453Be provides flexibility in extending NAS functionality and potential applications. Install a QNAP QM2 card to provide M.2 SSD caching/10GbE connectivity, or use the TS-453Be as a wireless access point by installing a compatible wireless network card (ex. QNAP QWA-AC2600), or boost USB connectivity of the TS-453Be by installing a 10 Gb/s USB 3.1 Gen 2 card (USB 3.1).
  1.5 GHz Intel Celeron J3455 Quad-Core CPU with AES-NI Encryption
  • Powered by a 1.5 GHz Intel Celeron J3455 Quad-Core processor (burst up to 2.3 GHz), 2GB of DDR3L RAM (up to 8GB), dual Gigabit LAN ports, and supporting SATA III 6 Gb/s hard drives, the TS-453Be provides dependable performance of up to 225 MB/s read/write speeds. The TS-453Be features Intel AES-NI hardware-accelerated encryption to drive transfer speeds of up to 225 MB/s with AES 256-bit encryption for both full NAS volumes and shared folders, boosting system performance while ensuring the security of sensitive data stored in the TS-453Be.
  Protect Data with Snapshots
  • Snapshots help protect your data by fully recording the NAS system state and metadata. If a file is accidentally deleted or modified, you can use snapshots to quickly restore the file to its previously recorded state. QNAP snapshots are block based and only record the changed data. Not only does this save storage space, but also reduces the time required to back up and restore data. The TS-453Be supports up to 1024 snapshots per NAS and up to 256 snapshots per volume or LUN.
  Upgrade Your IT Environment with QNAP's 10GbE Switch
  • QNAP 10GbE/NBASE-T unmanaged switches allow you to instantly upgrade your network environment at a cost-effective price. With a 10GbE network, you can enjoy fast transfer speeds, empower bandwidth-demanding tasks like virtualization, and enable simultaneous real-time access to large NAS-based files using multiple workstations (good for video editing and multimedia). QNAP also provide a 10GbE PCIe network expansion card for the TS-453Be and Windows/Linux systems to take advantage of high-speed LAN environments.
  Real-Time Video Transcoding
  • Featuring 9th Generation Intel HD Graphics, the TS-453Be supports dual-channel 4K H.264/H.265 hardware decoding and real-time transcoding, allowing you to convert videos to universal file formats that can be played on multiple devices. Therefore, you can easily share movies and videos stored on your NAS with family and friends for their enjoyment on a range of devices. The QNAP RM-IR004 remote control (sold separately) can be configured using QButton to customize the actions of individual buttons, providing a more convenient NAS experience.

    Note: The TS-453Be's hardware provides H.264/H.265 hardware decoding, encoding, and transcoding capabilities. However, playback quality may vary due to factors including playback software, file formats, system usage, and available bandwidth.
  Multiple Ways to Enjoy Videos
  • QNAP provides a wide range of multimedia applications for you to easily enjoy photos, music, and videos. QVHelper allows users to stream media files or music playlists from a QNAP NAS to VLC player and Qmedia allows music, photos, and videos to be streamed to Android TVs or settop boxes. Video HD is a free KODI add-on that combines KODI's streaming and video decoding capabilities and fully supports Video Station's features.
  Multiply Your Productivity
  • The app-driven QTS operating system provides solutions for simplifying file backup, management, search, and more. With File Station, you can view and manage your files not only from the NAS, but also from multiple storage devices; the OCR Converter allows you to extract text from images; Qfiling helps automate file organization, and Qsirch helps quickly find files.

    Centralized File Management
    Use File Station to directly access files on USB devices, including optical disc drives. Files from different devices can be easily viewed and managed on a single interface.

    File Digitization
    OCR Converter extracts text from images, helping to boost productivity and making it easier to find files.

    Smart Filing
    Qfiling automates file organization. Files are automatically archived into folders based on your settings.

    Full-Text Search
    Qsirch quickly finds images, music, videos, documents, emails, and other files.
  Multi-point Backup and Access
  • With integrated data backup, restoration, and synchronization, Hybrid Backup Sync helps you easily backup or synchronize data on the TS-453Be to other QNAP NAS, USB storage (one touch copy), or cloud storage. With Qsync, you can also access your NAS files from desktops, laptops, or mobile devices connected with the TS-453Be.
  Multi-OS Platform
  • Virtualization Station and Container Station provide comprehensive solutions for creating virtualized environments to improve business IT infrastructure, workflows, and productivity.
  Virtualization Station
  • Virtualization Station allows you to run multiple Windows, Linux, UNIX, and Android virtual machines on the TS-453Be. You can use Virtual Network Computing (VNC) through a browser to manage the VMs. Virtualization Station is made for organizations to run multiple applications on a single NAS.
  Container Station
  • Container Station integrates LXC and Docker lightweight virtualization technologies. You can download apps from the built-in Docker Hub to easily import/export container apps and manage access control, enjoying the benefit of easy installation, transferability, and high-efficiency.
  Supports 360° Panorama Photos and Videos
  • QNAP NAS now supports the popular 360° panorama recording format. By clicking the 360° panorama display button, these photos and videos will be displayed as 360° panorama media files. The QNAP mobile apps Qfile, Qphoto, and Qvideo also support 360° format viewing.
  QVR Pro Surveillance Solution
  • QNAP's QVR Pro surveillance solution allows you to arrange a dedicated, independent storage space for surveillance data on TS-453Be and leverage the advantages of scalability and storage manageability from QTS. With QVR Pro, camera management, storage space allocation, camera live view, and playback become more user-friendly. You can also use QVR Pro Client's mobile app to monitor anytime, or use a USB webcam as an ONVIF network camera with the QUSBCam2 app.
  Comprehensive Surveillance Solution for 24/7 Monitoring
  • Surveillance Station provides an intelligent video management system to assist in managing real-time monitoring, video & audio recording, and playback with a wide range of customizable settings to safeguard your physical environment. You can use the Vmobile mobile app to manage the monitored channels, or install the Vcam mobile app to turn your device into a network camera to instantly record to your NAS.
  Flexible and Economical Storage Expansion
  • You need an easy solution to increase storage capacity when running out of space. QNAP provides several ways to expand your NAS storage as needed to accommodate data and business growth.

    Upgrade RAID Capacity
    Hot swap lower-capacity drives with larger-capacity drives so that your QNAP NAS can grow with your business.

    Attach Expansion Enclosures
    Connect a UX-800P or UX-500P expansion enclosure and use the QTS Storage & Snapshots Manager to handle NAS capacity expansion.

    VJBOD
    Use VJBOD (Virtual JBOD) to expand your storage capacity by using the unused storage of other QNAP NAS. Up to 8 QNAP NAS can be mounted as local disks on the TS-453Be.

    Migrate to a New NAS
    Install your NAS hard drives into a larger QNAP NAS and retain all your existing data and configurations.
  UPC: 885022014415
• 4 x Seagate 12TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDD Store your critical data on the 12TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDD from Seagate. The IronWolf is designed for corporate environments that utilize multi-drive systems and servers. The NAS hard drive provides an ample storage capacity of 12TB and is built to withstand 24 x 7 operations. It is outfitted with a SATA III interface and mounted in an available 3.5" drive bay. Other notable features include a 7200 rpm spin rate and 256MB of cache to deliver a maximum sustained data transfer rate of 210 MB/s.
  • AgileArray is built for dual-plane balancing and RAID optimization in multi-bay environments with advanced power management
  • IronWolf performance provides limited lag times or downtime for users during high traffic time for the NAS
  • Drive balance with Rotational Vibration (RV) sensors manage multi-bay vibration for long-term consistent performance and reliability
  • IronWolf provides 256MB of cache memory allowing your NAS to serve data faster
  • Enables user workload rate of 180TB/year
  • Designed for always-on, always-accessible 24×7 performance
  UPC: 763649123386

• TS-453Be 4-Bay NAS Enclosure eryytuwbxevfyzbddaswdbzswssdxteqtdrs
• 2 x Ethernet Cables
• 12 x Flat Head Screws for 2.5" HDDs
• 90W AC Adapter
• Power Cord
• Limited 2-Year Warranty

• 4 x Seagate - 12TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDD

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• QNAP TS-453Be 4-Bay NAS Enclosure

  Number of Bays	4 x 2.5"/3.5"
  Media Card Slots	None
  Connections	5 x USB Type-A (USB 3.1 Gen 1 (5 Gb/s)) 2 x HDMI Type-A (HDMI 1.4b) 2 x RJ45 (Gigabit Ethernet) 2 x 3.5 mm (Audio In)
  Compatible Drive Interface	SATA II, SATA III
  Form Factor	Desktop
  RAID Modes	RAID 0, 1, 10, 5, 6
  Hot-Swap Support	Yes
  Expansion Slots	1 x PCIe 2.0 x2
  Link Aggregation and Failover Support	Yes
  Wake on LAN	Yes
  Type	None

  Processor	Intel Celeron J3455 Quad-Core
  Clock Speed	Base: 1.5GHz / Maximum Boost: 2.3 GHz
  GPU	Intel HD Graphics 500
  Total Installed Memory	2 GB 1866 MHz DDR3L
  User-Replaceable Memory	1 x 2 GB
  Total Memory Slots	2 x SO-DIMM
  Maximum Memory Capacity	8 GB

  Supported Protocols	AFP CIFS/SMB FTP HTTPS SSH Telnet
  iSCSI Target	256
  Max Cameras Supported	40
  Max Concurrent Connections	90
  Max Sync Tasks	32

  Installed Operating System	QTS 4.3
  OS Compatibility	macOS 10.7 or Later Linux UNIX Windows 10 Windows 8 Windows 7 Windows Server 2016 Windows Server 2012 R2 Windows Server 2012 Windows Server 2008 R2 Windows Server 2008 Windows Server 2003
  File System Formats Supported	Internal: EXT4 External: EXT3, EXT4, FAT32, HFS+, NTFS, exFAT
  Supported Browsers	Chrome, Firefox, Internet Explorer, Safari
  Supported Languages	Czech Danish Dutch English Finnish French German Greek Hungarian Italian Japanese Korean Norwegian Polish Portuguese Romanian Russian Simplified Chinese Spanish Swedish Thai Traditional Chinese Turkish

  Power Consumption	30.04 W (Typical) 15 W (Idle)
  Power Source	AC Adapter
  PSU Wattage	1 x 90 W
  AC Input Power	100 to 240 VAC, 50 / 60 Hz

  Encryption	AES-NI
  Security Features	Kensington Security Slot
  VPN Server Connections	300

  Operating Temperature	32 to 104°F / 0 to 40°C
  Operating Humidity	5 to 95%

  Cooling	1 x 120 mm Fan
  Noise Level	18.8 dBA
  Built-In Speakers	Yes
  IR Sensor	Yes
  Status Monitoring	LED Indicator
  Dimensions	6.7 x 6.6 x 8.9" / 17.0 x 16.8 x 22.6 cm
  Weight	5.2 lb / 2.4 kg

  Box Dimensions (LxWxH)	12.6 x 12.0 x 9.8"

• 4 x Seagate 12TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDD

  Drive Capacity	12.00 TB
  Cache Memory	256 MB

  Interface	SATA III (6 Gb/s)
  Maximum Read Speed	210 MB/s

  Drive Type	HDD
  Form Factor	3.5"

  Spindle Speed (RPM)	7200 RPM

  Mean Time Between Failures (MTBF)	1000000.00 Million Hours
  Non-Recoverable Read Errors per Bits Read	1 in 1015

  Power Draw	0.8 W (Standby) 0.8 W (Idle)
  Supported Voltage	5 VDC, 12 VDC
  Current	1.8 A at 12 VDC

  Operating Shock	70 G / 2.0 ms
  Storage Shock	250 G / 2.0 ms
  Operating Temperature	41 to 158°F / 5 to 70°C
  Storage Temperature	-40 to 158°F / -40 to 70°C

  Dimensions (W x H x D)	4.0 x 1.0 x 5.8" / 101.6 x 25.4 x 147.3 mm
  Weight	1.6 lb / 0.7 kg

  Box Dimensions (LxWxH)	7.8 x 6.0 x 2.4"
