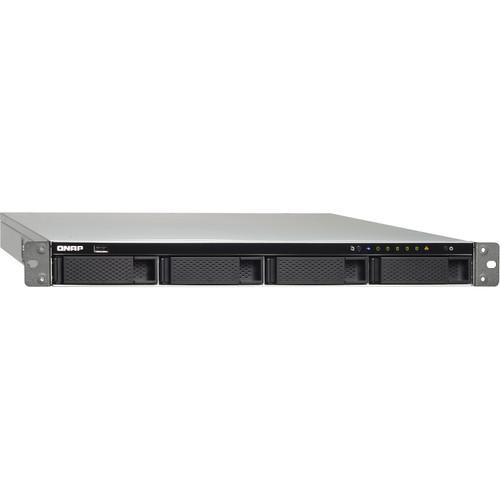

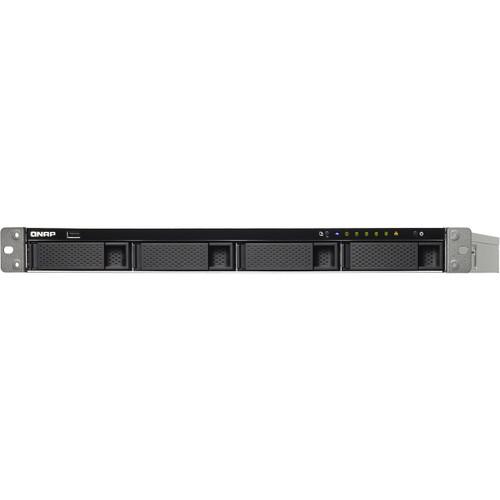

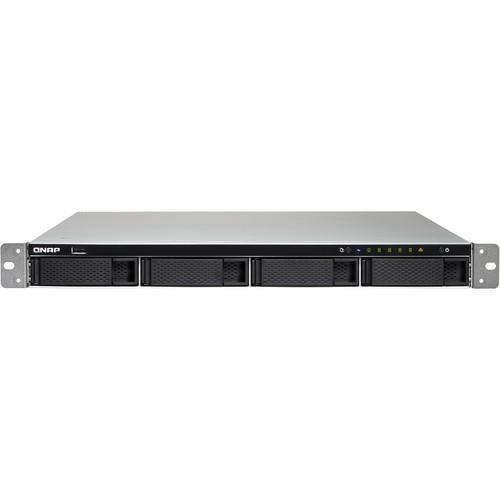

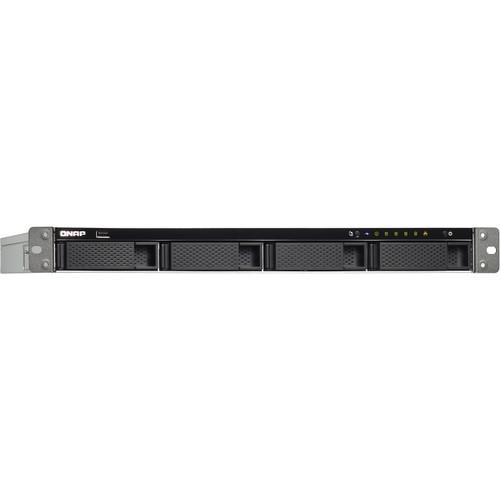

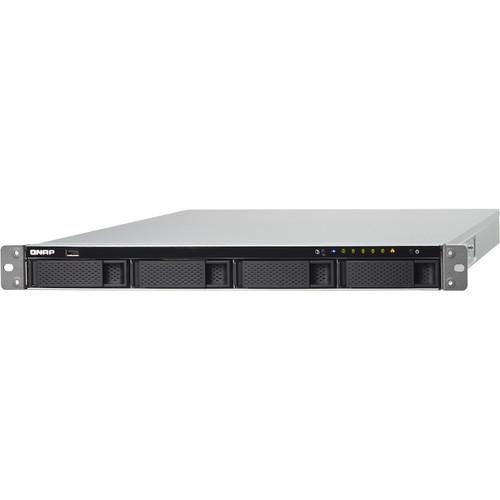

User Manual for QNAP TS-463XU-RP 4-Bay NAS Enclosure Click to enlarge the picture
Contents of the user manual for the QNAP TS-463XU-RP 4-Bay NAS Enclosure
- Product category: NAS Enclosures QNAP
- Brand: QNAP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for QNAP NAS Enclosures
 |
User manual for the QNAP TS-463XU-RP 4-Bay NAS Enclosure contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any QNAP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official QNAP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a QNAP product will considerably shorten its lifespan!
|
Product description Designed for businesses that need higher bandwidth for data centers and virtualization, the TS-463XU-RP 4-Bay NAS Enclosure from QNAP features 10GbE connectivity that delivers high performance with persistent throughput, along with storage scalability. It is powered by a 2.0 GHz AMD G-Series GX-420MC Quad-Core processor and 4GB of DDR3L RAM, which can be upgraded to 16GB. The 10GbE port accelerates virtualization, high-resolution video editing, and sharing, and drives file transfers with non-encrypted read speeds up to 946 MB/s and non-encrypted write speeds up to 441 MB/s, as well as encrypted read speeds up to 775 MB/s and encrypted write speeds up to 305 MB/s. An additional four Gigabit Ethernet ports provide additional network connectivity with support for failover, multi-IP settings, and port trunking/NIC teaming.

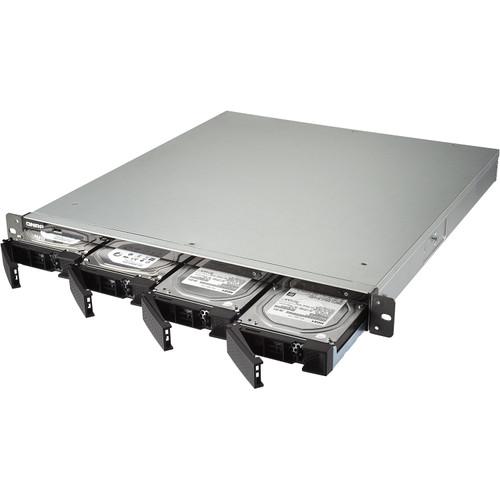

This 4-bay enclosure can natively house both 3.5" and 2.5" SATA III hard drives and SSDs. When equipped with SSDs, users will have the option to take advantage of SSD caching to improve the workflow of random IOPS-demanding applications. Using the two 5 Gb/s USB 3.0 Type-A ports and three USB 2.0 Type-A ports, this QNAP NAS can be connected to other QNAP devices, including a UX-1200U-RP or UX-800U-RP expansion enclosure. Additionally, the TS-463XU-RP is validated with AES-NI and FIPS 140-2 AES 256-bit encryption, helping to prevent sensitive business data from unauthorized access and breaches.
QNAP has engineered this NAS to support JBOD and single disk modes, plus a variety of RAID modes, including RAID 0, 1, 5, 6, and 10, each of which offer data redundancy, speed, or a combination of both. It operates using dual redundant 250W power supplies and includes two Ethernet cables, two power cords, flat head screws for 3.5" HDDs, flat head screws for 2.5" HDDs, two holders, and two hangers. Protection is provided by a limited 2-year warranty. General Features - High Performance and AES-NI Accelerated Encryption
- The TS-463XU-RP is equipped with an energy-efficient 64-bit 2.0 GHz AMD G-Series GX-420MC Quad-Core processor with 4GB DDR3L RAM (upgradable to 16GB), one 10GbE 10GBASE-T port, four Gigabit Ethernet ports, and SSD caching support for improved multi-tasking performance. With a hardware-accelerated AES-NI encryption, the TS-463XU-RP also provides solid encryption performance while ensuring the safety of sensitive business data stored in the NAS.
- Integrated 10GbE 10GBASE-T Connectivity
- The TS-463XU-RP comes with a pre-installed single-port 10GBASE-T Ethernet network adapter to fully support 10GbE high-speed networks. 10GbE networks deliver a major speed increase for virtualization tasks, fast backup & restoration, large data applications, and also enable online video editing without needing the videos to be transferred between the NAS and workstations. Coupled with its large storage capacity potential, the TS-463XU-RP is made for companies to store massive data and enjoy increased IT flexibility.
- High Reliability to Ensure Business Continuity
- The business-ready TS-463XU-RP is designed to provide 24/7 operations and services. The support for comprehensive RAID configurations and hot-swapping allow for replacing hard drives without service interruption. QNAP's advanced RAID recovery technology also helps if any healthy drives are accidentally removed from a degraded RAID volume. The system can be recovered by reinserting the wrongly-removed hard drives so the data can still be accessed. The TS-463XU-RP delivers high reliability and efficiency with quad 1GbE LAN support for multiple port-trunking modes including fail-over support. The TS-463XU-RP also features a hot-swappable redundant power supply to ensure maximum system uptime.
- SSD Caching and Auto Tiering Enable Optimized Storage Efficiency
- The TS-463XU-RP supports SSD caching to improve the workflow of random IOPS-demanding applications such as virtualization. Qtier Technology empowers the TS-463XU-RP with auto tiering that continuously optimizes storage utilization across high-performance SSD and high-capacity SATA drives. The new Qtier 2.0 features IO-awareness that empowers SSD tiered storage with a cache-like reserved space to handle burst I/O in real time, greatly maximizing the advantages of SSD.
- Block-Based iSCSI LUN for Virtualization Storage
- The TS-463XU-RP supports block-based iSCSI LUN that provides a more reliable and isolated environment than file-based LUN. Supporting VMware, Citrix, Microsoft Hyper-V, and Windows Server 2016, the TS-463XU-RP provides a high-performance, reliable, and affordable storage solution for virtualization environments, while also supporting VMware VAAI and Microsoft ODX to increase performance by offloading server loading for ESXi server and Hyper-V respectively, and supporting the QNAP vSphere Client plug-in and QNAP SMI-S provider with enhanced operational efficiency and management in virtualization applications.
- All-In-One Solution for Hosting Virtual Machines and Containers
- Virtualization Station and Container Station introduce a hybrid approach to virtualization. No matter your virtualization needs, you can count on QNAP for complete virtualization support.
Virtualization Station
Virtualization Station allows you to run multiple Windows, Linux, UNIX, and Android virtual machines and access them via a web browser or VNC (Virtual Network Computing). Businesses can run virtualized server applications on a single NAS without the need for additional physical servers.
Container Station
Container Station integrates LXC and Docker lightweight virtualization technologies. You can download apps from the built-in Docker Hub Registry. It supports container import/export and permission settings. It's easy deployment, portable, and efficient. - Upgrade Your IT Environment with QNAP's 10GbE Switch
- QNAP 10GbE/NBASE-T unmanaged switches allow you to instantly upgrade your network environment at a cost-effective price. With a 10GbE network, you can enjoy faster transfer speeds, empower bandwidth-demanding tasks like virtualization, and enable simultaneous real-time access to large NAS-based files using multiple workstations (good for video editing and multimedia). QNAP also provides a 10GbE PCIe network expansion card for Windows/Linux systems to take advantage of high-speed LAN environments.
- QTS Operating System
- With modularized multiple applications and functions, QTS enhances management efficiency, personal productivity, multimedia, and much more, making your NAS experience easier, efficient, and more flexible. Qboost provides a NAS optimization tool that helps accelerate applications, free up system resources, and schedule applications. The built-in App Center, with hundreds of install-on-demand apps, also opens up vast potential for extensive NAS functionality.
- Complete Backup Planning
- The TS-463XU-RP provides a reliable, flexible backup & disaster recovery solution to assist organizations in routine backup jobs with cost-efficiency and high productivity.
Windows and Mac Backup
Use the license-free QNAP NetBak Replicator utility to back up/restore Windows files, alongside Time Machine support for Mac devices. It is easy, fast, and convenient.
Hybrid Backup Sync
Consolidates backup, restoration, and synchronization functions (using RTRR, rsync, FTP, and CIFS/SMB) for easily transferring data to local, remote, and cloud storage spaces as a comprehensive data storage and disaster recovery plan.
Snapshots for Volume & LUN
Snapshots are essential for NAS data protection, and its block-level feature makes it a dependable method for protecting data in the face of the growing threat of ransomware. The TS-463XU-RP supports up to 256 snapshots per volume or LUN, and maximum 1024 snapshots per NAS.
VM backup
With high performance, potentially huge storage capacities, integrated virtualization solutions, and support for snapshots that record the state of the system at any time, the TS-463XU-RP is suited for backing up virtual machines. - Optimized Collaboration with Seamless File Sharing and Sync
- The TS-463XU-RP centrally stores data and files, and supports SMB/CIFS, AFP, and NFS protocols for file sharing across Windows, Mac, and Linux/UNIX networks. Coupled with Qsync (a utility that turns a QNAP NAS into a safe, high-capacity data center for file synchronization), files uploaded to the TS-463XU-RP will be made available for linked devices, such as computers, laptops, and mobile devices. You can sync shared folders and team folders for group file sharing to enhance the flexibility of team projects and collaboration. Files can be centrally managed using File Station, including files from mobile devices and optical disc drives. File Station also allows you to mount a remote NAS, and transfer files between your NAS and public cloud services for greater convenience.
- QVR Pro Surveillance Solution
- QNAP's new QVR Pro surveillance solution allows you to arrange a dedicated, independent storage space for surveillance data on the TS-463XU-RP and leverage the advantages of storage manageability from QTS. With QVR Pro, camera management, storage space allocation, camera live view, and playback is greatly simplified. You can also use the QVR Pro Client mobile app to monitor your cameras from anywhere, or use USB webcams as ONVIF network camera with the QUSBCam2 app.
- Flexible and Economical Storage Expansion
- You need an easy solution to increase storage capacity when running out of space. QNAP provides several ways to expand your NAS storage as needed to accommodate data and business growth.
VJBOD
Use VJBOD (Virtual JBOD) to expand your storage capacity by using the unused storage of other QNAP NAS. Up to eight QNAP NAS can be mounted as local disks on the TS-463XU-RP.
Upgrade RAID Capacity
Hot swap lower capacity drives with larger capacity drives so that your QNAP NAS can grow with your business.
Migrate to a New NAS
Install your NAS hard drives into a larger QNAP NAS and retain all your existing data and configurations.
Attach an Expansion Enclosure
Connect a UX-1200U-RP or UX-800U-RP expansion enclosure. Use the QTS Storage & Snapshots Manager to easily handle NAS capacity expansion. - More Productivity Applications
- QRM+
A single-point solution to discover, map, monitor, and manage all Windows, Linux, and IPMI devices in your network.
Browser Station
Enables remote access through NAS-hosted web browsers to access local LAN resources without going through complex VPN settings.
QIoT Suite Lite
Combines the security and large capacity potential of QNAP NAS while providing an IoT solution on a private cloud. It only takes three steps to quickly deploy your own IoT application.
Qfiling
Automates file organization. Files are well-organized and archived based on your settings.
Qsirch
A powerful full-text search engine to quickly and precisely find media files, documents, and emails.
QmailAgent
Centrally manage and switch between different email accounts, back up emails to the NAS, and safeguard email security and personal privacy. UPC: 885022014682 In the Box QNAP TS-463XU-RP 4-Bay NAS Enclosure 2 x Ethernet Cables 2 x Power Cords 2 x Holders 2 x Hangers Flat Head Screws for 3.5" HDDs Flat Head Screws for 2.5" HDDs Limited 2-Year Warranty More info from QNAP Table of Contents
|
Upload User Manual
Have you got an user manual for the QNAP TS-463XU-RP 4-Bay NAS Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersQNAP TS-463XU-RP-4G-US Specs | | | CPU | 2.0 GHz AMD G-Series GX-420MC Quad-Core | | Encryption Acceleration | AES-NI | | System Memory | 4 GB DDR3L RAM (1 x 4 GB) | | Maximum Memory | 16 GB (2 x 8 GB) | | Memory Slots | 2 x SO-DIMM DDR3L (dual-DIMM configurations, you must use a pair of identical DDR3L modules) | | Flash Memory | 512 MB DOM | | Drive Bays | 4 x 3.5" SATA III 6 Gb/s bays | | Drive Compatibility | 3.5" SATA III 6 Gb/s HDDs 2.5" SATA III 6 Gb/s HDDs 2.5" SATA III 6 Gb/s SSDs | | SSD Cache Acceleration Support | Drive bays 1 to 4 | | 10 Gigabit Ethernet Port | 1 x RJ45 10GBASE-T via a pre-installed PCIe network card, supporting 10G/5G/2.5G/1G/100M speeds

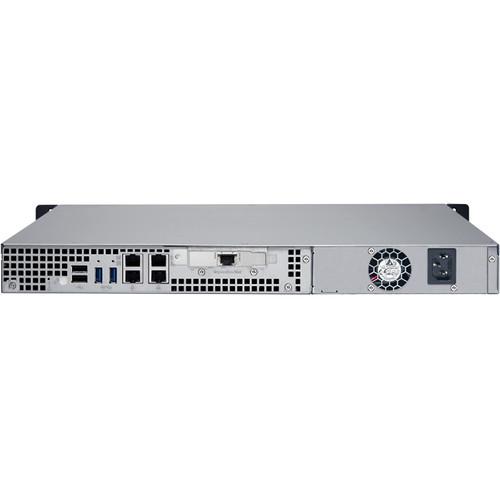

Note: Please use Cat 6a or Cat 7 LAN cables to achieve 10GbE speed over longer distance (not included) | | Gigabit Ethernet Port | 4 x RJ45 | | USB Port | 2 x USB 3.0 Type-A
3 x USB 2.0 Type-A (Front:1; Back: 2) | | LED Indicators | HDD 1-4, Status, USB, and LAN | | Audio | Alarm buzzer | | Buttons | Power, Reset, and USB One-touch-copy | | System Warning | Voice prompts | | Form Factor | 1 RU | | Power Consumption | HDD Sleep Mode: 44.90 W (w/ 10GbE NIC)
In Operation: 65.62 W (w/ 10GbE NIC) | | Sound Level | Sound Pressure (LpAm): 36.4 dBA | | Power Supply Unit | 2 x 250 W, 100 to 240 V | | Fans | 2 x 4 cm smart fans (12 VDC) | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Relative Humidity | 5 ~ 95% RH non-condensing, wet bulb: 81°F / 27°C | | Security Slot | Kensington security slot | | Dimensions | 1.73 x 17.28 x 19.65" / 43.94 x 438.9 x 499.1 mm | | Weight | 20.5 lb / 9.30 kg | | | | Operating System | QTS 4.3.4 (embedded Linux) | | Client Operating Systems | Apple Mac OS 10.7 or later Linux and UNIX Microsoft Windows 7, 8, and 10 Microsoft Windows Server 2003, 2008 R2, 2012, 2012 R2, and 2016 | | Supported Browsers | Apple Safari 7 or later
Google Chrome
Microsoft Internet Explorer 10 or later
Mozilla Firefox | | Supported Languages | Chinese (traditional and simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, and Turkish | | Supported File Systems | Internal Hard Drives
EXT4
External Hard Drives
EXT3, EXT4, NTFS, FAT32, HFS+, and exFAT
Note: To use exFat, you must purchase an exFAT driver license from License Center | | Network & Virtual Switch | - TCP/IP: Dual stack (IPv4 and IPv6)
- Jumbo frame (failover, multi-IP settings, port trunking/NIC teaming)
- DHCP server and client
- USB Wi-Fi Adapter (Note: This feature does not support ad hoc networks because of security considerations)
- Virtual Switch
Virtual switch editing in Virtualization Station Combining virtual machines and containers in the same virtual switch Network Address Translation (NAT) Spanning Tree Protocol (STP)
- WirelessAP Station | | Security | Network access protection with auto-blocking (SSH, Telnet, HTTP(S), FTP, CIFS/SMB, and AFP) Host access control for shared folders (CIFS/SMB) 140-2 validated AES 256-bit volume-based and shared folder data encryption (FIPS) 256-bit external drive encryption (AES) Importing of SSL certificates from Let's Encrypt Instant alerts through email, SMS, push service, audio, and LCD panel 2-step verification | | QVPN Service | VPN Server
PPTP, L2TP/IPSec, and OpenVPN services Support for a maximum of 100 clients Support for domain users
VPN Client
Support for PPTP, L2TP/IPSec, and OpenVPN VPN protocols OVPN file importing for creation of OpenVPN connections
Easy VPN Connection (Windows VPN Utility)
Note: QVPN combines an integrated VPN Server, a VPN client, and L2TP/IPSec VPN services | | iSCSI (IP SAN) | iSCSI targets with multiple LUNs per target (Note: The maximum number of targets is 256) LUN mapping and masking O nline LUN capacity expansion SPC-3 persistent reservation MPIO & MC/S iSCSI Extensions for RDMA (iSER) with VMware ESXi (Note: This feature requires a compatible Mellanox network card) iSCSI LUN backup, one-time snapshot, and restoration Virtual disks using iSCSI initiator (Note: The maximum number of virtual disks is eight) Stack chaining master | | | | Package Weight | 24.65 lb | | Box Dimensions (LxWxH) | 26.25 x 24.5 x 7.0" |
