User Manual for QNAP TS-EC880U R2 8-Bay Unified NAS Enclosure Click to enlarge the picture
Contents of the user manual for the QNAP TS-EC880U R2 8-Bay Unified NAS
- Product category: NAS Enclosures QNAP
- Brand: QNAP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for QNAP NAS Enclosures
 |
User manual for the QNAP TS-EC880U R2 8-Bay Unified NAS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any QNAP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official QNAP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a QNAP product will considerably shorten its lifespan!
|

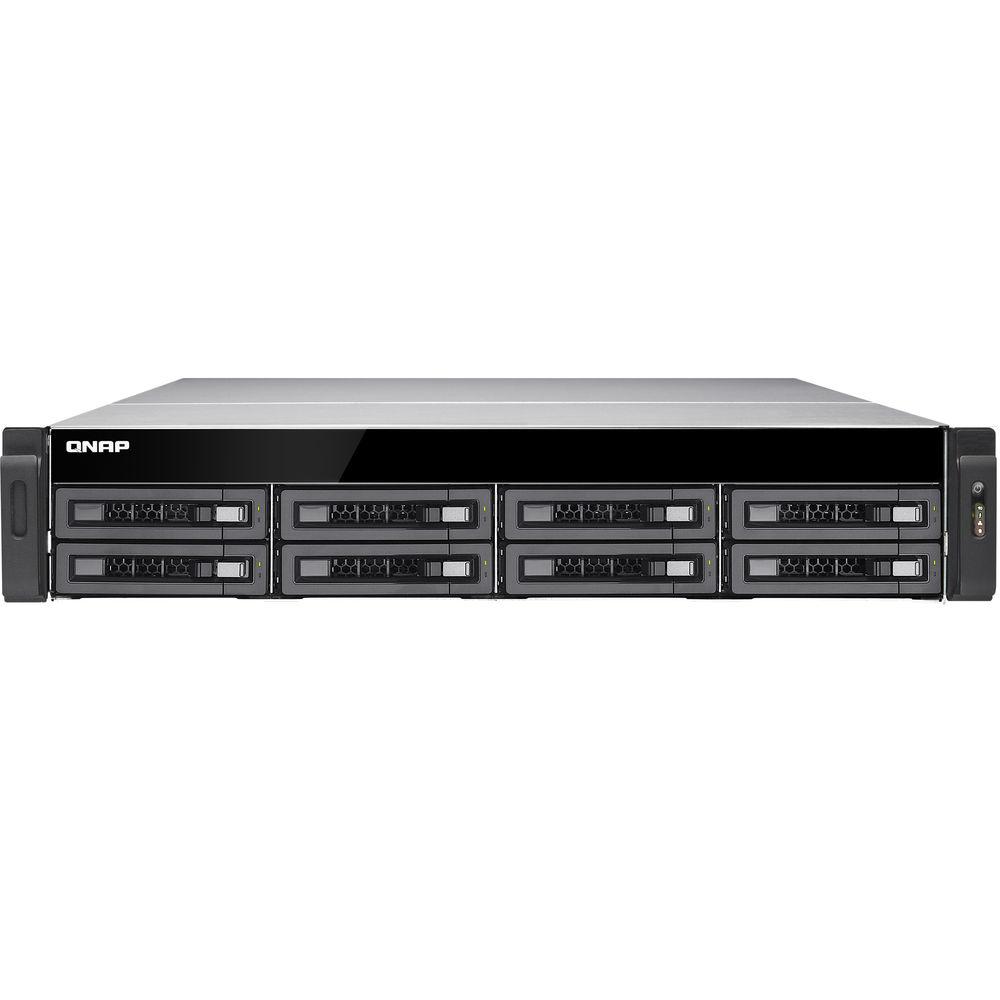

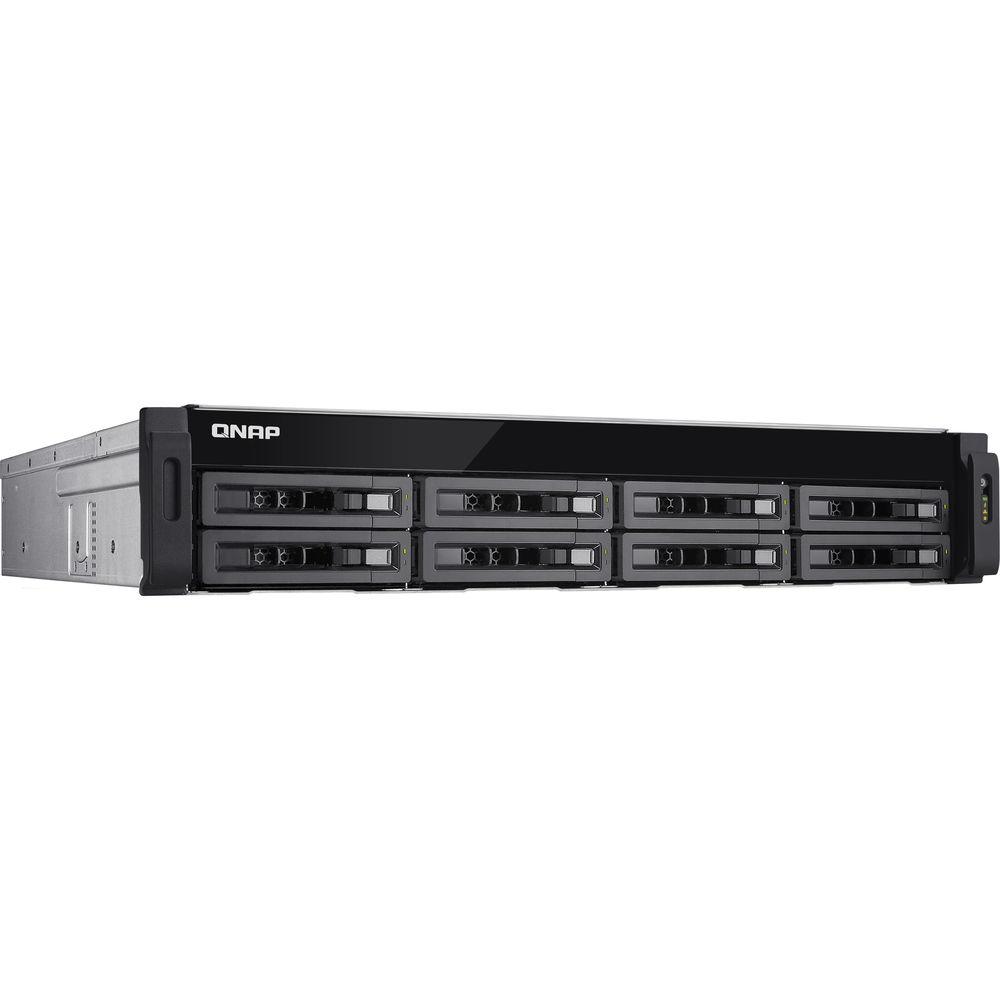

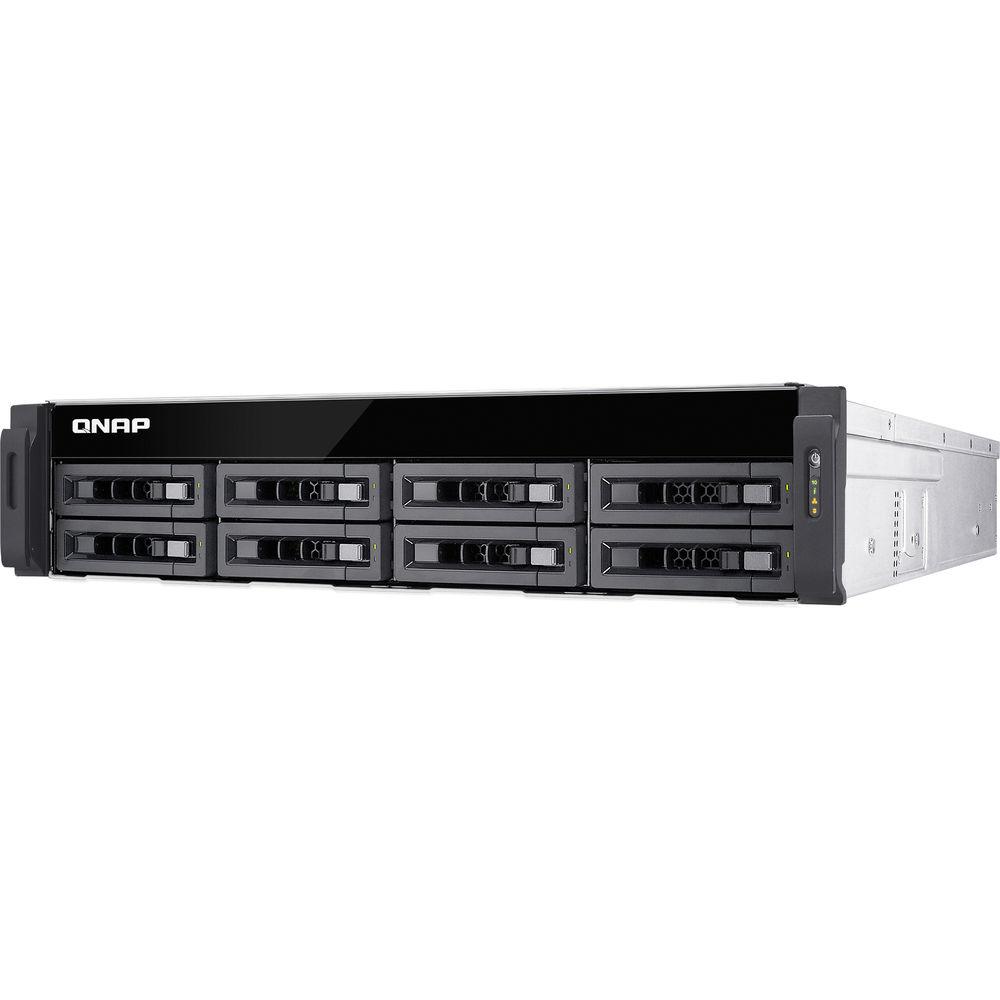

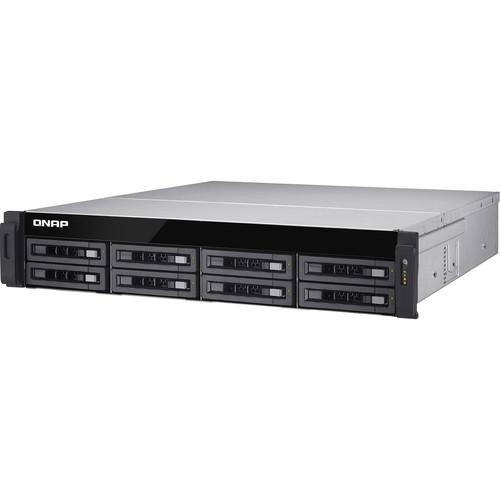

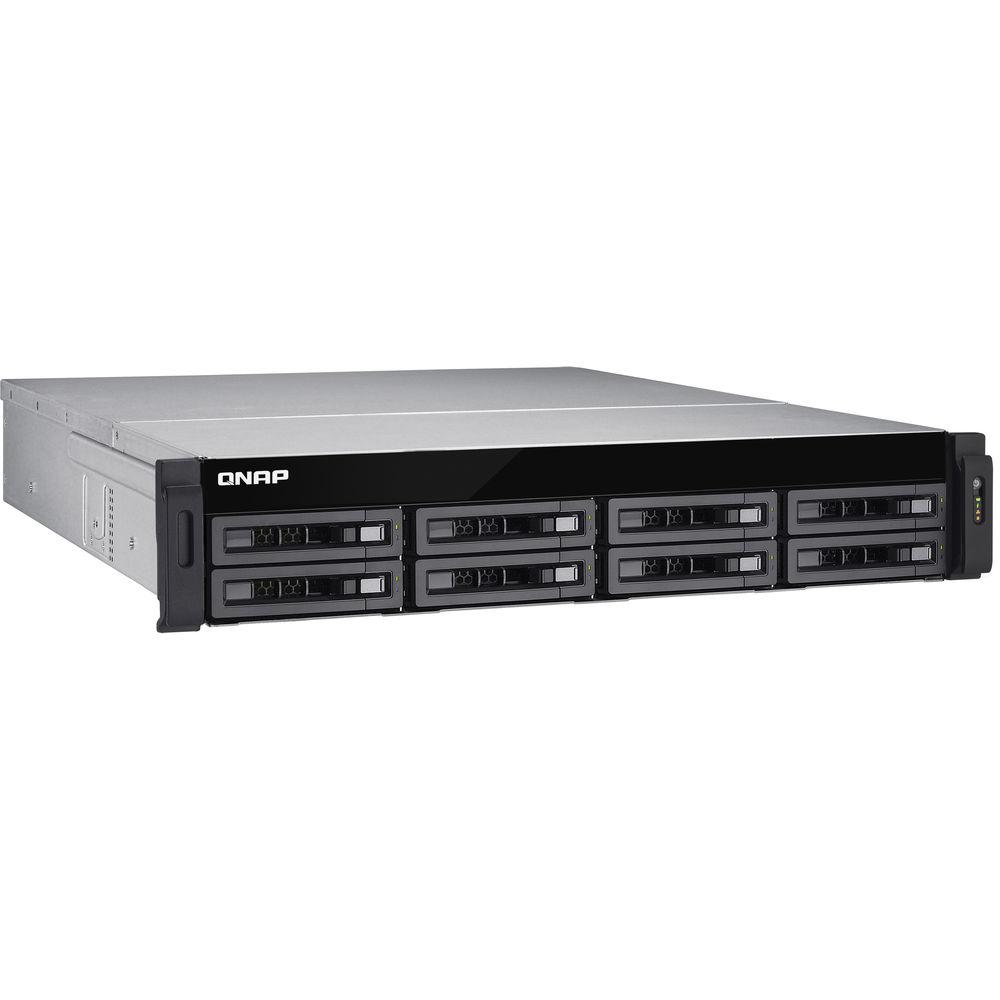

Product description The TS-EC880U R2 8-Bay Unified NAS Enclosure from QNAP quickly takes care of your enterprise data storage needs by featuring two 10GbE SFP+ ports and eight bays, which can each house a 2.5" or 3.5" SATA III hard drive or SSD. This enclosure sports a quad-core 3.5 GHz Intel Xeon E3-1246 v3 processor and 4GB of DDR3 ECC memory to run iSCSI and virtualization applications as well as the QTS operating system. You can configure your drives in a RAID 0, 1, 5, 6, or 10 mode to enhance the drive's reads and writes, while preserving data in the event a drive fails. To increase I/O throughputs, QNAP has outfitted this enclosure with two mSATA slots so you can install flash modules for caching data. Additionally, four Gigabit Ethernet ports are on board to serve a large number of simultaneous connections.
Once drives are installed, the TS-EC880U R2 can reach a throughput of up to 3,700+ MB/s and 400,000+ IOPS. Powering and cooling these features are accomplished by two redundant 400W PSUs and four 60mm fans. Using four USB 3.0 and four USB 2.0 ports, this QNAP NAS can be connected to other external drives. For safeguarding your data, this enclosure encrypts your data with FIPS 140-2 AES 256-bit encryption. Aside from data protection, it supports SMB/CIFS, NFS, and AFP protocols for file sharing across Windows, Mac, and Linux/UNIX networks. In addition, you can meet future data needs by cascading optional QNAP RAID expansion enclosures to the TS-EC880U R2 NAS enclosure. - Simple and Efficient
- QTS's intuitive user interface helps system operations of the TS-EC880U R2 to be smooth and handy. Its intelligent desktop allows you to find the desired functions quickly, create desktop or group shortcuts, monitor important system information on a real-time basis, and open multiple application windows to run multiple tasks concurrently
- Qsirch
- Quickly and easily find documents, photos, videos, and music with Qsirch, QNAP's search application lets you find what you need in real-time. Simply type in as much as you know about what you are trying to find, including bits of the file name or even words/phrases in the document, and Qsirch will display a list of matches, complete with thumbnails, as you type. Qsirch even remembers your search history so you can quickly navigate to files you've previously searched for
- Performance
- The TS-EC880U R2 supports 6 Gb/s hard drives driving over 3,700 MB/s throughput and 400,000 IOPS. Featuring a 3.5 GHz Intel Xeon E3-1246 v3 quad-core processor and 4GB of DDR3 ECC RAM, this enclosure enhances the efficiency of CPU-consuming tasks and serves more concurrent tasks at the same time
- Internal Cache Port for IO Acceleration
- The TS-EC880U R2 supports two on-board mSATA internal cache ports and up to 4 SSDs for caching. By installing optional mSATA flash modules, the IOPS performance of storage volumes can increase. It is well suited for improving the overall workflow of random IOPS demanding applications such as those for database and virtualization. The internal cache port design reserves the space of hard drive tray for more storage capacity
- Removable Motherboard Drawer
- With the TS-EC880U R2's removable motherboard drawer, IT administrators have easier access in upgrading and installing components such as RAM and internal cache. The motherboard itself can be removed and replaced without needing to remove the heavy TS-EC880U R2 from the rack cabinet, making it especially useful in maintaining the TS-EC880U R2 in data centers with multiple rack cabinets. However, please note that power-off is necessary before removing the motherboard drawer. It is not hot-pluggable
- Connectivity

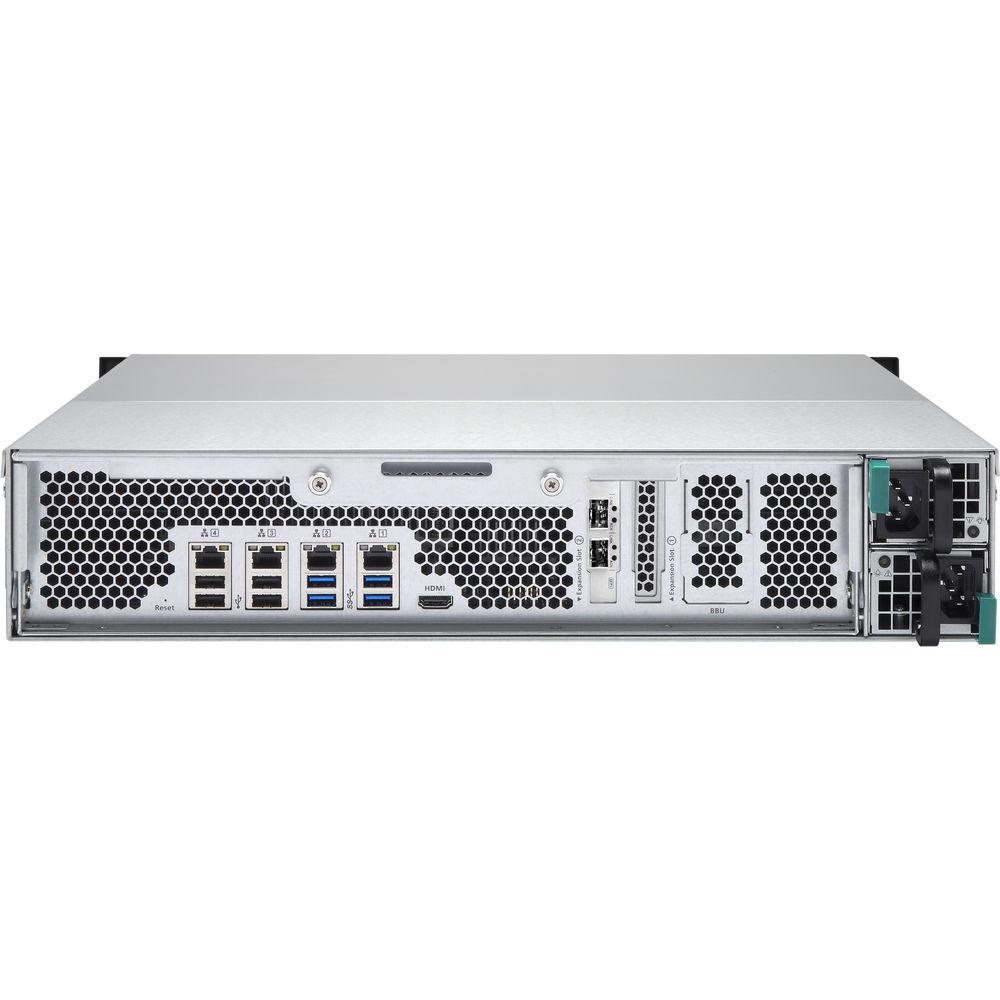

- The TS-EC880U R2 offers four built-in Gigabit Ethernet ports and features two 10GbE SFP+ ports that deliver a 10 Gigabit high-speed network. The TS-EC880U R2 provides increased data throughput when compared to a standard Gigabit adapter. Coupled with the support for large storage capacity, it is well suited for data centers to store large amounts of data and for editing large-sized videos on-the-fly without transferring the videos between the TS-EC880U R2 and desktop computers
- Capacity Expansion
- The TS-EC880U R2 supports online capacity expansion by cascading multiple QNAP RAID expansion enclosures to meet the needs of growing business data. With the QNAP scale-up solution, raw storage capacity can be gradually expanded to 864TB. It is especially useful for large data applications, such as video surveillance, data archiving, TV broadcast storage, and more
- QNAP Flexible Volume
- QNAP flexible volume provides a more secure and flexible way to store the NAS data. This next generation volume offers features such as storage pooling with multiple RAID group protection, thin provisioned volume with space reclaim, block-level iSCSI LUN, and online capacity expansion. The QTS Storage Manager presents tools and options for managing system storage which simplifies the process of NAS capacity expansion and QNAP RAID expansion enclosure management
- Cross-Platform File Sharing, Centralized Data Storage
- The TS-EC880U R2 supports SMB/CIFS, NFS, and AFP protocols for file sharing across Windows, Mac, and Linux/UNIX networks. Data, logs, and ISO images of CDs and DVDs can be centralized in the NAS and protected by an integrated anti-virus solution. The Windows AD and LDAP services enable system administrators to configure user permissions by using existing Windows AD server, LDAP server, or NAS build-in LDAP service
- Backup Solutions to Secure Data
- The TS-EC880U R2 offers well-rounded backup solutions as a reliable backup center. QNAP NetBak Replicator supports scheduled and real-time data backup on Windows OS. Mac Time Machine is also supported to provide Mac OS X users with a solution to back up data to the TS-EC880U R2
- Disaster Recovery Solutions
- The TS-EC880U R2 offers various data recovery options. RTRR (Real-Time Remote Replication) supports real time or scheduled data backup to a remote Turbo NAS or FTP server and synchronizes files to a remote folder from a local folder with better backup efficiency and reduced backup time. It also supports rsync protocol to back up data to another remote server on scheduling basis. Besides, data can be backed up to cloud storage, such as Amazon S3, Amazon Glacier, Microsoft Azure, ElephantDrive, Symform, Dropbox, and Google Drive, and restored to the TS-EC880U R2 anytime
- Security Options
- In the open network environment, business data might be exposed in potential hack. The TS-EC880U R2 provides numerous security options, such as encrypted access, IP blocking, and more. Besides, IT administrators can control the access rights of each user to different folders, preventing unauthorized access to important files. It is validated with military level FIPS 140-2 AES 256-bit encryption, preventing the sensitive business data from unauthorized access and breach even if the hard disk drives or the entire system were stolen
- Storage for Comprehensive Virtualization Applications
- The TS-EC880U R2 is VMware Ready, Citrix Ready, compatible with Microsoft Hyper-V certification and Windows Server 2012, benefiting flexible deployment and management in the virtualization environments. It supports VMware VAAI and Microsoft ODX to help increase performance by offloading server loading for ESXi server and Hyper-V respectively, and supports QNAP vSphere Client plug-in and QNAP SMI-S provider with enhanced efficiency of operations and management in virtualization applications
- Run Multiple OS Environments
- The Virtualization Station transforms the TS-EC880U R2 into a 2-in-a-box NAS that can function as an all-in-one NAS and a virtualization platform supporting multiple operating systems, fast virtual machine creation, virtual machine import/export, snapshot, and enables desktop operations on web browser. With the user-friendly interface, you can centrally manage all virtual machines created on the TS-EC880U R2. Furthermore, you can download VMs on demand from the online VM markets and import them to the TS-EC880U R2 to use directly without any complex procedures
- Efficient Storage Solution for Video Editing
- Digital film and video production produces volumes of data that require high performance RAID storage with sustainable throughput to balance with the demanding output of video editing. The TS-EC880U R2 fulfills storage and video editing needs with a high-speed 10GbE network interface. Digital videos can be quickly stored and edited on the TS-EC880U R2 directly over the network
- File Synchronization Across Multiple Devices
- The Qsync utility turns your TS-EC880U R2 into a safe data center for file synchronization with large storage capacity. Any file uploaded to the TS-EC880U R2 will be made available for all linked devices, such as computers, laptops, or mobile devices. Qsync is especially useful for frequent travelers to manage files and always have the most updated files on different devices. Qsync provides multiple ways of file synchronization and group file sharing, helping to enhance the flexibility of collaboration
- Surveillance Solution with 24/7 Security
- The TS-EC880U R2 Surveillance Station is a professional surveillance solution with a wide range of over 2,600 compatible IP camera models and expandable IP camera channel licenses. It supports real-time monitoring, as well as video and audio recording and playback with options to customize. You can also install the VMobile app on your iOS or Android mobile devices to manage the monitoring channels virtually anytime and anywhere, and safeguard your office environment
- SMB Features
- The TS-EC880U R2 supports various business applications as an all-in-one Turbo NAS with cost-efficiency:
FTP Server - The Turbo NAS supports FTP server to share large size files, coming with user-defined settings including bandwidth limitation, number of connections, and write-only permission
Web Server - The Turbo NAS supports Web server which allows numerous websites built on the same server. Administrators can manage up to 32 websites on the single one Turbo NAS with reduced IT costs
RADIUS Server - The Turbo NAS supports RADIUS server which provides centralized authorization management for computers to connect and use a network service
VPN Server - The Turbo NAS supports VPN server which provides an easy way for IT administrators to build up a secure private network and allows the staff to log on from outside the office and access business resources securely such as files and Internet connections
Printer Server - The Turbo NAS supports Printer server to send remote printing request over the Internet (max. 3 USB printers), and supports IPP (Internet Printing Protocol), Samba, print job management, and Bonjour printing for Mac OS X
Surveillance Station - The Turbo NAS supports Surveillance Station to connect and manage multiple IP cameras remotely, including real-time monitoring, video recording, playback, and event notifications - Install-On-Demand Apps Extend NAS Features
- The TS-EC880U R2 has App Center, providing various install-on-demand apps developed by QNAP and third-party developers, including backup/sync, business, content management, communications, download, entertainment, and more. It's also a central place to manage and update installed apps. Besides, QNAP's development platform brings forth the open-source spirit to welcome program developers to develop various applications, adding values to the TS-EC880U R2
UPC: 885022010356 In the Box QNAP TS-EC880U R2 8-Bay Unified NAS Enclosure 4 x Ethernet Cables 2 x Power Cords Package of 3.5" HDD Flat-Head and 2.5" HDD Flat-Head Screws Limited 3-Year Warranty More info from QNAP xxqbacyaerwyvu Table of Contents
|
Upload User Manual
Have you got an user manual for the QNAP TS-EC880U R2 8-Bay Unified NAS Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersQNAP TS-EC880U-E3-4GE-R2-US Specs | | | CPU | 3.5 GHz Xeon E3-1246 v3 CPU | | Memory | System memory: 4 GB DDR3 ECC RAM
Memory module (pre-installed): 2 x 2 GB
Total memory slots: 4
Memory expandable up to: 32 GB (4 x 8 GB) | | Flash Memory | 512 MB DOM | | Internal Cache Port | Two built-in mSATA ports for read caching (separately sold) | | Hard Drive | 8 x 3.5" SATA III 6 Gb/s and SATA II 3 Gb/s hard drives or 2.5" SATA III 6 Gb/s and SATA II 3 Gb/s hard drives and SSD drives
Please be aware that the system ships without an HDD | | Hard Disk Tray | 8 x hot-swappable and lockable trays | | LAN Port | 2 x 10 GbE (SFP+)
4 x GbE | | LED Indicators | Status, 10 GbE, LAN, eSATA, storage expansion port status | | USB | 4 x USB 3.0 port (Rear)
4 x USB 2.0 ports (Rear)
Supports USB printers, pen drives, USB hubs and USB UPS etc. | | Buttons | System: Power button and reset button | | Alarm Buzzer | System warning | | Form Factor | 2 RU, rackmount | | Sound Level | Sound pressure (LpAm): 55.2 dBA | | Power Consumption | Sleep mode: 73.38 W
In Operation: 133.88 W | | Temperature | 32 to 104°F / 0 to 40°C | | Relative Humidity | 5 to 95% non-condensing | | Power Supply | Redundant power
Input: 47 to 63 Hz, 100 to 127 VAC / 8 A, 200 to 240 VAC / 4 A
Output: 400 W | | PCIe Slots | 1 x PCIe Gen3 x4 | | Fan | 4 x 6 cm smart cooling fan | | Dimensions | 3.5 x 17.4 x 20.9" / 88.0 x 442.5 x 530.5 mm | | Weight | Weight (NAS only): 31.7 lb / 14.4 kg | | | | Operating System | QTS (QNAP Turbo NAS System) | | Supported Clients | Windows Server 2003 onward, Apple Mac OS X onward, Linux, and UNIX | | Supported Browsers | Google Chrome, Internet Explorer 10+, Mozilla Firefox 8+, Apple Safari 4+ | | Multilingual Support | Chinese (Traditional & Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, Turkish | | File System | Internal hard drive: EXT4
External hard drive: EXT3, EXT4, NTFS, FAT32, HFS+ | | Networking | 1. TCP/IP (IPv4 & IPv6: Dual Stack)
2. Quad Gigabit NICs with Jumbo Frame - Failover
- Multi-IP Settings
- Port Trunking/NIC Teaming (Modes: Balance-RR, Active Backup, Balance XOR, Broadcast, IEEE 802.3ad/Link Aggregation, Balance-TLB, and Balance-ALB)
3. Service Binding Based on Network Interfaces
4. Proxy Client, Proxy Server
5. DHCP Client, DHCP Server
6. Protocols: CIFS/SMB, AFP (v3.3), NFS (v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP, and SMSC
7. UPnP & Bonjour Discovery
8. USB Wi-Fi Adapter Support
| | Security | 1. IP Filter & Policy-based Automatic IP Blocking
2. Network Access Protection with Auto-blocking: SSH, Telnet, HTTP(S), FTP, CIFS/SMB, AFP
3. Encrypted Access: HTTPS, FTP with SSL/ TLS (Explicit), SSH/SFTP (admin only), Encrypted Remote Replication (Rsync over SSH)
4. CIFS Host Access Control for Shared Folders
5. Antivirus Protection
6. FIPS 140-2 Validated AES 256-bit Volume-based Data Encryption
7. AES 256-bit External Drive Encryption
8. Importable SSL Certificate
9. Instant Alert via E-mail, SMS, Beep, and LCD Panel | | Disk Management | 1. QNAP Flexible volume
2. Thin-provisioning with space reclamation supported
3. Online Volume Expansion
4. Online Storage Pool Expansion (via QNAP RAID expansion enclosure)
5. Single Disk, JBOD, RAID 0, 1, 5, 6, 10
6. RAID Hot Spare and Global Hot Spare
7. Online RAID Capacity Expansion and Online RAID Level Migration
8. Bad Block Scan and Hard Drive S.M.A.R.T.
9. Bad Block Recovery
10. RAID Recovery
11. Bitmap Support | | Domain Authentication Integration | 1. Microsoft Active Directory (AD)
2. LDAP Server
3. LDAP Client
4. Domain Users Login via CIFS/SMB, AFP, FTP, and File Station | | Web Administration | 1. Multi-window, Multi-tasking based System Management
2. Movable Icons and Personalized Desktop
3. Smart Toolbar and Dashboard for Neat Display on System Status
4. Smart Fan Control
5. Dynamic DNS (DDNS)
6. SNMP (v2 & v3)
7. Resource Monitor
8. Network Recycle Bin for File Deletion via CIFS/SMB and AFP - Automatic Cleanup
- File Type Filter
9. Comprehensive Logs (Events & Connection)
10. Syslog Client
11. Firmware Live Update
12. System Settings Backup and Restore
13. Restore to Factory Default
14. Mobile App Qmanager for Remote Monitoring | | | | iSCSI (IP SAN) | 1. iSCSI Target
2. Multi-LUNs per Target
3. Up to 256 Targets/LUNs Combined
4. Supports LUN Mapping & Masking
5. Block-based LUN
6. Thin-provisioned LUN with Space Reclamation supported
7. Online LUN Capacity Expansion
8. Supports SPC-3 Persistent Reservation
9. Supports MPIO & MC/S
10. iSCSI LUN Backup, One-time Snapshot, and Restore
11. iSCSI Connection and Management by QNAP Finder (Windows)
12. Virtual Disk Drive (via iSCSI Initiator)
13. Stack Chaining Master
14. Max No. of Virtual Disk Drives: 8 | | Server Virtualization & Clustering | 1. VMware vSphere (ESX/ESXi 4.x, 5.x)
2. VMware VAAI for iSCSI and VAAI for NAS
3. vSphere Plug-in
4. Citrix XenServer (6.0)
5. Windows Server 2012 Hyper-V
6. Supports Microsoft ODX
7. QNAP SMI-S provider for Microsoft SCVMM
8. Windows Server 2012 Failover Clustering | | Print Server | 1. Max No. of Printers: 3
2. Supports Internet Printing Protocol
3. Print Job Display and Management
4. IP-based and Domain Name-based Privilege Control
5. Supports Apple Bonjour Printing | | | | Package Weight | 45.0 lb | | Box Dimensions (LxWxH) | 29.0 x 23.5 x 12.5" |
