Product description

7th-Generation Intel Processor
• The TVS-882 is powered by a 3.7 GHz 7th-Generation Intel Core i3-6100 dual-core processor, increasing system performance by 20 to 30% when compared with previous generations. It enhances the efficiency of CPU-demanding applications such as virtualization, real-time 4K video playback, and serving large numbers of simultaneous connections.

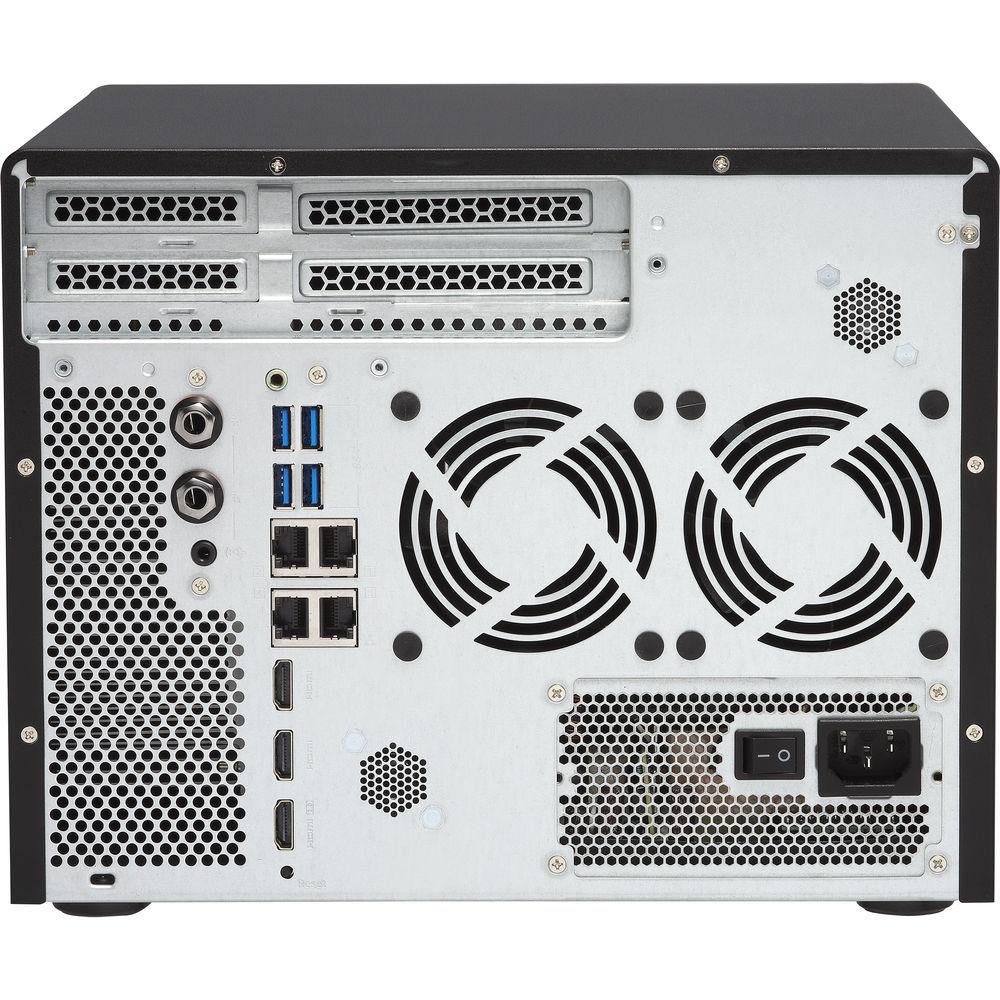

Hardware Capabilities
• • Two 2.5" SSD bays provide flexible configuration in tiered storage and enables cache acceleration

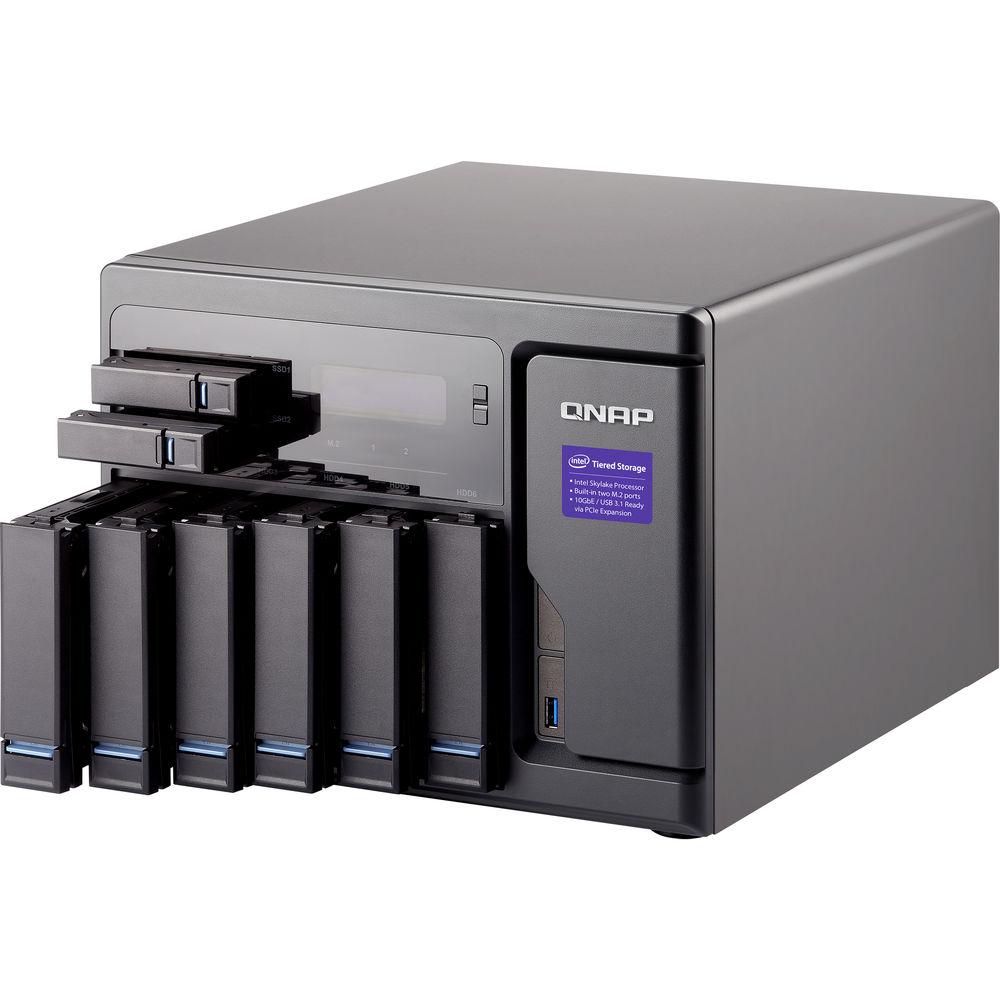

  • Tool-less design for easy installation and replacement of drives
  • Built-in M.2 SSD slots support SATA M.2 SSDs with 2242, 2260, 2280, and 22110 form factors
  • 8GB of DDR4 2133 MHz memory installed (Max: 32GB)
  • Supports PCIe Gen.3 and DMI 3.0 for performance and efficient data transmission
  • Two PCIe 3.0 expansion slots support 10GbE/40GbE adapters, PCIe NVMe SSDs, graphics cards (AMD Radeon R7/R9), and USB 3.1 expansion cards
  • Four Gigabit Ethernet ports allow for optimized network traffic distribution for diverse applications
  • One HDMI 2.0 port and two HDMI 1.4b ports to support duplicated and extended desktop options
  • HDMI 2.0 increases bandwidth up to 18 Gbps and delivers 4K 60 fps videos
  • Separately detects the CPU and hard drive temperatures
  • Connect speakers or headphones for direct audio output
  • Supports direct audio output and provides verbal system warnings

M.2 SATA 6 Gb/s SSD and 2.5" SSD Cache
• The TVS-882 features two M.2 slots designed for caching to increase IOPS performance, transfer speed, and reliability. SSD cache boosts overall system performance and is suitable for improving overall workflow of random IOPS demanding applications such as virtualization. The TVS-882 combines M.2 SSD, 2.5" SSD, and 3.5" HDD in one box to effectively realize tiered storage for increasing application performance and lower TCO of storage at the same time.

Tiered Storage
• QNAP's Qtier Technology empowers the TVS-882 with Auto Tiering that continuously optimizes the storage pool utilizing PCIe NVMe SSDs, M.2 SSDs, 2.5" SSDs, and SATA-based drives. With Auto Tiering, the TVS-882 automatically moves frequently-used "hot" data to high-performance storage tiers and less-accessed "cold" data to lower-cost, higher-capacity drives. Businesses will no longer have to invest in expensive flash technology, but still enjoy improved application performance and cost efficiency from Auto Tiering.

Application-Based Partitioning
• Every application requires different performance such as Surveillance Station that requires higher-priority access to storage to ensure the integrity of recordings, while normal transmission speeds are sufficient for file sharing. However, when multiple applications are running on the same storage media, the required throughput level cannot be guaranteed as the storage media is busy handling I/O requests from all of them. The TVS-882 supports three different types of storage media: M.2, SSD, and SATA hard drive, and they can be configured as independent partitions for different applications, ensuring a sufficient throughput level for every application.

Network Traffic Distribution
• With four Gigabit Ethernet ports, the TVS-882 allows applications to use dedicated interfaces to meet network traffic distribution requirements. Network interfaces can be managed with the Network & Virtual Switch app, which enables optimized network resources for the TVS-882, virtual machines, and containerized apps.

HDMI 2.0
• The TVS-882 features three HDMI ports, including one HDMI 2.0 port for smoothly playing Ultra HD 4K (4096 x 2304) videos. You can connect the TVS-882 to a TV or A/V receiver and use a Kodi media player and a QNAP remote control to enjoy rich media content and 4K 60 fps videos. Featuring Intel HD Graphics, the TVS-882 delivers real-time 4K (H.264) and 1080p video transcoding, which converts videos to universal formats that can be smoothly played on PCs, mobile devices, and Smart TVs.

Three HDMI Outputs
• The TVS-882 comes with three HDMI outputs that can support three monitors in either "duplicated" or "extended" desktop configuration. Duplicating will display the same content on every display, and extended desktop mode allows users to display applications across the displays for improved multitasking convenience and productivity. When displaying content using HDMI, you can use the TVS-882 as a multimedia player by using HD Station. Alternatively, you can choose to output the Linux operating system desktop to use the TVS-882 as a PC.

Capacity Expansion
• The TVS-882 supports online capacity expansion by connecting multiple high-performance SAS-enabled QNAP RAID expansion enclosures or economical USB 3.0 expansion units to meet the needs of growing business data. The total storage capacity of the TVS-882 can be gradually expanded and easily managed by the QTS Storage Manager, being useful for large data applications such as video surveillance, data archiving, TV broadcast storage, and more.

Virtual JBOD
• QNAP VJBOD (Virtual JBOD) is network-based JBOD, allowing you to expand storage of your QNAP NAS with multiple QNAP NAS units. You can mount iSCSI LUNs from a QNAP NAS to the TVS-882 as local disks and create virtual storage pools and volumes for operating NAS functionalities such as creating and reverting snapshots and indexing multimedia files into the media library. With VJBOD, you can centrally utilize the storage space from multiple QNAP NAS units and manage it with the interface on the local NAS. VJBOD supports 10GbE/40GbE Ethernet connection interfaces and port trunking (link aggregation with multiple LAN ports) that increases the performance and reliability of your VJBOD storage.

QTS
• The intuitive QTS features a modern flat design to streamline loading times. It provides an intelligent desktop that allows you to find desired functions quickly, monitor important system information on a real-time basis, and open multiple application windows to run multiple tasks concurrently, bringing operating efficiency.

QRM+: Centralized Remote Server Management Solution
• QRM+ is QNAP's Centralized Remote Server Management solution designed for IT teams. It provides a web-based solution—accessible from any web browser—to discover, map, monitor, and manage all of the critical computing devices on the network such as servers, PCs, embedded PCs, and thin clients from a single-point. Supporting IPMI 1.5 and 2.0, QRM+ provides remote KVM (Keyboard, Video, Mouse) for certain IPMI devices and supports tracking every action using KVM recording and playback. With centralized management by QRM+, IT infrastructure and device security are enhanced while troubleshooting & network resource performance analysis is simplified.

QmailAgent
• QmailAgent is an online email client that helps you manage multiple email accounts, allowing you to access all of your emails and to easily switch between different accounts. It provides complete functionality for composing, reading, and organizing emails. You can even attach files, photos, and documents from the TVS-882 when composing emails. Qmail also allows iOS and Android users to quickly check multiple email accounts with mobile devices and to browse & send emails using the QmailAgent on their TVS-882.

Storage for Hosting Virtual Machines and Containerized Applications
• Virtualization Station allows you to host virtual machines (VM) on the TVS-882 and access them via a web browser or VNC. Virtualization Station supports multiple operating systems, fast VM creation, VM backup & restoration, VM import/export, snapshot, and Device Management for centrally managing VMs. It lets the TVS-882 and VMs to share the same LAN port. No longer constrained by physical network performance, high-speed virtual switches increase the data transfer between VMs as well as between VMs and NAS through the internal interface. An optional AMD Radeon R7/R9 Series graphics card can also be installed into the TVS-882's PCIe slot for GPU passthrough to virtual machines, boosting the computational and rendering power of virtualized applications.

  The TVS-882 also features Container Station, which integrates LXC and Docker lightweight virtualization technologies. You can operate multiple isolated Linux systems on the TVS-882 as well as download apps from the built-in Docker Hub Registry.

Storage for Comprehensive Virtualization Applications
• As an iSCSI/IP-SAN storage solution, the TVS-882 supports VMware, Citrix, Microsoft Hyper-V, and Windows Server 2012 R2, benefiting flexible deployment and management in virtualization environments. The TVS-882 supports VMware VAAI and Microsoft ODX to increase performance by offloading server loading for ESXi server and Hyper-V respectively. It is compatible with a QNAP vSphere Client plug-in and QNAP SMI-S provider with enhanced efficiency of operations and management in virtualization applications.

PC Capabilities
• QNAP's QvPC Technology allows you to operate the TVS-882 as a PC by plugging in a keyboard, mouse, and HDMI display. You can directly access stored data, run multiple applications using Windows, Linux, UNIX, Android-based VMs with the Virtualization Station, surf the web, enjoy 4K or 1080p videos with up to 7.1 channel audio with Kodi, monitor surveillance live feeds with local display, and more.

Comprehensive Security
• QNAP's full NAS encryption by volume-based technology ensures data security by encrypting all of the files stored in the default shared folders on the TVS-882. Besides AES 256-bit encryption for both volumes and shared folders, the TVS-882 also provides numerous security options such as encrypted access, IP blocking, 2-step verification, and more.

Disaster Recovery Solutions
• The TVS-882 offers flexible backup solutions for Windows and Mac users, Volume/LUN snapshots (up to 256 snapshots per volume or LUN, and maximum 1,024 snapshots per NAS), Snapshot Replica and Clone, and disaster recovery solutions including RTRR, rsync, and cloud storage backup.

Cross-Device File Synchronization
• Qsync provides multiple ways of file synchronization and group file sharing, enhancing the flexibility of collaboration. Any file uploaded to the TVS-882 will be made available for all linked devices such as computers, laptops, or mobile devices. Qsync is especially useful for frequent travelers to manage files and always have the most up-to-date files on different devices.

Comprehensive Surveillance Solution
• Surveillance Station is a network surveillance Video Management System (VMS) that offers a user-friendly management interface, over 3,000 compatible IP camera models, and expandable IP camera channel licenses. It supports real-time monitoring and video & audio recording and playback with a wide range of customizable settings. You can also install the Vmobile app on your mobile devices to manage monitored channels anytime and anywhere to safeguard your office environment or install the Vcam mobile app to turn your device into a network camera, which instantly records to your TVS-882. It includes 8 free IP camera channels, and you can expand up to 40 channels by purchasing additional licenses.

Install-On-Demand Apps
• The built-in App Center provides over 100 apps including tools for backup/sync, business, content management, communications, downloading, entertainment, and more. You can freely install apps as needed to expand the TVS-882's functionality.

SMB Features
• The TVS-882 supports various business applications as an all-in-one Turbo NAS with cost-efficiency:
  FTP Server - shares large-size files, coming with user-defined settings including bandwidth limitation, number of connections, and write-only permission
  Web Server - allows numerous websites built on the same server. Administrators can manage up to 32 websites on the single one Turbo NAS with reduced IT costs
  RADIUS Server - provides centralized authorization management for computers to connect and use a network service
  VPN Server - provides an easy way for IT administrators to build up a secure private network and allows the staff to log on from outside the office and access business resources securely such as files and Internet connections
  Printer Server - send remote printing requests over the Internet (max. 3 USB printers), and supports IPP (Internet Printing Protocol), Samba, print job management, and Bonjour printing for Mac OS X
  Surveillance Station - connect and manage multiple IP cameras remotely including real-time monitoring, video recording, playback, and event notifications
