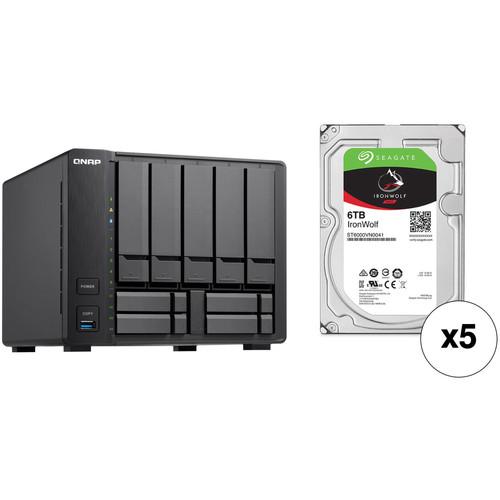

QNAP TVS-951X 30TB 9-Bay NAS Enclosure

User Manual for QNAP TVS-951X 30TB 9-Bay NAS Enclosure Kit with Seagate NAS Drives

• Product category: Network Attached Storage Drives QNAP
• Brand: QNAP
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for QNAP Network Attached Storage Drives

Product description

• QNAP TVS-951X 9-Bay NAS Enclosure Built as a high-performance and budget-friendly storage solution for SMBs, the TVS-951X 9-Bay NAS Enclosure from QNAP features a hybrid drive bay design with five 3.5" SATA III drive bays and four 2.5" SATA III drive bays. When 2.5" SSDs are installed in their dedicated bays, you can enable SSD caching and Qtier auto-tiering technologies to boost overall system performance.

  The TVS-951X is powered by a 1.8 GHz Intel Celeron 3865U Dual-Core processor and 2GB of dual-channel DDR4 RAM in a 1 x 2GB configuration. The memory can be upgraded to 32GB by using one 16GB module in each of the two SO-DIMM slots, and network connectivity is achieved using one 10 Gigabit Ethernet port and one Gigabit Ethernet port. When connected via the 10GbE port, data can be read at speeds up to 779 MB/s and written at speeds up to 739 MB/s. When transferring files with encryption, read speeds can reach 720 MB/s and write speeds max out at 363 MB/s.

  Use the three 5 Gb/s USB 3.0 Type-A ports to connect this QNAP NAS to other devices, allowing you to easily transfer large media files and expand NAS storage. Users can also take advantage of the HDMI 1.4b output to watch 4K media files on their HDTV, or stream to compatible devices using Plex. To aid in this, the TVS-951X supports hardware decoding and real-time transcoding, and resolutions are supported up to 4096 x 2304 at 24 Hz. Additionally, the this NAS is validated with AES-NI and FIPS 140-2 AES 256-bit encryption, helping to prevent sensitive business data from unauthorized access and breaches.

  QNAP has engineered the TVS-951X to support RAID 0, 1, 5, 6, 10, 50, and 60, each of which offers data redundancy, performance, or a combination of both. For those who do not require a RAID, JBOD and single disk modes are also available. Included is a a power cord, a 120W AC power adapter, two Ethernet cables, flat head screws for 2.5" drives, and flat head screws for 3.5" drives. Protection is provided by a limited 2-year warranty.

  General Features

  Hybrid Structure for Enabling SSD and Tiered Storage
  • SSD prices continue to fall, but creating a full-SSD storage solution is still out of reach for most users, especially if they require high-capacity storage. The TVS-951X provides the ability to use a hybrid storage structure that leverages the benefits of both hard drives and SSDs to provide high storage capacity and high performance. You can flexibly allocate applications to SSDs, set up a SSD cache, or use Qtier technology to automatically tier your frequently-accessed files to the SSD for the high access speeds. Users can take advantage of these features to fully optimize the storage utilization of the TVS-951X.
  1.8 GHz Intel Celeron 3865U Dual-Core Processor
  • Powered by a 7th-generation Kaby Lake, 14 nm 1.8 GHz Intel Celeron 3865U Dual-Core processor, with 2GB of DDR4 dual-channel memory (up to 32GB) and SATA III 6 Gb/s HDD and SSD drive bays, the TVS-951X delivers high-performance read/write speeds and maintains high speeds even with AES-NI encryption is enabled.
  High-Speed 10GbE Network Connectivity
  • The TVS-951X features a built-in 10GBASE-T network port to provide 10GbE high-speed network connectivity. You can use the TVS-951X with QNAP's 10GbE unmanaged switch (sold separately) to upgrade your network infrastructure to benefit from faster transfer speeds and to improve bandwidth-demanding applications. Both the TVS-951X and QNAP's 10GbE unmanaged switches support NBASE-T (10G/5G/2.5G/1G/100M) five-speed network technology, so you don't have to replace the existing Cat 5e, 6, and 6a cables in your current network infrastructure.
  Real-Time 4K Video Transcoding
  • Featuring integrated Intel HD Graphics 610, the TVS-951X supports dual-channel 4K H.264/H.265 hardware decoding and real-time transcoding, allowing you to convert videos to universal file formats that can be played on multiple devices. You can also watch high-quality 4K media files on a HDTV using the HDMI 1.4b output at resolutions up to 4096 x 2304 @ 24 Hz, or use it with Plex Media Server to stream media files to mobiles devices and media streaming devices, including DLNA, Roku, Apple TV, Amazon Fire TV, and Chromecast. The QNAP RM-IR004 remote control (sold separately) can be configured using QButton to customize the actions of individual buttons, providing a more convenient NAS experience.

    Please note that the TVS-951X's hardware provides H.264/H.265 hardware decoding, encoding, and transcoding capabilities. However, playback quality may vary due to factors including playback software, file formats, system usage, and available bandwidth.
  Roon Music Player, No Computer Required
  • Roon, the music player for music lovers, identifies all the music stored on the NAS and consolidates them in Roon's interconnected digital library. You can browse and play music with Roon apps on compatible devices for a multi-zone multimedia experiences. The TVS-951X supports the Roon Server app in the QTS App Center and provides the performance, storage potential, and SSD caching to optimize music streaming.
  Multiply Your Productivity
  • The app-driven QTS operating system provides solutions for simplifying file backup, management, search, and more. With File Station, you can view and manage the files on your TVS-951X and other storage sources/devices; the OCR Converter allows you to extract text from images; Qfiling helps automate file organization, and Qsirch helps quickly find files.

    Centralized File Management
    Use File Station to directly access files on USB devices, including optical disc drives. Files from different devices can be easily viewed and managed on a single interface.

    File Digitization
    OCR Converter extracts text from images, helping to boost productivity and making it easier to find files.

    Smart Filing
    Qfiling automates file organization. Files are automatically archived into folders based on your settings.

    Full-Text Search
    Qsirch quickly finds images, music, videos, documents, emails, and other files.
  Protect Data with Snapshots
  • Snapshots help protect your data by fully recording the NAS system state and metadata. If a file is accidentally deleted or modified, you can use snapshots from the Storage & Snapshots Manager or the File Station to quickly restore the file to its previously-recorded state. QNAP snapshots are block-based and only record the changed data. Not only does this save storage space but also reduces the time required to back up and restore data. The TVS-951X supports up to 256 snapshots per volume/LUN, and up to 1024 snapshots in total.
  Block-Based iSCSI LUN for Virtualization Storage
  • The TVS-951X supports block-based iSCSI LUN that provides a more reliable and isolated environment compared to file-based LUN. Supporting VMware, Citrix, Microsoft Hyper-V, and Windows Server 2016, the TVS-951X provides a dependable and affordable storage solution for virtualization environments, while also supporting VMware VAAI and Microsoft ODX to increase performance by offloading server loading for ESXi server and Hyper-V respectively, and supporting QNAP vSphere Client plug-in and QNAP SMI-S provider with enhanced operational efficiency and management in virtualization applications.
  NAS as a Multi OS Platform
  • Virtualization Station and Container Station provide comprehensive solutions for creating virtualized environments to improve business IT infrastructure, workflows, and productivity.

    Virtualization Station
    Virtualization Station allows you to run multiple Windows, Linux, UNIX, and Android virtual machines on the TVS-951X. You can use Virtual Network Computing (VNC) through a browser to operate the virtual machines. Virtualization Station is ideal for organizations to run multiple applications on a single NAS.

    Container Station
    Container Station integrates LXC and Docker lightweight virtualization technologies. You can download apps from the built-in Docker Hub to import/export container apps and manage access control, enjoying the benefit of easy installation, transferability, and high efficiency.
  QVR Pro Surveillance Solution
  • QNAP's QVR Pro surveillance solution allows you to arrange a dedicated, independent storage space for surveillance data on TVS-951X and leverage the advantages of scalable storage. With QVR Pro, camera management, storage space allocation, camera live view, and playback is greatly simplified. You can also use USB webcams as network cameras with the QUSBCam2 app, and remotely monitor your surveillance feeds at any time with QVR Pro Client's companion mobile app. QVR Pro is compatible with over 5000 IP cameras and includes 8 free IP camera channels. Up to 128 camera channels are supported.
  Multi-Point File Backup, Access, and Sync
  • The TVS-951X centrally stores data and files, and supports SMB/CIFS, AFP, and NFS protocols for file sharing across Windows, Mac, and Linux/UNIX devices. Coupled with Qsync (a utility that turns a QNAP NAS into a safe, high-capacity data center for file synchronization), files uploaded to the TVS-951X will be made available for linked devices, such as computers, laptops, and mobile devices. Hybrid Backup Sync can help you easily backup or synchronize data on the TVS-951X to other QNAP NAS, remote servers, or cloud storage for easy disaster recovery.
  More Productivity-Boosting Applications
  • QmailAgent
    Centrally manage and switch between different email accounts, back up emails to the NAS, and safeguard email security and personal privacy.

    Mattermost
    Mattermost turns your QNAP NAS into a team communication platform that allows for instant messaging and can centrally store all your conversations and files.

    QIoT Suite Lite
    Provides an IoT solution on a private cloud empowered by the high capacity and security of a QNAP NAS. It only takes three steps to deploy your own IoT application.

    IFTTT Agent
    A popular web automation service for combining QNAP NAS and mobile devices/apps to customize NAS applets.

    Browser Station
    Enables remote access through NAS-based web browsers to access local LAN resources without complex VPN settings.

    Mobile Apps
    Simplify file access, NAS management, multimedia experiences, surveillance, and download tasks with QNAP mobile apps.
  UPC: 885022015405
• 5 x Seagate 6TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDD Designed for use in 1-8 bay NAS environments within home, SOHO, and SMB environments, the 6TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDD from Seagate is built to withstand 24x7 operations, or 8760 hours per year. This 6TB drive has been equipped with a SATA III 6 Gb/s interface, a rotational speed of 7200 rpm, a 3.5" form factor, and a 128MB cache, providing users with an ample storage capacity and data transfer speeds of up to 195 MB/s. This IronWolf hard drive also has an MTBF rating of 1 million hours, 600,000 load/unload cycles, 1 in 10¹⁵ non-recoverable read errors per bits read, and a workload rate of up to 180TB per year. Protection is provided by a limited 3-year warranty.

  General Features

  Optimized for NAS with AgileArray
  • AgileArray is built for dual-plane balancing and RAID optimization in multi-bay environments with advanced power management
  Reduced Lag Times
  • Improved performance means reduced lag times or downtime for users during high traffic time for the NAS
  IronWolf Health Management
  • IronWolf Health Management focuses on prevention, intervention, and recovery
  Rotational Vibration (RV) Mitigation
  • IronWolf comes standard with RV sensors to maintain high performance in multi-bay NAS enclosures
  Multi-User Environments
  • IronWolf provides a workload rate of 180TB per year
  Cache Memory
  • IronWolf provides 128MB of cache memory, allowing your NAS to serve data faster
  1.0 Million Hours MTBF | Limited 3-Year Warranty
  • This represents an improved total cost of ownership (TCO) over desktop drives with reduced maintenance costs
  Designed for 24x7 Performance
  • Access your data on your NAS at virtually any time, whether remotely or on site

  Best-Fit Applications

  • 1-8 bay business network attached storage (NAS)
  • Desktop RAIDs and servers
  • Multimedia server storage
  • Private cloud
  UPC: 763649117545

• TVS-951X 9-Bay NAS Enclosure dvuywcsq
• 2 x Ethernet Cables
• 120W AC Adapter
• Power Cord
• Flat Head Screws for 3.5" HDDs
• Flat Head Screws for 2.5" HDDs
• Limited 2-Year Warranty

• 5 x Seagate - 6TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDD

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• QNAP TVS-951X 9-Bay NAS Enclosure

  Number of Bays	5 x 2.5"/3.5" 4 x 2.5"
  Media Card Slots	None
  Connections	3 x USB Type-A (USB 3.1 Gen 1 (5 Gb/s)) 1 x HDMI Type-A (HDMI 1.4b) 1 x RJ45 (10GbE) 1 x RJ45 (Ethernet) 1 x 3.5 mm (Audio Out)
  Compatible Drive Interface	SATA III
  Form Factor	Desktop
  RAID Modes	RAID 0, 1, 10, 5, 50, 6, 60, JBOD, Single
  Link Aggregation and Failover Support	Yes
  Wake on LAN	Yes

  Total Raw Capacity	None
  Type	None
  Flash Memory	512 MB

  Processor	Intel Celeron 3865U Dual-Core
  Clock Speed	Base: 1.8GHz
  GPU	Intel HD Graphics 610
  Total Installed Memory	2 GB DDR4
  User-Replaceable Memory	1 x 2 GB
  Total Memory Slots	2 x SO-DIMM
  Maximum Memory Capacity	32 GB

  Supported Protocols	AFP CIFS/SMB FTP HTTP HTTPS SSH Telnet
  iSCSI Target	256
  Max Cameras Supported	128
  Max Sync Tasks	32

  Installed Operating System	QTS 4.3.4
  OS Compatibility	Windows 10 Windows 8 Windows 7 Windows Server 2016 Windows Server 2012 R2 Windows Server 2012 Windows Server 2008 Windows Server 2003 macOS 10.7 or Later Linux UNIX
  File System Formats Supported	EXT3, EXT4, FAT32, HFS+, NTFS, exFAT
  Supported Browsers	Chrome, Firefox, Internet Explorer, Safari
  Supported Languages	Czech Danish Dutch English Finnish French German Greek Hungarian Italian Japanese Korean Norwegian Polish Portuguese Romanian Russian Simplified Chinese Spanish Swedish Thai Traditional Chinese Turkish

  Power Consumption	23.38 W (Standby) 39.37 W (Typical)
  Power Source	AC Adapter
  PSU Wattage	1 x 120 W
  AC Input Power	120 to 240 VAC, 50 / 60 Hz

  Encryption	256-Bit AES
  Security Features	Kensington Security Slot
  VPN Server Connections	100

  Operating Temperature	32 to 104°F / 0 to 40°C
  Operating Humidity	5 to 95%

  Cooling	1 x 140 mm Fan
  Noise Level	17.6 dBA
  Built-In Speakers	Yes, 1
  Audible Alarm	Yes
  IR Sensor	Yes
  Status Monitoring	LED Indicator
  Dimensions	8.9 x 7.2 x 8.8" / 226.1 x 182.9 x 223.5 mm
  Weight	7.8 lb / 3.5 kg

  Box Dimensions (LxWxH)	15.0 x 13.5 x 10.0"

• 5 x Seagate 6TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDD

  Drive Capacity	6.0 TB
  Cache Memory	128 MB

  Interface	SATA III (6 Gb/s)
  Maximum Read Speed	195 MB/s

  Drive Type	HDD
  Form Factor	3.5"
  Noise Level	2.7 dB (Idle) 2.8 dB (Active)

  Spindle Speed (RPM)	7200 RPM

  Encryption	None
  Endurance (Total Bytes Written)	180 TB
  Load/Unload Cycles	600,000
  Mean Time Between Failures (MTBF)	1.0 Million Hours
  Non-Recoverable Read Errors per Bits Read	1 in 1015

  Power Draw	9.0 W (Active) 7.2 W (Idle) 0.6 W (Standby)
  Supported Voltage	5 VDC, 12 VDC
  Current	2.0 A at 12 VDC

  Operating Shock	70 G / 2.0 ms
  Storage Shock	250 G / 2.0 ms
  Operating Temperature	41 to 158°F / 5 to 70°C
  Storage Temperature	-40 to 158°F / -40 to 70°C

  Dimensions (W x H x D)	4.0 x 1.0 x 5.8" / 101.8 x 26.2 x 147.1 mm
  Weight	1.7 lb / 780.2 g

  Box Dimensions (LxWxH)	7.9 x 6.0 x 2.4"
