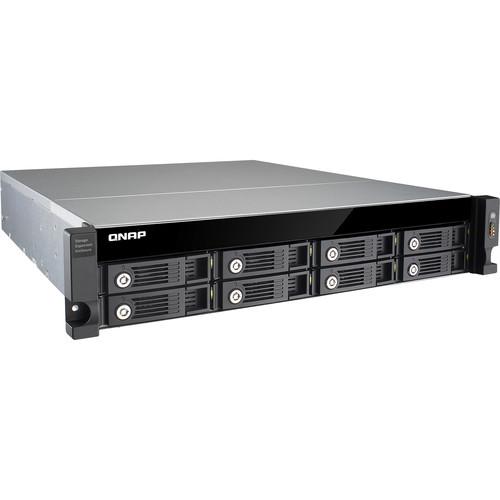

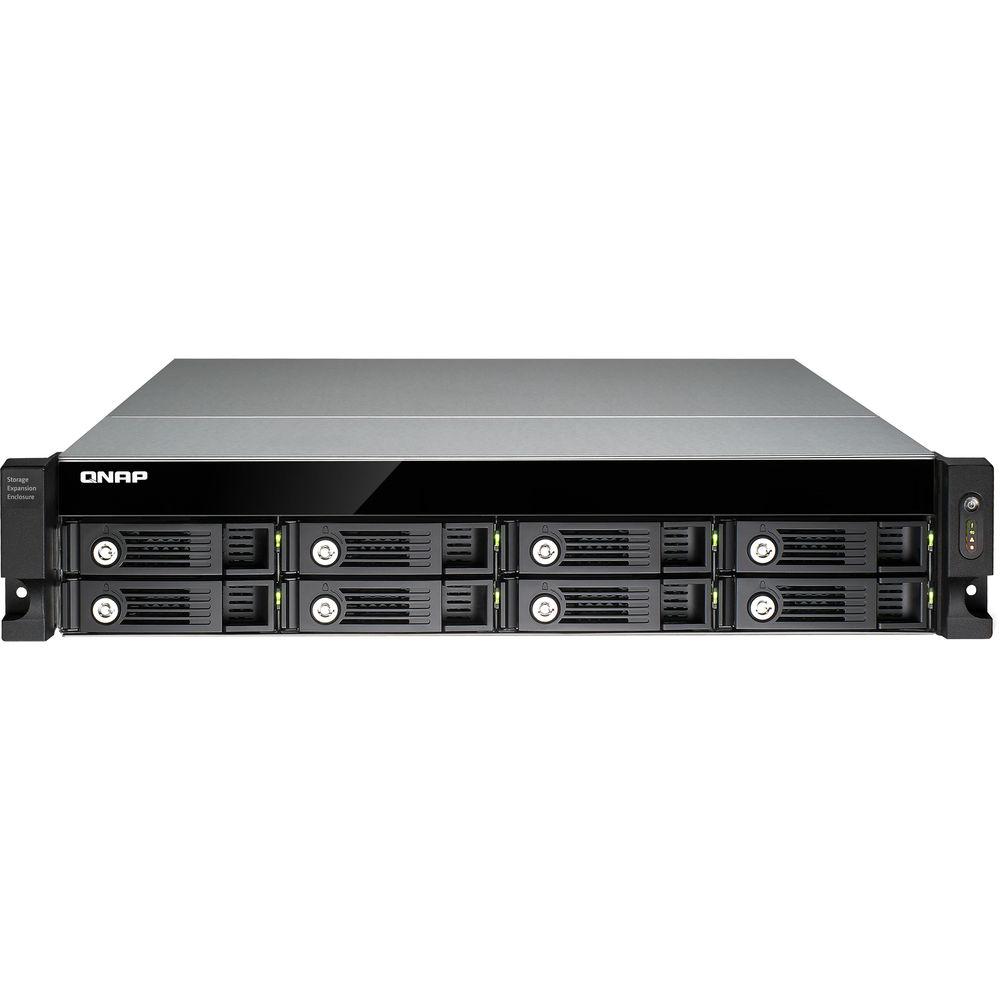

Product description The UX-800U-RP 8-Bay RAID Expansion Enclosure from QNAP delivers volume expansion and data backup for select QNAP Turbo NAS units. Designed for business use, the UX-800U-RP is an expansion alternative that features user-friendly setup and 8 hard drive bays that also make it useful for digital media collections and video surveillance.
The UX-800U-RP is compatible with the QNAP TS-453U-RP, TS-453U, TS-451U, TS-853U-RP, TS-853U, TS-1253U-RP, TS-1253U, TS-469U-RP, TS-469U-SP, TS-470U-RP, TS-470U-SP, TS-869U-RP, and TS-1269U-RP. To utilize this expansion enclosure, simply connect it to one of the supported Turbo NAS models and power it on. The Turbo NAS will automatically detect the hard drives as newly installed local drives, after which the capacity of the Turbo NAS may be expanded as a large volume by using the QTS Storage Manager.
The QTS Storage Manager presents tools and options for managing system storage with a graphical user interface, which helps to further simplify the process of managing the expansion unit and its expansion capacity. Users will be able to monitor the health status of the UX-800U-RP and the disks within it. When multiple expansion enclosures are connected, the Locate Disk and Locate Enclosure functions help assist you in maintaining the UX-800U-RP. In the event that your UX-800U-RP is accidentally disconnected, the Turbo NAS then enters missing mode and blocks I/O access to protect the stored data. This helps the system recover from missing mode to a normal state with the data remaining intact.
The UX-800U-RP features 8 hot-swappable drive bays to help with drive installation & removal. The automatic insertion/removable detection and rebuild technology help also help allow for easy system management. Featuring support for RAID 0, 1, 5, 6, and 10 and also managed by the QTS Storage Manager, the UX-800U-RP helps strong maximum performance and data security.
The UX-800U-RP may also be used as external storage to perform backup tasks for the Turbo NAS. A system administrator may back up data from the Turbo NAS to the UX-800U-RP on a real time or scheduled basis. For proper functionality, the QTS 4.0.5 or newer operating system is required for the Turbo NAS unit.
The UX-800U-RP operates using a redundant power supply with 100-240 VAC inputs at 50/60 Hz and a 300W output. Included is an accessory pack, 2 x AC power cords, a USB 3.0 cable, 32 x flat had screws (for 3.5" drives), and 24 x flat head screws (for 2.5" drives). UPC: 885022003426 In the Box QNAP UX-800U-RP 8-Bay RAID Expansion Enclosure Accessory Pack 2 x AC Power Cord USB 3.0 Cable 32 x Flat head screws (for 3.5" HDDs) 24 x Flat head screws (for 2.5" HDDs) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the QNAP UX-800U-RP 8-Bay RAID Expansion Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

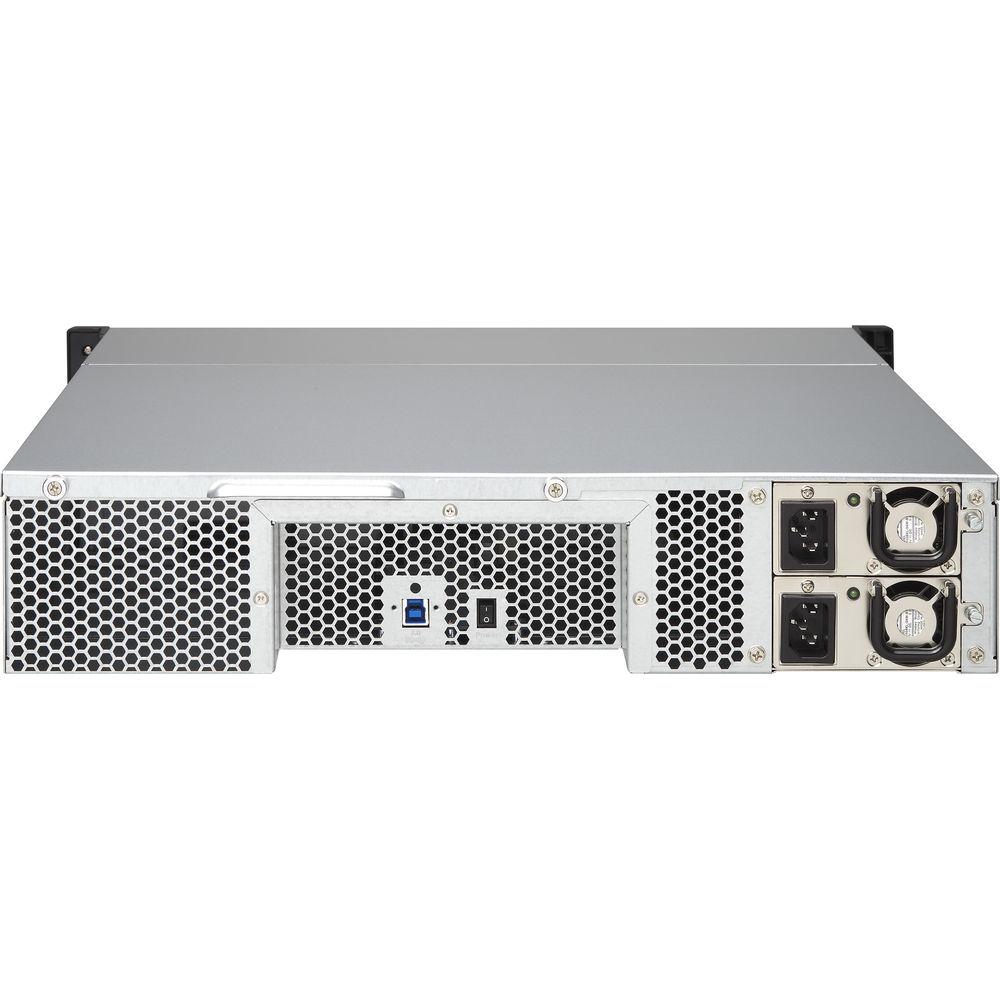

Technical parametersQNAP UX-800U-RP-US Specs | | | Supported NAS Models | TS-453U-RP, TS-453U, TS-451U, TS-853U-RP, TS-853U, TS-1253U-RP, TS-1253U, TS-469U-RP, TS-469U-SP, TS-470U-RP, TS-470U-SP, TS-869U-RP, and TS-1269U-RP | | Hard Disk Drive | 8 x 3.5" or 2.5" SATA III 6 Gb/s or SATA II 3 Gb/s hard drives | | Hard Disk Tray | 8 x Hot-swappable trays with key lock | | RAID Management | Yes (via QNAP QTS Storage Manager) | | USB | 1 x USB 3.0 port (rear) | | LED Indicator | Power, Link, and Status | | LCD Panel | Monochrome LCD display with backlight | | Secure Design | Kensington security slot for theft prevention | | Fan | 2 x Quiet cooling fans (2.8" / 7.0 cm, 12 VDC) | | Power Supply Unit / Adapter | Redundant PSU
Input: 100-240 VAC, 50/60 Hz
Output: 300 W | | Form Factor | Rackmount | | Temperature | 40 ~ 95°F / 5 ~ 35°C | | Humidity | 5~95% RH non-condensing
Wet bulb: 81°F / 27°C | | | | Expansion Enclosure Management | The functions listed below are managed via the QNAP QTS operating system:
Support for hard disk's S.M.A.R.T. capacity Location indication of expansion enclosure Location indication of hard disks on expansion enclosure Smart fan control | | QNAP Flexible Volume | The disks, RAID groups, storage pools, and volumes in the expansion enclosures are configured via the QTS operating system:
Support for multiple RAID groups in a storage pool to ensure data safety Online storage pool expansion Online volume expansion Block-based iSCSI LUN Support for thin-provisioned volume with space reclamation Support for thin-provisioned iSCSI LUN with space reclamation
Flexible volume is currently only available for TS-x69U series | | Intelligent Storage Manager | The QTS 4.1 Storage Manager presents tools and options for managing system storage with an intuitive graphical interface. From reviewing the system storage allocation in the Dashboard to managing volumes, Storage Pools, disks, and iSCSI storage, the Storage Manager provides a centralized place to help ease the work of storage management | | | | Dimensions | 3.50 x 18.98 x 21.02" / 88.90 x 482.09 x 533.91 mm | | Weight | 24.29 lb / 11.02 kg | | | | Package Weight | 33.0 lb | | Box Dimensions (LxWxH) | 28.0 x 22.2 x 10.2" |
