User Manual for QNAP VS-2208 PRO VioStor 8-Channel 1080p NVR Click to enlarge the picture
Contents of the user manual for the QNAP VS-2208 PRO VioStor 8-Channel 1080p
- Product category: Network Video Recorders (NVRs) QNAP
- Brand: QNAP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for QNAP Network Video Recorders (NVRs)
 |
User manual for the QNAP VS-2208 PRO VioStor 8-Channel 1080p contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any QNAP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official QNAP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a QNAP product will considerably shorten its lifespan!
|

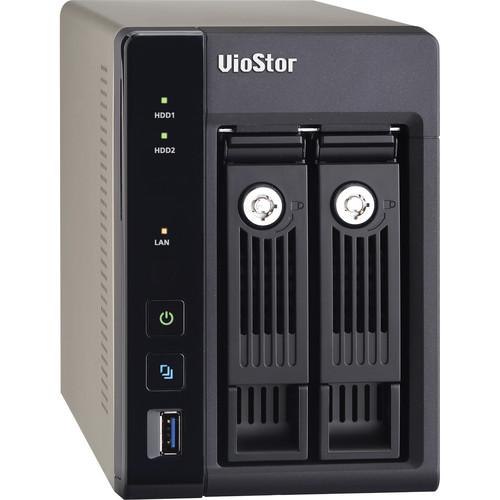

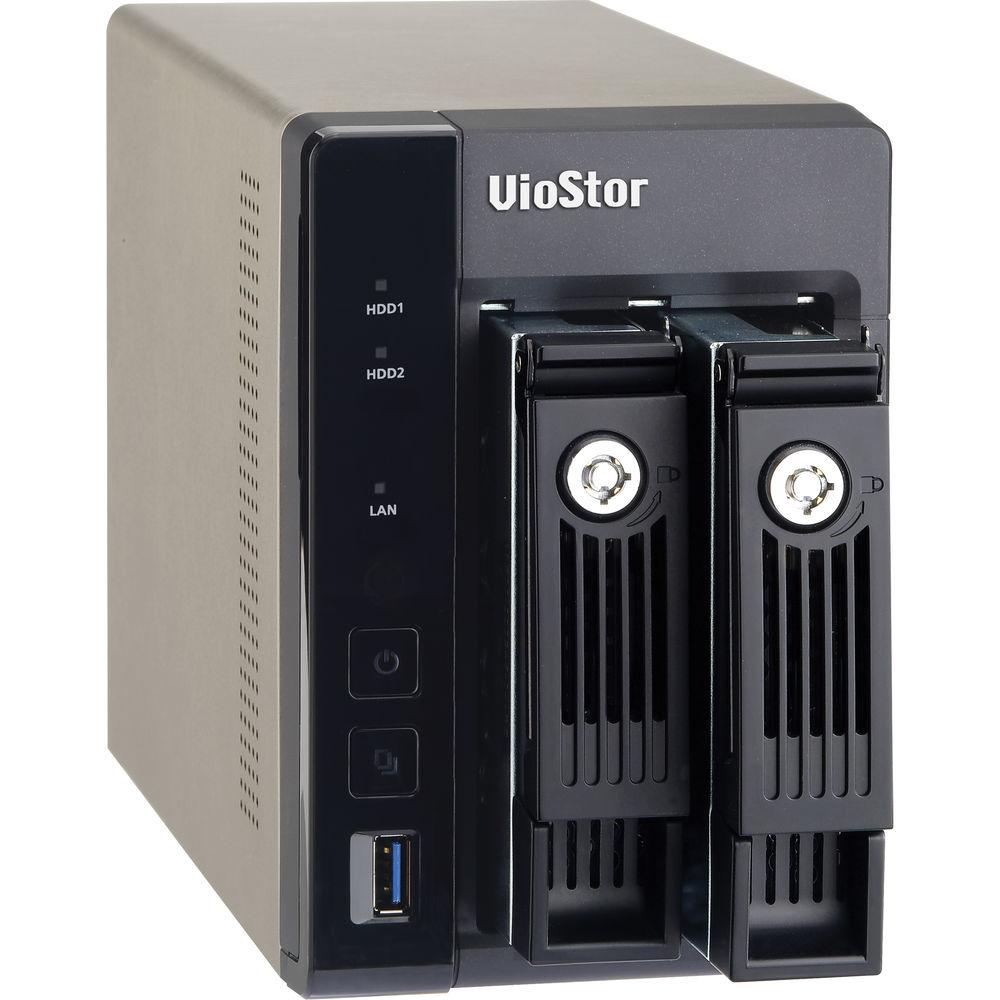

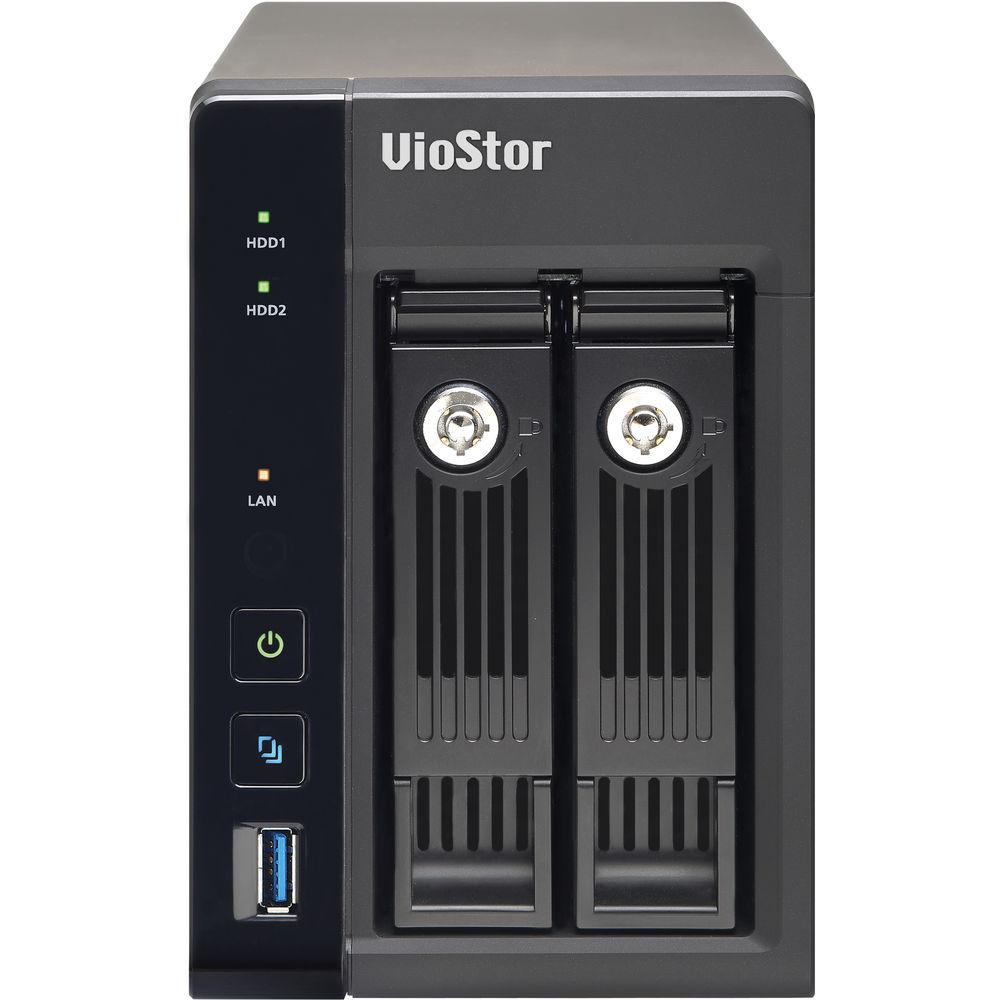

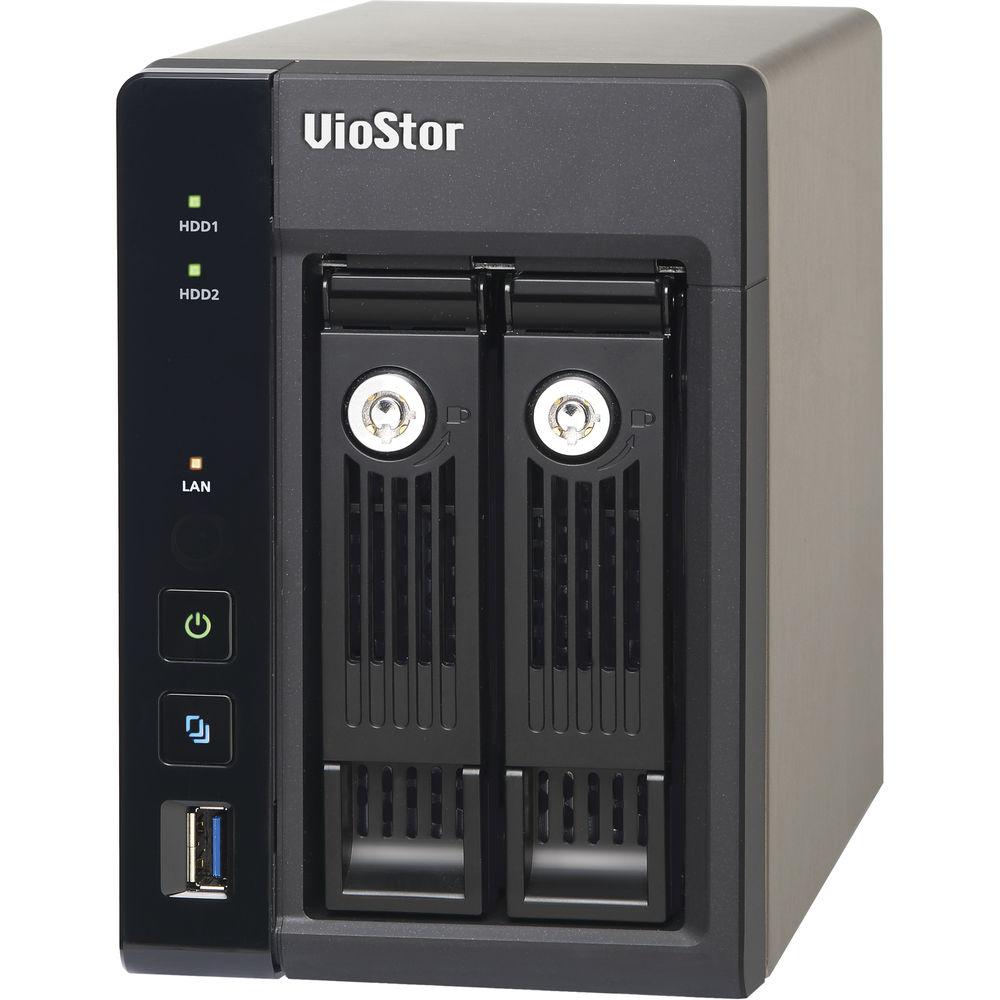

Product description The 8-Channel 1080p NVR from QNAP is powered by an Intel Quad-Core 2.0 GHz processor to deliver high-performance at a throughput rate of up to 180 Mbps to ensure stable recordings and smooth playbacks of multiple cameras. This NVR can support up to 12TB of total storage with a 6TB hard drive in each 3.5" bay, to accommodate high-quality H.264 compression. The server-grade mainboard and heat pipe with fan-less design assures solid reliability for long system uptime. It also supports a 1080p resolution display at up to 200 fps via HDMI.
The VS-2208 PRO+ NVR supports RAID 0, RAID 1, JBOD, and linear configurations. Hot-swappable drives allow you to replace hard drives without interrupting with the system operations. The QVR system lets you manage and monitor multiple cameras in real-time using a web browser. This NVR is designed for small business (SMB) and small-office/home-office (SOHO) use and features powerful performance, reliability, and high-definition compatibility. - Up to 180 Mbps throughput for recording and playback from up to 8 cameras
- HDMI output delivers 1920 x 1080 resolution at up to 200 fps
- H.264, MPEG-4, MJPEG, and MxPEG compression
- E-map function for easy live-view monitoring
- Install free QSCM Lite app for advanced CMS features
UPC: 885022007608 In the Box QNAP VS-2208 PRO+ VioStor 8-Channel 1080p NVR Power Cord Power Adapter Terminal Block Hard Disk Lock Screw Pack 2 x Ethernet Cables Limited 2-Year Warranty Brochure PDF 275.1kb Table of Contents
|
Upload User Manual
Have you got an user manual for the QNAP VS-2208 PRO VioStor 8-Channel 1080p NVR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

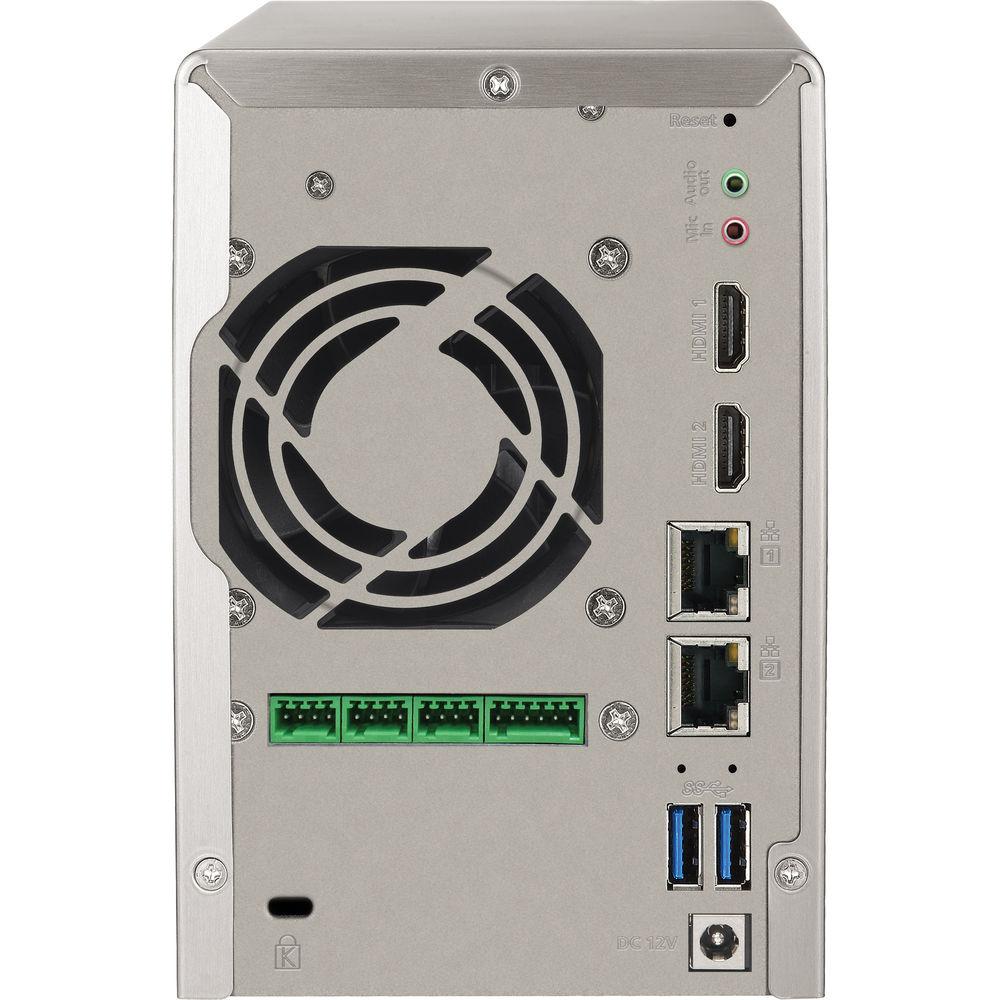

Technical parametersQNAP VS-2208-PRO+-US Specs | Processor | Quad-core Intel 2.0 GHz processor (burst up to 2.41 GHz) | | Memory | 4 GB DDR3L RAM | | Flash Memory | 512 MB DOM | | HDD Capacity | 2 x 3.5" SATA 6 Gb/s, SATA 3 Gb/s hard drives up to 6 TB each (12 TB total) | | HDD Tray | 2 x hot-swappable and lockable tray | | RAID | RAID 0, RAID 1, JOBD, and linear configurations | | LAN Ports | 2 x Gigabit RJ45 Ethernet ports | | Compression | H.264, MPEG-4, MJPEG, and MxPEG | | LED Indicators | LAN, HDD1, HDD2, power, status, USB | | USB Ports | 3 x USB 3.0 ports | | Video Output | 2 x HDMI (HDMI 2 is reserved) | | I/O | 6 x alarm inputs
2 x alarm outputs | | Audio | Audio in/out for local display | | Buttons | Power button, one-touch-auto-video-backup button, reset button | | Alarm Buzzer | System warning | | Network Throughput | Up to 180 Mbps | | Number of Channels | 8 | | Audio | Audio in/out for local display | | Buttons | Power button, one-touch-auto-video-backup button, reset button | | Alarm Buzzer | System warning | | Security | K-Lock security slot | | Operating Temperature | 32 to 104˚F (0 to 40˚C) | | Relative Humidity (non-condensing) | 5 to 95%, wet bulb: 80.6°F (27˚C) | | Power Supply | 100-240 V, 90 W | | Fan | 3" (7 cm) quiet cooling fan (12 VDC) | | Dimensions | 5.91 x 4.02 x 8.5" (14.98 x 10.21 x 21.59 cm) | | Weight | 3.84 lb (1.74 kg) | | | | Package Weight | 7.1 lb | | Box Dimensions (LxWxH) | 10.945 x 9.449 x 8.031" |
