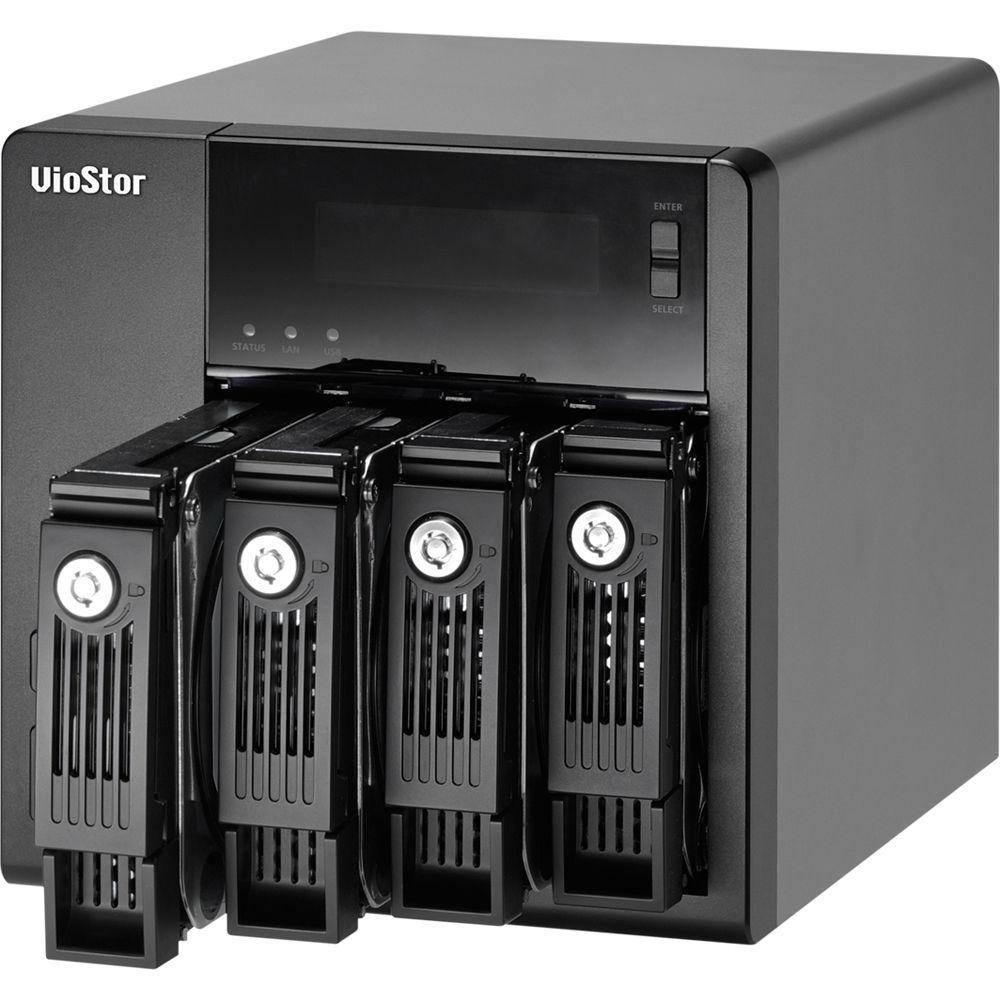

User Manual for QNAP VS-4112-PRO -US VioStor 12-Channel 4-Bay Network Video Recorder Click to enlarge the picture
Contents of the user manual for the QNAP VS-4112-PRO -US VioStor 12-Channel 4-Bay
- Product category: Network Video Recorders (NVRs) QNAP
- Brand: QNAP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for QNAP Network Video Recorders (NVRs)
|
User manual for the QNAP VS-4112-PRO -US VioStor 12-Channel 4-Bay contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any QNAP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official QNAP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a QNAP product will considerably shorten its lifespan!
|
Product description The Qnap VS-4112-PRO+-US VioStor 12-Channel 4-Bay Network Video Recorder is designed for small- and medium-sized enterprises and SOHO applications. With an Intel Dual-Core processor at its heart, this NVR delivers a throughput of 250 Mb/s, allowing for seamless video playback.
The NVR features 4 hot-swappable trays, each of which accommodates a single 4TB hard drive. It is capable of recording in H.264, MPEG-4, M-JPEG, and MxPEG formats from up to 12 IP cameras or video servers. The multi-server monitoring feature of this VioStor NVR allows you to simultaneously monitor up to 128 IP cameras from multiple NVR servers.
Equipped with IVA (Intelligent Video Analytics) feature, this 12-channel NVR provides you with security features such as motion detection, foreign object, missing object, out of focus, and camera occlusion. Additionally, it also offers schedule recording, alarm recording, alarm recording schedule, motion detection recording, and pre/post-alarm recording.
Moreover, this 12-channel NVR ensures data security with RAID (RAID 0, 1, 5, 5+hot spare, 6), online RAID capacity expansion, online RAID level migration, dual Giga LAN ports for network failover, load-balancing, multi-IP setting, etc. With Touch-N-Go PC-less installation, this VioStor 8-channel NVR is incredibly easy to set up. The entire setup, including disk initialization and RAID configuration, can be accomplished just by connecting the NVR to an LCD display via an HDMI connection Note: The standard system is shipped without hard drives. Actual performance may vary depending on the network environment. - Surveillance
-
- Supports high-quality H.264, MPEG-4, and M-JPEG recording formats.
- Allows scheduled, continuous, or manual recording.
- Events are triggered by motion detection.
- Any sensor can be recorded with the alarm recording function; recording schedules can be set for different cameras.
- Megapixel recording up to 10 Mp from multiple IP cameras or video servers.
- Multi-server monitoring can be done for up to 128 channels from a remote PC over LAN or WAN.
- Cross-platform support lets you view live content and playback recording files on your Windows or Mac based PC by using the QNAP Surveillance Client software.
- Real-time digital watermarking protects your videos and snapshots from unauthorized modifications. The Watermark Proof utility is provided to verify whether or not the videos and snapshots are original.
- Supports different video modes like 12-channel and sequential display mode, and dual-display mode.
- High-resolution local display can be achieved by using the HDMI port to connect the NVR to an HDMI monitor or TV for monitoring content in Full HD (1920 x 1080) resolution.
- Convenient control of PTZ & speed dome cameras allows you to adjust the PTZ cameras as well as view preset positions of the IP cameras on the local display interface.
- Digital zoom allows you to zoom in and out of the video image, allowing for flexible monitoring and playback.
- On-screen event alerts icons are immediately displayed on the local monitoring page in case any event occurs.
- Preset Position Control and Auto Cruising allow you to configure PTZ cameras to cruise according to the preset positions along the time interval for each preset position.
- E-Map enables you to upload the images of the monitored locations for easy preview.
- Fisheye Dewarping function assists in practical surveillance management, allowing you to view the monitoring area without the fisheye effect.
- Mobile Surveillance by VMobile enables you to remotely view live content and playback recordings on your portable mobile devices over Wi-Fi, 3G, or 4G networks by using the VMobile network surveillance application.
- Remote Video Playback
-
- Using Multi-View Playback, you can divide a video into multiple sessions equally for playback in a multi-view window and play videos of multiple IP cameras in the multi-view window simultaneously.
- Quick data search can be performed by date & time, timeline, event, and intelligent video analytics (IVA) such as motion detection, missing object, foreign object, out of focus, camera occlusion, etc.
- Event Management
-
- Allows you to mange several events like motion detection, alarm input, connection failure, recording failure, and other user-defined events.
- Enables you to handle several actions like video recording, e-mail alert, SMS alert, buzzer, PTZ camera control, alarm output, and other user-defined actions.
- Real-time SMS and e-mail alert are provided in case of system error or emergencies. SMS and alert e-mails are sent to the administrator immediately.
- Backup Solution
-
- The Scheduled Remote Replication feature enables you to copy the recording data of the local VioStor to a remote Qnap NAS (Network Attached Storage) on the local network.
- Using the One-Touch Auto-video Backup solution, you can immediately copy the recording data to a compatible USB device.
- Hardware Design
-
- Powered by an Intel CPU and DDRIII memory card, the NVR delivers superior performance for surveillance applications.
- The CPU thermal solution uses a fanless design to provide better performance, quiet operation, and enhanced reliability.
- Linux-based NVR is less vulnerable to virus attacks.
- Using the Touch-N-Go PC-less installation feature, you can complete the first-time system installation, including hard disk initialization and RAID configuration, of the NVR via the LCD panel without using any PC.
- Supports up to 16TB of physical storage capacity (4 x 4TB hard drives) for recording a large amount of video data over a long period of time.
- Security Control
-
- The Authority Management feature lets you create different user groups, i.e., administrator, system manager, and user who can be assigned different rights for having access to monitoring, playback, PTZ control, and audio monitoring.
- The Auto Log-Off feature allows you to set the timeout period to log off the users when the idling time is over.
- With Host Access Control you can specify the host or IP connections that are to be allowed and denied to access the NVR.
- An online user list allows you to view the record of users currently logged on and those that had previously logged on to the NVR.
- Detailed event logs offer logs of system warning, hard disk error, network disconnection, UPS status, users' networking services, and recordings access record.
- High Reliability and Smart Features
-
- Advanced RAID with hot-swap design offers Single disk, RAID 0, RAID 1, RAID 5, RAID 5+hot spare, and JBOD disk configurations due to which a failed drive of a disk volume (RAID 1 or above) can be replaced through hot swapping without turning off the server.
- Online RAID capacity expansion and online RAID level migration allows you to upgrade the disk configuration to a higher RAID level, retaining the existing data and without turning off the server.
- Intelligent automatic system startup turns on the system automatically when power resumes after a power outage.
- APC, CyberPower, MGE, and YEC UPS devices are supported to provide 24/7 service against unexpected power outages.
- S.M.A.R.T. (Self-Monitoring Analysis and Reporting Technology) is used to monitor hard disk status.
- Advanced HHS (HDD Health Scanning) supports disk checking and bad blocks scanning.
- DOM Architecture with Embedded Fail-Safe Dual OS for enhanced reliability ensures that 2 operating systems are installed on the DOM, so as to boot the system alternatively upon every startup. When one fails, the other one can be used for startup and the failed OS is recoverable from the other healthy OS.
- Network Services
-
- The built-in DDNS support allows you to create a unique registered domain name from a DDNS service provider for use with the NVR.
- The built-in NTP server uses the NTP (Network Time Protocol) to synchronize the date and time of the network cameras with that of the NVR.
- You can conveniently access the recording data on the NVR through the Network Neighborhood (SMB / CIFS), Web File Management (HTTP), or FTP server.
- Easy Configuration and Management
-
- With the intelligent software utility finder, you can quickly search IP cameras and configure system settings on the local network.
- Using the web-based user interface, you can manage all the system configurations, monitoring, and playback features of the NVR.
UPC: 885022003822 In the Box QNAP VS-4112-PRO+-US VioStor 12-Channel 4-Bay Network Video Recorder Power Cord Adapter 2 x Ethernet Cable Hard Disk Lock CD-ROM Screw Pack Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the QNAP VS-4112-PRO -US VioStor 12-Channel 4-Bay Network Video Recorder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersQNAP VS-4112 Pro+ Specs | Video Compression | H.264, MPEG-4, M-JPEG, MxPEG | Recording Mode | Continuous, manual, and scheduled recording Alarm recording, multiple alarm recording schedule Pre-alarm and post-alarm recording Auto snapshot (scheduled or hourly snapshot) Real-time digital watermarking | Recording Performance | Up to 30 fps at HD (720p) for each channel | Megapixel Recording | Supports megapixel cameras | File Format | AVI (QNAP codec is required for playback) | | Display Mode | 12-channel display, sequential display mode | Local Playback | Single-view playback | Search Mode for Local Playback | By date and time | Playback Control | Play, pause, stop, reverse play, play next/previous video file, and speed control | Features | Advanced Monitoring: Full screen display, event notification, PTZ control, and digital zoom Advanced Playback: Full screen display, digital zoom | | Multi-server Monitoring | Up to 128 channels monitoring from multiple VioStor NVR servers | Display Mode | 12-channel display, sequential mode, dual display mode | Features | Advanced Monitoring: Full screen display, video snapshot, manual recording, event notification, PTZ control, and digital zoom | E-Map | Upload digital maps and indicate the locations of the IP cameras of a monitoring location or region | | Search Modes | By date & time, timeline, event, and intelligent video analytics (IVA) | Intelligent Video Analytics | Motion detection, missing object, foreign object, out of focus, and camera occlusion | Playback Channel | Maximum 16-view playback from multiple NVR servers simultaneously | Playback Modes | Play, pause, stop, reverse play, next/previous frame, next/previous video file, and speed control | Features | Advanced Playback: Full screen display, video snapshot, digital zoom, and digital watermarking | Export | Multiple files export to an AVI file | Download | Video files and snapshots can be accessed by Web File Manager (HTTP), FTP, or SMB/CIFS | | Disk Management | Single disk, RAID 0, RAID 1, RAID 5, RAID 5+hot spare, and JBOD Online RAID capacity expansion and online RAID level migration Hard disk S.M.A.R.T. and bad blocks scanning | | Support | HTTP, TCP/IP, SMTP, DHCP, Static IP, DNS, DDNS, FTP, and NTP | | Access Rights Management | Multiple accounts creation with different rights of monitoring, playback, PTZ control, and audio monitoring | Access Control | Control of allowed and denied access to the NVR | UPS | APC, CyberPower, MGE, YEC (USB) | Languages | Czech, Danish, Dutch, English, French, Finnish, German, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Spanish, Swedish, Simplified Chinese, Traditional Chinese, Turkish | Miscellaneous | Auto Logoff: Automatic user logoff from idling configuration pages Online Users List: Logon status display of active users and logon history Event Logs: Detailed event logs | | Operating System | Microsoft Windows 8, 7, Vista | Web Browser | Google Chrome 23.0.1271.64m, Microsoft Internet Explorer 8/9/10 (desktop mode, 32-bit), Mozilla Firefox 17.0.1 | Network Interface | 10/100/1000 Mb/s | Display Resolution | Suggested 1280 x 720 pixels or above | | Operating System | Linux-embedded | Supported IP Cameras | Maximum 12; supports video servers as well | Multi-server Monitoring | Up to 128 channels | Video Compression | IP Camera: H.264, MPEG-4, M-JPEG & MxPEG (depending on the camera models | Network Throughput | Maximum 250 Mb/s | Megapixel Recording | Up to 10 Mp | Playback | Playback: 16-view | Intelligent Video Analytics | Motion detection, missing object, foreign object, out of focus, and camera occlusion | Supported Hard Drives | Maximum 4 x 3.5" SATA, 2.5" SATA, SSD | Storage Capacity | Maximum: 16 TB (4 x 4 TB hard drives) | RAID | RAID 0, 1, 5, 5+hot spare, 6 | Processor | Dual-Core Intel CPU | LAN Ports | 2 | USB Ports | 2 x USB 3.0 5 x USB 2.0 | Power Consumption | 64.2 W | Dimensions (H x W x D) | 6.97 x 7.09 x 9.25" (177.00 x 180.00 x 235.00 mm) | Gross Weight | 12.30 lb (5.58 kg) | | Package Weight | 12.85 lb | Box Dimensions (LxWxH) | 12.6 x 12.0 x 9.9" |
