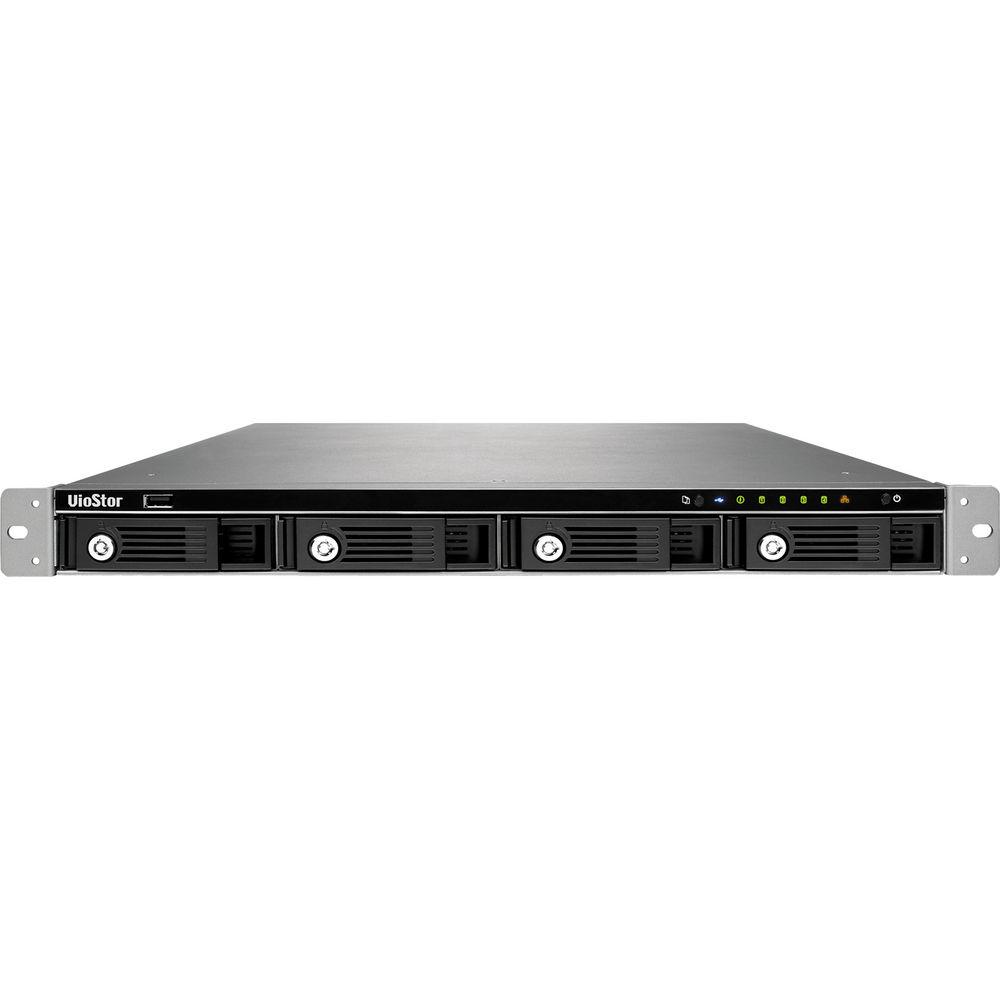

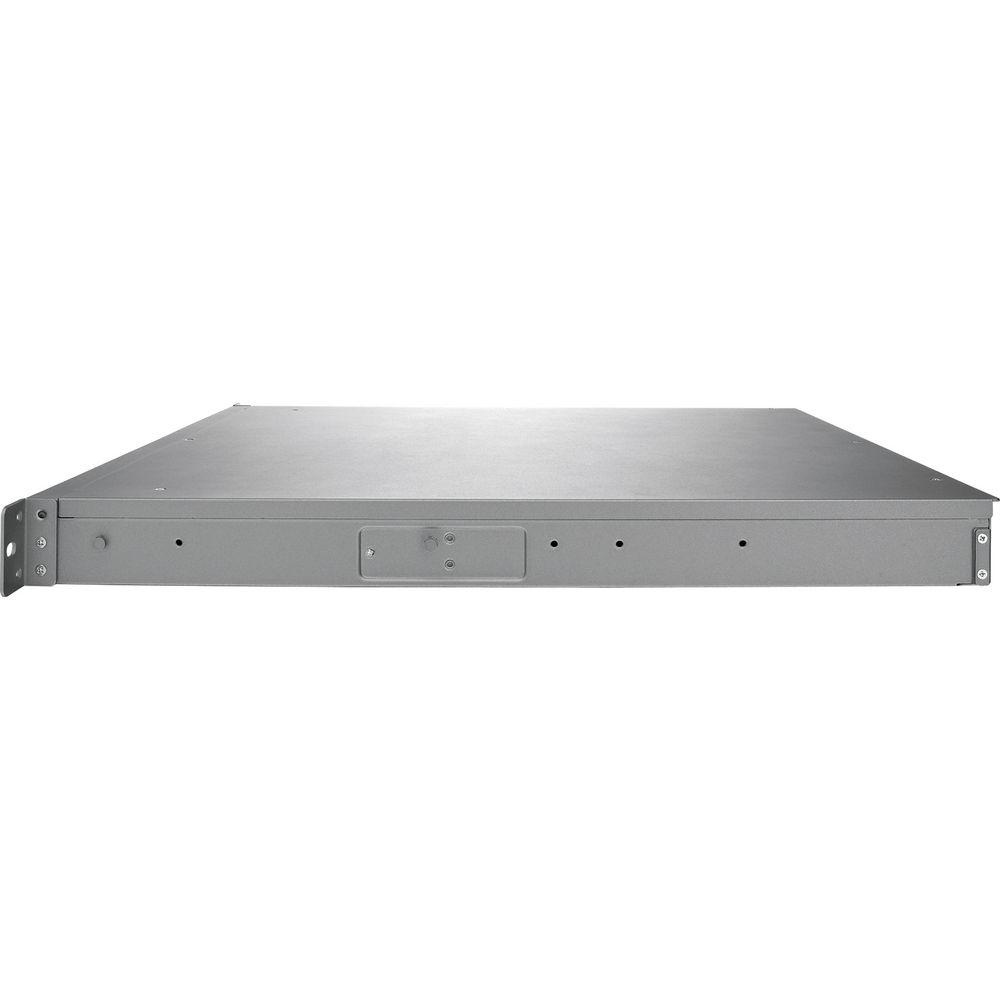

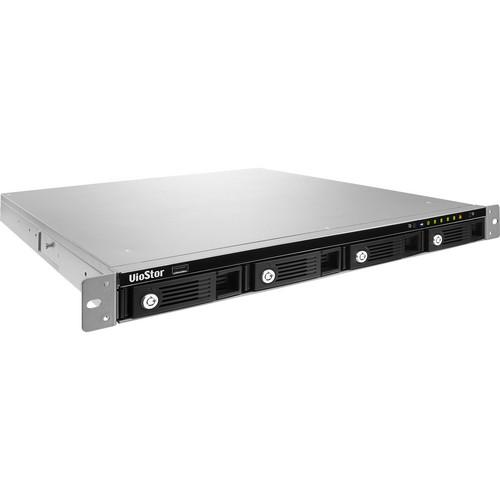

User Manual for QNAP VS-4112U-RP-PRO VioStor 12-Channel 1080p NVR Click to enlarge the picture
Contents of the user manual for the QNAP VS-4112U-RP-PRO VioStor 12-Channel 1080p NVR
- Product category: Network Video Recorders (NVRs) QNAP
- Brand: QNAP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for QNAP Network Video Recorders (NVRs)
 |
User manual for the QNAP VS-4112U-RP-PRO VioStor 12-Channel 1080p NVR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any QNAP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official QNAP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a QNAP product will considerably shorten its lifespan!
|
Product description The 12-Channel 1080p NVR from QNAP is powered by an Intel Quad-Core 2.6 GHz processor to deliver a throughput rate of up to 250 Mbps to ensure stable recording and smooth playback of multiple cameras. This NVR can support up to 24TB of total storage with a 6TB hard drive in each 3.5" bay, to accommodate H.264 compression. It also supports a 1080p display resolution at up to 200 fps via HDMI. The fan provides system heat dissipation with minimal vibration, and is replaceable without interrupting system operations.
The NVR supports RAID 0, 1, 5, 5 with hot spare, 6, and 10, as well as JBOD and linear configurations. Hot-swappable drives allow you to replace hard drives without interrupting system operations. The QVR system lets you manage and monitor multiple cameras in real time using a web browser. This NVR supports multiple port-trunking modes in order to set up link aggregation to increase total data transmission capability. Failover is also supported to ensure continuous system operation. - Up to 250 Mbps throughput for recording and playback from up to cameras
- HDMI output delivers 1920 x 1080 resolution at up to 200 fps
- H.264, MPEG-4, MJPEG, and MxPEG compression
- E-map function for live-view monitoring
- Supported port-trunking modes include balance-RR (round robin), active backup, balance XOR, broadcast, IEEE 802.3ad, balance-TLB (adaptive transmit load balancing) and balance-ALB (adaptive load balancing).
- Install free QSCM Lite app for advanced CMS features
UPC: 885022004539 In the Box QNAP VS-4112U-RP-PRO+ VioStor 12-Channel 1080p NVR 2 x Ethernet Cable Power Cord Screw Pack Hard Disk Lock 6 x Terminal Blocks 1U Rail Kit 8 x Screws 2 x Handles 2 x Rackmount Ears Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the QNAP VS-4112U-RP-PRO VioStor 12-Channel 1080p NVR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersQNAP VS-4112U-RP Pro+ Specs | Processor | Dual-core Intel 2.6 GHz processor | | Memory | 4 GB RAM | | Flash Memory | 512 MB DOM | | HDD Capacity | 4 x 3.5" SATA 6 Gb/s, SATA 3 Gb/s hard drives | | HDD Tray | 4 x hot-swappable and lockable tray | | LAN Ports | 2 x Gigabit RJ45 Ethernet ports | | Compression | H.264, MPEG-4, MJPEG, and MxPEG | | LED Indicators | LAN, HDD1-4, power, status, USB | | USB Ports | 3 x USB 2.0 ports (1 x front, 2 x rear)
2 x USB 3.0 ports | | Video Output | 1 x HDMI | | I/O | 8 x alarm inputs
2 x alarm outputs | | Audio | Audio in/out for local display | | Buttons | Power button, one-touch-auto-video-backup button, reset button | | Alarm Buzzer | System warning | | Network Throughput | Up to 250 Mbps | | Security | K-Lock security slot | | Operating Temperature | 32 to 104˚F (0 to 40˚C) | | Relative Humidity (non-condensing) | 5 to 95%, wet bulb: 80.6°F (27˚C) | | Power Supply | 100-240 VAC | | Fan | 3 x 0.13" (4 cm) 12 VDC internal fans | | Dimensions | 1.73 x 16.97 x 19.65" (44 x 439 x 499 mm) | | Weight | 25.44 lb (11.54 kg) | | | | Package Weight | 30.75 lb | | Box Dimensions (LxWxH) | 26.0 x 24.5 x 6.3" |
