User Manual for QSC AC-C6T Acoustic Ceiling Mount Loudspeakers Click to enlarge the picture
Contents of the user manual for the QSC AC-C6T Acoustic Ceiling Mount Loudspeakers
- Product category: Installed Speakers QSC
- Brand: QSC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for QSC Installed Speakers
 |
User manual for the QSC AC-C6T Acoustic Ceiling Mount Loudspeakers contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any QSC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official QSC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a QSC product will considerably shorten its lifespan!
|

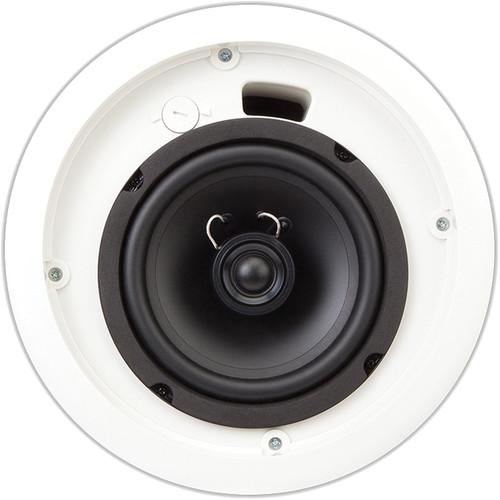

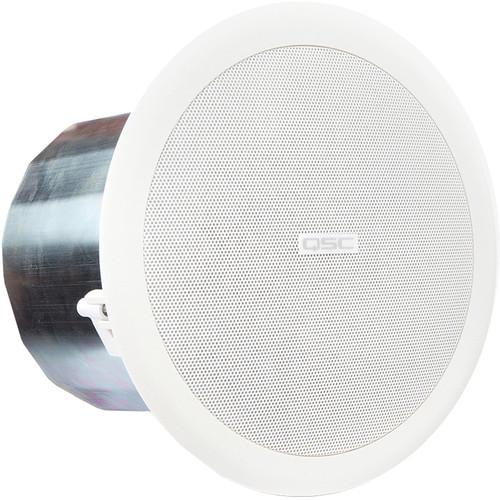

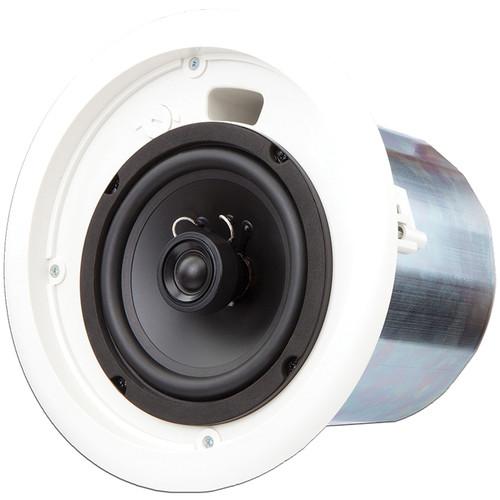

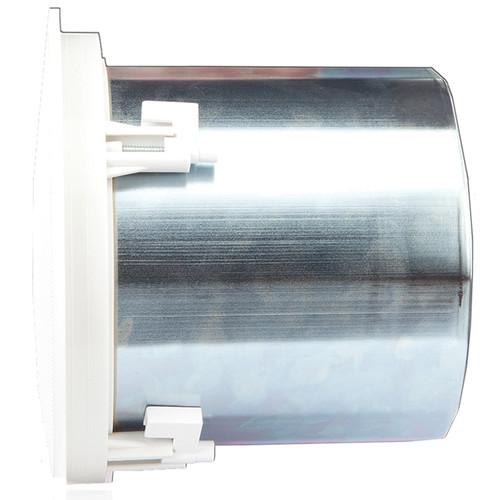

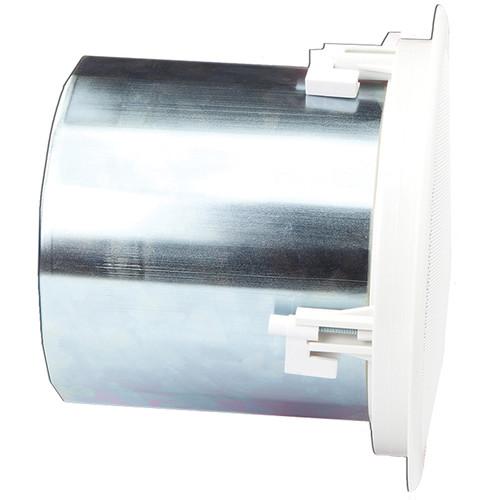

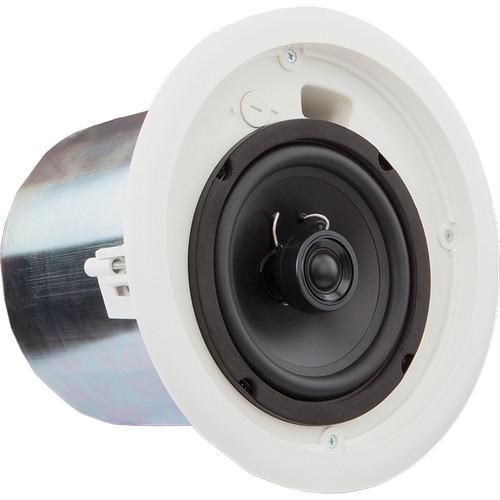

Product description This pair of AC-C6T Acoustic Ceiling Mount Loudspeakers from QSC is a set of 6" ceiling-mounted two-way loudspeakers with 70/100V line transformers, suitable for a wide variety of voice paging and background music sound reinforcement applications. The loudspeaker features a 6" polypropylene cone transducer with a butyl rubber surround and a coaxially mounted.86" silk dome tweeter. It features 110° of conical coverage. The blind mount assembly features a ported baffle which tunes the galvanized steel backcan for added musicality, creating a low frequency extension down to 65 Hz. To maintain this frequency response, the AC-C6T utilizes a 30W low-saturation and low-loss 70/100V transformer with varying selectable taps, including an 8-ohm bypass.

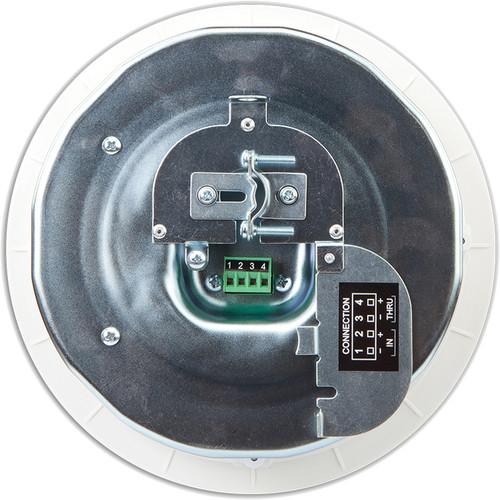

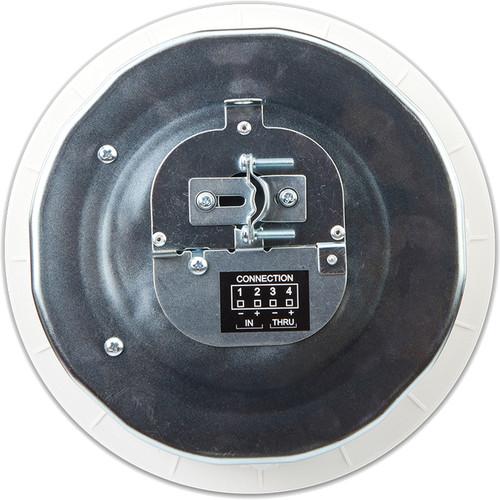

The rotary tap selector switch is accessible under the painted steel grille. The AC-C6t features a 4-pole Euroblock connector for loop-thru wiring, located under a quick access swivel plate which can accept four 18AWG pairs. A safety tether tab is affixed to the adjustable conduit clasp plate for seismic sensitive installations. C-ring and tile rails are included with each pair packed assembly, complete with joining screws and cut-out template.The AC-C6T baffle and grille are QSC standard white (RAL 9010) to match complementing QSC product families and includes UV inhibitors to prevent discoloration over time. The AC-C6T may also be painted to match any décor. - 6" 2-Way system provides for increased clarity through the critical voice range
- Ported baffle for increased low frequency extension down to 65 Hz
- Low-saturation 70V/100V transformers with 8-ohm bypass
- 4-pole Euroblock connector for easy system wiring
- Advanced voicing filter sets using QSC Intrinsic Correction are available through either Q-Sys processing or CXD amplifier platforms (sold separately)
- White (RAL 9010) with UV inhibitors
- Complete EASE, CF2, CAD, and BIM information available online
UPC: 684284066299 In the Box QSC AC-C6T Acoustic Ceiling Mount Loudspeakers (Pair) Rails C-Ring for Ceiling Tile Installation Limited 3-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the QSC AC-C6T Acoustic Ceiling Mount Loudspeakers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the QSC AC-C6T Acoustic Ceiling Mount Loudspeakers can be downloaded in PDF format at the link stated below.
Technical parametersQSC AC-C6T Specs | Frequency Range | 65 Hz to 20 kHz, effective | | Noise Power | 30 W/15.5 V rms (rated) | | Broadband Noise | 89 dB SPL | | Coverage Angle | 110° (500 Hz to 5 kHz) @ -6 dB | | Maximum Sound Pressure Level (SPL) | Continuous: 104 dB
Peak: 110 dB | | Rated Impedance | 8 ohms | | Transformer Taps | 70 V: 30, 15, 7.5, 3.7, 1.9 W and 8 ohm bypass
100 V: 30, 15, 7.5, 3.8, W and 8 ohm bypass | | High Frequency Transducer | 0.86" Silk dome tweeter, coaxially mounted | | Low Frequency Transducer | 6" Polypropylene cone with butyl rubber surround | | Input Connector | Euroblock connector with parallel output terminals | | Baffle Material | Painted ABS polymer | | Grille Material | Powder coated steel | | Backcan Material | Galvanized steel | | Testing | Listed UL1480, UL2043 safe for use in air handling space | | Dimensions | 10.24 x 8.4" (260 x 213 mm)
Cut-Out: 9" (229 mm)
Ceiling Capture Thickness: 0.25 to 1.5" (6.35 to 38.1 mm) | | Weight | 7.6 lb (3.5 kg) | | | | Package Weight | 20.8 lb | | Box Dimensions (LxWxH) | 13.2 x 12.5 x 12.5" |
