User Manual for QSC AC-S4T-BK 4" 2-Way AcousticCoverage Loudspeakers Click to enlarge the picture
Contents of the user manual for the QSC AC-S4T-BK 4" 2-Way AcousticCoverage Loudspeakers
- Product category: Installed Speakers QSC
- Brand: QSC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for QSC Installed Speakers
 |
User manual for the QSC AC-S4T-BK 4" 2-Way AcousticCoverage Loudspeakers contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any QSC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official QSC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a QSC product will considerably shorten its lifespan!
|

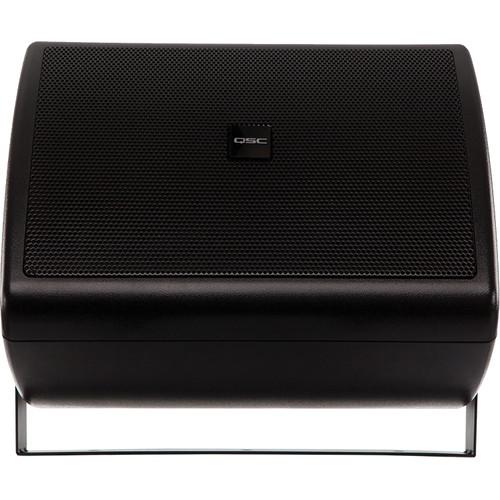

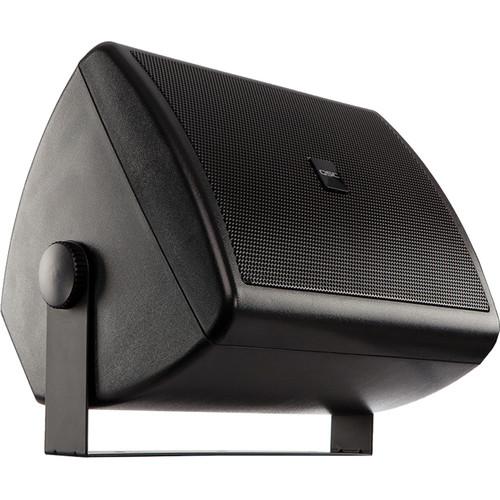

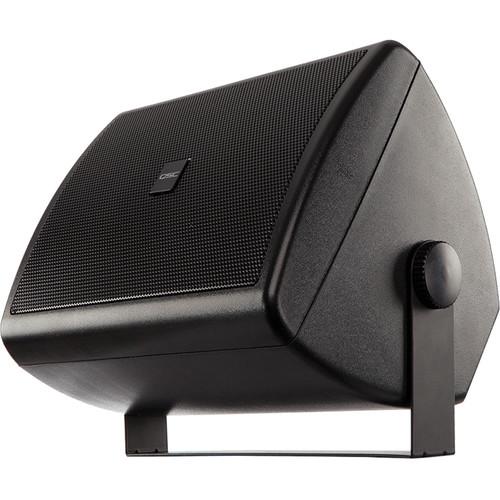

Product description This pair of black AC-S4T-BK AcousticCoverage Loudspeakers from QSC is a set of surface mounted 4" two-way loudspeakers with 70/100V transformers, suitable for voice paging and background music sound reinforcement applications.
Each loudspeaker features a 4" polypropylene cone transducer with a butyl rubber surround and a 1" aluminum dome tweeter designed to offer clarity through the critical vocal range for increased speech intelligibility. With 130° of conical coverage, the AC-S4T-BK reduces the number of loudspeakers required for even coverage in close proximity.
The UV treated high-impact ABS enclosure and ported baffle assembly has been optimally tuned for added musicality, creating low frequency extension down to 70 Hz. The AC-S4T-BK utilizes a 16W low-saturation and low-loss 70/100V transformer with varying selectable taps, including an 8-ohm bypass to maintain this frequency response.

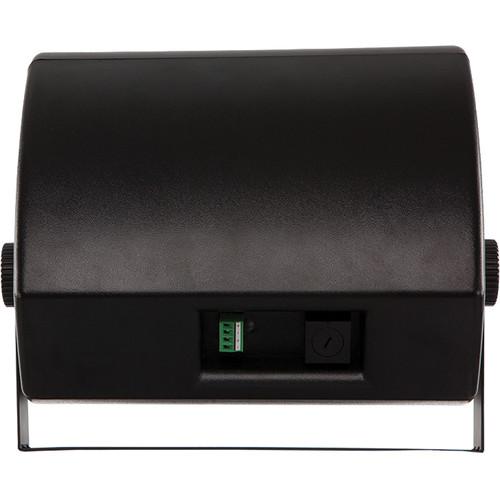

Advanced voicing via QSC Intrinsic Correction techniques are obtainable using Q-Sys networked audio processing platforms, including CXD amplifiers for a complete QSC systems solution. The loudspeaker features a 4-pole Euroblock connector for loop thru wiring, located on the rear of the enclosure. The Euroblock can accept four 18AWG pairs.

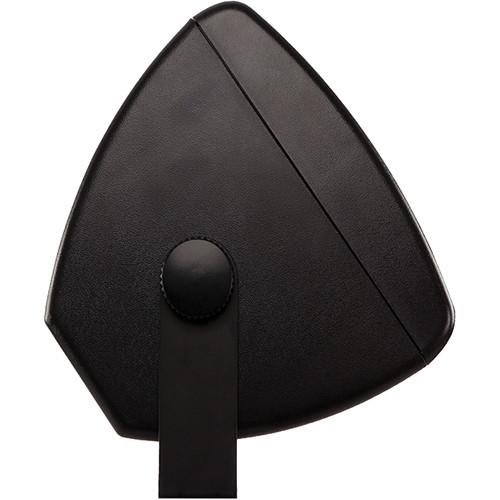

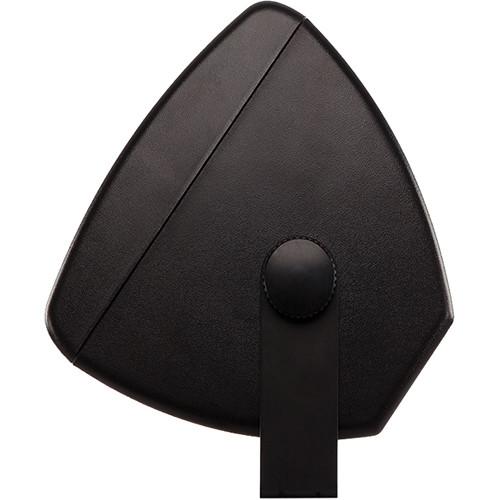

The AC-S4T-BK features brass inserts to accept the included yoke mount, and it is secured using the supplied thumb bolts. The grille has a spring loaded and rotatable logo for installation convenience in either horizontal or vertical deployments. To assist in successful systems integration, complete EASE, CAD, and BIM files are available for download online. - High quality transducers provide clarity through the critical voice range
- Ported baffle for increased low frequency extension down to 70 Hz
- Low saturation 70/100V transformers with 8 ohm bypass
- 4-pole Euroblock connector eases system wiring
- Advanced voicing via QSC Intrinsic Correction, applied using Q-Sys processing or CXD amplifier platforms
- Complete EASE, CAD & BIM information available online
UPC: 684284066848 In the Box QSC AC-S4T-BK 4" 2-Way AcousticCoverage Loudspeakers (Pair, Black) Yoke Mount System Euroblock Connector Limited 3-Year Warranty Guides & Manuals tswurcwyybeu Table of Contents
|
Upload User Manual
Have you got an user manual for the QSC AC-S4T-BK 4" 2-Way AcousticCoverage Loudspeakers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the QSC AC-S4T-BK 4" 2-Way AcousticCoverage Loudspeakers can be downloaded in PDF format at the link stated below.
Technical parametersQSC AC-S4T-BK Specs | Frequency Range | 70 Hz to 20 kHz | | Noise Power | 16 W/11.3 V rms | | Broadband Noise | 85 dB SPL | | Coverage Angle | 130° conical, 500 Hz to 5 kHz @ -6 dB | | Directivity Factor | 6 | | Directivity Index | 8 dB | | Maximum SPL | Continuous: 97 dB
Peak: 103 dB | | Rated Impedance | 8 ohms | | Recommended Amplifier Power | 32 W into 8 ohms | | Transformer Taps | 70 V: 16, 8, 4, 2, 1 W
100 V: 16, 8, 4, 2 W
8 ohms bypass | | Low Frequency Transducer | 4" (100 mm) Polypropylene woofer with 1" (25 mm) voice coil | | High Frequency Transducer | 1" (25 mm) Aluminum dome tweeter with 1" (25 mm) voice coil | | Input Connection Type | Euroblock connector with parallel output | | Enclosure Material | UV treated, high impact ABS polymer | | Grille Material | Powder-coated steel | | Yoke Material | Powder-coated steel with brass inserts | | Enclosure Characteristics | Ingress Protection: IP-44
Operating environment: Designed for indoor use
Operating Temperature: -4 to 122°F (-20 to 50°C) | | Dimensions | 9.1 x 6.3 x 5.9" (230 x 160 x 150 mm) | | Weight | 5.3 lb (2.4 kg) | | | | Package Weight | 12.0 lb | | Box Dimensions (LxWxH) | 14.0 x 11.0 x 8.0" |
