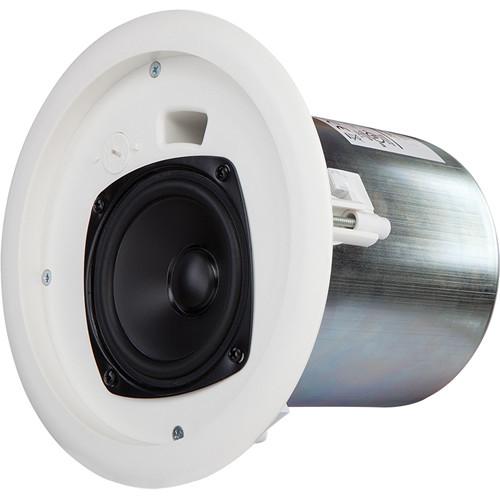

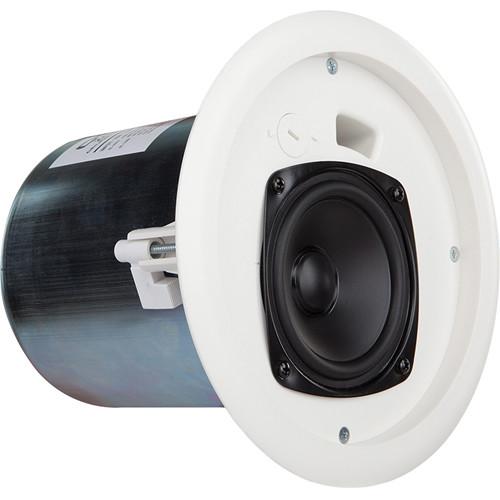

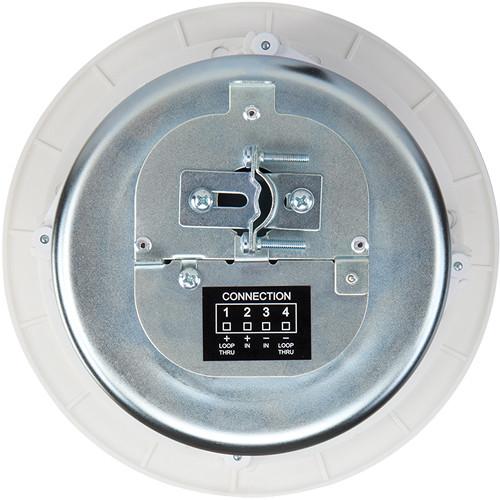

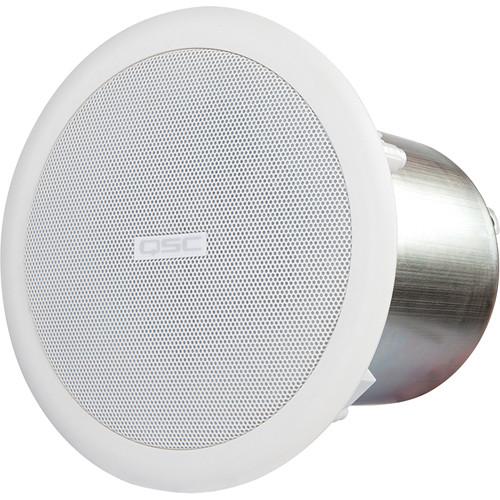

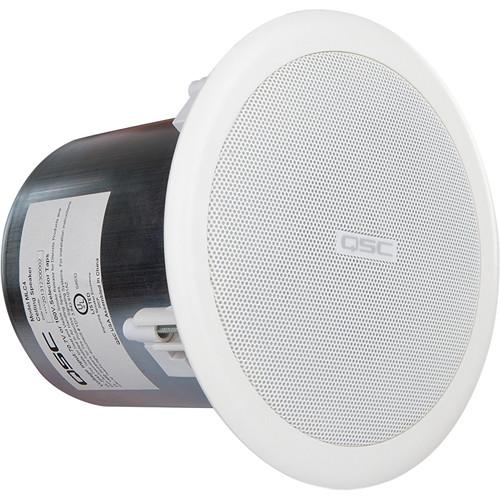

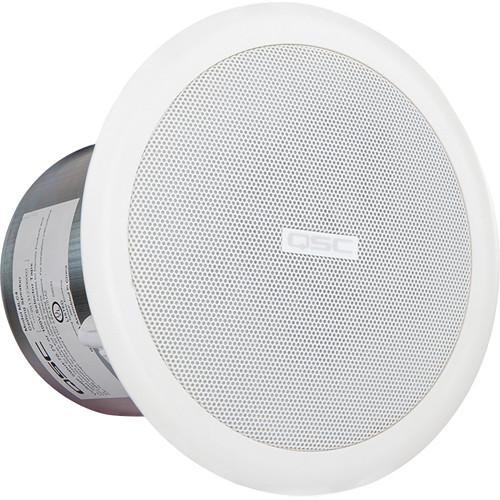

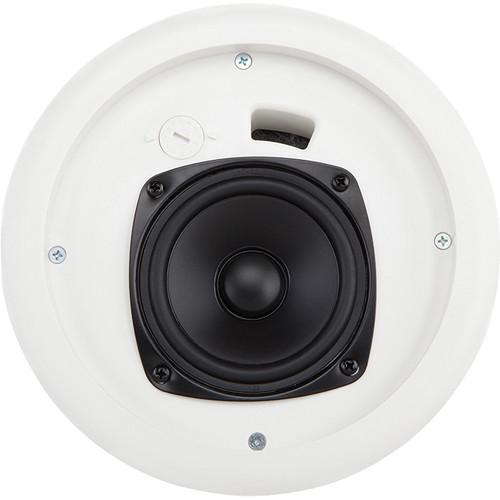

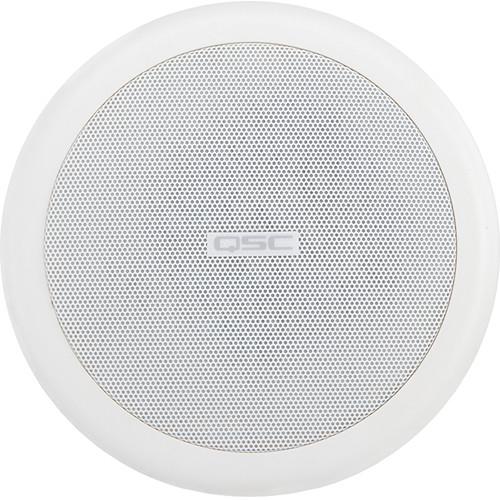

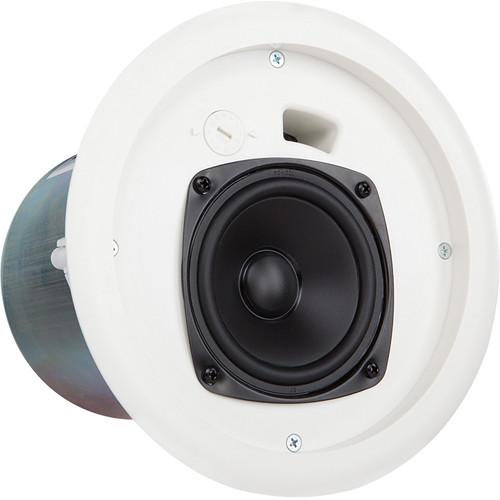

Product description This pair of QSC AcousticCoverage Series AC-C4T 4” Ceiling-Mount Loudspeakers features a polypropylene cone transducer with butyl rubber surround that offers clear sound with a frequency response range of 70 Hz to 16 kHz. It offers 140° of conical coverage. This loudspeaker utilizes a 16W low-saturation and low-loss 70/100V transformer with varying selectable taps, including an 8Ω bypass. The rotary tap selector switch is accessible under the powder-coated steel grille.The easy-to-install blind mount assembly features a ported baffle and galvanized steel backcan. The 4-pole Euroblock connector is located under a quick access swivel plate and accepts four 18AWG pairs for loop-thru wiring. A safety tether tab is affixed to the adjustable conduit clasp plate for seismic-sensitive installations. C-ring and tile rails are included with each pair packed assembly, complete with joining screws and a cut-out template. The baffle and grille are QSC standard white (RAL 9010) to match complimenting QSC product families and includes UV inhibitors to prevent discoloration over time. They may also be painted to match any decor. - 4" full-range transducer that offers clarity in sound with a frequency response range of 70 to 16 kHz
- Ported baffle for optimum low frequency response
- Low saturation 70/100V transformers with 8Ω bypass
- 4-pole Euroblock connector eases system wiring
- White (RAL 9010) finish with UV inhibitors
- Suitable for use in voice paging and background music sound reinforcement applications in office buildings, healthcare facilities, concourses, transportation terminals, or as an ancillary support in larger systems
UPC: 684284064332 In the Box QSC AcousticCoverage Series AC-C4T 4" Ceiling-Mount Loudspeakers (Pair) Rails C-Ring Limited 3-Year Warranty Guides & Manuals bebbxzsbsuucffewbwvzrracwfcxfu Table of Contents
|
Upload User Manual
Have you got an user manual for the QSC AcousticCoverage Series AC-C4T 4" Ceiling-Mount Loudspeakers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the QSC AcousticCoverage Series AC-C4T 4" Ceiling-Mount Loudspeakers can be downloaded in PDF format at the link stated below.
Technical parametersQSC AC-C4T Specs | Frequency Range | 70 Hz to 16 kHz Free-field, -10 dB from on-axis sensitivity | | Noise Rating | Power: 16 W
Voltage: 11.3 Vrms IEC60268-1 noise signal for 2 hours | | Sensitivity | Broadband: 89 dB SPL On-Axis, free-field sensitivity, 2.83 V, 3.3' (1.0 m) | | Coverage Angle | At -6 dB: 140° (500 Hz to 5 kHz) | | Maximum SPL | Continuous: 101 dB
Peak: 107 dB Calculated from rated noise voltage and sensitivity | | Rated Impedance | 8 Ω | | Transformer Taps | 70 V: 16, 8, 4, 2, 1 W, and 8 Ω bypass
100 V: 16, 8, 4, 2 W, and 8 Ω bypass | | Transducer | 4.0" (10.2 cm) Polypropylene cone with butyl rubber surround | | Input Connector | Euroblock connector with parallel output terminals | | Material of Construction | Baffle: Painted ABS polymer
Grille: Powder coated steel
Backcan: Galvanized steel | | Testing | Listed UL1480, UL2043 safe for use in air handling space | | Dimensions | Diameter: 8.4" (21.4 cm)
Height: 7.9" (20.1 cm)
Cut Out Diameter: 7.31" (18.57 cm)
Ceiling Capture Thickness: 0.25" to 1.50" (0.63 to 3.81 cm) | | Weight | 4.9 lb (2.2 kg) | | | | Package Weight | 7.5 lb | | Box Dimensions (LxWxH) | 24.8 x 11.0 x 11.0" |
