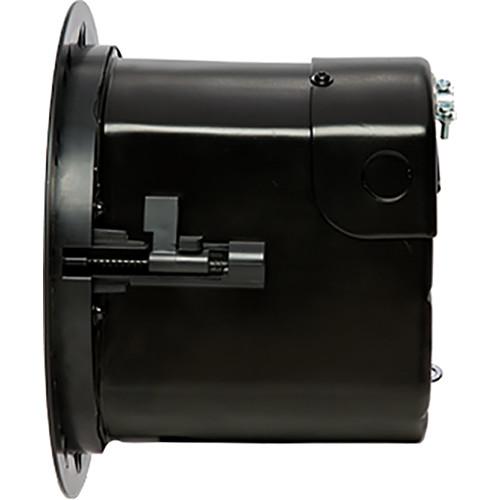

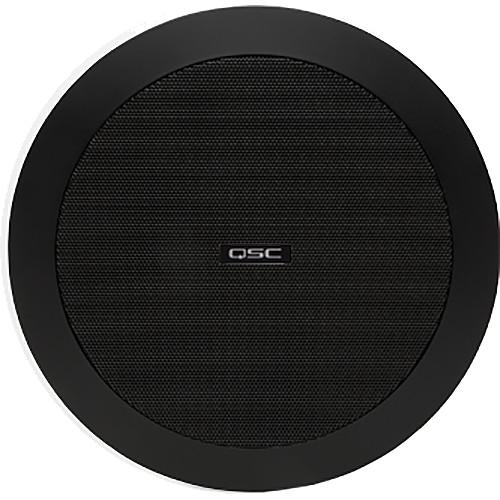

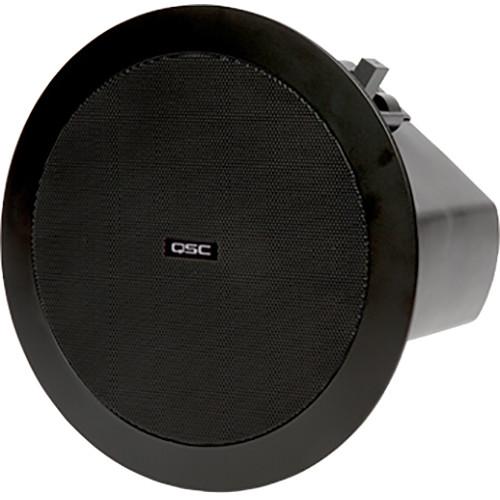

QSC AcousticDesign 4.5" 2-Way Ceiling Loudspeaker

User Manual for QSC AcousticDesign 4.5" 2-Way Ceiling Loudspeaker

• Product category: Installed Speakers QSC
• Brand: QSC
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for QSC Installed Speakers

Product description

• Consistent tonal characteristics for surface, ceiling, and pendant applications

• DMT (Directivity Matched Transition) waveguide ensures smooth, uniform frequency response over the coverage area

• Snap-fit magnetic grill

• 3x double-stepped, long-travel dog-ear blind mount system

• Intrinsic Correction voicings available via the Q-SYS Platform including CXD amplifiers

• Blemish-free removable logo

• Removable conduit cover plate

• UL1480 and UL2043 certified EN54-24 Type A, 0359-CPR-00623

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

QSC AD-C4T-BK Specs

Low Frequency Transducer	4.5" / 110 mm weather-treated paper cone woofer
High Frequency Transducer	0.75" / 19 mm aluminum dome tweeter
Frequency	70 Hz - 20 kHz
Power	30 W / 22 V (rms)
Sensitivity	87 dB (rated at 1 W, 1 m) 73 dB (EN54-24 at 1 W, 4 m)
Coverage	150° conical Directivity Matched Transition (rated at -6 dB) Horizontal / Vertical: 500 Hz: 176° / 176° 1 kHz: 160° / 160° 2 kHz: 156° / 152° 4 kHz: 103° / 111°
SPL	(Hz : dB): 500: 59.1; 630: 59.4; 800: 60.0; 1000: 60.0; 1250: 61.0; 1600: 60.5; 2000: 62.3; 2500: 61.0; 3150: 58.0; 4000: 62.2
Equalization	EN54-24 Equalization: High Pass, 24 dB/oct, Butterworth, Fc: 70 Hz Low Shelf, 12 dB/oct, (Q)1.2 / (BW)1.17, Fc: 340 Hz, gain: -5 dB High Shelf, 12 dB/oct, (Q)0.8 / (BW)1.70, Fc: 6 kHz, gain: +5 dB
Directivity Factor	4.5
Directivity Index	6.5 dB
Maximum SPL	102 dB / 108 dB (rated, 1 m (continuous / peak) 85.51 dB / 86.52 dB (EN54-24, 4 m (low-Z / highest-tap)
Recommended Amplifier Power	60 W
Transformer Taps	Bypass: 16 Ohms 3.75 W (70 V); 7.5 W (100 V) Tap: 1333 Ohms 7.5 W (70 V); 15 W (100 V) Tap: 667 Ohms 15 W (70 V); 30 W (100 V) Tap: 333 Ohms 30 W (70 V); N/A (100 V) Tap: 167 Ohms
Input	Euroblock connector with parallel output
Enclosure	ABS baffle on powder coated steel back can
Grille	Powder-coated steel
Rating	IP34, designed for indoor use
Safety	EN54-24: 2008 type A, 0359-CPR-00623 UL1480, UL2043, NFPA90, NFPA70 suitable for use in air handling spaces. Transformer UL registered per UL1876, ROHS, CE compliant Baffle meets UL94-V0 and UL94-5VB flammability rating; in accordance with IEC60849 / EN60849 systems
Operating Temperature	-4 to 122°F / -20 to 50°C
Cutout Diameter	7.68" / 195 mm
