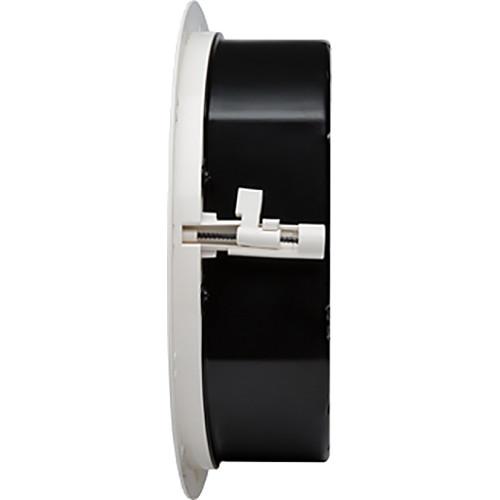

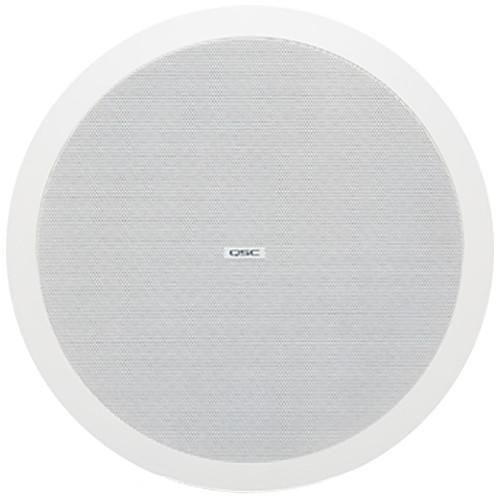

Product description Enhance the sound in your installation with this pair of RAL 9010 white AcousticDesign 6.5" 2-Way, Low-Profile Ceiling Loudspeakers from QSC. Designed for foreground and background sound reinforcement applications, each speaker has a 70/100V multi-tap transformer that can also be bypassed for use with 16-Ohm speaker systems. Each speaker features a 6.5" weather-treated paper cone woofer with a 1" voice coil and a 0.75" aluminum dome tweeter, which is positioned on a DMT waveguide. They are suitable for use in restaurants, retail stores, educational facilities, airports, and train stations. - Consistent tonal characteristics across the entire AcousticDesign speaker family for surface, ceiling, and pendant applications
- DMT (Directivity Matched Transition) waveguide ensures smooth, uniform frequency response over the coverage area
- Intrinsic Correction voicings via Q-SYS Platform including CXD-Q Series amplifiers (available separately)
- 3x double-stepped, long travel dog-ear blind mount system captures 0-2.25" of ceiling thickness
- Low-saturation and low-loss 70/100V transformers with 16-Ohm bypass
- Rugged ABS baffle protected with UV inhibitors to prevent discoloration
- Powder-coated steel back can
- Blemish-free removable logo
- Removable conduit cover plate
- Locking 4-pole Euro-block connector accepts four 18 AWG pairs
- UL1480 and UL2043 certified
- Complete EASE, CF2, CAD, and BIM information available from QSC's website
- Can be painted to match any décor
UPC: 684284067579 In the Box QSC AcousticDesign 6.5" 2-Way, Low-Profile Ceiling Loudspeaker (Pair, White) 2 x C-Rings Tile Rails Rail Screws 2 x Euroblock Connectors 2 x Cut-Out Templates 2 x Grilles Limited 3-Year Warranty Brochure PDF 687.1kbeafxfdqcaycuaxszzqvacuvxf Table of Contents
|
Upload User Manual
Have you got an user manual for the QSC AcousticDesign 6.5" 2-Way, Low-Profile Ceiling Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersQSC AD-C6T-LP Specs | Low Frequency Transducer | 6.5" / 165 mm weather-treated paper cone woofer | | High Frequency Transducer | 0.75" / 19 mm aluminum dome tweeter | | Frequency Response | 65 Hz - 20 kHz | | Power Handling | 60 W / 31 V (RMS) | | Sensitivity | 88 dB at 1 W, 3.3' / 1 m | | Coverage | 135° conical DMT at -6 dB | | Directivity Factor | 6.5 | | Directivity Index | 8 dB | | Maximum SPL | Continuous: 106 dB
Peak: 112 dB | | Recommended Amplifier Power | 60 W | | Transformer Taps | Bypass: 16 Ohms
7.5 W (70 V), 15 W (100 V), Tap: 667 Ohms
15 W (70 V), 30 W (100 V), Tap: 333 Ohms
30 W (70 V), 60 W (100 V), Tap: 167 Ohms
60 W (70 V), N/A (100 V), Tap: 83 Ohms | | Input Interface | Euroblock connector with parallel output | | Enclosure | ABS baffle on powder-coated steel back can | | Grille | Powder-coated steel | | IP Rating | IP34, for indoor use | | Safety | UL1480, UL2043, NFPA90, NFPA70 suitable for use in air handling spaces
Transformer UL registered per UL1876, ROHS, CE compliant
Baffle meets UL94-V0 and UL94-5VB flammability rating; in accordance with IEC60849/EN60849 systems | | Operating Temperature | -4 to 122°F / -20 to 50°C | | Cutout Diameter | 12" / 305 mm | | Dimensions (Ø x H) | 13.37 x 3.95" / 34 x 10 cm | | Weight | 4.2 lb / 9.3 kg | | | | Package Weight | 29.0 lb | | Box Dimensions (LxWxH) | 34.0 x 18.5 x 7.5" |
