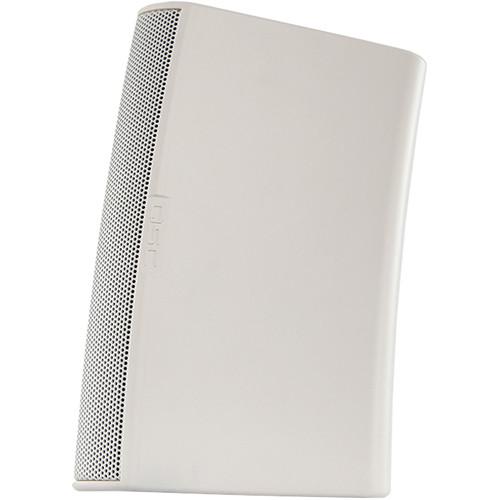

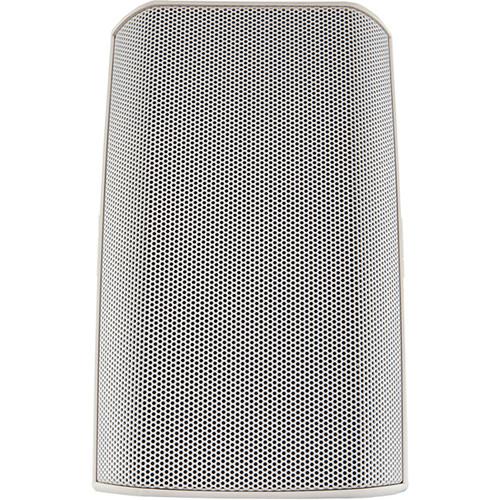

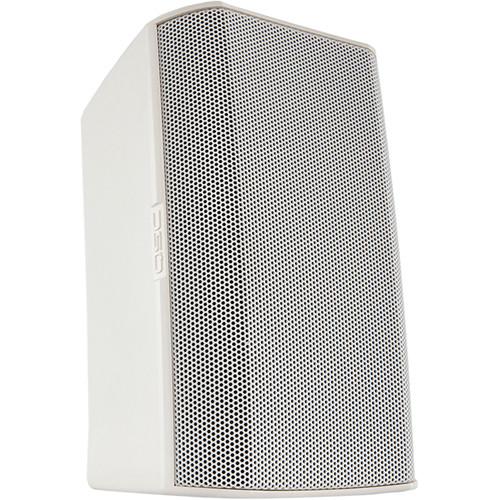

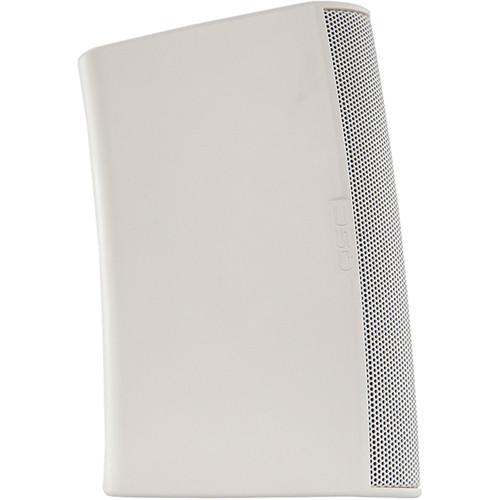

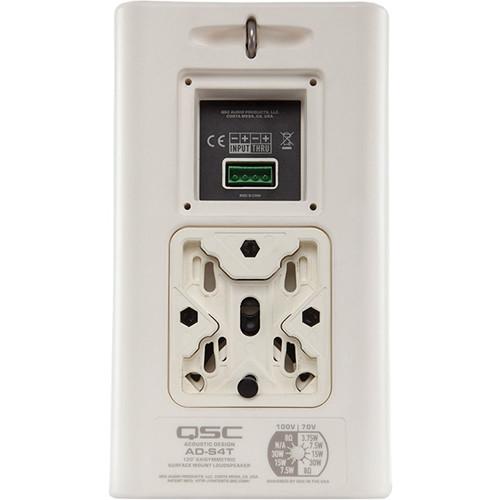

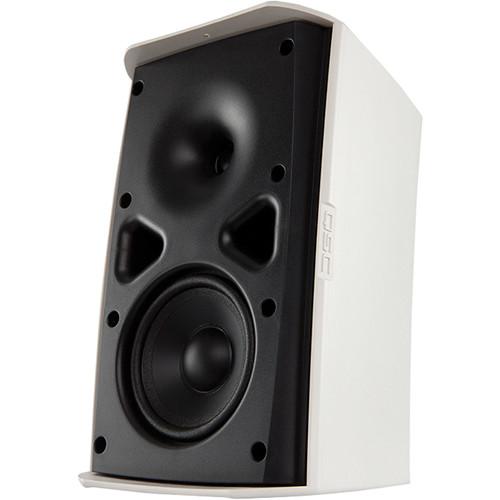

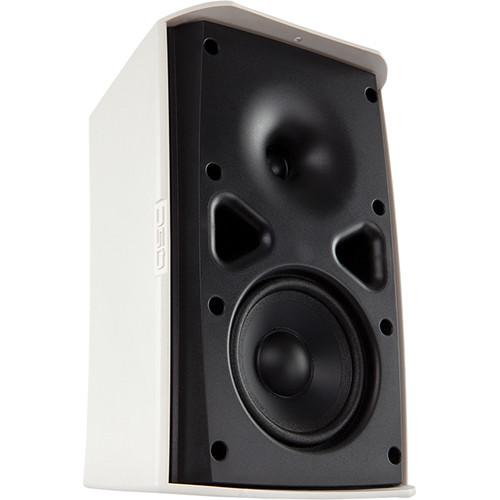

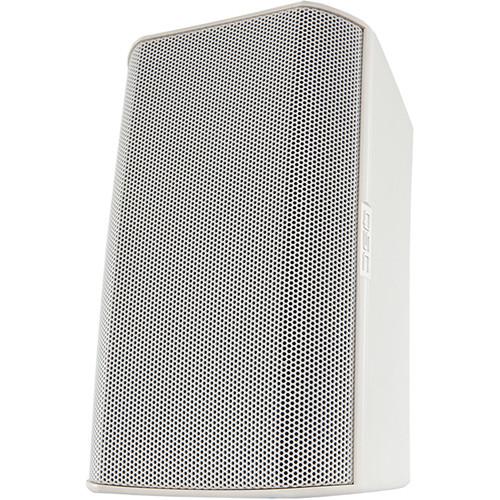

Product description This pair of white QSC AcousticDesign AD-S4T Loudspeakers is a surface mounted 70/100V, 4" two-way loudspeaker system, ideally suited for a wide variety of foreground and background sound reinforcement applications. The AD-S4T features a high-quality 4" weather-treated paper cone woofer on a 1" voice coil. It also has a 0.75" silk dome tweeter with a 0.75" voice coil. The consistent and even 120° axisymmetric (conical) coverage is achieved through DMT (Directivity Matched Transition), which matches the directivity patterns of the woofer and the high-frequency waveguide at the crossover point. The even and accurate frequency response of the AD-S4T is maintained even in 70/100V applications by use of a low-loss, low-saturation 30W transformer with selectable taps, including an 8-ohm bypass. The rotary selector is located on the back of the enclosure, protected by a weather grommet. Featuring a rugged ABS enclosure, sealed input panel cover, and powder-coated aluminum grille, the AcousticDesign surface-mounted speaker exceeds IEC60529 IP-54 ratings for dust and splash resistance.The two-way surface-mount loudspeaker includes the X-Mount system for easy installation. Knurled surfaces at the pivot planes ensure the load will not drift or sag over time. Articulation marks allow pre-configuration of the X-Mount while on the ground with no special tools required. Voicing filter sets using QSC Intrinsic Correction techniques are obtainable via Q-Sys networked audio processing platforms, including CXD amplifiers (sold separately). For your system integration needs, complete EASE, CF2, CAD, and BIM files are available for download on the QSC website. - 4" Weather-treated woofer; 0.75" silk dome tweeter
- 120° Axisymmetric (conical) coverage
- 30W Low-saturation and low-loss 70/100V transformers with 8-ohm bypass
- Maximum peak SPL 110 dB (8 ohm bypass)
- DMT (Directivity Matched Transition) ensures smooth, uniform frequency response over the coverage area
- X-Mount system enables the loudspeaker to be easily installed and deployed at a variety of angles
- Lightweight ABS enclosure for durability
- Sealed input panel cover and powder coated aluminum grille for added weather resistance
- Meets IEC60529 IP-54 for dust and splash resistance
- Suitable for foreground and background sound reinforcement applications in restaurants, retail, educational institutes, concourses, casinos, transportation terminals, places of worship, or as part of large system ancillary support
- Complete EASE, CF2, CAD, and BIM information available online
In the Box QSC AcousticDesign AD-S4T 4" Two-Way Surface Mount Loudspeakers (Pair, White) X-Mount Mounting System Euroblock Connector Input Panel Cover Limited 3-Year Warranty Brochure PDF 462.5kbyzfsuzqczv Table of Contents
|
Upload User Manual
Have you got an user manual for the QSC AcousticDesign AD-S4T 4" Two-Way Surface Mount Loudspeakers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersQSC AD-S4T-WH Specs | Frequency Range | 68 Hz to 20 kHz Free-field, -10 dB from on-axis sensitivity | | Noise Rating | Power: 50 W
Voltage: 20 V rms IEC60268-1 noise signal for 2 hours | | Sensitivity | Broadband: 87 dB SPL On-Axis, free-field sensitivity, 2.83 V, 3.3' (1 m) | | Coverage Angle | At -6 dB: 120° (500 Hz to 5 kHz) | | Directivity Factor | 6 | | Directivity Index | 8 dB | | Maximum SPL | Continuous: 104 dB
Peak: 110 dB Calculated from rated noise voltage and sensitivity | | Rated Impedance | 8 ohms | | Transformer Taps | 70 V: 30, 15, 7.5, 3.75 W and 8-ohm bypass
100 V: 30, 15, 7.5 W and 8-ohm bypass | | High Frequency Transducer | 0.75" (1.9 cm) silk dome tweeter/0.75" (1.9 cm) voice coil, horn loaded | | Low Frequency Transducer | 4" (100 mm) weather-resistant paper cone woofer / 1" (25 mm) voice coil | | Input Connector | Euroblock connector with parallel output terminals | | Construction Material | Enclosure: Painted ABS polymer
Grille: Powder-coated aluminum
X-Mount: Powder-coated aluminum | | Ingress Protection Rating | IP-54 | | Operating Environment | Indoor and outdoor use | | Testing | Salt Fog: MIL-STD-810G Method 509.5 for 100 hours
Humidity: MIL-STD-810G Method 507.5, Natural cycle B2, cyclic high RH for 7 days
High and Low Temperature: Tested to QSC internal standards between -4 to 122°F (-20 to 50°C) | | Operating Temperature | -4 to 122°F (-20 to 50°C) | | Dimensions | 10.27 x 6.34 x 6.42" (261 x 161 x 163 mm) | | Weight | 6.5 lb (2.9 kg) | | | | Package Weight | 16.55 lb | | Box Dimensions (LxWxH) | 15.0 x 10.0 x 9.0" |
