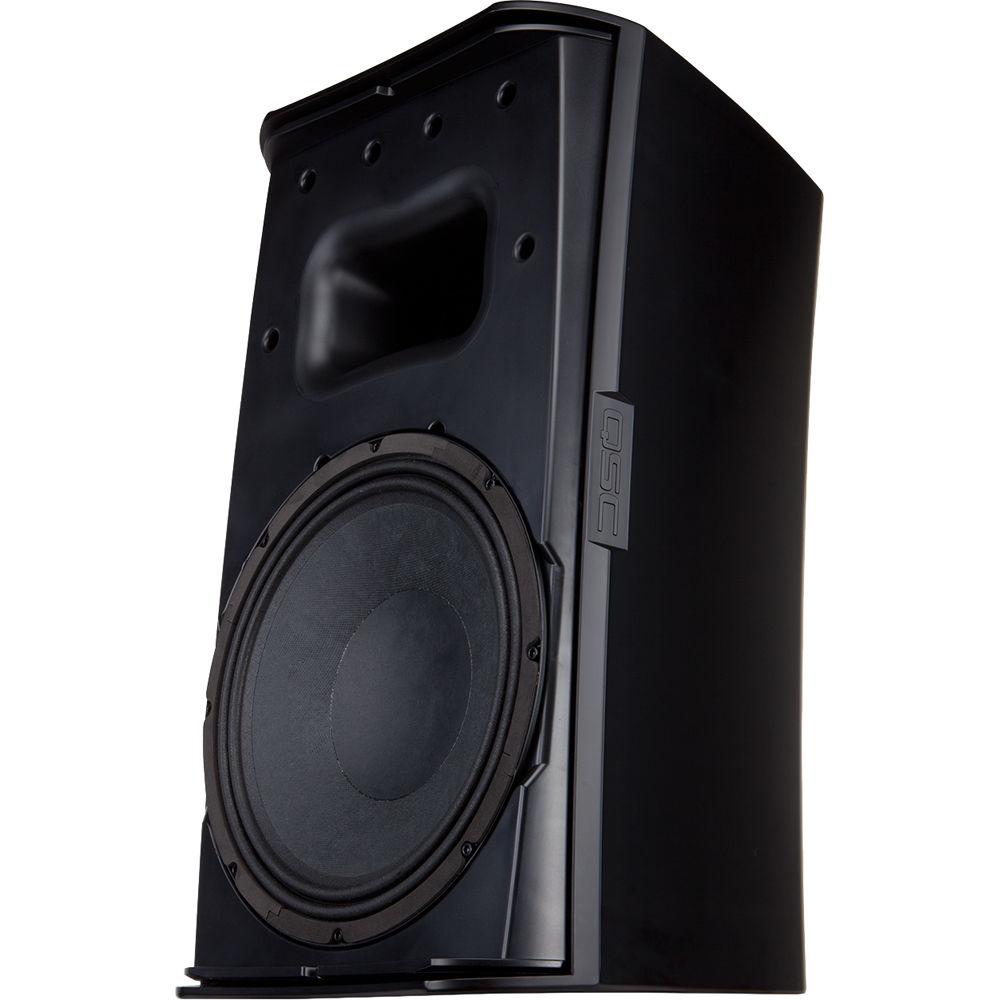

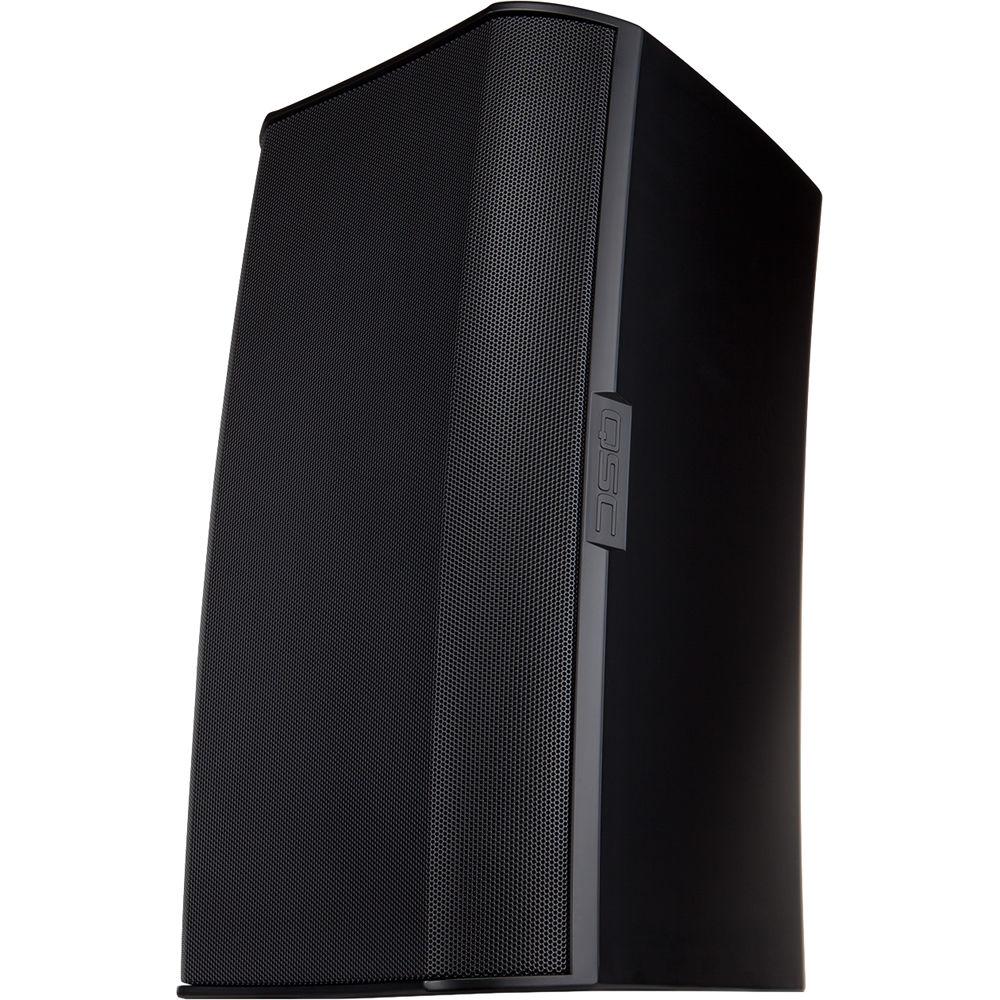

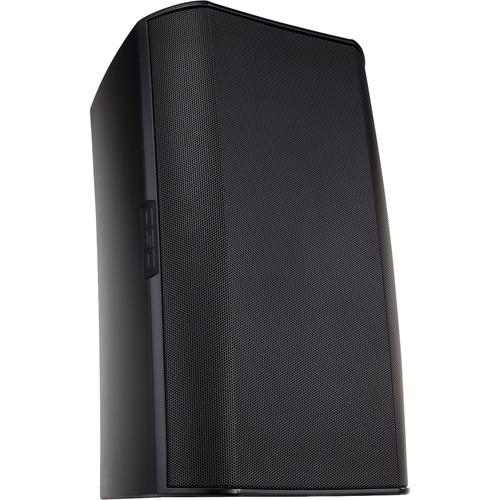

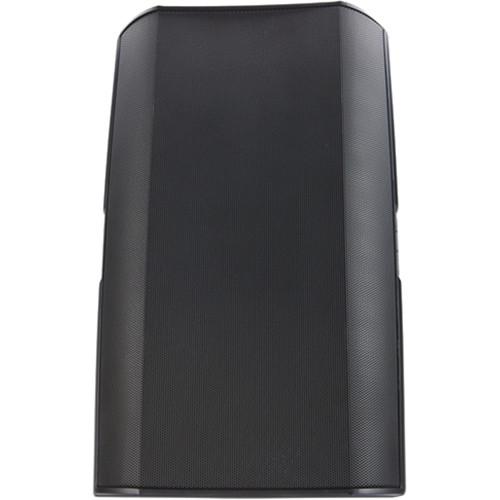

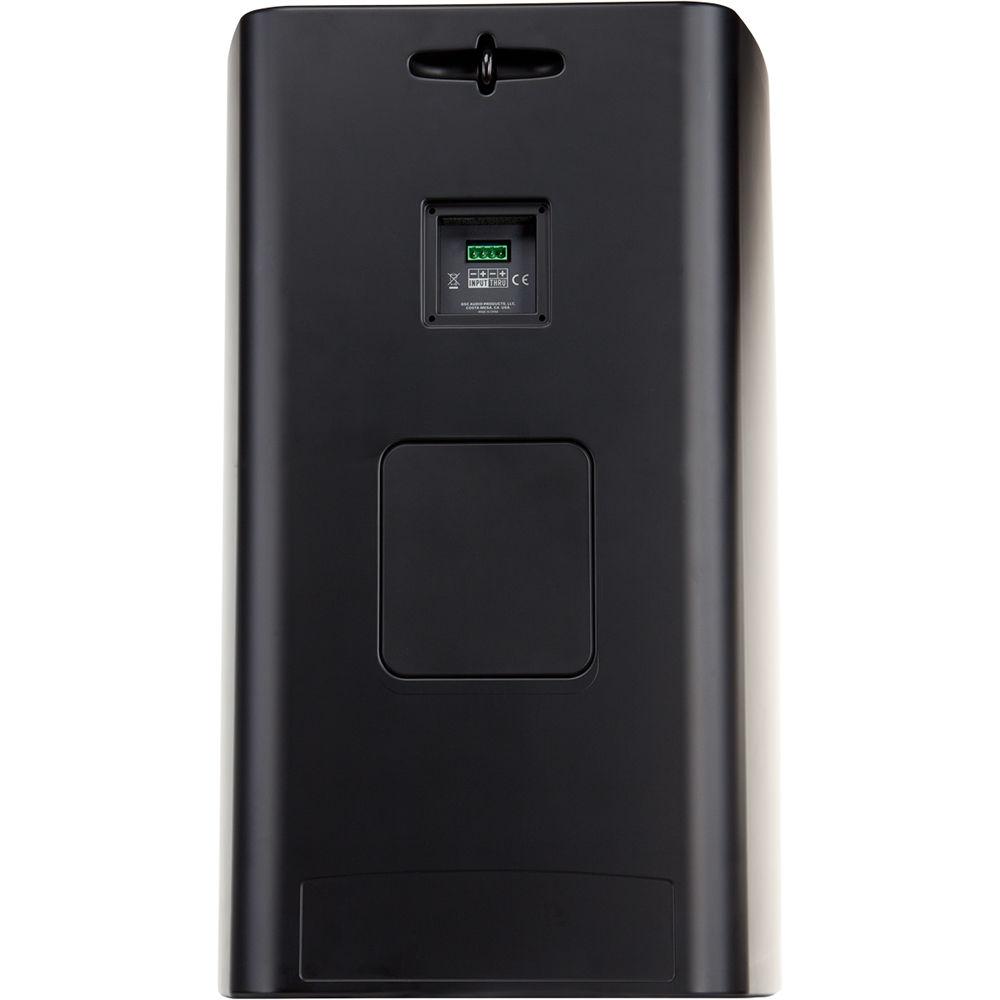

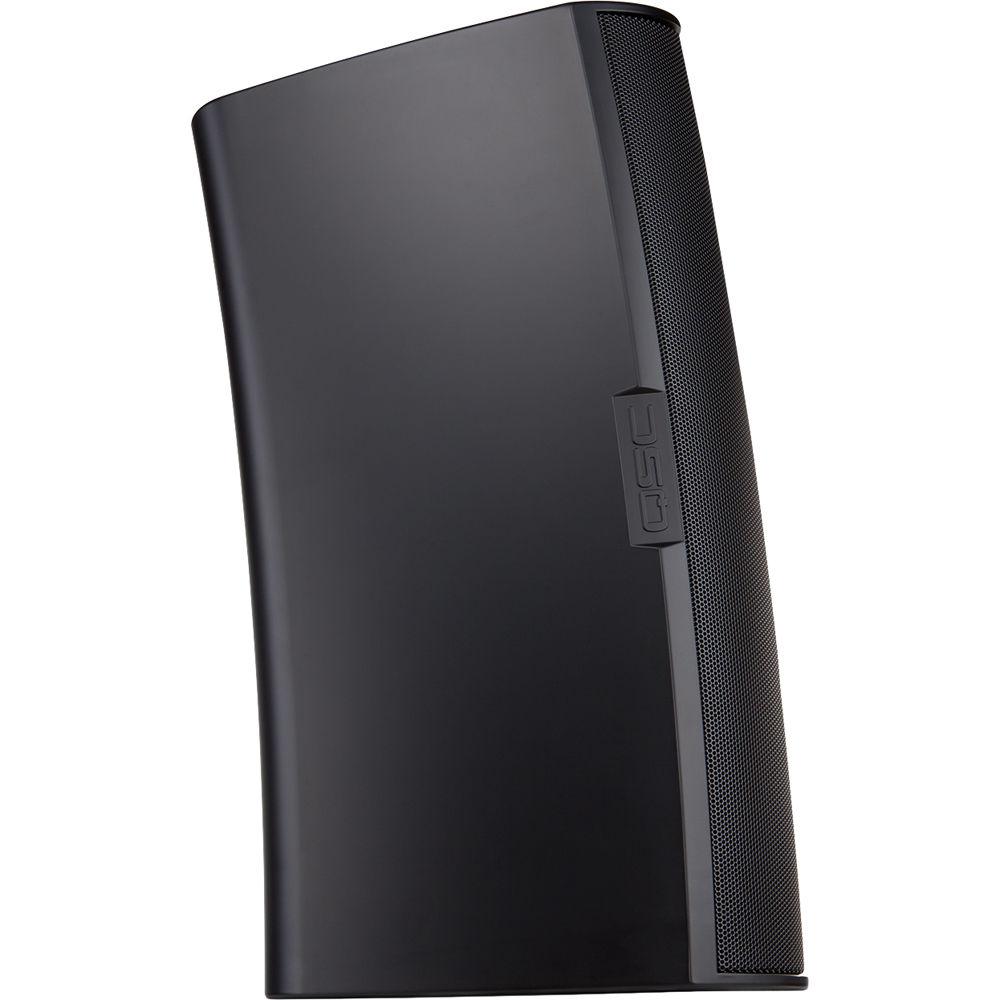

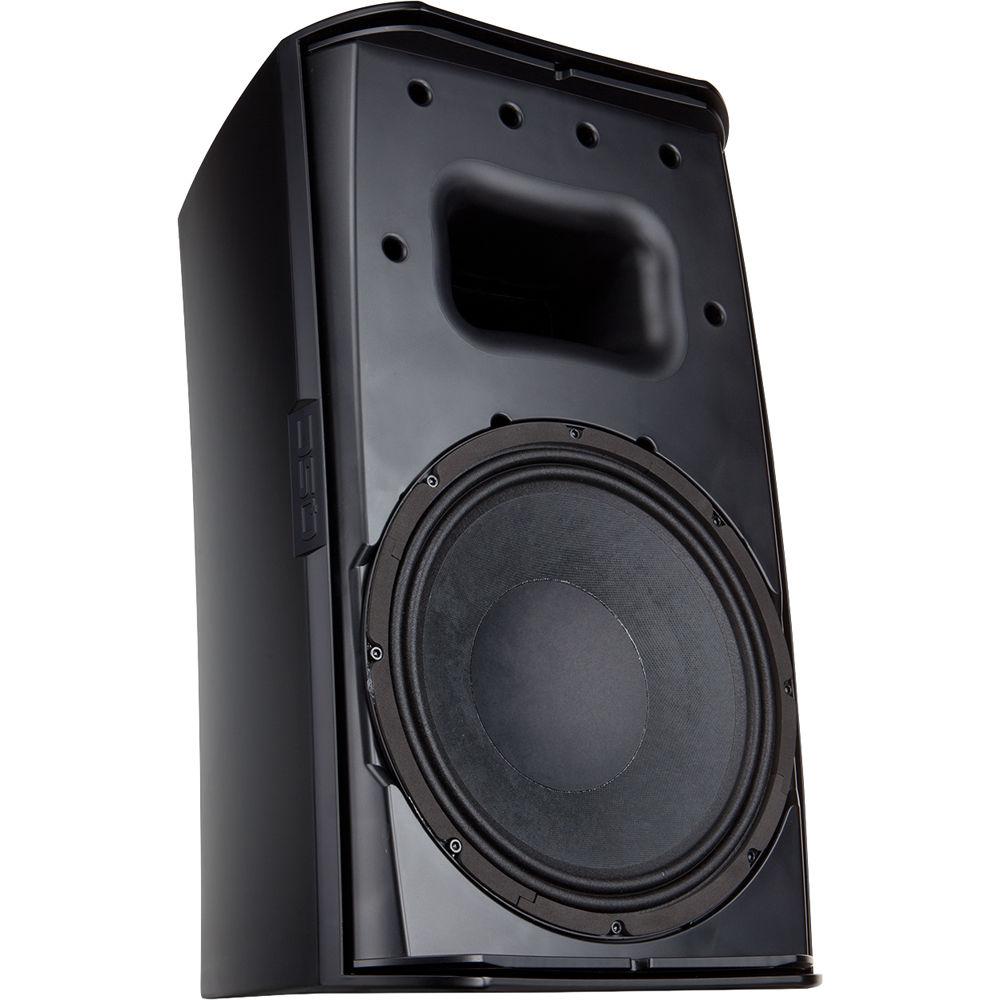

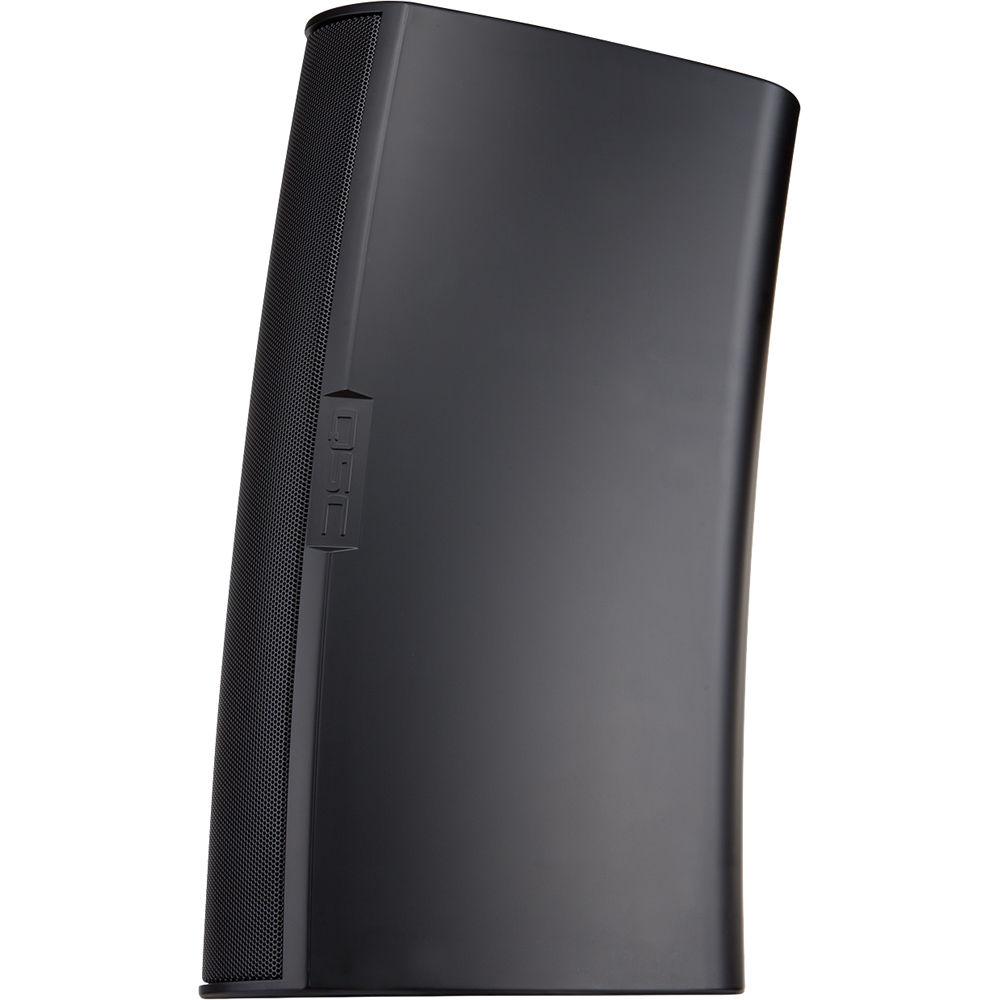

User Manual for QSC AcousticDesign Series 12" Surface-Mount Subwoofer with Yoke Bracket Click to enlarge the picture
Contents of the user manual for the QSC AcousticDesign Series 12" Surface-Mount Subwoofer
- Product category: Installed Speakers QSC
- Brand: QSC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for QSC Installed Speakers
 |
User manual for the QSC AcousticDesign Series 12" Surface-Mount Subwoofer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any QSC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official QSC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a QSC product will considerably shorten its lifespan!
|
Product description Provided by third party: The QSC AcousticDesign AD-S112SW is a low-impedance, surface mounted, 12" direct radiating subwoofer. The AD-S112SW allows impressive low frequency expression within a complimenting form factor, suitable of demanding foreground and background sound reinforcement applications. AcousticDesign series offers integrators a premium quality installed sound solution where performance, coverage, and aesthetics are paramount. Combined with unprecedented ease-of-installation and high weather resistance, the AcousticDesign series provides integrators a versatile and confident install solution.
The AD-S112SW features a high power 12" weather treated paper cone woofer on a 2.5" voice coil. TFR (Turbulent Flow Reduction) port design tunes the enclosure resonance and is optimized for high velocity air flow, resulting in higher output pressures before turbulence.
With rugged ABS enclosures, sealed input panel covers, and powder-coated aluminum grilles for weather resistance, the AcousticDesign surface mounted series is dust and splash resistant. To further enhance performance and speed of install with optimum result, advanced voicing filter sets using QSC Intrinsic Correction techniques are obtainable using Q-Sys networked audio processing platforms, including CXD amplifiers for a complete QSC systems solution.
- Key Features
-
- 12" weather treated woofer
- TFR (Turbulent Flow Reduction) port provides optimal resonant tuning and high velocity air flow
- Lightweight ABS enclosures offer long-term durability and lasting good looks
- Sealed input panel cover and powder coated aluminum grilles for added weather resistance
- Dust and splash resistant
Table of Contents
|
Upload User Manual
Have you got an user manual for the QSC AcousticDesign Series 12" Surface-Mount Subwoofer with Yoke Bracket in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersQSC AD-S112-SW-BK Specs | | | Product Type | Subwoofer | | Features | Turbulent Flow Reduction (TFR) port | | Enclosure Color | Black, RAL 9011 | | Enclosure Material | ABS polymer | | | | Speaker Type | Passive | | Speaker Diameter | 12" | | Nominal Output Power | 300 Watt | | Frequency Response | 30 - 135 Hz | | Nominal Impedance | 8 Ohm | | Recommended Amplifier Power | 600 Watt | | Output Level (SPL) | 115 dB | | Sensitivity | 90 dB | | Recommended Placing | Outdoor, indoor | | | | Driver Details | Subwoofer: subwoofer driver - 12" - paper | | | | Included Accessories | Yoke mount, Euroblock connector | | Compliant Standards | IP54 | | | | Width | 13.9 in | | Depth | 12.7 in | | Height | 23.4 in | | Weight | 29.1 lbs | | | | Shipping Width | 21.7 in | | Shipping Depth | 18.5 in | | Shipping Height | 27.5 in | | Shipping Weight | 43.21 lbs |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 12 owners. Add your rating and experience with the product.
