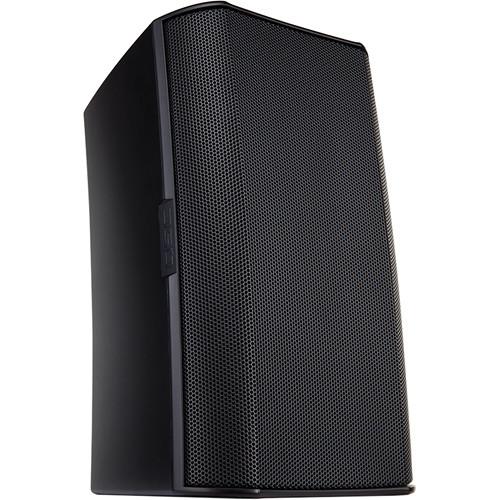

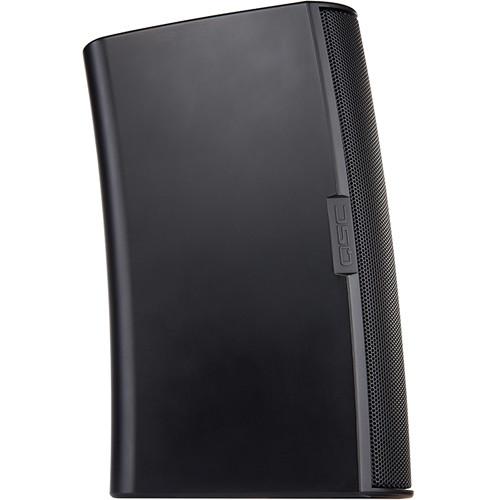

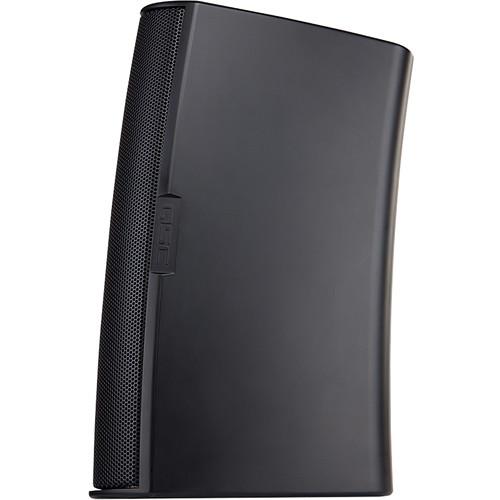

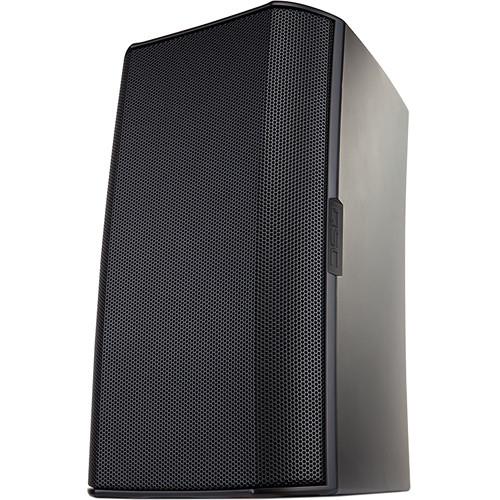

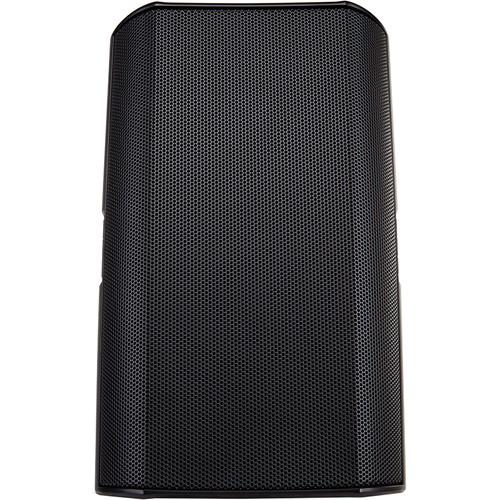

User Manual for QSC AcousticDesign Series AD-S6T 6.5" Two-Way Surface Mount Loudspeakers Click to enlarge the picture
Contents of the user manual for the QSC AcousticDesign Series AD-S6T 6.5" Two-Way
- Product category: Installed Speakers QSC
- Brand: QSC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for QSC Installed Speakers
 |
User manual for the QSC AcousticDesign Series AD-S6T 6.5" Two-Way contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any QSC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official QSC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a QSC product will considerably shorten its lifespan!
|

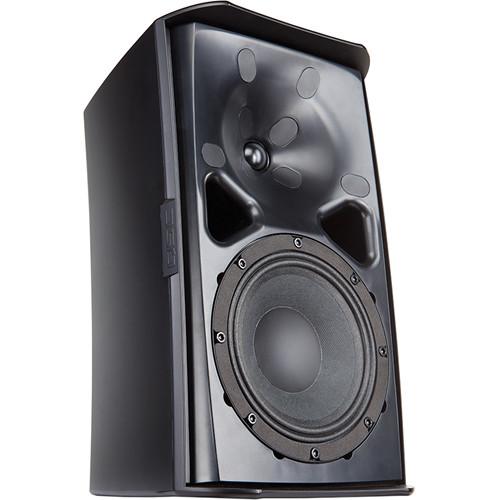

Product description This pair of QSC AcousticDesign Series AD-S6T 6.5” Two-Way Surface Mount Loudspeakers features a weather-treated paper cone woofer on 1.5” voice coil and a 1” silk dome tweeter with 1” voice coil that offers clear sound with a frequency response range of 60 Hz to 20 kHz. This loudspeaker utilizes a 60W low-saturation 70/100V transformer with varying selectable taps, including an 8Ω bypass. The rotary selector is located on the back of the enclosure, protected by a weather grommet.With DMT (Directivity Matched Transition), this loudspeaker matches the directivity patterns of the woofer and the high-frequency waveguide at the crossover point and offers 105° axisymmetric (conical) coverage. The result is a coherent transition between transducers and improved off-axis response. Featuring rugged ABS enclosures, sealed input panel covers, and powder-coated aluminum grilles, the AcousticDesign surface mounted speaker exceed IEC60529 IP-54 ratings for dust and splash resistance.The two-way surface mount loudspeaker includes the X-Mount system for easy installation. Knurled surfaces at the pivot planes ensure the load will not drift or sag over time. Articulation marks allow pre-configuration of the X-Mount while on the ground with no special tools required. The speaker is free of obtrusive logo adornments for aesthetically sensitive installations and is available in black (RAL 9011) finish. They can also be painted to match any decor. - DMT (Directivity Matched Transition) ensures smooth, uniform frequency response over the coverage area
- X-Mount system enables the loudspeaker to be easily installed and deployed at a variety of angles
- Low-saturation and low-loss 70/100V transformers with 8Ω bypass
- Lightweight ABS enclosures for durability
- Sealed input panel cover and powder coated aluminum grilles for added weather resistance
- Meets IEC60529 IP-54 for dust and splash resistance
- Suitable for foreground and background sound reinforcement applications in restaurants, retail, educational institutes, concourses, casinos, transportation terminals, places of worship, or as part of large system ancillary support
- Features a black (RAL 9011) finish
UPC: 684284059451 In the Box QSC AcousticDesign Series AD-S6T 6.5" Two-Way Surface Mount Loudspeakers (Pair, Black) X-Mount Mounting System Euroblock Connector Input Panel Cover Limited 3-Year Warranty Brochure PDF 469.2kbuwdfqutwddtrffttyratybzdetrey Table of Contents
|
Upload User Manual
Have you got an user manual for the QSC AcousticDesign Series AD-S6T 6.5" Two-Way Surface Mount Loudspeakers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersQSC AD-S6T-BK Specs | Frequency Range | 60 Hz to 20 kHz Free-field, -10 dB from on-axis sensitivity | | Noise Rating | Power: 150 W
Voltage: 35 Vrms IEC60268-1 noise signal for 2 hours | | Sensitivity | Broadband: 89 dB SPL On-Axis, free-field sensitivity, 2.83 V, 3.3' (1.0 m) | | Coverage Angle | At -6 dB: 105° (500 Hz to 5 kHz) | | Directivity Index | 7 dB | | Maximum SPL | Continuous: 110 dB
Peak: 116 dB Calculated from rated noise voltage and sensitivity | | Rated Impedance | 8 Ω | | Transformer Taps | 70 V: 60, 30, 15, 7.5 W and 8 Ω bypass
100 V: 60, 30, 15 W and 8 Ω bypass | | High Frequency Transducer | 1.0" (2.5 cm) silk dome tweeter / 1.0" (2.5 cm) voice-coil horn loaded | | Low Frequency Transducer | 6.5" (16.5 cm) weather resistant paper cone woofer / 1.5" (3.8 cm) voice-coil | | Input Connector | Euroblock connector with parallel output | | Material of Construction | Enclosure: Painted ABS polymer
Grille: Powder coated aluminum
X-Mount: Powder coated aluminum | | Ingress Protection Rating | IP-54 | | Operating Environment | indoor and outdoor use | | Testing | Salt Fog: MIL-STD-810G Method 509.5 for 100 hours
Humidity: MIL-STD-810G Method 507.5, Natural cycle B2, cyclic high RH for 7 days
High and Low Temperature: Tested to QSC internal standards between -4 to 122°F (-20 to 50°C) | | Operating Temperature | -4 to 122°F (-20 to 50°C) | | Dimensions | 14.4 x 8.5 x 8.5" (36.5 x 21.5 x 21.5 cm) | | Weight | 13.6 lb (6.2 kg) | | | | Package Weight | 33.0 lb | | Box Dimensions (LxWxH) | 20.0 x 12.0 x 12.0" |
