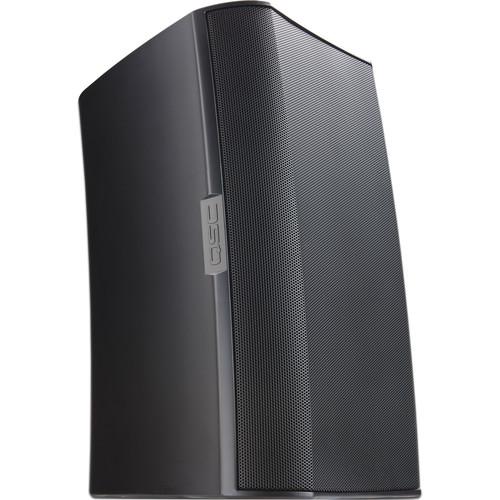

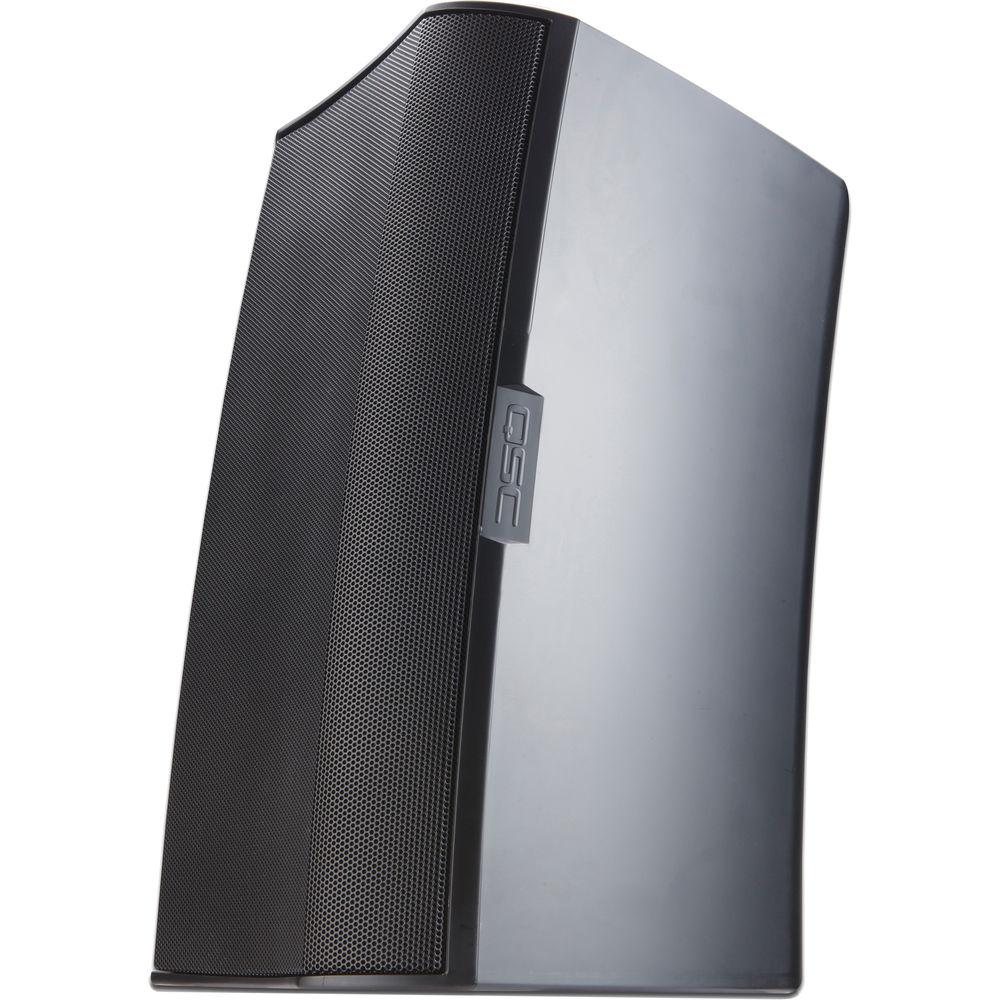

User Manual for QSC AD-S10T 10" 2-Way AcousticDesign Surface Mount and Loudspeaker Click to enlarge the picture
Contents of the user manual for the QSC AD-S10T 10" 2-Way AcousticDesign Surface
- Product category: Installed Speakers QSC
- Brand: QSC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for QSC Installed Speakers
 |
User manual for the QSC AD-S10T 10" 2-Way AcousticDesign Surface contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any QSC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official QSC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a QSC product will considerably shorten its lifespan!
|

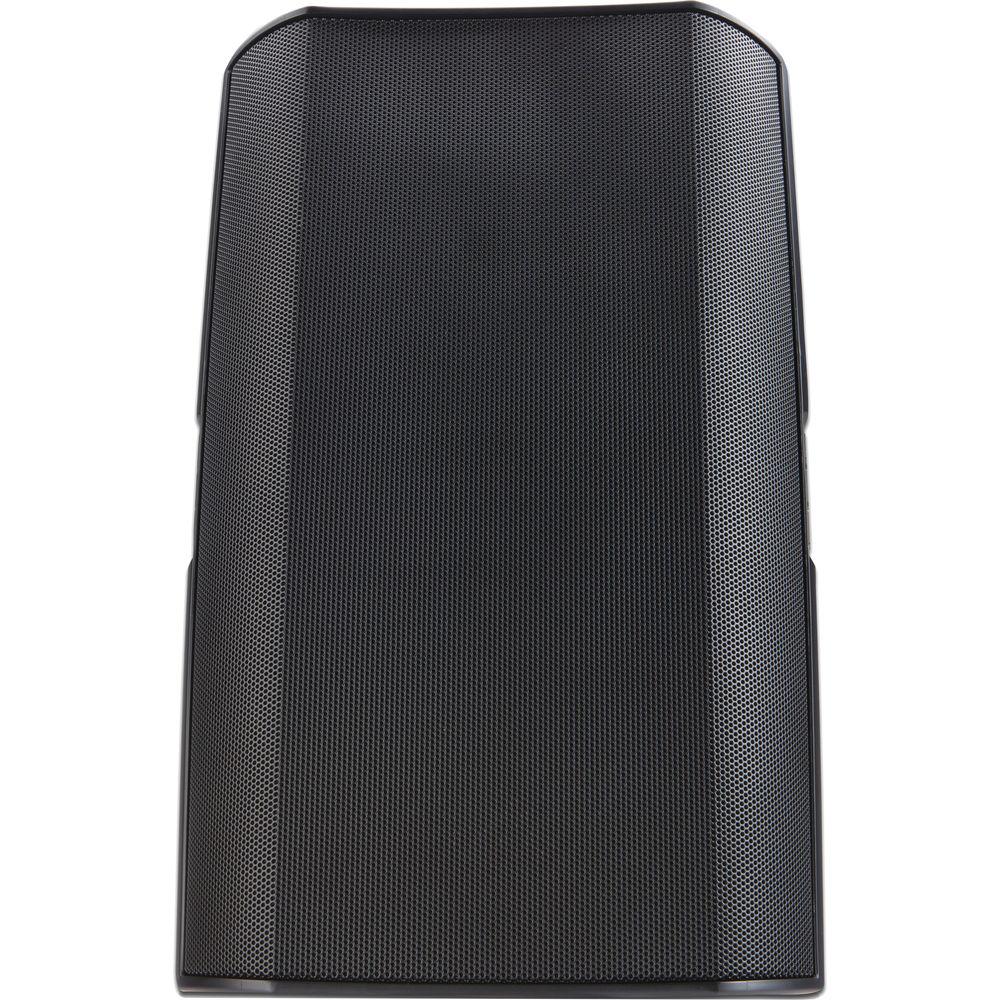

Product description The black AD-S10T 10" 2-Way AcousticDesign Surface Mount and Loudspeaker from QSC is designed to serve as a versatile, all-weather device. The speaker uses DMT (Directivity Matched Transition) technology to provide a uniform frequency response over the axisymmetric coverage area. The ABS polymer enclosures, sealed input panel covers, and powder coated aluminum grille allow for indoor and outdoor use.

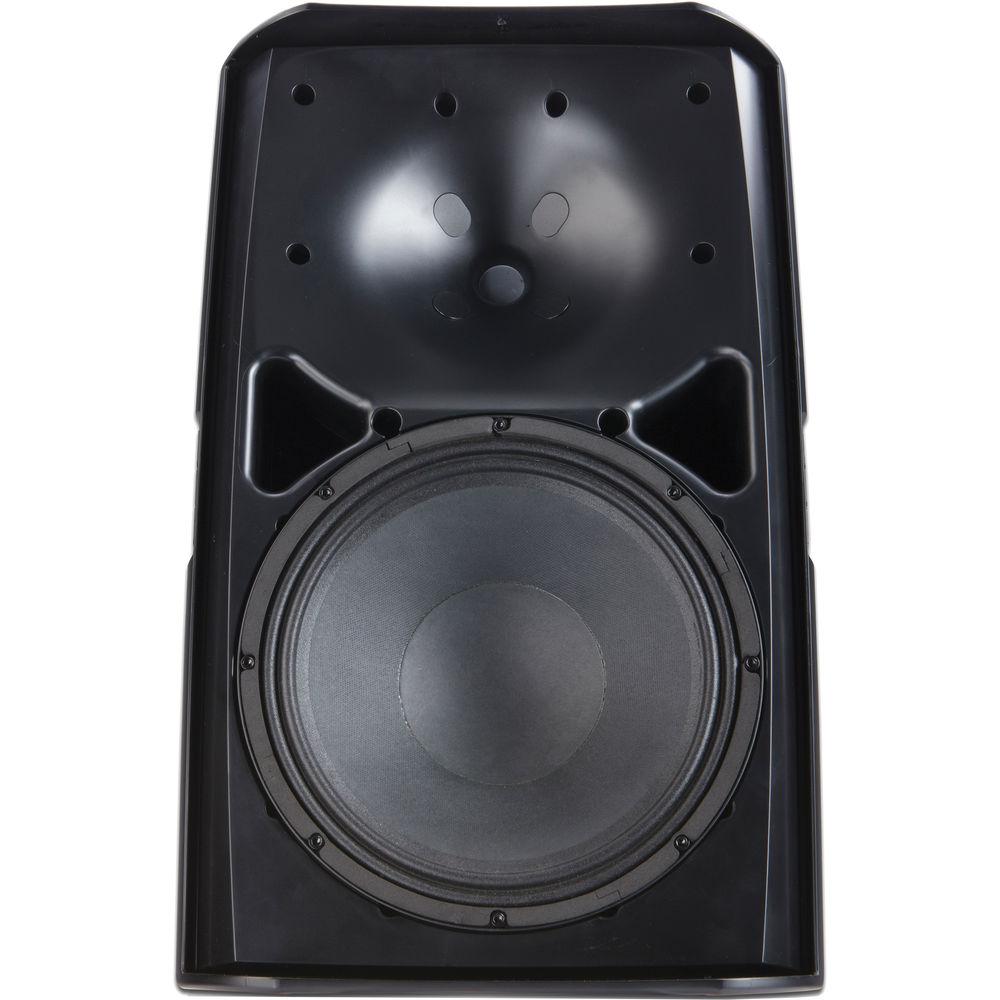

The included X-Mount System is designed to offer simple installation. Articulation marks allow the loudspeaker to be pre-installed on the ground and knurled surfaces at the pivot planes work to prevent the speaker from drifting or sagging over time. - 10" weather treated woofer with 1.4" compression driver
- 90° axisymmetric (conical) coverage
- DMT (Directivity Matched Transition) for uniform frequency over the coverage area
- X-Mount system included for mounting
- Designed for indoor and outdoor use
- Sealed input panel cover and powder coated aluminum grille
- Meets IEC60529 IP-54 for dust and splash resistance
UPC: 684284059499 In the Box QSC AD-S10T 10" 2-Way AcousticDesign Surface Mount and Loudspeaker (Black) X-Mount Mounting System Euroblock Connector Input Panel Cover Limited 3-Year Warranty Brochure PDF 328.7kb Table of Contents
|
Upload User Manual
Have you got an user manual for the QSC AD-S10T 10" 2-Way AcousticDesign Surface Mount and Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersQSC AD-S10T-BK Specs | Frequency Range | 50 Hz to 19 kHz | | Noise Power | 250 W / 45 V (rms) | | Sensitivity | 92 dB SPL | | Coverage Angle | (-6 db): 90° | | Directivity Factor | 10 | | Directivity Index | 10 dB | | Maximum Sound Pressure Level (SPL) | Continuous: 116 dB
Peak: 122 dB | | Impedance | 8 Ω | | Recommended Amp Power | 500 W | | Transformer Taps | 70 V: 100, 50, 25, 12.5 W and 8 Ω bypass
100 V: 100, 50, 25 W and 8Ω | | High Frequency Transducer | 1" exit / 1.4" voice coil compression driver | | Low Frequency Transducer | 10" weather resistant paper cone woofer | | Input Connector | Euroblock connector with parallel output terminals | | Weight | 31.0 lb (14.1 kg) | | Dimensions | 20.3 x 12.5 x 11.7" (51.6 x 31.8 x 29.8 cm) | | | | Package Weight | 43.6 lb | | Box Dimensions (LxWxH) | 32.0 x 16.0 x 16.0" |
