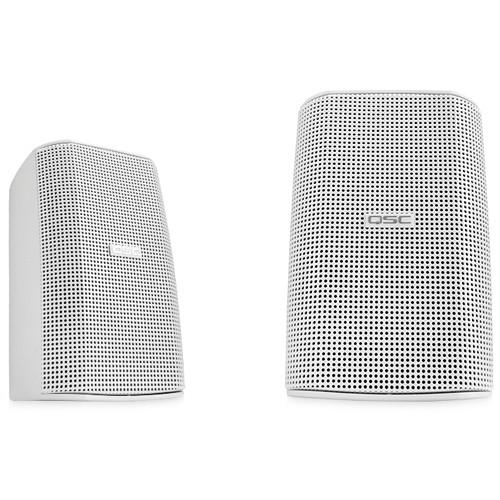

User Manual for QSC AD-S32T AcousticDesign Surface Mount Speakers Click to enlarge the picture
Contents of the user manual for the QSC AD-S32T AcousticDesign Surface Mount Speakers
- Product category: Installed Speakers QSC
- Brand: QSC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for QSC Installed Speakers
|
User manual for the QSC AD-S32T AcousticDesign Surface Mount Speakers contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any QSC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official QSC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a QSC product will considerably shorten its lifespan!
|
Product description This pair of white QSC AD-S32T AcousticDesign Surface Mount Speakers is from the AcousticDesign Series of loudspeakers. These speakers, though compact, provide powerful sound and can virtually be installed anywhere, vertical or horizontal thanks to the included yoke mount. Rated for indoor or outdoor use the AD-S32T speakers are specifically meant for playback of background or basic audio.
The speakers feature a 3" woofer with a polypropylene cone, a synthetic rubber surround driver for optimizing low frequencies (below 70Hz) and an additional humbucking magnet for AV shielding. A 0.75" dome titanium diaphragm dome tweeter with a cloth surround handles high frequencies. A 70/100V transformer with multiple taps and an 8 ohm bypass is also featured. - The surface mount AD-S32T speakers are part of the QSC AcousticDesign Series of loudspeakers
- The compact and sleek design allow these speakers to blend in with any decor
- Specifically made for background and basic audio playback
- Are rated for indoor and outdoor use
- Can be mounted vertically or horizontally in a variety of settings
- The AD-S32T speakers feature a 3" polypropylene cone woofer, a 0.75" titanium dome tweeter, 30W of continuous power handling with a 120W peak and a 70/100V multitap transformer with 8 Ohm bypass
UPC: 684284053978 In the Box QSC AD-S32T AcousticDesign Surface Mount Speakers (Pair, White) 2 x AD-S32T Loudspeakers 2 x Ball Mount Assembly 2 x Input Cover 2 x Input Cover Gasket 2 x Input Strain Relief Bushing 4 x #6-32 x 1/2 Long Pan Head Phillips Screws 2 x Yoke Mount 2 x Yoke Mount Knobs User Manual 3-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the QSC AD-S32T AcousticDesign Surface Mount Speakers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersQSC AD-S32T-WH Specs | Frequency Response | 80-20kHz (-6dB)
75hz-20kHz (-10dB) | | Power Rating | rms (IEC 100 hrs): 30W rms
recommended amp power: 60W rms | | Maximum Output | 99dB SPL continuous rms output
106dB SPL peak output | | Nominal Sensitivity | 85dB, 1W, 1 meter, free field (4 pi) | | Impedance | 8 Ohms nominal
6.7 Ohms minimum, 300Hz
31 Ohms maximum, 150Hz | | | | Low Frequency Driver | 3" (76.2mm) Magnetically shielded | | High Frequency Driver | 3/4" Titanium dome, neodymium magnet structure | | Enclosure Material | High impact polystyrene, removable aluminum grill | | Input Connections | Screw terminal connector for wire, bare wire or spade lugs | | Dimensions | Not Specified by Manufacturer | | Weight | 4 lbs (1.8kg) pair | | | | Package Weight | 10.75 lb | | Box Dimensions (LxWxH) | 16.3 x 12.5 x 7.0" |
