User Manual for QSC AD-S82 8" AcousticDesign Surface Mount Weather-Resistant Loudspeaker System with IntelliDock Mounting System & Transformer Click to enlarge the picture
Contents of the user manual for the QSC AD-S82 8" AcousticDesign Surface Mount
- Product category: Installed Speakers QSC
- Brand: QSC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for QSC Installed Speakers
|
User manual for the QSC AD-S82 8" AcousticDesign Surface Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any QSC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official QSC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a QSC product will considerably shorten its lifespan!
|

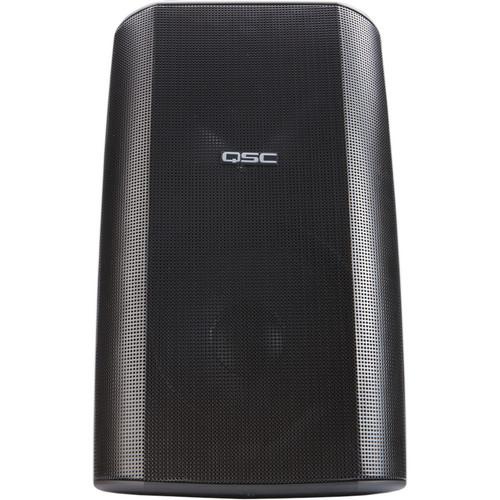

Product description The black AD-S82 8" AcousticDesign Surface Mount Weather-Resistant Loudspeaker System from QSC includes an 8" 2-way full range loudspeaker housed in a lightweight, multipurpose enclosure that features a heavy-duty, powder coated aluminum grille. The system also includes an IntelliDock intelligent mounting system which comes with a mounting plate and detachable docking station that incorporates termination points for wiring. The full-range, surface mount AD-S82 Loudspeaker features sleek, contemporary styling that fits well into multiple environments and applications including hotels, restaurants, convention facilities, and multimedia environments. The unit employs a 1" pure titanium dome tweeter. The 90° x 60° Advanced Directivity rotatable waveguide allows the loudspeaker to deliver accurately focused sound, regardless of the enclosure’s mounted orientation. The ported enclosure of the loudspeaker is made from injection molded, high-impact polystyrene. It incorporates an 8" weatherproof, LF transducer with a heavy-duty double roll cloth surround. The system comes with a 70/100V custom low-distortion laminated core, wide bandwidth designed transformer. The speaker incorporates QSC’s revolutionary IntelliDock intelligent mounting system combined with the Advanced Directivity rotatable waveguide. The IntelliDock intelligent mounting system raises the bar for ease of installation and security. The IntelliDock docking station combines all the components needed to mount, wire, and position the speaker into a single housing—independent from the enclosure. The speaker enclosure locks onto the docking station in one step, simultaneously making electrical connections and holding the speaker in place. This exceptional design carries the added benefit of security—reducing the possibility of theft. So when opening night arrives, just snap the enclosures onto the docking stations, feed the program material, and you’re ready. - Contemporary style, weather-resistant enclosure and components suitable for a wide range of applications
- 8" 2-way full range loudspeaker housed in a lightweight, multipurpose enclosure featuring a heavy-duty, powder coated aluminum grille
- IntelliDock intelligent mounting system consists of a mounting plate and detachable docking station that incorporates termination points for wiring
- IntelliDock benefits include installation ease and reduced chance of enclosure theft
- Advanced Directivity rotatable waveguide (90° x 60°) enables the loudspeaker to deliver accurately focused sound, regardless of the enclosure's mounted orientation
- Power handling capabilities suitable for a multitude of environments, with built-in dynamic power protection during overload conditions
- Suitable for use in hotels, restaurants, convention facilities, and multimedia environments
- Ported enclosure of the loudspeaker is made from injection molded, high-impact polystyrene
- Enclosure incorporates an 8" weatherproof, LF transducer with a heavy-duty double roll cloth surround
- Employs a 1" pure titanium dome tweeter
- IntelliDock docking station combines all the components needed to mount, wire, and position the speaker into a single housing-independent from the enclosure
- Includes a 70/100V custom low-distortion laminated core, wide bandwidth designed transformer
- Speaker enclosure locks onto the docking station in one step, simultaneously making electrical connections and holding the speaker in place
In the Box QSC AD-S82 8" AcousticDesign Surface Mount Weather-Resistant Loudspeaker System with IntelliDock Mounting System & Transformer (Black) IntelliDock Mounting Hardware with Transformer Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the QSC AD-S82 8" AcousticDesign Surface Mount Weather-Resistant Loudspeaker System with IntelliDock Mounting System & Transformer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersQSC AD-S82 ID8T SYSTEM-B Specs Configuration | Compact 2-way, ported enclosure | Transducer | Low-frequency Transducer: 8" fiberglass cone, 1 1/4" voice coil High-frequency Transducer: 1" titanium dome tweeter with neodymium magnet | Frequency Range | 85 Hz to 18 kHz at -6 dB Useable Frequency Range: 65 Hz to 19 kHz at -10 dB All frequency ranges specified refer to measured free field response (full space, 4π). | Maximum Output | Peak Output: 117 dB SPL Continuous Output: 111 dB SPL | Nominal Impedance | 8 Ω (5.4 Ω minimum, 15 kHz, 50 Ω maximum) | Power Rating | RMS Power Handling: 110 W (8 hours IEC), 90 W (100 hours IEC) Recommended Max Amp Power: 180 W RMS Maximum input power tested in accordance with IEC 268-5 recommendations, 50 Hz to 20 kHz band limiting, 6 dB signal crest factor | Limiting | Dynamic, full range power protection circuitry activated by signal overload conditions | Sensitivity | 90.5 dB, 3.3' (1.0 m), free field | Nominal Coverage Angle | (H x V): 90° x 60° (-6 dB) rotatable to 60° x 90° | Transformer | Custom low distortion laminated core, wide bandwidth design | Transformer Taps | 70 V: 60, 30, 15, 7.5, W | 100 V: 60, 30, 15, W | Enclosure Material | Injection molded, weather resistant, high-impact polystyrene | Grille | Heavy-duty powder coated aluminum | Connectors | Pair of concealed 5-way binding posts, in conjunction with IntelliDock mounting/connection system | Mounting Hardware | IntelliDock | Dimensions (H x W x D) | 17.36 x 10.03 x 14.62" (440.94 x 254.76 x 371.34 mm) | Weight | Speaker: 16.9 lb (7.7 kg) IntelliDock with Transformer: 6.3 lb (2.9 kg) | | Package Weight | 29.2 lb | Box Dimensions (LxWxH) | 24.0 x 21.0 x 15.0" |
