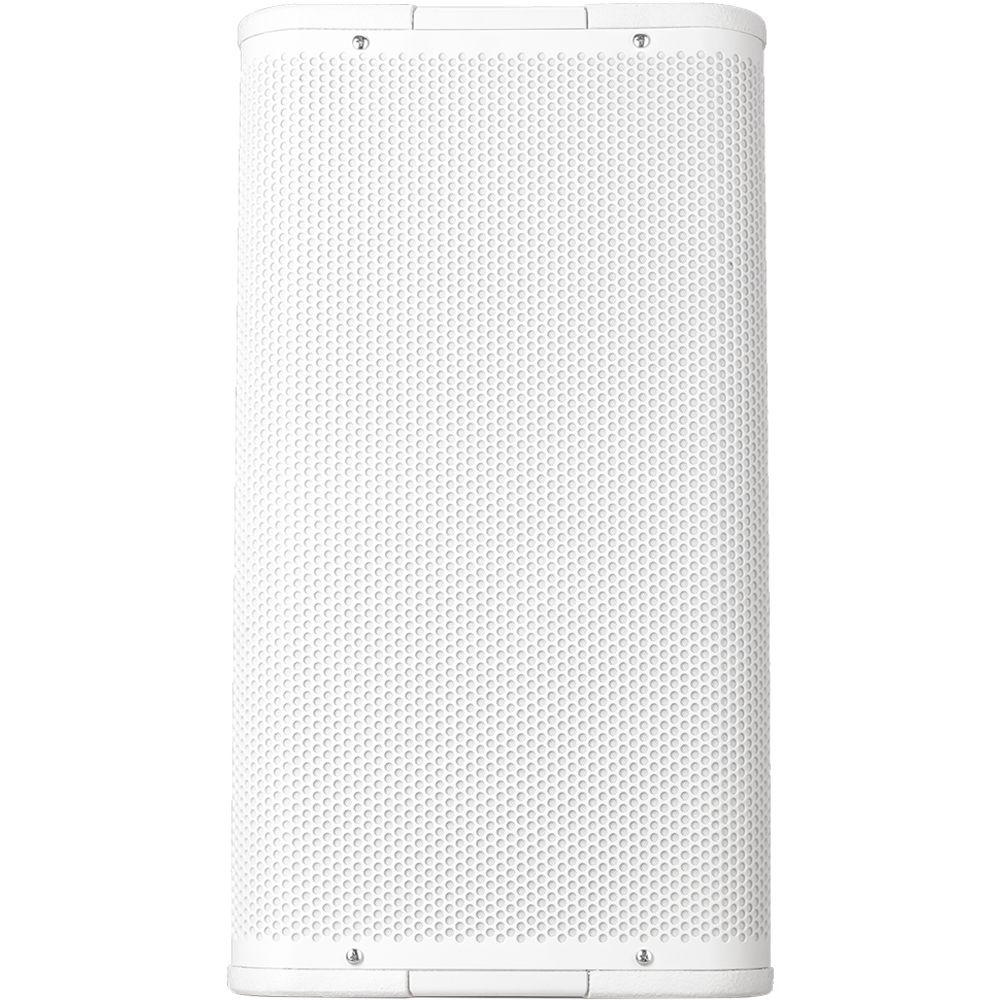

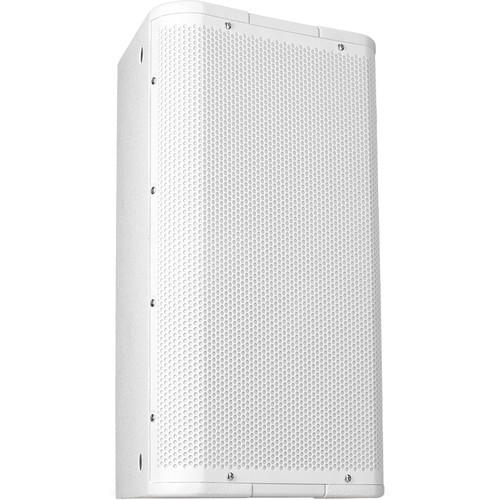

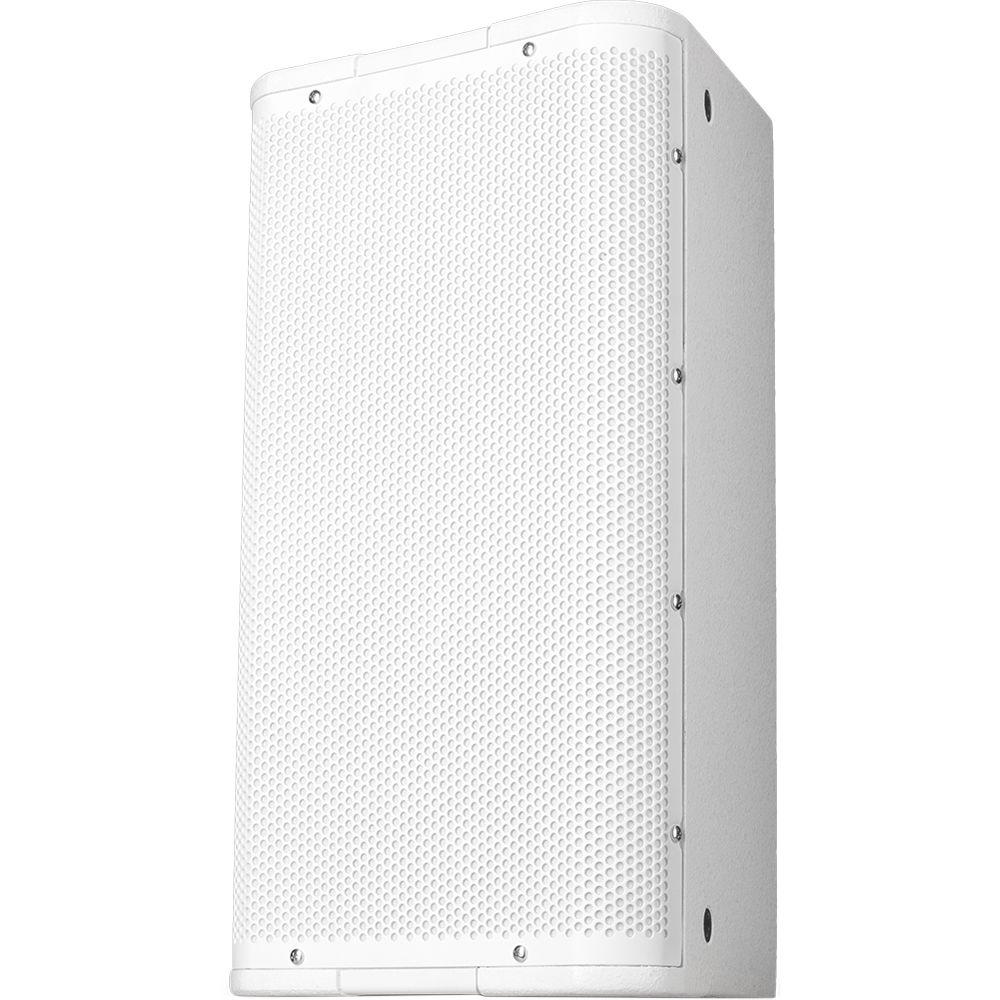

Product description Designed for the latest immersive sound surround formats, the white QSC AP-5102 Acoustic Performance Cinema Surround Loudspeaker provides uniform power-response from the Directivity Matched Transition (DMT) technology that matches the LF and HF coverage in the crossover region, as well as the axisymmetric waveguide for an uncompromised performance in both the vertical and horizontal axes. The wide 105° dispersion provides ideal coverage for large seating areas in a room with low-ceiling height.
The 15mm Baltic birch enclosure houses a 10" woofer and 3" compression driver, which combine for a frequency response of 60 Hz to 18 kHz (-10 dB) and a maximum SPL of 127 dB (peak). The loudspeaker can be used passively or bi-amped and accepts NL4 or barrier strip inputs connectors. QSC recommends a 720W amplifier capable of driving 8 Ohms. The QSC AP-5102 includes 15 threaded M10 insert points. -
- High-output loudspeaker for immersive sound surround formats
- DMT (Directivity Matched Transition) ensures smooth, coherent power response throughout the listening area
- Axisymmetric horn
- 10" woofer with 3.0" voice coil
- 3.0" voice coil compression driver with 1.4" exit
- M10 threaded inserts and yoke mount fittings offer flexible and safe deployment options for a variety of applications

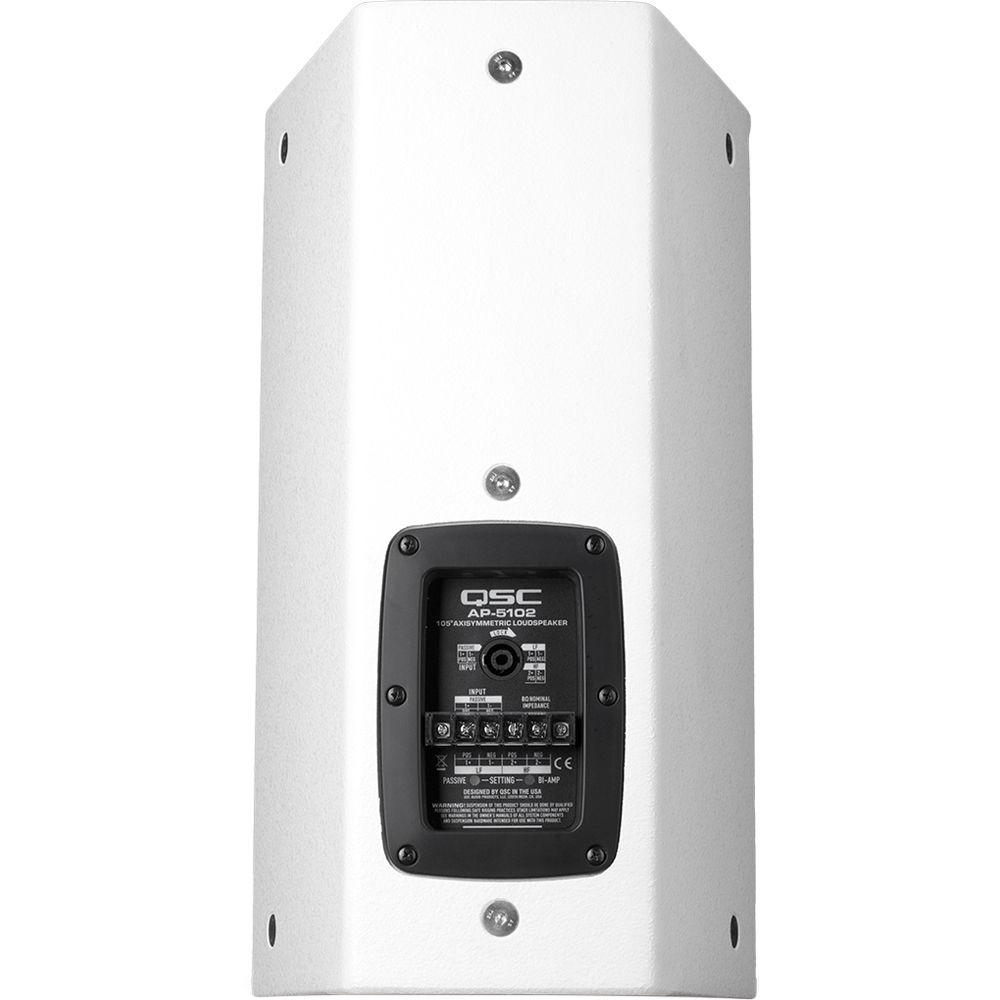

- NL4 SpeakON connector and covered barrier strip terminals
- Bi-Amp / Passive switchable
- Clean industrial design with unadorned grilles complement most decors and settings
- 15-ply Baltic birch plywood construction
- 16-gauge powder-coated steel grilles
In the Box QSC AP-5102 10" Two-Way Acoustic Performance Cinema Surround Loudspeaker (White) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the QSC AP-5102 10" Two-Way Acoustic Performance Cinema Surround Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersQSC AP-5102-WH Specs | | | Configuration | 2-Way | | Total Power Capacity | Passive:
450 W
Bi-Amp / HF:
80 W
Bi-Amp / LF:
450 W | | System Impedance | 8 Ohms (Nominal) | | | | HF Driver | 1 x 3" / 76.2 mm Compression Driver with 1.4" / 35.6 mm Throat | | LF Driver | 1 x 10" / 254 mm Woofer | | LF Voice Coil | 3" / 76.2 mm | | Magnet | HF:
Ferrite
LF:
Ferrite | | | | Frequency Response | 60 Hz to 18 kHz -10 dB | | Maximum SPL | 121 dB (Continuous, Passive)
127 dB (Peak, Passive)
127 dB (HF, Continuous, Bi-Amp)
133 dB (HF, Peak, Bi-Amp)
121 dB (LF, Continuous, Bi-Amp)
127 dB (LF, Peak, Bi-Amp) | | Coverage Angle | 105° H x 105° V | | Directivity Index | 6.6 dB (Directivity Index)
4.6 dB (Directivity/Q Factor) | | Speaker Sensitivity | 94 dB | | | | Audio I/O | Barrier Strip
speakON NL4 Barrier Strip is Covered | | | | Mounting | 15 x M10 | | Construction Material | Metal Grille, Plywood | | Dimensions | 22.0 x 12.0 x 10.5" / 559.0 x 305.0 x 267.0 mm | | Weight | 48 lb / 21.8 kg |
