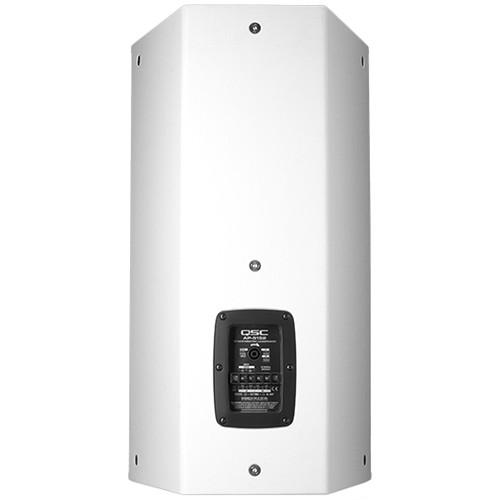

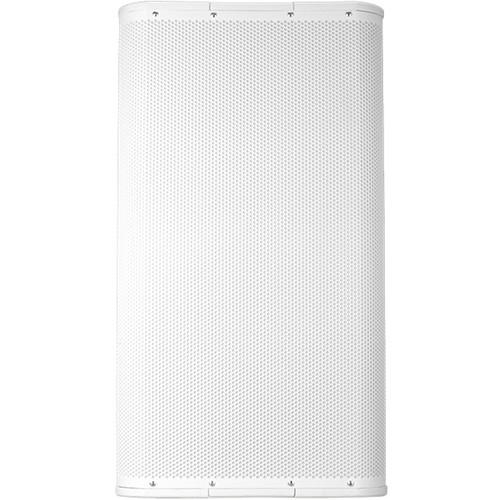

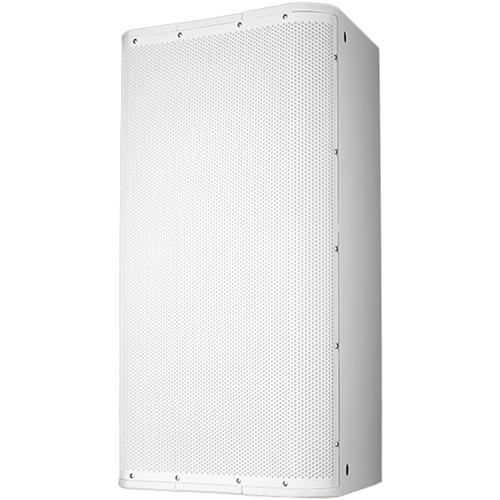

User Manual for QSC AP-5152 15" Two-Way Acoustic Performance Cinema Surround Loudspeaker Click to enlarge the picture
Contents of the user manual for the QSC AP-5152 15" Two-Way Acoustic Performance
- Product category: In-Wall Speakers QSC
- Brand: QSC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for QSC In-Wall Speakers
 |
User manual for the QSC AP-5152 15" Two-Way Acoustic Performance contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any QSC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official QSC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a QSC product will considerably shorten its lifespan!
|
Product description Designed for the latest immersive sound surround formats, the white QSC AP-5152 Acoustic Performance Cinema Surround Loudspeaker provides uniform power response from the Directivity Matched Transition (DMT) technology that matches the LF and HF coverage in the crossover region, as well as the axisymmetric waveguide for an uncompromised performance in both the vertical and horizontal axes. The wide 75° dispersion provides ideal coverage for large seating areas in a room with low-ceiling height.
The 15mm Baltic birch enclosure houses a 15" woofer and 3" compression driver, which combine for a frequency response of 44 Hz to 18 kHz (-10 dB) and a maximum SPL of 129 dB (peak). The loudspeaker can be used passively or bi-amped and accepts NL4 or barrier strip input connectors. QSC recommends an 1000W amplifier capable of driving 8 Ohms. The QSC AP-5152 includes 15 threaded M10 insert points. -
- High-output loudspeaker for immersive sound surround formats
- DMT (Directivity Matched Transition) ensures smooth, coherent power response throughout the listening area
- Axisymmetric horn
- 15" woofer with 4" voice coil
- 3.0" voice coil compression driver with 1.4" exit
- M10 threaded inserts and yoke mount fittings offer flexible and safe deployment options for a variety of applications
- NL4 SpeakON connector and covered barrier strip terminals
- Bi-Amp / Passive switchable
- Clean industrial design with unadorned grilles complement most decors and settings
- 15-ply Baltic birch plywood construction
- 16-gauge powder-coated steel grilles
In the Box QSC AP-5152 15" Two-Way Acoustic Performance Cinema Surround Loudspeaker (White) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the QSC AP-5152 15" Two-Way Acoustic Performance Cinema Surround Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersQSC AP-5152-WH Specs | | | Configuration | 2-Way | | Total Power Capacity | Passive:
650 W
Bi-Amp / HF:
80 W
Bi-Amp / LF:
650 W | | System Impedance | 8 Ohms (Nominal) | | | | HF Driver | 1 x 3" / 76.2 mm Compression Driver with 1.4" / 35.6 mm Throat | | LF Driver | 1 x 15" / 381 mm Woofer | | LF Voice Coil | 4" / 102 mm | | Magnet | HF:
Ferrite
LF:
Ferrite | | | | Frequency Response | 44 Hz to 18 kHz -10 dB | | Maximum SPL | 123 dB (Continuous, Passive)
129 dB (Peak, Passive)
127 dB (HF, Continuous, Bi-Amp)
133 dB (HF, Peak, Bi-Amp)
123 dB (LF, Continuous, Bi-Amp)
129 dB (LF, Peak, Bi-Amp) | | Coverage Angle | 75° H x 75° V | | Directivity Index | 9.2 dB (Directivity Index)
8.3 dB (Directivity/Q Factor) | | Speaker Sensitivity | 96 dB | | | | Audio I/O | Barrier Strip
speakON NL4 Barrier Strip is Covered | | | | Mounting | 15 x M10 | | Construction Material | Metal Grille, Plywood | | Dimensions | 32.0 x 17.5 x 15.2" / 813.0 x 445.0 x 386.0 mm | | Weight | 80 lb / 36.3 kg |
