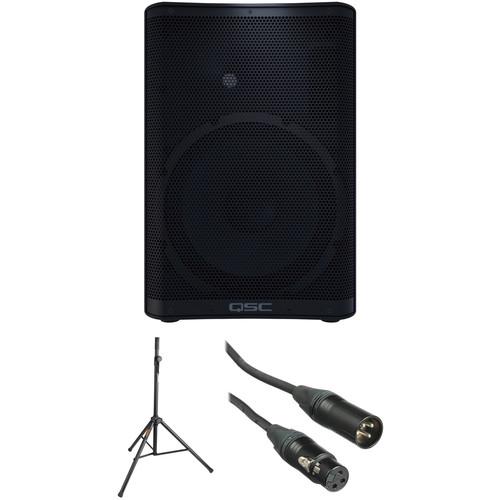

Product description The QSC CP12 Compact Loudspeaker with Stand and Cable Kit from B&H includes the QSC CP12 compact powered loudspeaker, an Auray SS-4420 steel speaker stand, and a premium performance XLR M to XLR F microphone cable. This kit can be used for portable or installed live-sound applications and offers you the ability to mix up a mic/line input and a music playback device for live stage, or as an on-stage PA for intimate clubs and other gigs. - QSC CP12 Compact Powered Loudspeaker The QSC CP12 is a multipurpose loudspeaker suitable for portable or installed live-sound applications. Whether carting the speaker to gigs or installing it on stage as a vocal monitor, you'll find the monitor exhibits a powerful sound.
The monitor gives you the ability to mix up a mic/line input, a line input, and a music playback device, supplying a total of three inputs. Thus, the CP12 can function as your sole PA if you're an acoustic singer/songwriter playing anything from intimate clubs to menu-venue gigs. However, put the monitor on a speaker pole or yoke it to the ceiling, and you'll have secured a dependable element in your club's permanent PA system.
The QSC CP12 is capable of handling up to 1000W peak thanks to its Class-D amplifier, doing so through its 12" cone LF transducer and 1.4" HF compression driver. You can reach SPL values of up to 126 dB, and the construction of the monitors ensures an even frequency response from 49 Hz to 20 kHz.
The rear panel offers controls sure to be useful to your practice, whether it's the one-touch 25 dB Mic Boost switch on input B, or the contour selector switch; the latter tailors the speaker's response to better suit common scenarios such as dance floor, speech address system, and floor monitor. These contours are made possible by the DSP system programmed into the device.
Finally, the unit is relatively compact and portable. It measures 20.3 x 13.8 x 12.7", and weighs 30.3 lb, making it easier to handle than many conventional live-sound monitors or instrument amplifiers. -
- Relatively compact at 23.6 x 16.4 x 16.5"
- 1000W peak-power Class-D amplifier module
- Easily selectable contours for commonly used applications
- DSP with Intrinsic Correction to bolster sound quality and speaker protection
- Directivity Matched Transition (DMT) for consistent frequency response across the entire coverage area
- Lightweight and portable at 30.3 lb
- For use as main PA, stage monitor, or instrument amplifier
- 35mm pole socket
UPC: 684284071323 - Auray SS-4420 Steel Speaker Stand The SS-4420 Steel Speaker Stand from Auray is built for durability and it can support speakers weighing up to 100 pounds. It features a telescoping center column with five height adjustments ranging from 46" to 76". It also features collapsible legs for portability, as well as non-slip feet for traction on surfaces such as dance floors and stages.
- Center column fits 1-3/8" speaker mounts and 1-1/2" adapter is included
- Locking pin fits into any of five predrilled holes to secure desired height setting
- Center brace connects tripod legs for increased stability
UPC: 847628015852 - Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black The black Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable (20') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise. While the cable's color-coding affords the ability to quickly differentiate between multiple connections on stage, it provides a pleasant aesthetic quality at the same time.
Premium Performance 3000 Series cables are made from 24-AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection. - 95% dual-spiral shielding offers protection from EMI and RFI noise
- Twin conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core
- 24-AWG oxygen-free stranded copper inner core provides the best possible conductivity
- Cotton yarn reduces electrostatic and microphonic noise
- All solder points shrink-wrapped for protection
- Neutrik XX silver connectors offer high conductivity
- Caged type contact and improved ground contact
UPC: 847628558304 In the Box - CP12 Compact Powered Loudspeaker cysustqywwdfcyuqyxvfscsb
- Limited 3-Year Warranty upon Product Registration
- Auray - SS-4420 Steel Speaker Stand
- Kopul - Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black
Table of Contents
|
Upload User Manual
Have you got an user manual for the QSC CP12 Compact Loudspeaker with Stand and Cable Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - QSC CP12 Compact Powered Loudspeaker
| | | Configuration | Active 2-Way | | Total Power Capacity | 1000 W | | Amplifier Power Rating | LF:
800 W Peak
HF:
200 W Peak | | Amplifier Class | Class-D | | | | HF Driver | 1 x 1.4" / 35.6 mm Compression Driver | | LF Driver | 1 x 12" / 305 mm Woofer | | | | Frequency Response | 49 Hz to 20 kHz -6 dB
47 Hz to 20 kHz -10 dB | | Maximum SPL | 126 dB | | Coverage Angle | 75° H x 75° V | | | | Audio I/O | 2 x Combo XLR / 1/4" Line/Mic Input
1 x 1/8" / 3.5 mm TRS Input
1 x XLR Mix Output | | | | AC Input Power | Universal:
100 to 240 VAC, 50 / 60 Hz | | Current Consumption | 100 VAC:
0.75 A (1/8 Power)
120 VAC:
1 A (1/8 Power)
240 VAC:
0.31 A (1/8 Power) | | | | Mounting | M10 | | Construction Material | Metal Grille, Polypropylene | | Dimensions | 20.3 x 13.8 x 12.7" / 516.0 x 350.0 x 323.0 mm | | Weight | 30.3 lb / 13.7 kg | | | | Box Dimensions (LxWxH) | 23.5 x 17.0 x 16.5" | - Auray SS-4420 Steel Speaker Stand
| Type | Speaker Stand | | Load Capacity | 100 lb / 45.4 kg | | Mount Size | 1-3/8"
1-1/2" | | Height Adjustment Range | 46 to 76" / 118 to 194 cm | | Material of Construction | Steel | | Weight | 8 lb / 3.6 kg | | | | Box Dimensions (LxWxH) | 39.5 x 5.3 x 5.0" | - Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black
| Connector 1 | 3-Pin XLR Male | | Connector 2 | 3-Pin XLR Female | | Cable Length | 20' / 6.1 m | | Shielding | 95% Spiral | | Wire Gauge | 24 AWG | | Contact Plating | Silver | | | | Box Dimensions (LxWxH) | 8.6 x 7.0 x 0.4" |
