User manual

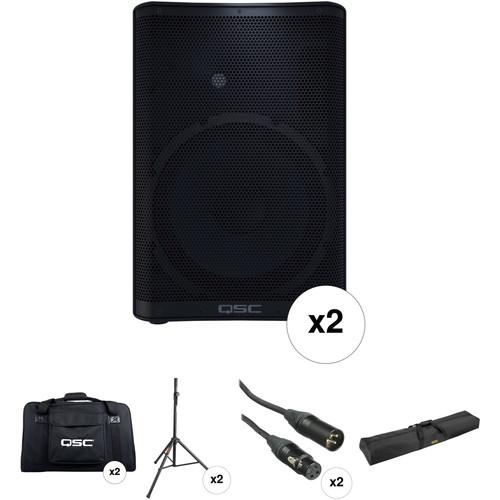

QSC CP12 Compact Loudspeakers with Bags,

User Manual for QSC CP12 Compact Loudspeakers with Bags, Stands, and Cables Kit

• Product category: PA Speakers QSC
• Brand: QSC
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for QSC PA Speakers

Product description

• 2 x QSC CP12 Compact Powered Loudspeaker The QSC CP12 is a multipurpose loudspeaker suitable for portable or installed live-sound applications. Whether carting the speaker to gigs or installing it on stage as a vocal monitor, you'll find the monitor exhibits a powerful sound.

  The monitor gives you the ability to mix up a mic/line input, a line input, and a music playback device, supplying a total of three inputs. Thus, the CP12 can function as your sole PA if you're an acoustic singer/songwriter playing anything from intimate clubs to menu-venue gigs. However, put the monitor on a speaker pole or yoke it to the ceiling, and you'll have secured a dependable element in your club's permanent PA system.

  The QSC CP12 is capable of handling up to 1000W peak thanks to its Class-D amplifier, doing so through its 12" cone LF transducer and 1.4" HF compression driver. You can reach SPL values of up to 126 dB, and the construction of the monitors ensures an even frequency response from 49 Hz to 20 kHz.

  The rear panel offers controls sure to be useful to your practice, whether it's the one-touch 25 dB Mic Boost switch on input B, or the contour selector switch; the latter tailors the speaker's response to better suit common scenarios such as dance floor, speech address system, and floor monitor. These contours are made possible by the DSP system programmed into the device.

  Finally, the unit is relatively compact and portable. It measures 20.3 x 13.8 x 12.7", and weighs 30.3 lb, making it easier to handle than many conventional live-sound monitors or instrument amplifiers.
  • • Relatively compact at 23.6 x 16.4 x 16.5"
    • 1000W peak-power Class-D amplifier module
    • Easily selectable contours for commonly used applications
    • DSP with Intrinsic Correction to bolster sound quality and speaker protection
    • Directivity Matched Transition (DMT) for consistent frequency response across the entire coverage area
    • Lightweight and portable at 30.3 lb
    • For use as main PA, stage monitor, or instrument amplifier
    • 35mm pole socket
  UPC: 684284071323
• 2 x QSC Tote for the CP12 Compact Powered Loudspeaker This QSC Tote is designed for use with the CP12 powered loudspeaker. It allows you to transport the monitor from place to place. The tote sports a weather-resistant construction, fashioned out of heavy-duty cordura nylon material. Pockets are on hand to store cables and other accessories. A strap allows you to carry the tote. UPC: 684284076700
• 2 x Auray SS-4420 Steel Speaker Stand The SS-4420 Steel Speaker Stand from Auray is built for durability and it can support speakers weighing up to 100 pounds. It features a telescoping center column with five height adjustments ranging from 46" to 76". It also features collapsible legs for portability, as well as non-slip feet for traction on surfaces such as dance floors and stages.
  • Center column fits 1-3/8" speaker mounts and 1-1/2" adapter is included
  • Locking pin fits into any of five predrilled holes to secure desired height setting
  • Center brace connects tripod legs for increased stability
  UPC: 847628015852
• 2 x Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black The black Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable (20') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise. While the cable's color-coding affords the ability to quickly differentiate between multiple connections on stage, it provides a pleasant aesthetic quality at the same time.

  Premium Performance 3000 Series cables are made from 24-AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection.
  • 95% dual-spiral shielding offers protection from EMI and RFI noise
  • Twin conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core
  • 24-AWG oxygen-free stranded copper inner core provides the best possible conductivity
  • Cotton yarn reduces electrostatic and microphonic noise
  • All solder points shrink-wrapped for protection
  • Neutrik XX silver connectors offer high conductivity
  • Caged type contact and improved ground contact
  UPC: 847628558304
• Auray Speaker Stand Bag 51" Interior (Black) The Speaker Stand Bag from Auray is a spacious, durable bag designed to hold and protect two speaker stands, six microphone stands, or miscellaneous hardware for DJs, bands, and engineers between gigs, parties, and special events. The 52” rugged nylon bag holds stands up to 51” in length.The smooth, coated interior won’t mar the finish of your stands. Dual large-gauge zippers provide easy and fast access to the bag’s contents. Webbed nylon handles with a padded touch-fastener wrap make carrying the bag, even with one hand, simple and balanced.The Auray logo is embroidered on the front and provides quick, stylish bag identification.
  Durable Protection
  • The heavy-duty nylon exterior resists rips and tears, and protects speaker stands from scuffs and scratches. The smooth, coated interior keeps your stands' finishes looking nice. The bag holds one or two speaker stands, six microphone stands, or miscellaneous hardware up to 51" in length.
  Reliable and Stylish
  • Dual large-gauge zippers allow you to open and close the bag easily on either side or the middle. Nylon extensions on the zippers make them even easier to grab. The Auray logo is embroidered on the front, providing easy bag identification.
  Easy Transport
  • Forget carrying one speaker stand in each hand. Put your stands in the bag, then carry the bag with one hand, thanks to the webbed nylon carry handles and padded handle wrap.
  UPC: 847628002432

• 2 x CP12 Compact Powered Loudspeaker eqzdvrrtwettzszvcxtvewuf
• Limited 3-Year Warranty upon Product Registration

• 2 x Tote for the CP12 Compact Powered Loudspeaker

• 2 x Auray - SS-4420 Steel Speaker Stand

• 2 x Kopul - Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black

• Auray - Speaker Stand Bag 51" Interior (Black)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 2 x QSC CP12 Compact Powered Loudspeaker

  Configuration	Active 2-Way
  Total Power Capacity	1000 W
  Amplifier Power Rating	LF: 800 W Peak HF: 200 W Peak
  Amplifier Class	Class-D

  HF Driver	1 x 1.4" / 35.6 mm Compression Driver
  LF Driver	1 x 12" / 305 mm Woofer

  Frequency Response	49 Hz to 20 kHz -6 dB 47 Hz to 20 kHz -10 dB
  Maximum SPL	126 dB
  Coverage Angle	75° H x 75° V

  Audio I/O	2 x Combo XLR / 1/4" Line/Mic Input 1 x 1/8" / 3.5 mm TRS Input 1 x XLR Mix Output

  AC Input Power	Universal: 100 to 240 VAC, 50 / 60 Hz
  Current Consumption	100 VAC: 0.75 A (1/8 Power) 120 VAC: 1 A (1/8 Power) 240 VAC: 0.31 A (1/8 Power)

  Mounting	M10
  Construction Material	Metal Grille, Polypropylene
  Dimensions	20.3 x 13.8 x 12.7" / 516.0 x 350.0 x 323.0 mm
  Weight	30.3 lb / 13.7 kg

  Box Dimensions (LxWxH)	23.5 x 17.0 x 16.5"

• 2 x QSC Tote for the CP12 Compact Powered Loudspeaker

  Type	Bag
  Material of Construction	Cordura, Nylon

  Box Dimensions (LxWxH)	6.8 x 5.75 x 5.1"

• 2 x Auray SS-4420 Steel Speaker Stand

  Type	Speaker Stand
  Load Capacity	100 lb / 45.4 kg
  Mount Size	1-3/8" 1-1/2"
  Height Adjustment Range	46 to 76" / 118 to 194 cm
  Material of Construction	Steel
  Weight	8 lb / 3.6 kg

  Box Dimensions (LxWxH)	39.5 x 5.3 x 5.0"

• 2 x Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black

  Connector 1	3-Pin XLR Male
  Connector 2	3-Pin XLR Female
  Cable Length	20' / 6.1 m
  Shielding	95% Spiral
  Wire Gauge	24 AWG
  Contact Plating	Silver

  Box Dimensions (LxWxH)	8.6 x 7.0 x 0.4"

• Auray Speaker Stand Bag 51" Interior (Black)

  Material	Nylon
  Type of Closure	Zipper
  Exterior Dimensions (H × W × D)	52 × 5 × 10.5" / 132.1 × 12.7 × 26.7 cm
  Carrying/Transport Options	Dual carry handles with padded touch-fastener wrap
  Weight	1.2 lb / 0.5 kg

  Box Dimensions (LxWxH)	16.6 x 10.8 x 2.2"
